The MikroTik CCR2116-12G-4S+ is a high-performance Cloud Core Router engineered to meet the demanding requirements of enterprise networks, ISPs, data centers, and large-scale business environments. Powered by a powerful 16-core ARM 64-bit CPU with advanced hardware acceleration, it delivers exceptional routing, switching, firewall, VPN, and traffic management performance while maintaining outstanding efficiency under heavy workloads. Equipped with 12 Gigabit Ethernet ports and 4 high-speed 10G SFP+ interfaces, the CCR2116-12G-4S+ provides flexible and scalable connectivity for high-bandwidth applications, making it an excellent choice for network backbones, aggregation layers, and service provider infrastructures. Running MikroTik RouterOS, this enterprise-class router supports a comprehensive range of advanced networking features, including dynamic routing protocols such as BGP, OSPF, RIP, and MPLS, VLANs, QoS, load balancing, advanced firewall protection, IPsec VPN, WireGuard, DHCP, IPv6, hotspot management, and extensive traffic monitoring tools. Its robust architecture ensures reliable operation even in complex and high-density network deployments, while the efficient cooling system and rack-mountable 1U design make it ideal for continuous 24/7 operation in server rooms and data centers. Designed for organizations requiring superior network stability, security, and scalability, the CCR2116-12G-4S+ offers outstanding throughput, low latency, and simplified network management, making it suitable for enterprise campuses, cloud infrastructure, telecommunications providers, financial institutions, educational organizations, government agencies, and mission-critical business applications. Combining exceptional processing power, flexible interface options, enterprise-grade reliability, and the rich functionality of MikroTik RouterOS, the CCR2116-12G-4S+ provides a cost-effective networking solution for businesses seeking maximum performance, future-ready scalability, and dependable long-term operation.
CCR2116-12G-4S+
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Model Name | CCR2116-12G-4S+ |
Product Series | MikroTik Cloud Core Router (CCR) Enterprise Series | |
Device Type | High-performance Layer 3 Gigabit/10G Managed Router | |
Target Application | ISP, Data Center, Enterprise Core Network, High-bandwidth Routing, VPN Gateway, Firewall Deployment | |
Operating System | RouterOS (License Level 6, pre-installed) | |
Hardware Specifications | CPU | Amazon Annapurna Labs Alpine v3 AL73400, 16-core ARM 64-bit, 2 GHz per core |
RAM | 16 GB DDR4 | |
Storage | 128 MB NAND Flash (for system storage) | |
Switch Chip | Marvell Aldrin 98DX3255 | |
Expansion Slot | 1 x M.2 PCIe Gen 3.0 x4 slot (supports NVMe M.2 2280mm M-key SSD) | |
Port Configuration | 10/100/1000BASE-T Ethernet Ports | 13 ports (12 ports connected to switch chip, 1 port directly connected to CPU for management) |
10G SFP+ Ports | 4 x 10G SFP+ slots (full-duplex, connected to dedicated switch chip) | |
Management Interfaces | 1 x RJ45 Console Port | |
Performance & Processing | Layer 3 Hardware Offloading | Supported (wire-speed routing performance) |
Switching Capacity | Non-blocking wire-speed switching | |
Jumbo Frame Support | Supported | |
Routing Table Capacity | Large-scale BGP/OSPF routing table support | |
Firewall & Queue Performance | High single-core performance for complex queue, firewall and NAT operations | |
Network Features | Layer 3 Protocols | BGP, OSPF, RIP, IS-IS, Static Routing, Inter-VLAN Routing |
Layer 2 Features | 802.1Q VLAN, IGMP/MLD Snooping, DHCP Snooping with Option 82, Port Mirroring, Port Isolation, Storm Control | |
Security Features | Firewall, NAT, VPN (IPsec, L2TP, PPTP, SSTP), Access Control List (ACL), DoS Attack Protection, User Authentication | |
QoS Features | Traffic Shaping, Policing, Queue Management, 802.1p CoS/DSCP Mapping | |
MPLS | Hardware-offloaded MPLS support | |
Physical & Environmental Specifications | Dimensions (W × D × H) | 443 mm × 199 mm × 44 mm (1U rack-mountable) |
Form Factor | 1U Rack-mountable / Desktop placement | |
Operating Temperature | -20°C to +60°C | |
Storage Temperature | -40°C to +70°C | |
Operating Humidity | 10%–90% non-condensing | |
Cooling Design | Fanless silent design | |

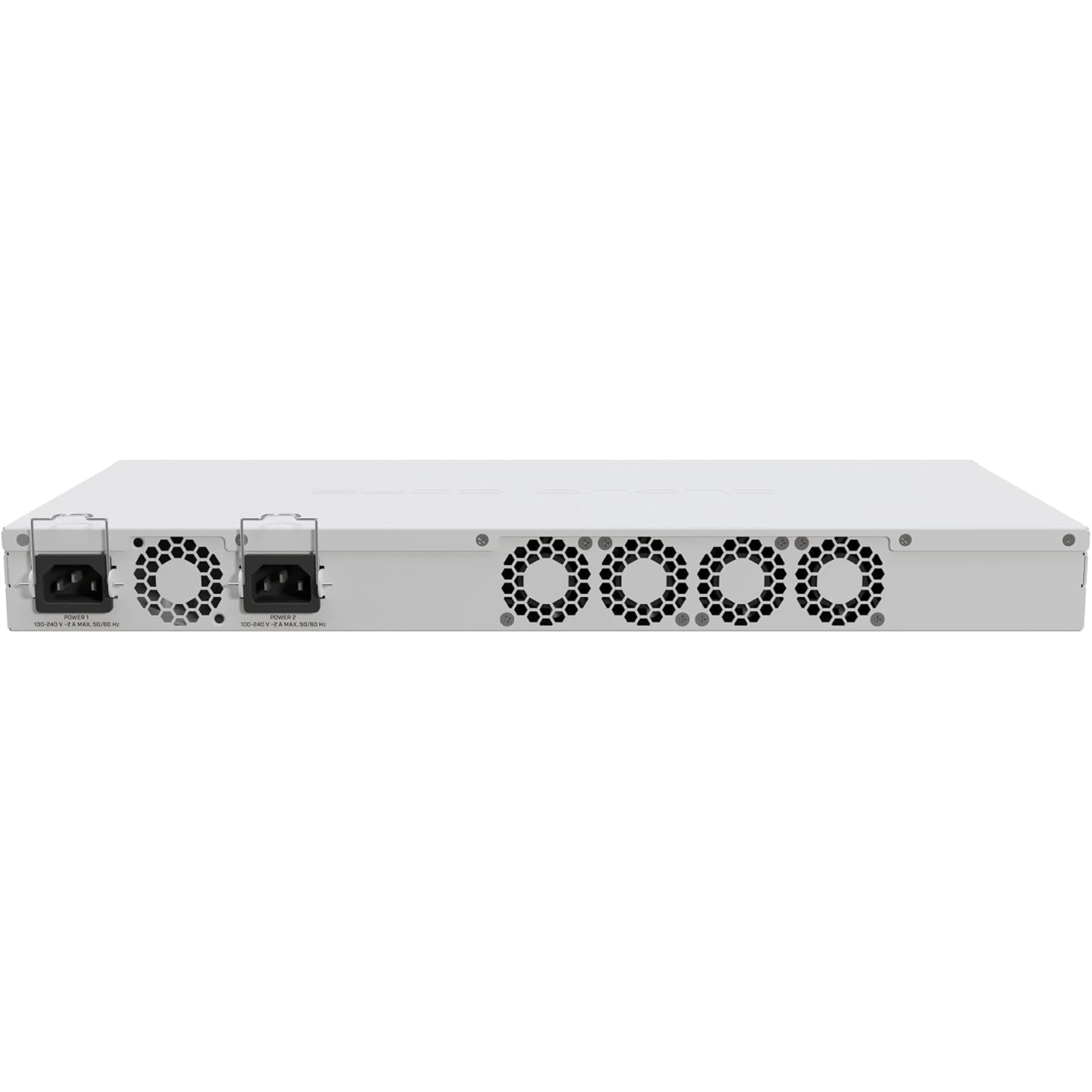

Power Supply | Power Input | 2 x redundant AC power inputs, 100–240 V AC, 50/60 Hz |
Nominal Power Adapter | 12 V DC, 10.8 A | |
Max Power Consumption | 72 W (with attachments), 60 W (without attachments) | |
Certification & Compliance | Industry Certifications | CE, FCC, IC |
Standards Compliance | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p | |

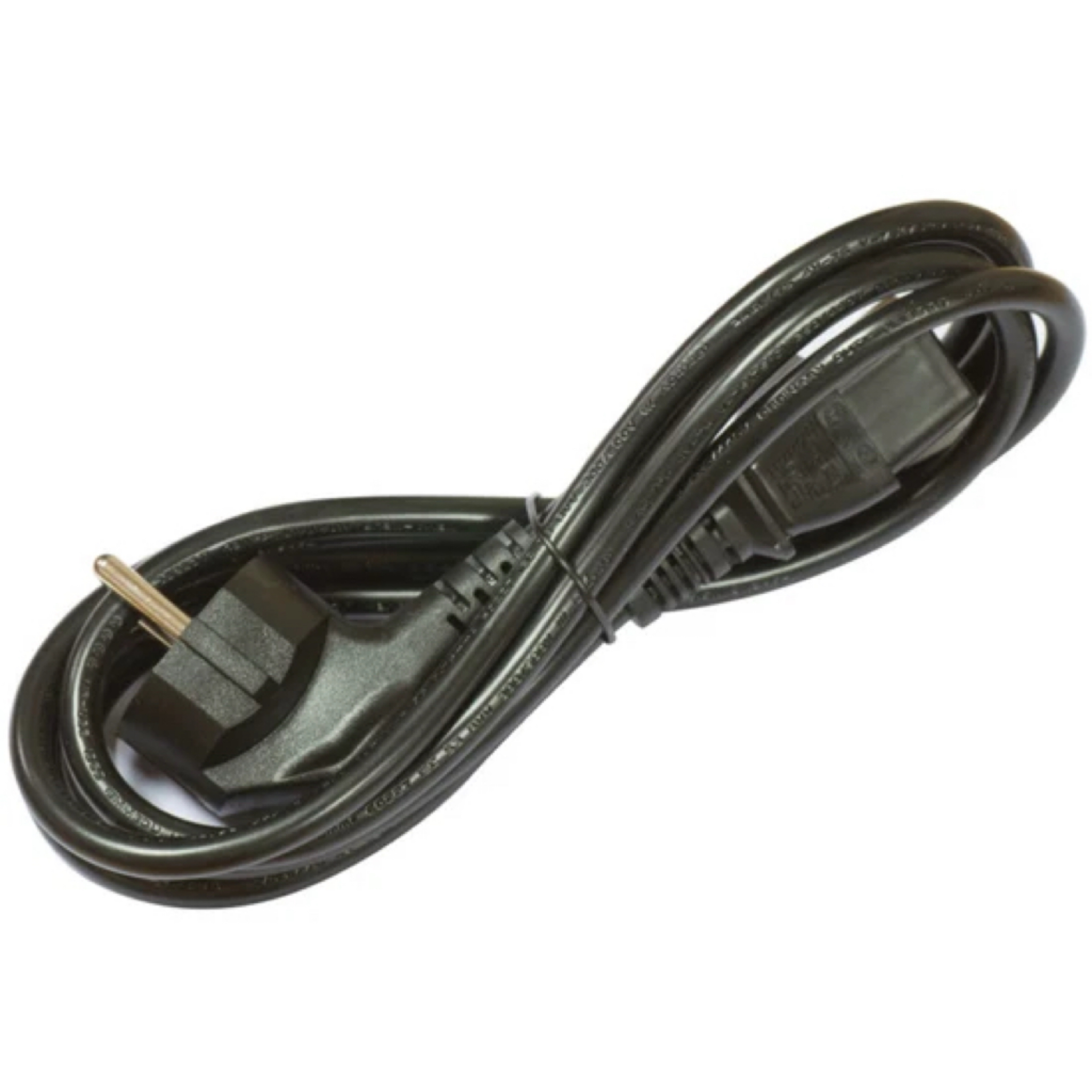

Included Accessories | Standard Package Contents | 2 x Power cords, Rackmount brackets (white), Fastening screw set |
