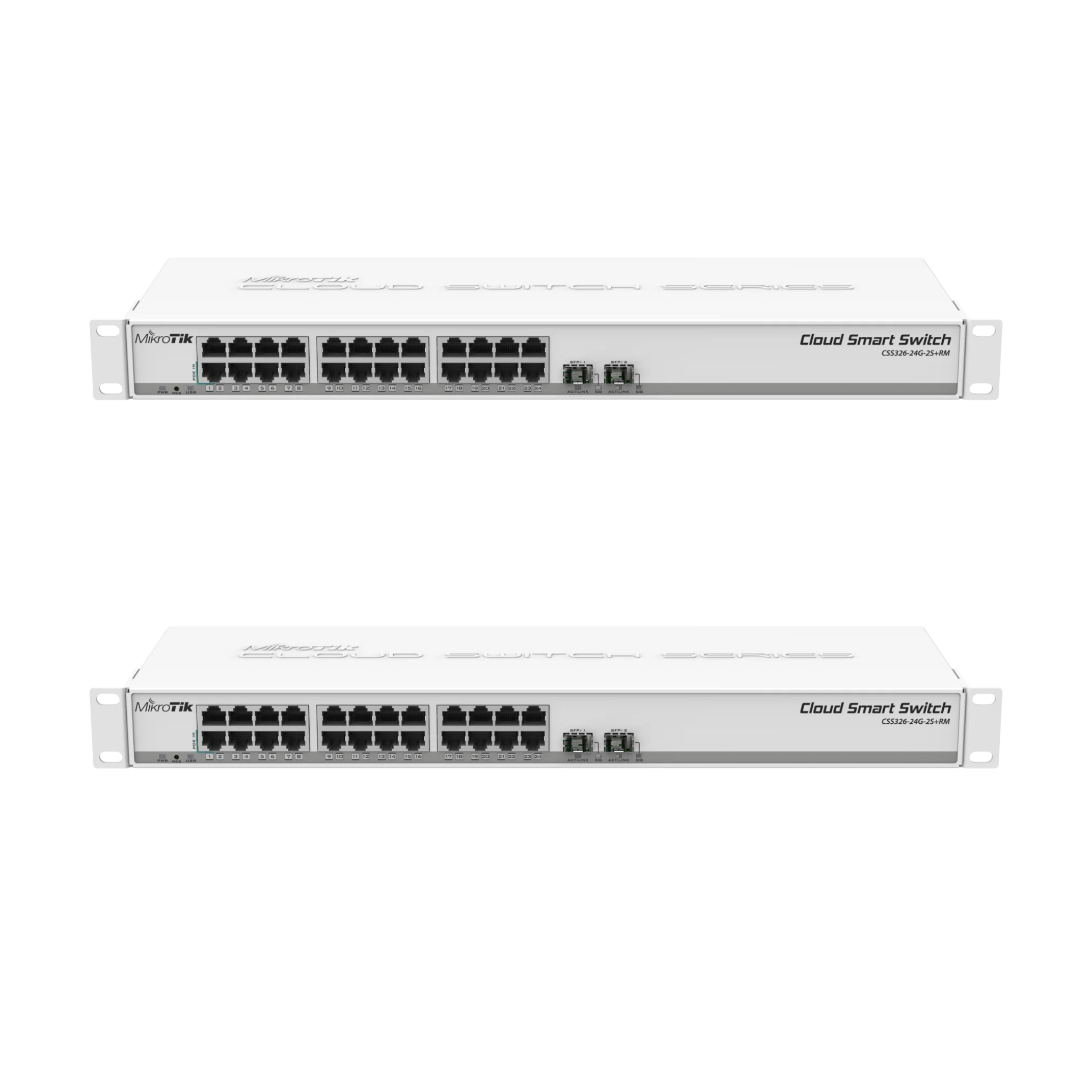

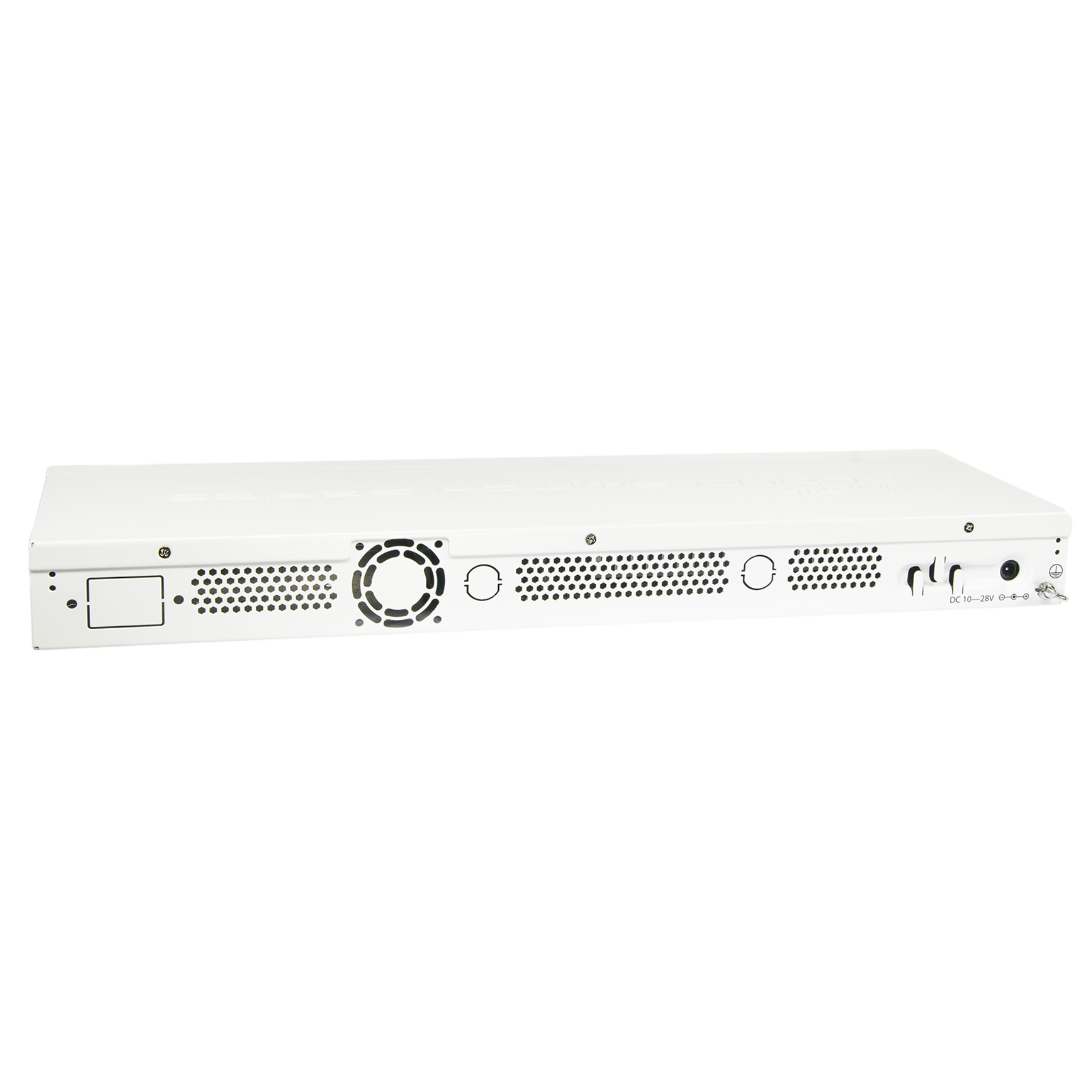

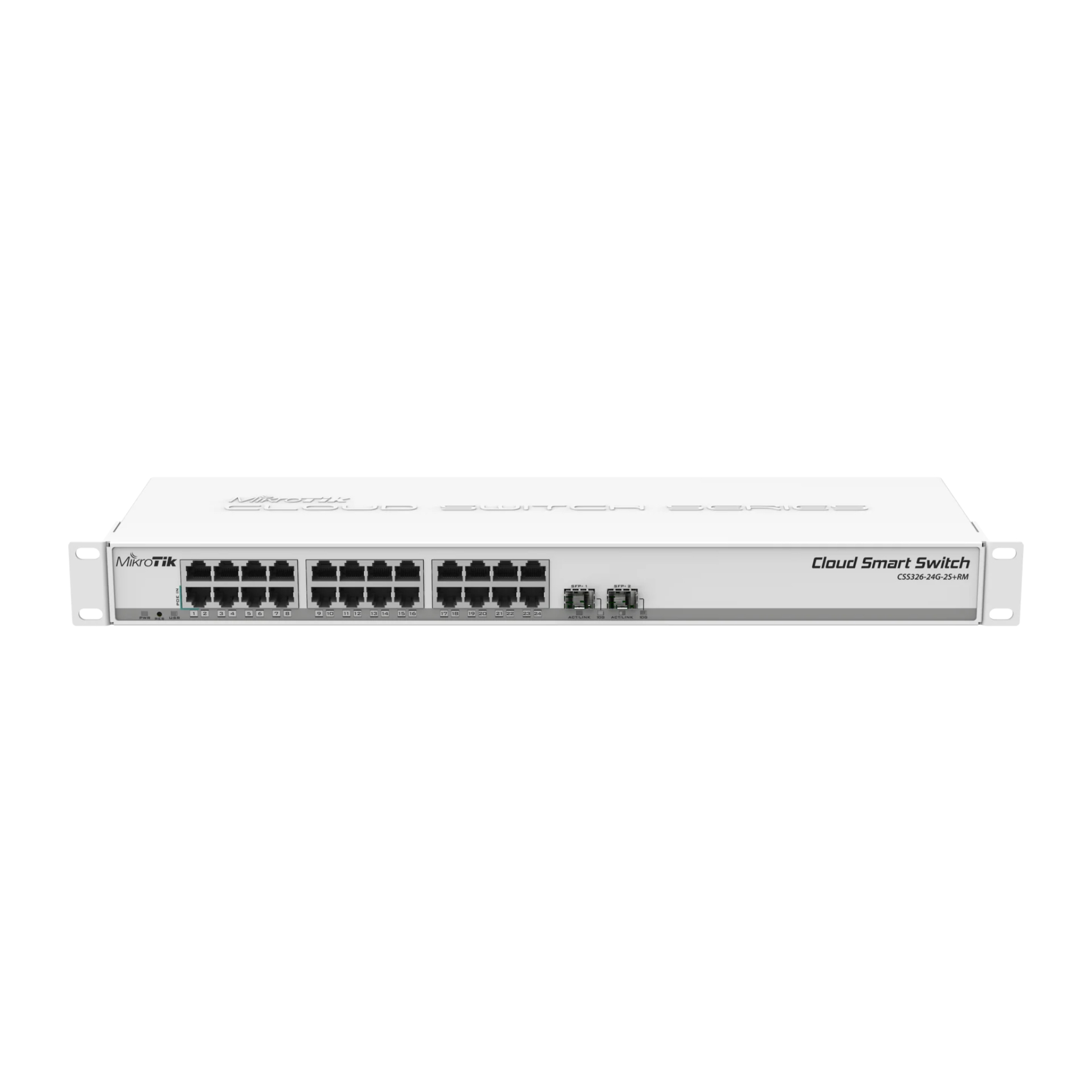

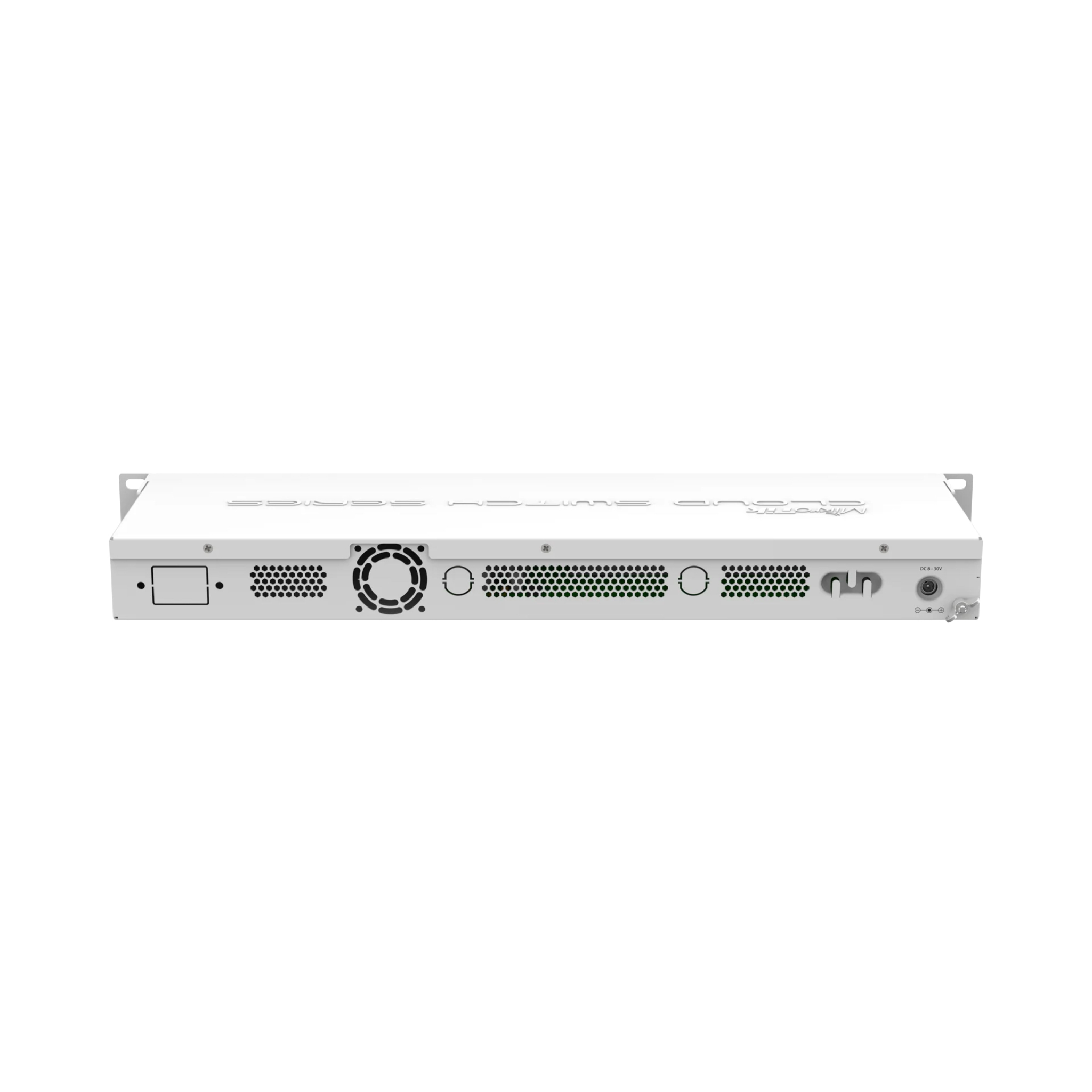

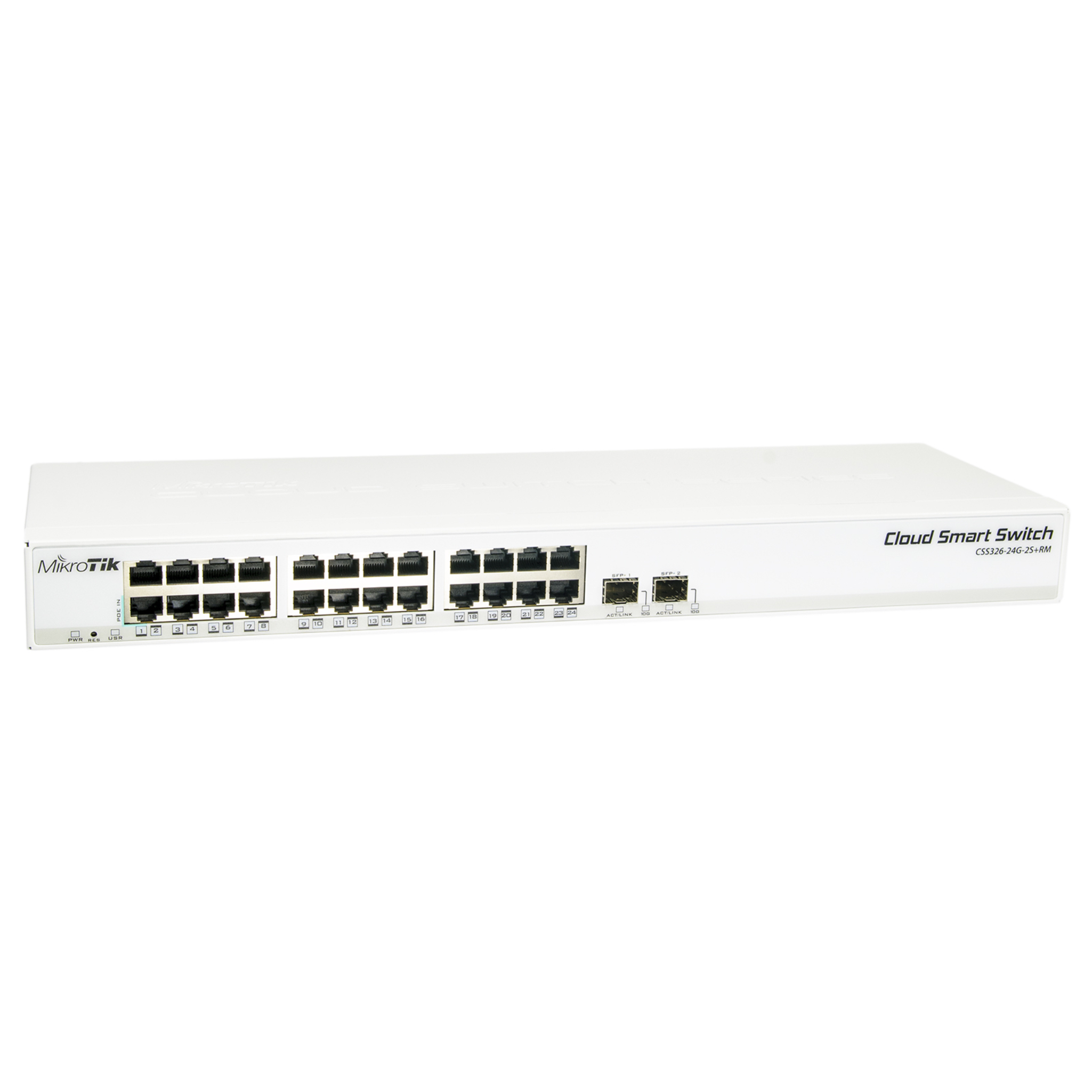

The MikroTik CSS326-24G-2S+RM is a high-performance smart managed Ethernet switch designed for enterprise networks, data centers, ISPs, and professional IT environments that require reliable connectivity, flexible management, and cost-effective network expansion. Featuring 24 Gigabit Ethernet ports and 2 SFP+ 10G uplink ports, this switch provides high-speed data transmission and excellent bandwidth capacity for handling modern network applications, including business networks, server connections, video surveillance systems, and large-scale data transfers. Powered by MikroTik’s SwOS operating system, the CSS326-24G-2S+RM offers an intuitive web-based management interface with advanced switching features such as VLAN configuration, port isolation, link aggregation, bandwidth control, port mirroring, and MAC-based filtering, allowing network administrators to optimize traffic flow and improve overall network efficiency. With its rack-mountable 1U design, durable metal enclosure, and fanless cooling system, the CSS326-24G-2S+RM ensures stable and quiet operation while fitting easily into standard network cabinets. The two 10G SFP+ ports provide flexible fiber uplink options for connecting to core switches, routers, or other high-speed network devices, making it an ideal solution for businesses, system integrators, and service providers looking to build scalable and reliable network infrastructures. As an original MikroTik network switch, the CSS326-24G-2S+RM combines professional-grade features, energy-efficient operation, and outstanding value, making it a popular choice for customers seeking affordable yet powerful managed switching solutions.
CSS326-24G-2S+RM
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Model Name | CSS326-24G-2S+RM |
Product Series | MikroTik Cloud Smart Switch | |
Device Type | Layer 2 Managed Gigabit Ethernet Switch | |
Operating System | SwOS (Switched Operating System) | |
Form Factor | 1U Rack-mountable Chassis | |
Application Scenarios | SMB Networks, Branch Offices, Enterprise Network Access, IP Camera Monitoring, Wireless AP Deployment | |
Port Configuration | 10/100/1000BASE-T RJ45 Ethernet Ports | 24 ports, Auto MDI/X supported (no crossover cable needed) |
SFP+ Uplink Slots | 2 x SFP+ cages, compatible with 1.25G SFP and 10G SFP+ modules | |
Management Console Port | 1 x RJ45 Console Port (115200bps, 8 data bits, 1 stop bit, no parity) | |
Power Input Interfaces | 1 x DC Power Jack (5.5mm outer / 2mm inner, female, pin positive) + 1 x Passive PoE-IN (1st Ethernet port) | |
Performance Specifications | Switching Chip Model | 98DX3216A1 |
Switching Capacity | Non-blocking Wire-speed Layer 2 Switching | |
MAC Address Table Size | 16,000 entries | |
VLAN Support | Up to 250 VLANs (IEEE 802.1Q tagged) | |
Jumbo Frame Support | Yes | |
Flash Storage | 2 MB | |
Core Switching & Management Features | Layer 2 Functions | IEEE 802.1Q VLAN, Port Isolation, Port Security, Broadcast Storm Control, Rapid Spanning Tree Protocol (RSTP), Port Mirroring (Ingress/Egress Traffic) |
Management Features | Web-based GUI, MikroTik Neighbor Discovery, SNMP v1, Access Control List (ACL), Bandwidth Limitation, MAC/IP Header Field Adjustment | |
Security Features | MAC Filtering, Port Isolation, DoS Attack Protection, Password-Protected Management Access | |
Power Specifications | Input Voltage | 10-30V DC (DC Jack) / 10-30V DC (Passive PoE-IN) |
Max Power Consumption | 19 W | |
Cooling Type | Passive Cooling (Fanless, Silent Operation) | |
Included Power Adapter | 24V 1.2A Power Adapter | |
Physical & Mechanical Specifications | Dimensions (W × D × H) | 443 mm × 144 mm × 44 mm (1U Rack Height) |
Mounting | Standard 19-inch Rack Mount Ears Included, Desktop Placement Supported | |
MTBF | Approximately 200,000 hours at 25°C | |
Environmental Operating Conditions | Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
Storage Temperature | -40°C to +70°C (-40°F to 158°F) | |
Operating Humidity | 10%–90% Non-condensing | |
Supported Standards & Compatibility | Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab (Gigabit Ethernet), IEEE 802.1Q VLAN, IEEE 802.1w RSTP |
SFP Module Compatibility | Compatible with MikroTik 1G/10G SFP/SFP+ Transceivers (Refer to MikroTik Official Compatibility Table) | |
Certifications | CE, FCC, RoHS, UL Safety Certified |
