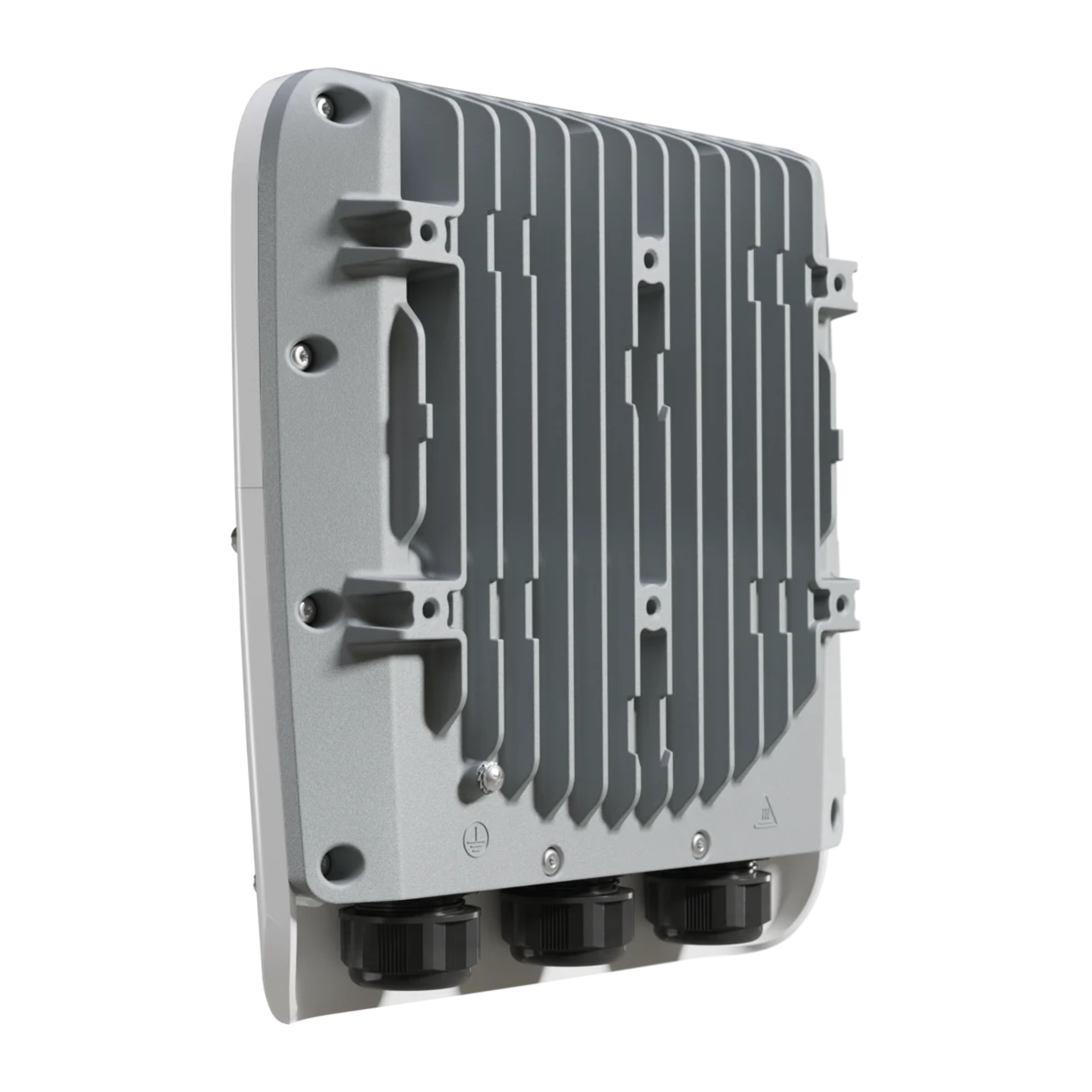

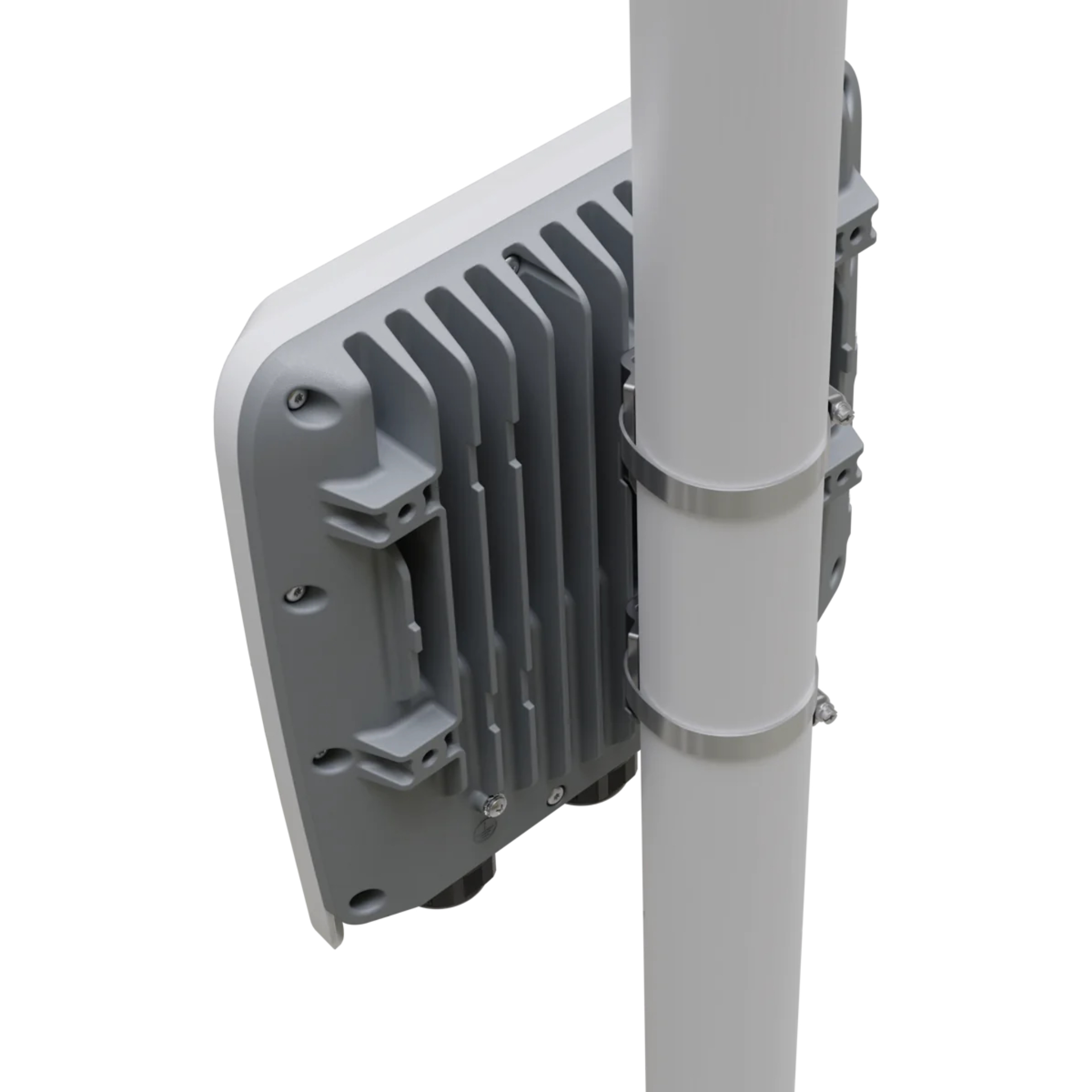

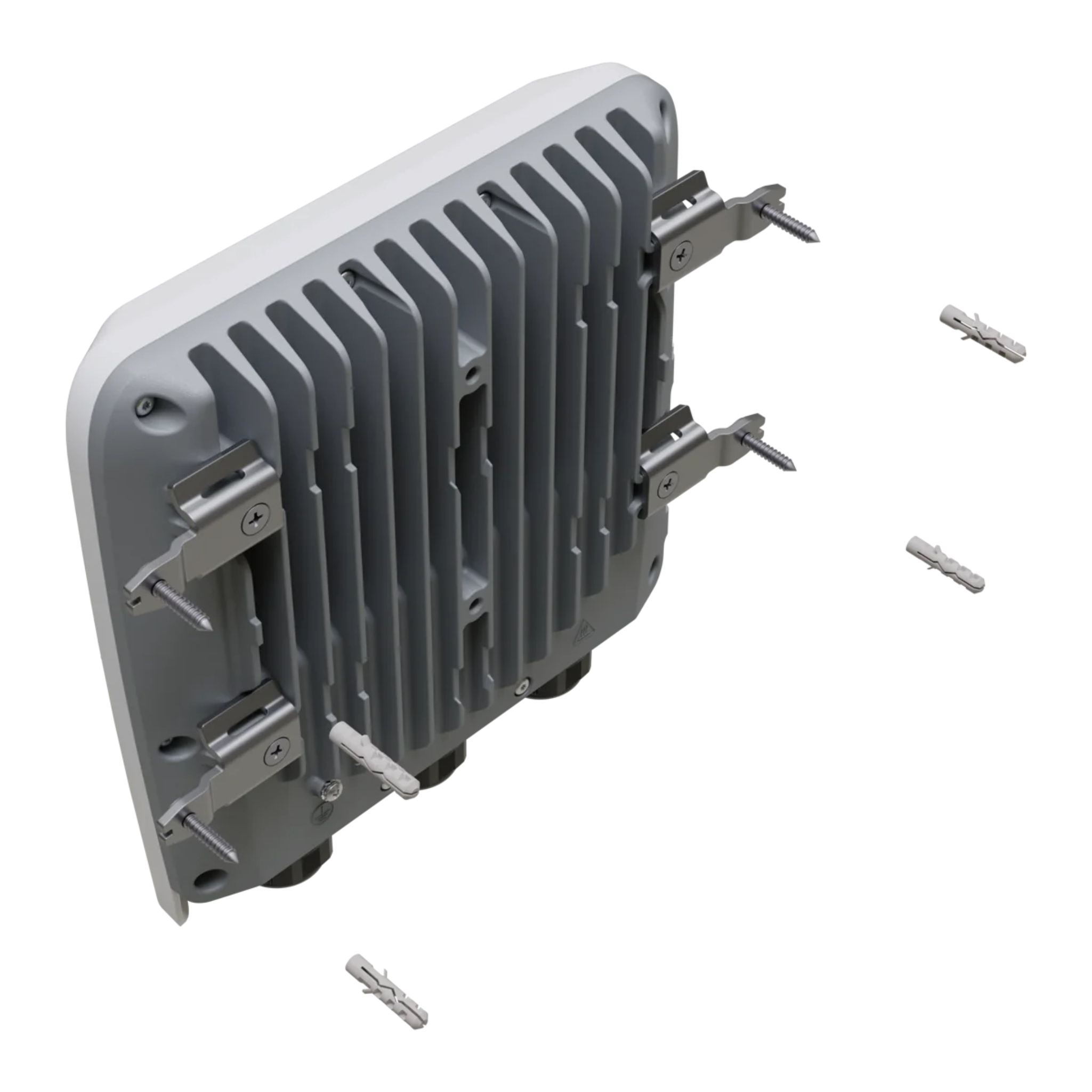

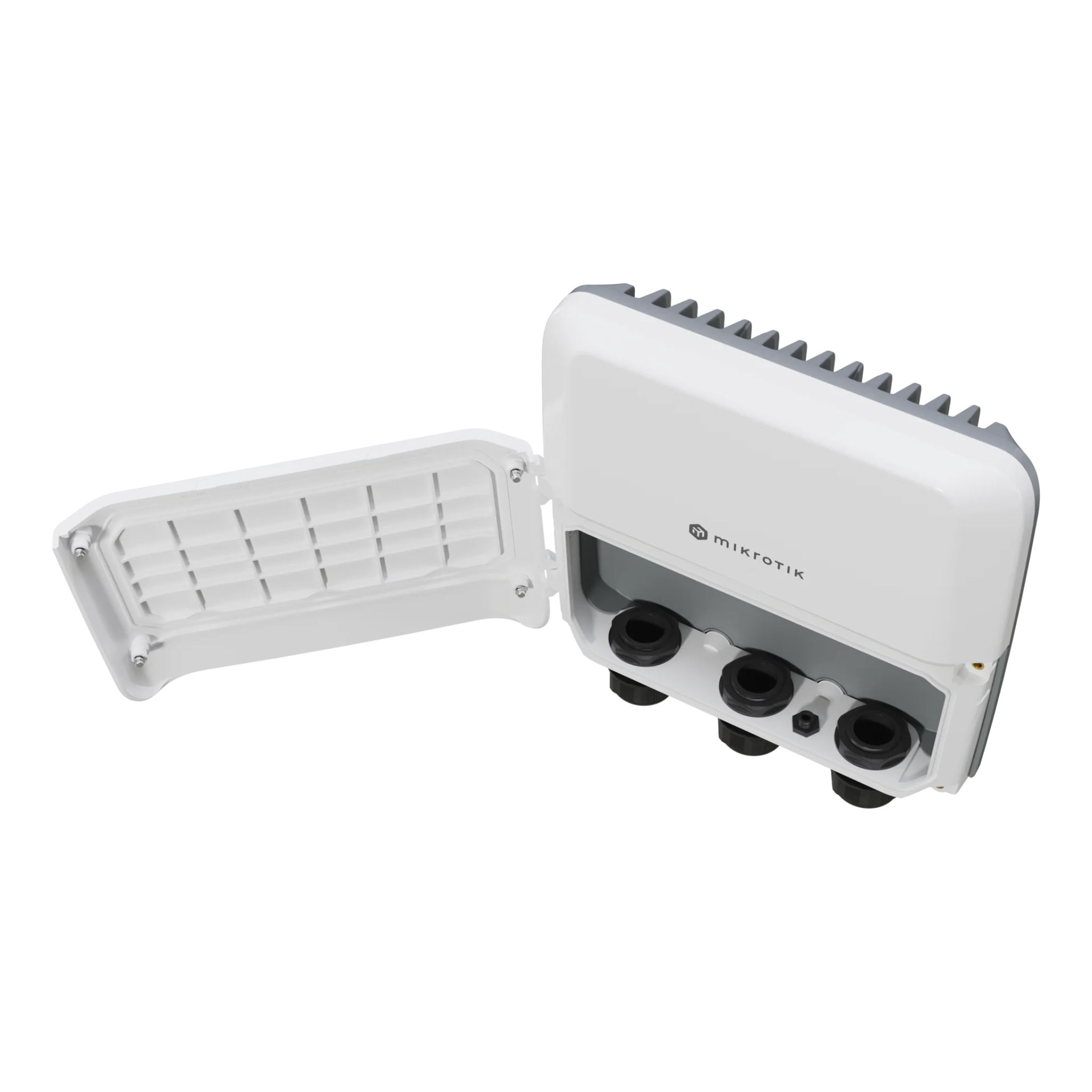

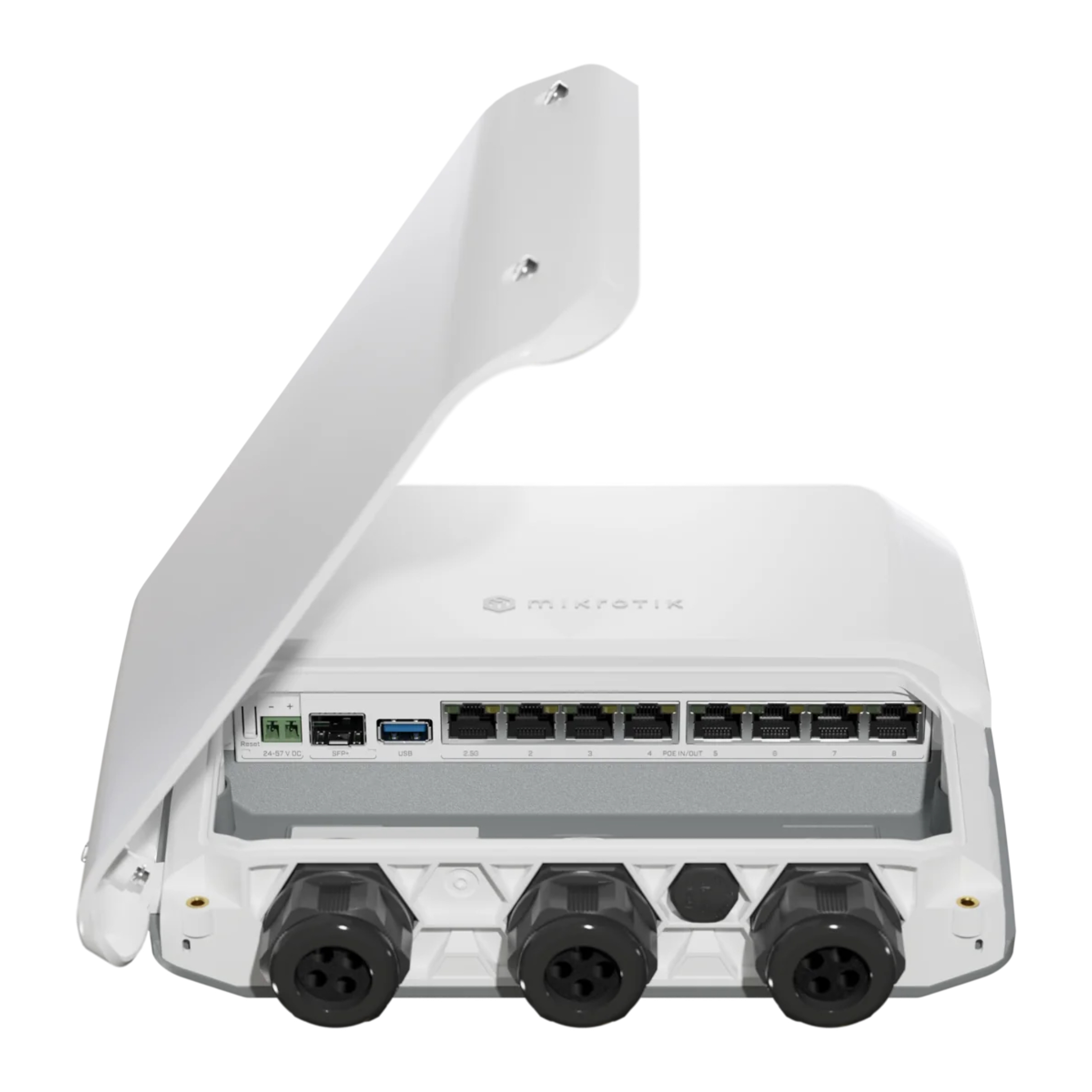

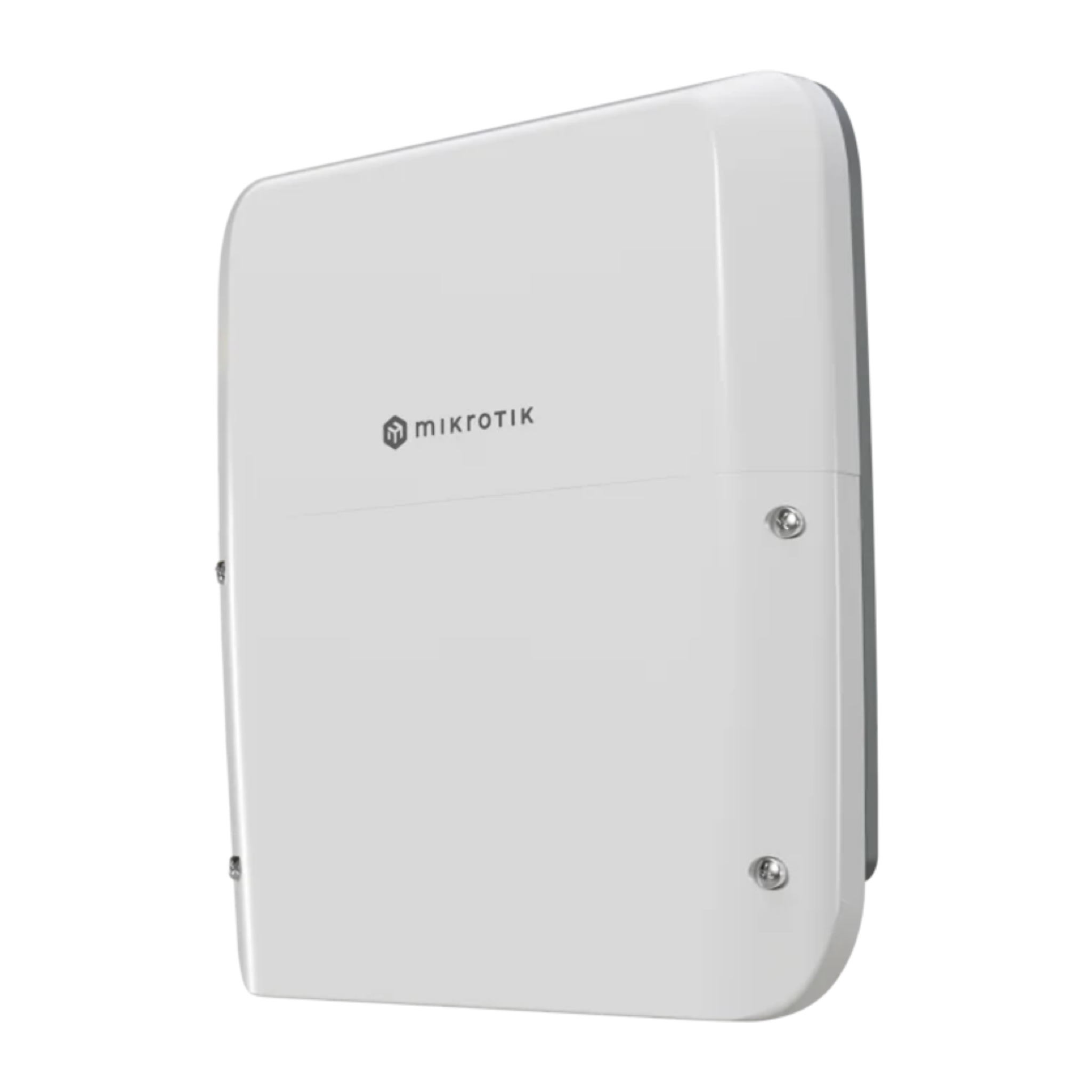

The MikroTik RB5009UPr+S+OUT is a high-performance outdoor-capable router designed for professional networking environments that require reliable connectivity, powerful routing performance, and flexible power options. Built on the popular RB5009 platform, this model features a robust weather-resistant enclosure, making it suitable for outdoor deployments such as industrial networks, ISP infrastructure, surveillance systems, remote sites, and harsh environmental applications. The RB5009UPr+S+OUT is equipped with multiple Gigabit Ethernet ports, a 10G SFP+ port for high-speed fiber connectivity, and advanced routing capabilities powered by a quad-core ARM processor with sufficient memory to handle demanding network tasks efficiently. With PoE-in and PoE-out support, this router can power and connect compatible devices such as wireless access points, IP cameras, and other network equipment, reducing the need for additional power infrastructure and simplifying installation. Running on MikroTik RouterOS, the RB5009UPr+S+OUT provides enterprise-level networking features including firewall management, VLAN configuration, VPN support, bandwidth control, advanced routing protocols, and network monitoring tools. Its compact yet powerful design delivers excellent performance for small and medium-sized businesses, outdoor wireless networks, WISP deployments, and professional IT solutions. Combining high-speed interfaces, flexible power management, durable construction, and comprehensive RouterOS functionality, the MikroTik RB5009UPr+S+OUT is an ideal choice for customers seeking a reliable, scalable, and cost-effective networking solution for both indoor and outdoor applications.
RB5009UPr+S+OUT
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Product Model | RB5009UPr+S+OUT |
Product Series | MikroTik RB5009 Series | |
Device Type | Outdoor Heavy-Duty PoE Router | |
CPU Architecture | ARM 64bit | |
Operating System | RouterOS v7 (pre-installed, licensed) | |
RouterOS License Level | 5 | |
MTBF | Approx. 200,000 hours at 25°C | |
Hardware Core Specifications | CPU Model | 88F7040 |
CPU Core Count | 4 cores | |
CPU Frequency | 350-1400 MHz (auto-adjustable) | |
CPU Threads | 4 threads | |
RAM | 1 GB DDR4 | |
Storage | 1 GB NAND Flash | |
Switch Chip Model | 88E6393 | |
Port Configuration | 10/100/1000BASE-T Ethernet Ports | 7 x Gigabit RJ45 ports |
2.5G Ethernet Port | 1 x 2.5 Gigabit RJ45 port | |
10G SFP+ Fiber Port | 1 x SFP+ slot (supports 10G/5G/2.5G/1G SFP/SFP+ transceivers) | |
USB Port | 1 x USB 3.0 Type-A port | |
Management Interfaces | 2-pin terminal power/console port, PoE-IN on Ethernet ports | |
PoE Capabilities | PoE-In Standard | IEEE 802.3af/at |
PoE-In Ports | 7 x Gigabit Ethernet ports (Ether1-Ether7) | |
PoE-Out Standard | IEEE 802.3af/at | |
PoE-Out Ports | 8 x Ethernet ports (Ether1-Ether8) | |
Low Voltage PoE-Out Current Limit | 900 mA per port (input < 30V) | |
High Voltage PoE-Out Current Limit | 440 mA per port (input > 30V) | |
Total PoE-Out Power | 130 W max | |
Total PoE-Out Current | 2.59 A max | |
Power Supply | Supported Input Voltage | 24-57 V DC (PoE-IN / 2-pin terminal) |
Power Consumption (Idle) | 15 W (without attachments) | |
Max Power Consumption | 150 W (system + full PoE load) | |
Power Redundancy | 9 powering options (auto-selects highest voltage source) | |
Cooling Type | Passive cooling (fanless) | |
Outdoor & Environmental Specifications | IP Rating | IP66 (waterproof & dustproof) |
Operating Temperature | -40°C to +70°C | |
Storage Temperature | -40°C to +70°C | |
Operating Humidity | 10%–90% non-condensing | |
Dimensions (W × D × H) | 222 × 239 × 57 mm | |
Performance Specifications | Bridging Throughput (Fast Path) | 9851.4 Mbps (1518-byte packets) |
Routing Throughput (Fast Path) | 9851.4 Mbps (1518-byte packets) | |
IPsec Throughput (AES-128-CBC+SHA1) | 1354.1 Mbps (1400-byte packets, single tunnel) | |
Management & Monitoring | Management Methods | WebFig, CLI, SNMP, API, WinBox |
Monitoring Features | CPU temperature monitor, PCB temperature monitor, current monitor, voltage monitor | |
USB Power Reset | Supported | |
Certifications & Compliance | Certifications | CE, EAC, RoHS |
Supported Standards | IEEE 802.3af/at, IEEE 802.1Q, IEEE 802.1p, LACP, VLAN, MPLS, VXLAN |
