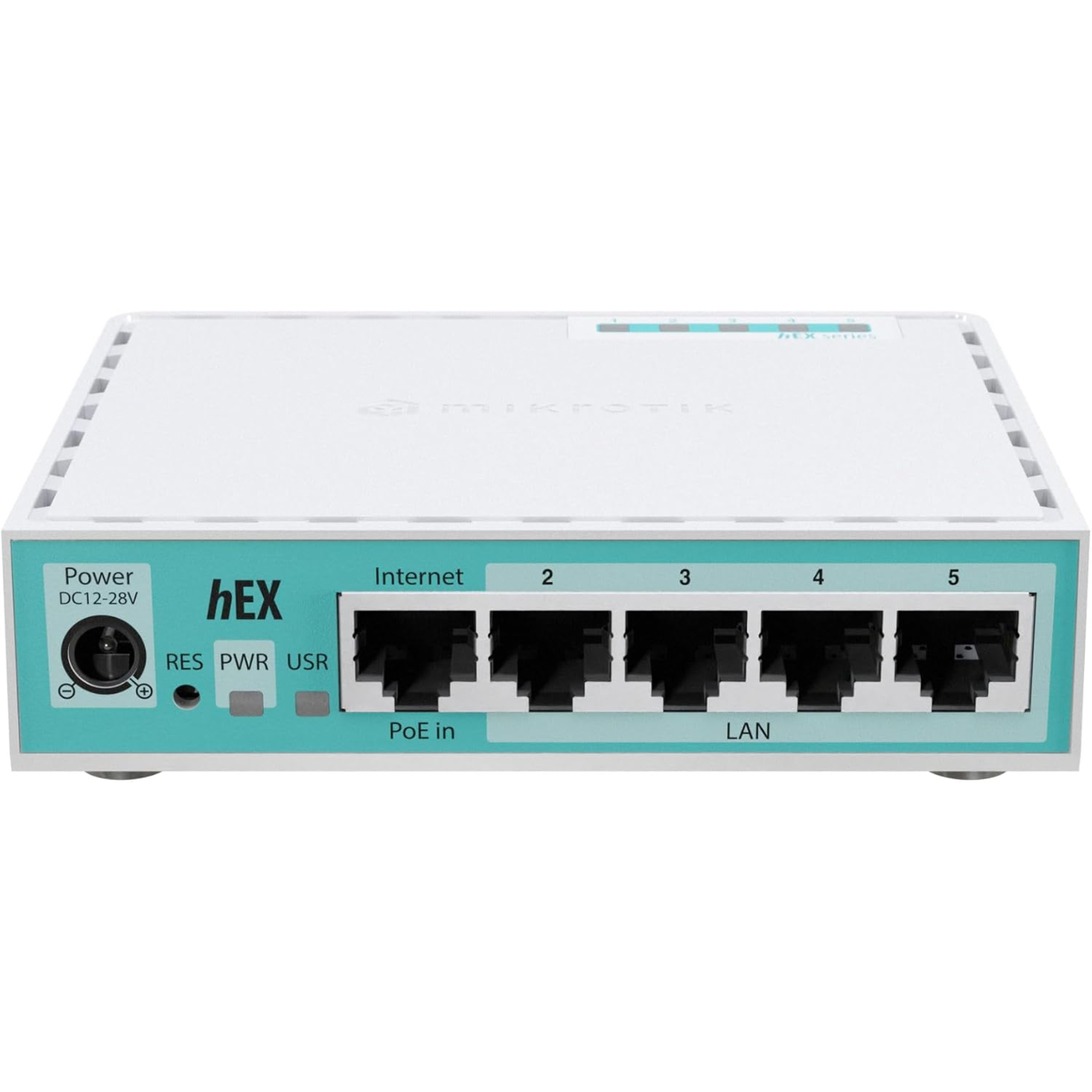

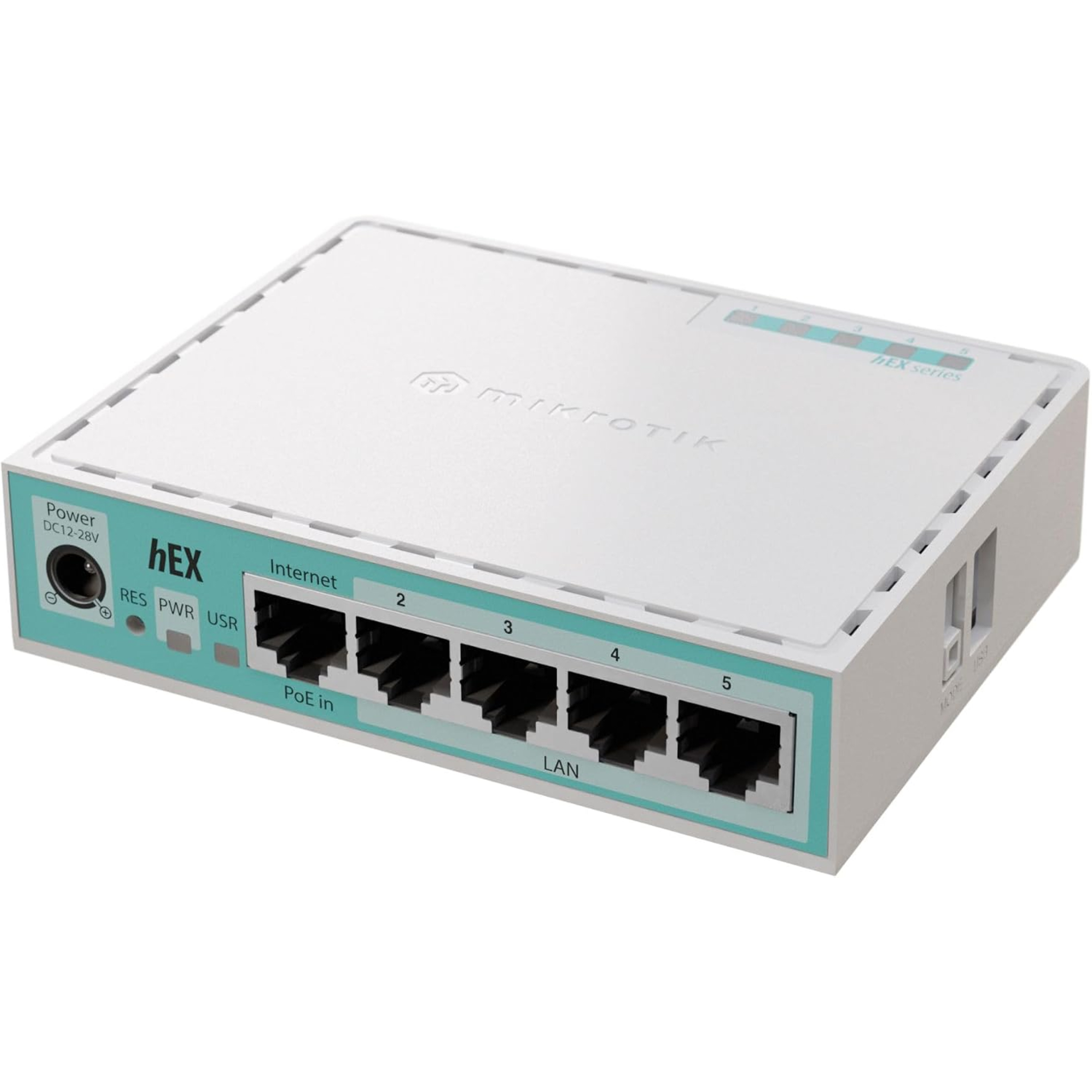

The MikroTik E50UG is a compact yet powerful Gigabit Ethernet router designed to deliver reliable, high-speed networking for home users, small offices, remote branches, and enterprise edge deployments. Powered by an efficient multi-core processor and MikroTik's advanced RouterOS operating system, the E50UG provides exceptional routing performance while supporting a wide range of professional networking features, including advanced firewall protection, VPN connectivity, bandwidth management, VLAN configuration, QoS, NAT, DHCP, IPv4/IPv6, dynamic routing, and comprehensive network monitoring. Equipped with multiple Gigabit Ethernet ports and a high-speed USB interface for additional storage or LTE modem connectivity, the E50UG offers excellent flexibility for expanding network capabilities. Its fanless, energy-efficient design ensures quiet and stable operation while maintaining low power consumption, making it suitable for continuous 24/7 use. The intuitive RouterOS platform allows network administrators to customize and optimize network performance with enterprise-grade security and management tools, making it an ideal choice for SMBs, retail stores, educational institutions, hospitality environments, and remote offices. Combining outstanding reliability, flexible deployment options, easy management, and excellent cost performance, the MikroTik E50UG is a dependable networking solution for businesses seeking secure, scalable, and future-ready wired network infrastructure.
E50UG
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Product Model | E50UG |
Product Type | Dual-Core ARM 64-bit Gigabit Ethernet Router | |
Target Application | Home Networking, Small Office (SOHO), Branch Office, VPN Gateway, Network Management | |
Included Accessories | 24V 0.38A Power Adapter | |
Hardware Core Specifications | CPU Model | Dual-Core EN7562CT |
CPU Architecture | ARM 64-bit | |
CPU Nominal Frequency | 950 MHz | |
RAM | 512 MB DDR3 | |
Storage | 128 MB NAND Flash | |
Switch Chip Model | EN7562CT | |
Connectivity & Interfaces | 10/100/1000BASE-T Ethernet Ports | 5 x Gigabit Ethernet RJ45 Ports |
USB Port | 1 x USB 2.0 Type-A Port | |
Power Input Interfaces | 2 x DC Inputs (1 x Passive PoE-In, 1 x DC Power Jack) | |
Console Port | 1 x RJ45 Serial Console Port | |
Performance | Bridging Throughput (Fast Path) | Up to 3646.6 Mbps (1518-byte packets) |
Routing Throughput (Fast Path) | Up to 1430.3 Mbps (1518-byte packets) | |
Routing Throughput (with 25 IP Filter Rules) | Up to 134.26 Mbps | |
Power & PoE Specifications | PoE-In Standard | Passive PoE |
PoE-In Input Voltage | 12–28 V DC | |
DC Jack Input Voltage | 12–28 V DC | |
Included Power Adapter | 24 V DC, 0.38 A | |
Max Power Consumption (no attachments) | 4 W | |
Max Total Power Consumption | 10 W | |

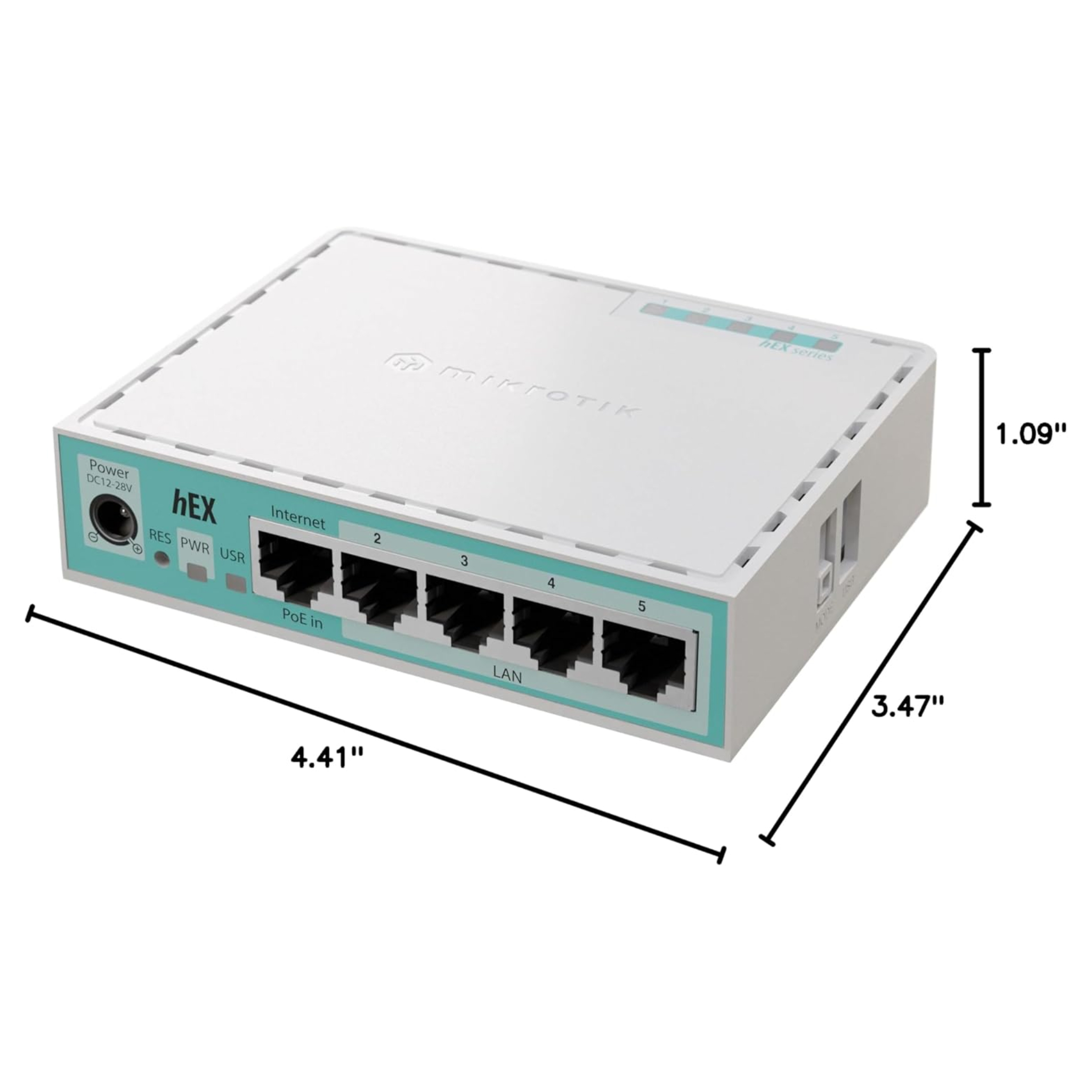

Physical & Environmental Specifications | Dimensions (W × D × H) | 113 mm × 89 mm × 28 mm |
Operating Temperature Range | -40°C to +70°C (-40°F to 158°F) | |
Cooling Design | Fanless, Silent Operation | |
Software & Licensing | Operating System | RouterOS v7 (no downgrade support) |
RouterOS License Level | Level 4 | |
Supported Management | WebFig (Web Interface), WinBox, CLI (SSH/Telnet), SNMP | |
Core Features | VLAN Management, Routing Protocols, Firewall, NAT, VPN, Bandwidth Management, DHCP Server, QoS | |
Compliance & Certifications | Regulatory Compliance | CE, FCC, RoHS |
Safety Certifications | UL, IEC 60950-1 |
