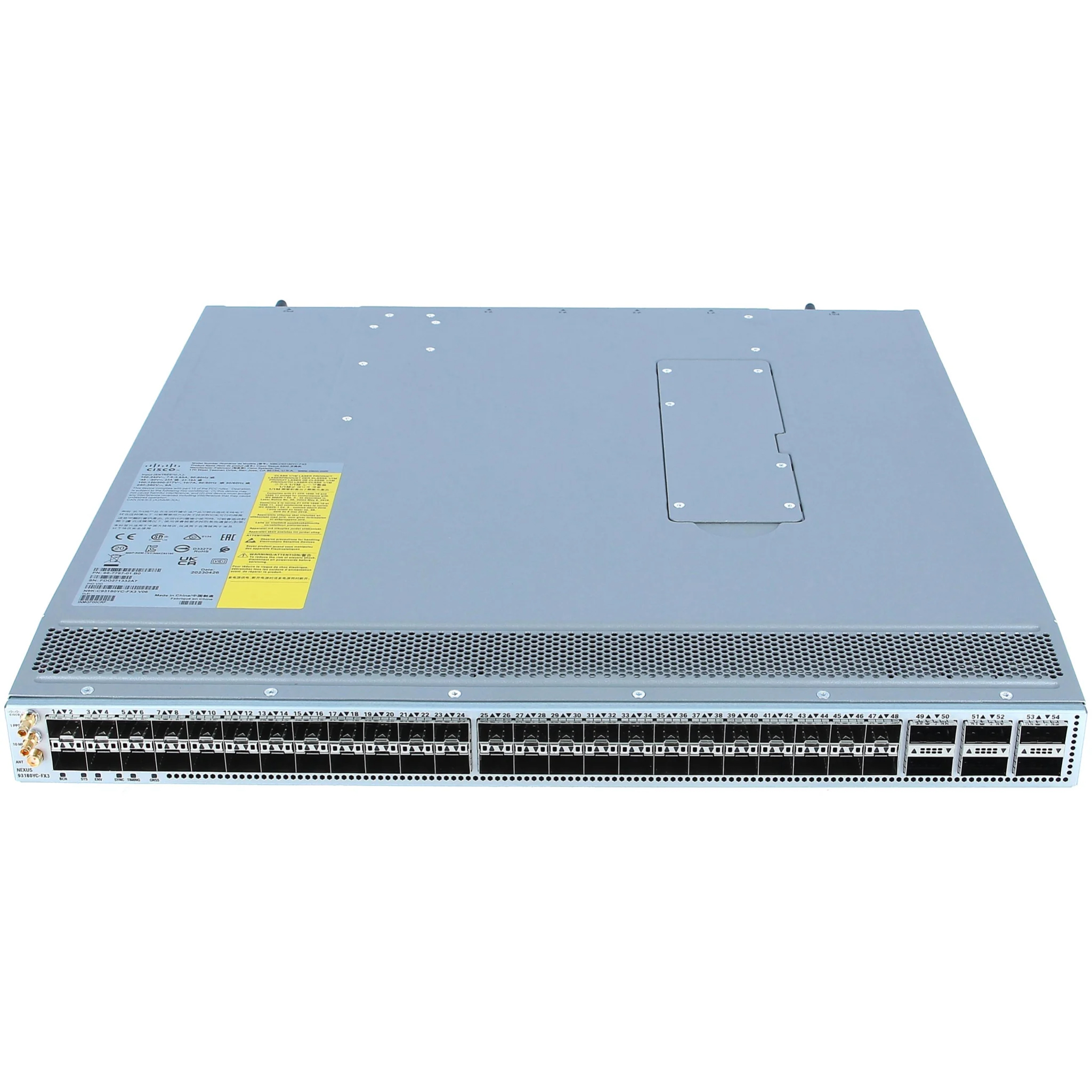

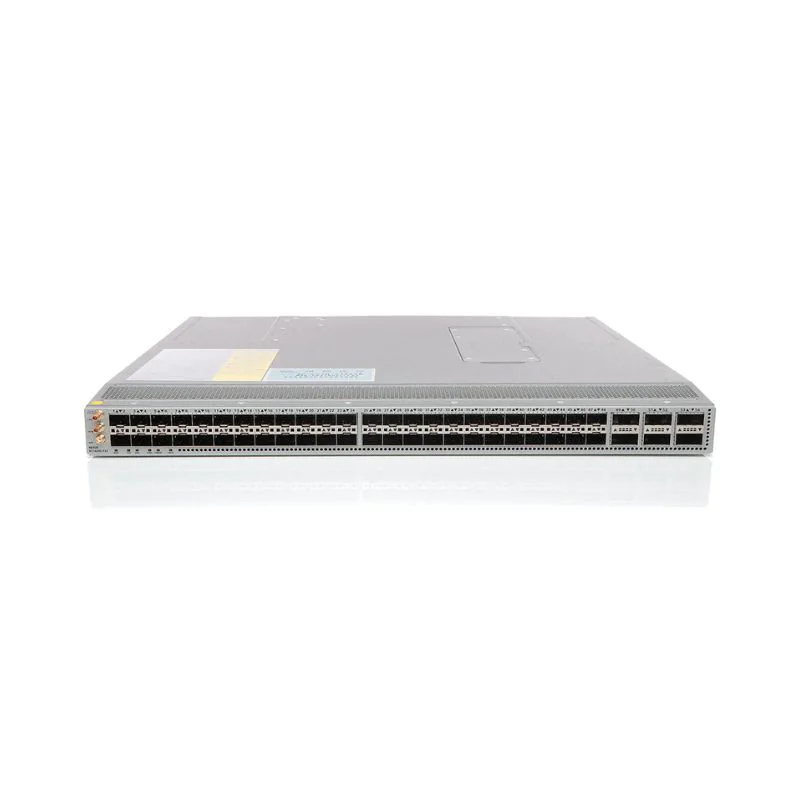

The Cisco N9K-C93180YC-FX3 is a high-performance, enterprise-class 1RU fixed switch in the Cisco Nexus 9000 Series, purpose-built for modern data centers, cloud computing environments, enterprise campus cores, and high-density server deployments. Powered by Cisco NX-OS, this switch delivers exceptional scalability, ultra-low latency, and advanced Layer 2 and Layer 3 networking capabilities to support mission-critical applications, virtualization, storage networking, and software-defined infrastructures. It features 48 1/10/25GbE SFP28 ports and 6 40/100GbE QSFP28 uplink ports, providing flexible connectivity options for high-speed server access, aggregation, and spine-leaf architectures. The N9K-C93180YC-FX3 supports wire-speed forwarding with multi-terabit switching capacity and high packet processing performance, ensuring reliable operation in bandwidth-intensive environments while minimizing latency. It offers comprehensive support for VXLAN EVPN, BGP, OSPF, IS-IS, MPLS, IPv4/IPv6, multicast, QoS, ACLs, and advanced network virtualization technologies, making it ideal for building scalable, secure, and automated data center networks. The switch also integrates seamlessly with Cisco Application Centric Infrastructure (ACI) and traditional NX-OS deployments, allowing organizations to choose the networking model that best fits their operational requirements. Advanced telemetry, streaming analytics, programmable APIs, automation support through Python, REST, NETCONF, and Ansible, along with extensive security features, help simplify network management and accelerate digital transformation. Designed for high availability, the N9K-C93180YC-FX3 includes redundant hot-swappable power supplies and fan modules, ensuring continuous operation and reduced maintenance downtime. With outstanding energy efficiency, flexible deployment options, enterprise-grade reliability, and investment protection for future network expansion, the Cisco N9K-C93180YC-FX3 is an excellent solution for service providers, cloud operators, large enterprises, financial institutions, educational campuses, healthcare organizations, and data centers requiring high-density 25G access with 100G uplinks. Whether deployed for server connectivity, storage networking, virtualization, cloud infrastructure, or high-performance enterprise applications, this switch provides the speed, scalability, security, and operational efficiency needed to support next-generation networking requirements while reducing total cost of ownership.
N9K-C93180YC-FX3
Cisco
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Part Number | N9K-C93180YC-FX3 |
Product Series | Cisco Nexus 9300-FX3 Fixed Data Center Switch |
Deployment Scenarios | TOR/MOR/EOR Leaf-Spine Data Center, Cloud Computing, AI Cluster, Storage Networking, Enterprise High-Speed Core |
Supported Operating Modes | NX-OS Standalone Mode, ACI Fabric Mode |
Switching ASIC | Cloud Scale UADP 2.0 |
Switching Bandwidth (Full Duplex) | 3.6 Tbps |
64-byte Packet Forwarding Rate | 1.2 Bpps (Wire-Speed Non-Blocking) |
Port Configuration | 48 × SFP28 1/10/25G Downlink Ports; 6 × QSFP28 40G/100G Uplink Ports |
Supported Transceivers | SFP, SFP+, SFP28, QSFP+, QSFP28; Support 1G/10G/25G/40G/50G/100G Optical & Copper Modules |
MACsec Support | IEEE 802.1AE MACsec Encryption on all ports |
Packet Buffer | 40 MB Shared Dynamic Buffer |
MAC Address Table Capacity | 128,000 MAC Entries |
Maximum VLAN Support | 4094 VLANs (802.1Q Tagging) |
System CPU | Quad-Core Processor |
System Memory | 16 GB DDR4 RAM (Expandable to 32 GB) |
Local Storage | 128 GB M.2 SSD |
Timing Interfaces | 1PPS Input/Output, 10 MHz Clock, ToD RJ45 Port, GNSS Antenna Port |
Out-of-Band Management | 1 × RJ45 Console Port, 1 × USB-A Port, 1 × RJ45 MGMT Ethernet Port |
Layer 2 Features | STP/RSTP/MSTP, LACP, Port Channel, Port Mirroring, Storm Suppression, Port Security, VTP, Private VLAN |
Layer 3 Routing | IPv4/IPv6 Unicast & Multicast Routing, BGP, OSPF, EIGRP, Static Routes, VRF-lite |
Multicast Functions | PIM-SM/SSM, IGMP Snooping v1/v2/v3, MSDP |
Security Features | MACsec, ACL, CoPP, DDoS Protection, SSH/HTTPS, RADIUS/TACACS+, Port Security, ARP Inspection |
Synchronization | IEEE 1588v2 PTP, SyncE Telecom Timing Profiles |
Telemetry | Real-Time Streaming Telemetry, Programmable Automation Support |

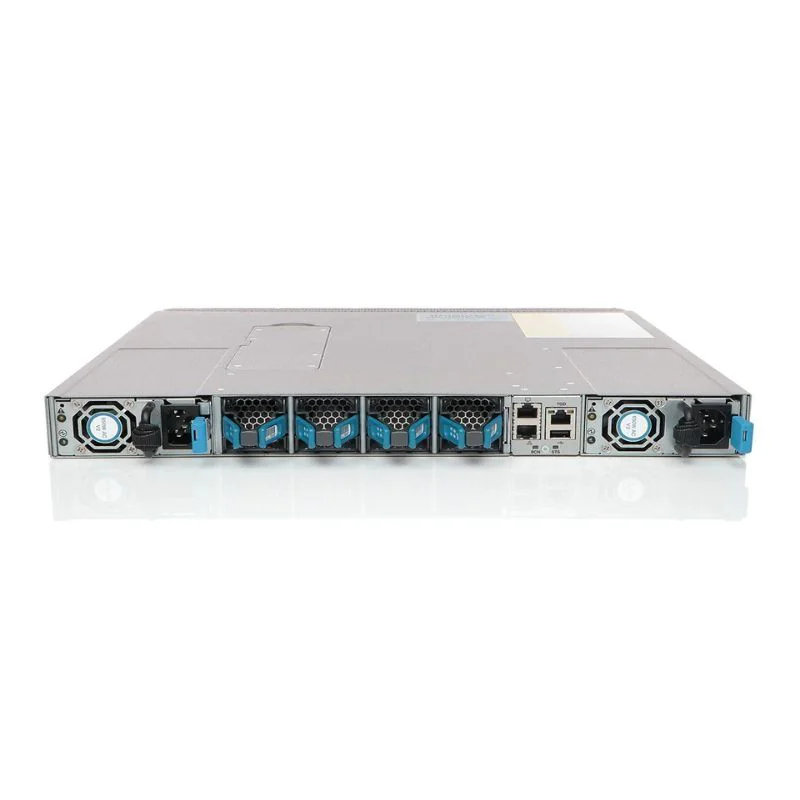

Redundant Field Replaceable Units | 4 Hot-Swap Fan Modules (Port Intake / Port Exhaust Airflow); 2 Hot-Swap 1+1 Redundant Power Supplies |
Supported Power Supply Options | 650W Platinum AC; 930W DC; 1200W HVAC/HVDC |
Power Supply Efficiency | 80Plus Platinum Certified |
Typical AC Power Consumption | 325 W |
Maximum Full Load Power Consumption | 600 W |
Physical Dimension (W × D × H) | 445 mm × 510 mm × 44 mm (17.5 × 20.08 × 1.73 in), 1U Rackmount |
Net Chassis Weight | 7.8 kg (17.2 lbs) |
Operating Temperature (0 m Altitude) | 0°C ~ 40°C; Derate 1°C per 300 m elevation gain |
Operating Humidity | 10%–90% Non-Condensing |
Storage Temperature | -40°C ~ 70°C |
MTBF (25°C Ambient) | 462,680 Hours |
Installation | Standard 19-inch 1U Rack Mount |
Regulatory Certifications | CE, FCC, UL, NEBS Level 3, RoHS Compliant |
Warranty | Cisco 1-Year Standard Hardware Warranty; Optional Support Contracts Available |
