N9K-C9364C
cisco
factory new
1 year
| Quantity: | |
|---|---|
Based on Cisco® Cloud Scale technology, this platform supports cost-effective, ultra-high-density cloud-scale deployments, an increased number of endpoints, and cloud services with wire-rate security and telemetry. The platform is built on modern system-architecture designed to provide high performance and meet the evolving needs of highly scalable data centers and growing enterprises.
The product is designed to support innovative technologies such as Media Access Control Security (MACsec), Virtual Extensible LAN (VXLAN), tunnel endpoint VTEP-to¬-VTEP overlay encryption, CloudSec and Streaming Statistics Export (SSX)1. MACsec is a security technology that allows traffic encryption at the physical layer and provides secure server, border leaf, and leaf-to-spine connectivity. SSX is hardware-based, consisting of a module that reads statistics from the ASIC and sends them to a remote server for analysis. Through this application, users can better understand network performance without any impact on the switch control plane or CPU.
Cisco provides two modes of operation for Cisco Nexus® 9000 Series Switches. Organizations can use Cisco NX-OS Software to deploy the switches in standard Cisco Nexus switch environments (NX-OS mode). Organizations can also deploy the infrastructure that is ready to support the Cisco Application Centric Infrastructure (Cisco ACI™) platform to take full advantage of an automated, policy-based, systems-management approach (Cisco ACI mode).
Switch models

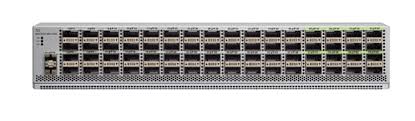

The Cisco Nexus 9364C Spine Switch is a 2-Rack-Unit (2RU) spine switch that supports 12.84 Tbps of bandwidth and 4.3 bpps across 64 fixed 40/100G QSFP28 ports and 2 fixed 1/10G SFP+ ports (Figure 1). Breakout cables are not supported. The last 16 ports marked in green are capable of wire-rate MACsec encryption. The switch can operate in Cisco ACI Spine or NX-OS mode.
Cisco Nexus 9364C Switch
The Cisco Nexus 9332C is a compact form-factor 1-Rack-Unit (1RU) spine switch that supports 6.4 Tbps of bandwidth and 4.4bpps across 32 fixed 40/100G QSFP28 ports and 2 fixed 1/10G SFP+ ports (Figure 2). Breakout cables are not supported. The last 8 ports marked in green are capable of wire-rate MACsec encryption.[2] The switch can operate in Cisco ACI Spine or NX-OS mode.
Cisco Nexus 9332C Switch
Table 1. Cisco Nexus 9300 ACI Spine Switch specifications
Model | Cisco Nexus 9364C | Cisco Nexus 9332C |
Physical | ● 64-port 40/100G QSFP28 ports and 2-port 1/10G SFP+ ports ● Buffer: 40MB ● System memory: 32GB ● SSD: 128GB ● USB: 1 port ● RS-232 serial console ports: 1 ● Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP) ● Broadwell-DE CPU: 4 cores | ● 32-port 40/100G QSFP28 ports and 2-port 1/10G SFP+ ports ● Buffer: 40MB ● System memory: 16 GB ● SSD: 128GB ● USB: 1 port ● RS-232 serial console ports: 1 ● Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP) ● Broadwell-DE CPU: 4 cores |
Power and cooling | ● Power: 1200W AC, 930W DC or 1200W HVAC/HVDC ● Input voltage: 100 to 240V * AC or -40V to -72V DC (min‑max), -48V to -60V DC (nominal) *Supports input voltage of 100–120V for a max output of 800W, 200–240V for a max output of 1200W. PSU redundancy is not supported when used in 100–120V ● Hot-swappable, dual fan trays with redundant fans ● Frequency: 50 to 60 Hz (AC) ● Efficiency: 90% or greater (20 to 100% load) ● Port-side intake or port-side exhaust options ● Typical power: 429W (AC) ● Maximum power: 1245W (AC) | ● Power: 750W AC 1100W AC, 1100 DC or 1100W HVAC/HVDC ● Input voltage: 100 to 240V * AC or -40V to -72V DC (min‑max), -48V to -60V DC (nominal) *Supports input voltage of 100–120V for a max output of 800W, 200–240V for a max output of 1200W. PSU redundancy is not supported when used in 100–120V ● Hot-swappable, 5 fans with redundancy ● Frequency: 50 to 60 Hz (AC) ● Efficiency: 90% or greater (20 to 100% load) ● RoHS compliance: Yes ● Port-side intake or port-side exhaust options ● Typical power: 296W (AC) ● Maximum power: 700W (AC) |
Environmental | ● Physical (H x W x D): 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm) ● Weight: 36.9 lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans ● Operating temperature: 32 to 104°F (0 to 40°C) ● Nonoperating (storage) temperature: –40 to 158°F (–40 to 70°C) ● Humidity: 5 to 90% (noncondensing) ● Altitude: 0 to 13,123 ft (0 to 4000m) ● RoHS compliance: Yes | ● Physical (H x W x D): 1.7 x 17.3 x 22.9 in. (4.4 x 43.9 x 58.1 cm) ● Weight: 25.1lb (11.4kg) with power supplies and fans, 19 lb (8.6kg) without power supplies and fans ● Operating temperature: 32 to 104°F (0 to 40°C) ● Nonoperating (storage) temperature: –40 to 158°F (–40 to 70°C) ● Humidity: 5 to 90% (noncondensing) ● Altitude: 0 to 13,123 ft (0 to 4000m) ● RoHS compliance: Yes |
Acoustics | ● Fan speed at 40%: 76.7 dBA ● Fan speed at 70%: 88.7 dBA ● Fan speed at 100%: 97.4 dBA | ● Fan speed at 50%: 76.4 dBA ● Fan speed at 70%: 83.3 dBA ● Fan speed at 100%: 92.1 dBA |
MTBF | ● 257,860 hours | ● 363,500 hours |
Table 2 lists the performance and scalability specifications for the Cisco Nexus 9364C and 9332C switches.
Table 2. Performance and scalability specifications
Item | Specifications |
Maximum number of IPv4 Longest Prefix Match (LPM) routes | ● Default: 7,000 ● LPM heavy *: 262,000 |
Maximum number of IPv4 host entries | ● Default: 96,000 ● LPM heavy *: 262,000 |
Maximum number of IPv6 Longest Prefix Match (LPM) routes | ● Default: 3,500 ● LPM heavy *: 131,000 |
Maximum number of IPv6 host entries | ● Default: 96,000 ● LPM heavy *: 262,000 |
Maximum number of MAC address entries | 92,000 |
Number of multicast routes | ● Default: 8,000 ● LPM heavy *: 32,768 |
Number of Internet Group Management Protocol (IGMP) snooping groups | 8,000 |
Number of Access Control List (ACL) entries* | ● Per slice of the forwarding engine: ● 4,000 ingress ● 2,000 egress ● Maximum: 16,000 ingress ● 8,000 egress ● Shipping: 14,328 ingress ● 7,160 egress |
Maximum number of VLANs | 4,096** |
Maximum number of Virtual Routing and Forwarding (VRF) instances | 1,000 |
Maximum number of links in a port channel | 32 |
Maximum number of Equal-Cost Multipath (ECMP) paths | 64 |
Maximum number of ECMP groups | 1,024 |
Maximum number of port channels | 64 |
Number of active SPAN sessions | 4 |
Maximum number of Rapid Per-VLAN Spanning Tree (RPVST) instances | 3,967 |
Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
Maximum number of Multiple Spanning Tree (MST) instances | 64 |
Maximum number of VTEPs | 256 |
Maximum number of static Network Address Translation (NAT) entries | 1,023 |
Maximum number of dynamic NAT entries | 1,023 |
Maximum number of static twice NAT entries | 768 |
Maximum number of dynamic twice NAT entries | 1,023 |
Number of Queues | 8 |
Regulatory Standards Compliance
Table 3 summarizes regulatory standards compliance for the Cisco Nexus 9364 and 9332C switches.
Table 3. Regulatory Standards Compliance: Safety and EMC
Specification | Description |
Regulatory compliance | Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC |
Safety | ● UL 60950-1 Second Edition ● CAN/CSA-C22.2 No. 60950-1 Second Edition ● EN 60950-1 Second Edition ● IEC 60950-1 Second Edition ● AS/NZS 60950-1 ● GB4943 |
EMC: Emissions* | ● 47CFR Part 15 (CFR 47) Class A ● AS/NZS CISPR22 Class A ● CISPR22 Class A ● EN55022 Class A ● ICES003 Class A ● VCCI Class A ● EN61000-3-2 ● EN61000-3-3 ● KN22 Class A ● CNS13438 Class A |
EMC: Immunity | ● EN55024 ● CISPR24 ● EN300386 ● KN 61000-4 series |
RoHS | ● The product is RoHS-6 compliant with exceptions for leaded-Ball Grid-Array (BGA) balls and lead press-fit connectors. |
Table 4 presents ordering information for the Cisco Nexus 9300 ACI Spine Switch.
Table 4. Ordering information
Part number | Product description |
Hardware | |
N9K-C9364C | Cisco Nexus 9364C ACI Spine Switch with 64p 40/100G QSFP28, 2p 1/10G SFP |
N9K-C9332C | Cisco Nexus 9332C ACI Spine Switch with 32p 40/100G QSFP28, 2p 1/10G SFP |
FAN options | |
NXA-FAN-160CFM-PI | Cisco Nexus Fan, 160CFM, port-side intake airflow |
NXA-FAN-160CFM-PE | Cisco Nexus Fan, 160CFM, port-side exhaust airflow |
NXA-FAN-35CFM-PI | Cisco Nexus Fan, 35CFM, port-side intake airflow |
NXA-FAN-35CFM-PE | Cisco Nexus Fan, 35CFM, port-side exhaust airflow |
Power supply options | |
NXA-PAC-750W-PI | Cisco Nexus 9000 750W AC PS, Port-side Intake |
NXA-PAC-750W-PE | Cisco Nexus 9000 750W AC PS, Port-side Exhaust |
NXA-PAC-1100W-PE2 | Cisco Nexus 1100W AC PS, port-side exhaust |
NXA-PAC-1100W-PI2 | Cisco Nexus 1100W AC PS, port-side intake |
NXA-PAC-1200W-PE | Cisco Nexus 1200W AC PS, port-side exhaust |
NXA-PAC-1200W-PI | Cisco Nexus 1200W AC PS, port-side intake |
N9K-PUV-1200W | Cisco Nexus 1200W, 200-277AC,240-380DC, dual airflow PSU |
NXA-PDC-930W-PE | Cisco Nexus 930W -48V DC PS, port-side exhaust |
NXA-PDC-930W-PI | Cisco Nexus 930W -48V DC PS, port-side intake |
NXA-PHV-1100W-PE | Cisco Nexus 1100W Platinum HV-AC-DC PS, port-side exhaust |
NXA-PHV-1100W-PI | Cisco Nexus 1100W Platinum HV-AC-DC PS, port-side intake |
NXA-PDC-1100W-PE | Cisco Nexus 1100W Platinum DC PS, port-side exhaust |
NXA-PDC-1100W-PI | Cisco Nexus 1100W Platinum DC PS, port-side intake |
Power cords | |
CAB-250V-10A-AR | AC Power Cord – 250V, 10A – Argentina (2.5 meters) |
CAB-250V-10A-BR | AC Power Cord – 250V, 10A – Brazil (2.1 meters) |
CAB-250V-10A-CN | AC Power Cord – 250V, 10A – PRC (2.5 meters) |
CAB-250V-10A-ID | AC Power Cord – 250V, 10A – South Africa (2.5 meters) |
CAB-250V-10A-IS | AC Power Cord – 250V, 10A – Israel (2.5 meters) |
CAB-9K10A-AU | Power Cord, 250VAC 10A 3112 Plug, Australia (2.5 meters) |
CAB-9K10A-EU | Power Cord, 250VAC 10A CEE 7/7 Plug, EU (2.5 meters) |
CAB-9K10A-IT | Power Cord, 250VAC 10A CEI 23-16/VII Plug, Italy (2.5 meters) |
CAB-9K10A-SW | Power Cord, 250VAC 10A MP232 Plug, SWITZ (2.5 meters) |
CAB-9K10A-UK | Power Cord, 250VAC 10A BS1363 Plug (13 A fuse), UK (2.5 meters) |
CAB-9K12A-NA | Power Cord, 125VAC 13A NEMA 5-15 Plug, North America (2.5 meters) |
CAB-AC-L620-C13 | North America, NEMA L6-20-C13 (2.0 meters) |
CAB-C13-C14-2M | Power Cord Jumper, C13-C14 Connectors, 2 Meter Length (2.0 meters) |
CAB-C13-CBN | Cabinet Jumper Power Cord, 250 VAC 10A, C14–C13 Connectors (0.7 meter) |
CAB-IND-10A | 10A Power Cable for India (2.5 meters) |
CAB-N5K6A-NA | Power Cord, 200/240V 6A, North America (2.5 meters) |
CAB-HVDC-3T-2M | HVDC Power Cable, China CCC Compliant, Thin (2.0 meters) |
CAB-HVAC-SD-0.6M | HVAC Power Cable for Anderson-LS-25 |
CAB-HVAC-RT-0.6M | HVAC Power Cable with Right-Angle Connector for RF-LS-25 |
CAB-48DC-40A-8AWG | C-Series -48VDC PSU Power Cord, 3.5M, 3 Wire, 8AWG, 40A |
Accessories | |
N9K-C9300-ACK | Cisco Nexus 9300 Accessory Kit |
N9K-C9300-RMK | Cisco Nexus 9300 Rack Mount Kit |
N3K-C3064-ACC-KIT | Cisco Nexus 1RU Switch Accessory Kit |
NXK-ACC-KIT-1RU | Cisco Nexus 3000/9000 Fixed Accessory Kit, 1 RU front and rear removal |
NXK-ACC-KIT-2RU | Cisco Nexus 3000/9000 Fixed Accessory Kit, 2 RU front and rear removal |
