NETSCOUT LSPRNTR-300 LinkSprinter Portable Ethernet Tester: Switch Connection + Gateway/Internet Reachability Diagnostic Device

Share to:

NETSCOUT LSPRNTR-300 LinkSprinter Portable Ethernet Tester: Switch Connection + Gateway/Internet Reachability Diagnostic Device

The LinkSprinter 300 Network Tester can troubleshoot network connection issues in 10 seconds and identify error problem domains. It automatically sends reports to the included Link-Live Cloud Essential Service Platform, ensuring that the network connection status and path information of each link are recorded.

Model:
LSPRNTR-300
Brand:
Netscout
Condition:
New
Warranty:
1 Year

Availability:

Quantity:



Inquire Add to Basket

Product Description

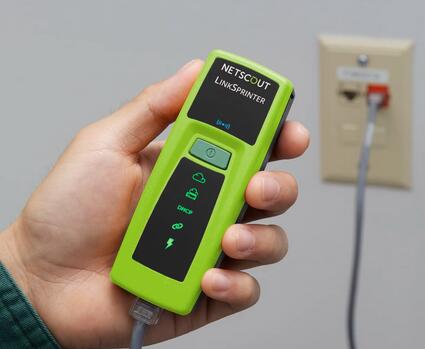

LinkSprinter Network Tester

Tests and verifies network connectivity in less than 10 seconds

Ethernet Power (PoE) tester diagnoses and tests Power over Ethernet (PoE), link to switch, DHCP, gateway and internet connection

Retrieves VLAN, switch name and port information of your managed switches via CDP/LLDP/EDP

Provides professional network troubleshooting technology on color LEDs

Automatic reporting to Link-Live cloud service platform

Send detailed test results directly to your email

LinkSprinter Network Tester

The LinkSprinter Network Tester can troubleshoot network connection faults and identify error problem domains in 10 seconds. It automatically sends reports to the included Link-Live Cloud Essential Service Platform, ensuring that the network connection status and path information of each link are recorded.

Easily Master Five Essential Network Tests

Power over Ethernet (PoE) Tester
This network tester can function as a Power over Ethernet (PoE) tester, allowing you to check and determine if you can supply power to phones, surveillance cameras, or access points through a specific port. The LinkSprinter Network Tester can even operate on PoE without the need for batteries.
Switch Connection
Perform switch tests to display the switch name, model, slot, port, and VLAN connected via CDP/LLDP/EDP. Gain insights into the available speed and duplex settings.
DHCP Connection
Verify that the DHCP server is running and responsive. Request an IP address, obtain subnet information, diagnose DNS, and identify the default gateway and DNS server.
Gateway Connection
Validate the gateway/router address and reachability by pinging the device.
Internet Connection
Confirm the reachability of cloud connections or internal network services, and verify DNS server lookup and application port connectivity.

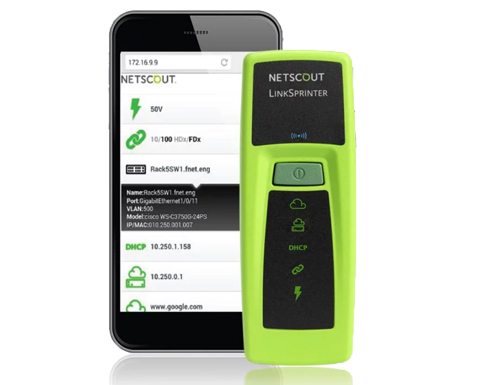

View Detailed Test Results on Mobile Devices

You can access LinkSprinter test results via the built-in low-power Wi-Fi access point using the browser of any mobile device. Quickly view test results with your mobile device and any web browser—no need to download a mobile app. This low-power Wi-Fi access point does not allow network access like a hotspot, and its range is less than 10 feet.

LinkSprinter 300 Wireless Features

Link-Live Cloud Service Platform

Welcome to the Link-Live Cloud Service Platform—a centralized management, collaboration, and archiving workspace for network connectivity test results, specifically designed for NETSCOUT handheld network testers. Test results are automatically sent to your secure Link-Live cloud account, enabling enterprises to quickly and easily document networks, provide evidence of performance, and better manage tasks and staff productivity. Additionally, each test result is sent via email in real time, allowing technicians to add notes related to the test and attach photos. These notes are then automatically added to Link-Live records, providing in-depth analysis of each link's performance and directly mapping the switch slots and interfaces of end-point identifiers (such as wall ports, devices, and serial numbers).


Link-Live Cloud Service Features:

Free of charge, with no annual service fees
Manage, categorize, and analyze test results
Filter results by time, user, network device, error, instrument, etc.
Attach notes to each test result
Automatically send test results to designated folders
Proxy server
Cache up to 10 test results
View detailed network test results on mobile devices: Access results from the LinkSprinter Network Tester via the built-in Wi-Fi access point using the browser of any mobile device.

General Specifications

Dimensions: 4.36” x 1.6” x 1.28” (11.07 cm x 4.06 cm x 3.25 cm)
Weight (with batteries): Model 300: 0.255 lb (0.116 kg)
Power Supply: 2 AA alkaline batteries, or Power over Ethernet (PoE)

Environmental Specifications

Operating Temperature and Relative Humidity: 32°F to 122°F (0°C to 50°C), 5% to 90% relative humidity (non-condensing)
Storage Temperature: -4°F to 104°F (-20°C to 60°C)
Shock and Vibration: Random 2g, 5Hz – 500 Hz (Class 2), 1 m drop test
Safety Certifications: CAN/CSA-C22.2 No. 61010-1-12, UL Std. No. 61010-1 (3rd Edition), IEC61010-1:2010, Pollution Degree 2
Altitude: Operating: 13,123 ft. (4,000 m); Storage: 39,370 ft. (12,000 m)
EMC Compliance: EN 61326-1:2006
Certifications and Compliance:

Compliant with relevant EU standards
Compliant with relevant Australian standards
Certified by the Canadian Standards Association (CSA)
Compliant with relevant FCC standards

Wi-Fi Hotspot

Standard Compliance: IEEE 802.11b/g
Frequency Channels: 802.11 Channels 1 to 11 (Channel 11 as default)
Operating Frequency: 2.412 ~ 2.484 GHz, ISM Band
Regulatory Scope: EN 301 489-1/17
Supported Browsers (Minimum Versions): Internet Explorer 9.0, Firefox 3.6, Chrome 5.0, Safari 5.1
