1TG2-3000
NetScout
factory new
1 year
| Availability: | |
|---|---|
| Quantity: | |
Capture packets and perform in-line VoIP analysis.
Conduct quick rogue hunting to isolate problems by discovering networks and connected devices.
Verify connectivity and performance of wired and Wi-Fi networks in minutes with the one-button AutoTest.
Automate reporting and enable collaboration with upload and management test results via Link-Live Cloud Service.
All-in-one Ethernet and Wi-Fi Network AutoTest that validates network connectivity, plus performance, and finds common problems with the simple push of a button; for senior technicians and engineers.
Time spent troubleshooting network performance problems takes away from critical projects. The OneTouch AT Network Assistant helps save time by providing a complete set of tools for Gigabit, fiber optic, and Wi-Fi networks - including network path performance testing. This ultimate Network Assistant standardizes troubleshooting with pre-defined AutoTest profiles so field technicians can quickly isolate common problems. Full remote control capability enables collaborative troubleshooting between experienced engineers and on-site technicians, speeding up problem time to resolve trouble tickets. The OneTouch AT empowers professionals to validate and troubleshoot Ethernet and Wi-Fi access networks - reducing tests from hours to minutes.
Tackle a broad range of troubleshooting scenarios with the handheld OneTouch AT G2 Network Assistant. The OneTouch AT G2 1500 and 3000 tester incorporates dual copper and fiber-optic test ports to facilitate troubleshooting of 10/100/1000 Mbps twisted pair and 100/1000 Mbps fiber Ethernet networks. The dual ports simplify inline packet capture and VoIP monitoring by eliminating the need for mirror ports or taps. The OneTouch AT G2 3000 tester adds an 802.11ac dual-band Wi-Fi radio with a 3×3 antenna for troubleshooting Wi-Fi networks. When connected to both wired and Wi-Fi networks, the tester displays test results side-by-side on a single page to aid in problem domain isolation. A 10G test module replaces the 1G Wired and Wi-Fi test module for testing wired 100Mbps to 10Gbps Ethernet switch port and link performance at up to 10Gbps rate.

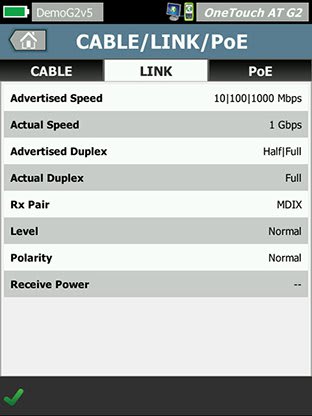

Understand how a client device connects to the wired infrastructure by testing link negotiation, identifying the nearest switch, and monitoring key switch port statistics. The OneTouch AT with G2 Module tests IEEE 802.11a, .11b, .11g, .11n and .11ac Wi-Fi networks. It shows understand how a client device connects to the Wi-Fi infrastructure by testing the link between the client and the nearest access point, identifying the AP name, channel and security type, observing the authentication and association process, and monitoring key AP and network statistics, including roaming details by AP. For Wired client, the OneTouch AT with G2 Module tests 10/100/1000BASE-T twisted pair and 100BASE-FX/1000BASE-X fiber optic Ethernet networks, while the OneTouch AT with 10G Module test RJ-45 test port for 100/1000/10GBASE-T and 1000 BASE-X SFP/10 G BASE-SR/LR SFP+ Ethernet over optical fiber Network.
Test DHCP server responsiveness. Identify the wired and Wi-Fi DHCP servers and view the offer and acceptance timing and lease information. Test DNS server responsiveness. Identify the wired and Wi-Fi DNS servers and view the DNS lookup time. Also, determine if a second DHCP address is being offered. If unexpected or is a potential rogue server, use the path analysis tool - a layer 2 and layer 3 path analysis - to track down the device to mitigate a problem situation.
Use the built-in RJ-45 management port or optional USB Wi-Fi adapter to remotely control the OneTouch AT and access saved files. Any action that can be performed directly on the OneTouch AT using the touch screen can be performed remotely using a PC, laptop, smart phone or tablet. This will minimize the time, expense and inconvenience of traveling to the client location where the problem was reported. Webcam support enables live, remote viewing of the physical environment near the tester. Remote-control of units via the Link-Live Cloud Service also allows traversal of NAT devices, which is very advantageous when troubleshooting from outside the office.
Home Screen
The Home Screen shows the suite of tests that the OneTouch is configured to execute as an AutoTest with the press of the Test button. Each icon on the home page represents a different test. Clicking on the icon shows the test result, and for user-defined tests, shows its test configuration. Users can add new User Defined tests to the AutoTest by “Pressing and Holding” on an empty space on the Home Page. The suite of tests and the configuration is stored in a “Profile” with the name BASIC, as seen on the top left of the UI.
Benefits:
Complex verification tests that involved multiple tests and required multiple testers can be programmed as an AutoTest. OneTouch AT replaces the need to train technicians to use different tools (testers or PCs), each with its own multiple steps, and ensure testing is performed consistently.
| General Specifications | |
| Dimensions (with module and battery installed) | 10.3 in x 5.3 in x 2.9 in (26.2 cm x 13.5 cm x 7.3 cm) |
| Weight (with module and battery installed) | 3.5 lb (1.6 kg) |
| Display | 5.7 in (14.5 cm) LCD with projected capacitance touchscreen, 480 x 640 pixels |
| External AC Adapter/Charger | Input: 100-240 V AC, 50-60 Hz, 1.0 Amps Output: +15 V Dc, 2.0 Amps |
| Battery type | Lithium ion battery pack, 7.2 V |
| Battery life | Approximately 3-4 hours depending on type of usage 4 hours to charge from 10% capacity to 90% capacity with the unit powered off |
| Memory | Internal: 2 GB shared between system and user files SD card: 4/8 GB, brand and model selected for optimal performance USB 2.0 type A port: for use with USB mass storage devices |
| Cable types | 100 Ω Unshielded Twisted Pair (UTP) LAN cables. 100 Ω Shielded or Screened Twisted Pair (SeTP) LAN cables. TIA Category 3, 4, 5, 5e, and 6. ISO Class C, D, E, and F. |
| Cable length measurement | Measurable cable lengths are from 3 ft (1 m) to 656 ft (200 ms). |
| Environmental | |
| Operating temperature | 32°F to 122°F (0°C to 50°C) |
| Battery charging temperature | 32°F to 104°F (0°C to 40°C) |
| Storage temperature | -40°F to 160°F (-40°C to 71°C) -4°F to 122°F (-20°C to 50°C) for periods longer than 1 week |
| Operating relative humidity (% RH without condensation) | 5% to 45% at 32°F to 122°F (0°C to 50°C) 5% to 75% at 32°F to 104°F (0°C to 40°C) 5% to 95% at 32°F to 86°F (0°C to 30°C) |
| Shock and vibration | Meets the requirements of MIL-PRF-28800F for Class 3 Equipment |
| Safety | CAN/CSA-C22.2 No. 61010-1-04, IEC 61010-1:2001 |
| Operating altitude | 13,123 ft (4,000 m), 10,500 ft (3,200 m) with AC adapter |
| Storage altitude | 39,370 ft (12,000 m) |
| Pollution degree | 2 |
| EMC | EN 61326-1:2006 |
| Wi-Fi Antennas | |
| Internal Wi-Fi antennas | (3) internal 2.4 GHz, 1.1 dBi peak, 5 GHz, 3.2 dBi peak antennas supporting 3×3 MIMO technology |
| External directional antenna | Antenna, frequency range 2.4 – 2.5 and 4.9 – 5.9 GHz Minimum gain 5.0 dBi peak in the 2.4 GHz band, and 7.0 dBi peak in the 5 GHz band |
| External antenna connector (external antenna port is receive-only, no transmit) | Reverse SMA |
Capture packets and perform in-line VoIP analysis.
Conduct quick rogue hunting to isolate problems by discovering networks and connected devices.
Verify connectivity and performance of wired and Wi-Fi networks in minutes with the one-button AutoTest.
Automate reporting and enable collaboration with upload and management test results via Link-Live Cloud Service.
All-in-one Ethernet and Wi-Fi Network AutoTest that validates network connectivity, plus performance, and finds common problems with the simple push of a button; for senior technicians and engineers.
Time spent troubleshooting network performance problems takes away from critical projects. The OneTouch AT Network Assistant helps save time by providing a complete set of tools for Gigabit, fiber optic, and Wi-Fi networks - including network path performance testing. This ultimate Network Assistant standardizes troubleshooting with pre-defined AutoTest profiles so field technicians can quickly isolate common problems. Full remote control capability enables collaborative troubleshooting between experienced engineers and on-site technicians, speeding up problem time to resolve trouble tickets. The OneTouch AT empowers professionals to validate and troubleshoot Ethernet and Wi-Fi access networks - reducing tests from hours to minutes.
Tackle a broad range of troubleshooting scenarios with the handheld OneTouch AT G2 Network Assistant. The OneTouch AT G2 1500 and 3000 tester incorporates dual copper and fiber-optic test ports to facilitate troubleshooting of 10/100/1000 Mbps twisted pair and 100/1000 Mbps fiber Ethernet networks. The dual ports simplify inline packet capture and VoIP monitoring by eliminating the need for mirror ports or taps. The OneTouch AT G2 3000 tester adds an 802.11ac dual-band Wi-Fi radio with a 3×3 antenna for troubleshooting Wi-Fi networks. When connected to both wired and Wi-Fi networks, the tester displays test results side-by-side on a single page to aid in problem domain isolation. A 10G test module replaces the 1G Wired and Wi-Fi test module for testing wired 100Mbps to 10Gbps Ethernet switch port and link performance at up to 10Gbps rate.
Understand how a client device connects to the wired infrastructure by testing link negotiation, identifying the nearest switch, and monitoring key switch port statistics. The OneTouch AT with G2 Module tests IEEE 802.11a, .11b, .11g, .11n and .11ac Wi-Fi networks. It shows understand how a client device connects to the Wi-Fi infrastructure by testing the link between the client and the nearest access point, identifying the AP name, channel and security type, observing the authentication and association process, and monitoring key AP and network statistics, including roaming details by AP. For Wired client, the OneTouch AT with G2 Module tests 10/100/1000BASE-T twisted pair and 100BASE-FX/1000BASE-X fiber optic Ethernet networks, while the OneTouch AT with 10G Module test RJ-45 test port for 100/1000/10GBASE-T and 1000 BASE-X SFP/10 G BASE-SR/LR SFP+ Ethernet over optical fiber Network.
Test DHCP server responsiveness. Identify the wired and Wi-Fi DHCP servers and view the offer and acceptance timing and lease information. Test DNS server responsiveness. Identify the wired and Wi-Fi DNS servers and view the DNS lookup time. Also, determine if a second DHCP address is being offered. If unexpected or is a potential rogue server, use the path analysis tool - a layer 2 and layer 3 path analysis - to track down the device to mitigate a problem situation.
Use the built-in RJ-45 management port or optional USB Wi-Fi adapter to remotely control the OneTouch AT and access saved files. Any action that can be performed directly on the OneTouch AT using the touch screen can be performed remotely using a PC, laptop, smart phone or tablet. This will minimize the time, expense and inconvenience of traveling to the client location where the problem was reported. Webcam support enables live, remote viewing of the physical environment near the tester. Remote-control of units via the Link-Live Cloud Service also allows traversal of NAT devices, which is very advantageous when troubleshooting from outside the office.
Home Screen
The Home Screen shows the suite of tests that the OneTouch is configured to execute as an AutoTest with the press of the Test button. Each icon on the home page represents a different test. Clicking on the icon shows the test result, and for user-defined tests, shows its test configuration. Users can add new User Defined tests to the AutoTest by “Pressing and Holding” on an empty space on the Home Page. The suite of tests and the configuration is stored in a “Profile” with the name BASIC, as seen on the top left of the UI.
Benefits:
Complex verification tests that involved multiple tests and required multiple testers can be programmed as an AutoTest. OneTouch AT replaces the need to train technicians to use different tools (testers or PCs), each with its own multiple steps, and ensure testing is performed consistently.
| General Specifications | |
| Dimensions (with module and battery installed) | 10.3 in x 5.3 in x 2.9 in (26.2 cm x 13.5 cm x 7.3 cm) |
| Weight (with module and battery installed) | 3.5 lb (1.6 kg) |
| Display | 5.7 in (14.5 cm) LCD with projected capacitance touchscreen, 480 x 640 pixels |
| External AC Adapter/Charger | Input: 100-240 V AC, 50-60 Hz, 1.0 Amps Output: +15 V Dc, 2.0 Amps |
| Battery type | Lithium ion battery pack, 7.2 V |
| Battery life | Approximately 3-4 hours depending on type of usage 4 hours to charge from 10% capacity to 90% capacity with the unit powered off |
| Memory | Internal: 2 GB shared between system and user files SD card: 4/8 GB, brand and model selected for optimal performance USB 2.0 type A port: for use with USB mass storage devices |
| Cable types | 100 Ω Unshielded Twisted Pair (UTP) LAN cables. 100 Ω Shielded or Screened Twisted Pair (SeTP) LAN cables. TIA Category 3, 4, 5, 5e, and 6. ISO Class C, D, E, and F. |
| Cable length measurement | Measurable cable lengths are from 3 ft (1 m) to 656 ft (200 ms). |
| Environmental | |
| Operating temperature | 32°F to 122°F (0°C to 50°C) |
| Battery charging temperature | 32°F to 104°F (0°C to 40°C) |
| Storage temperature | -40°F to 160°F (-40°C to 71°C) -4°F to 122°F (-20°C to 50°C) for periods longer than 1 week |
| Operating relative humidity (% RH without condensation) | 5% to 45% at 32°F to 122°F (0°C to 50°C) 5% to 75% at 32°F to 104°F (0°C to 40°C) 5% to 95% at 32°F to 86°F (0°C to 30°C) |
| Shock and vibration | Meets the requirements of MIL-PRF-28800F for Class 3 Equipment |
| Safety | CAN/CSA-C22.2 No. 61010-1-04, IEC 61010-1:2001 |
| Operating altitude | 13,123 ft (4,000 m), 10,500 ft (3,200 m) with AC adapter |
| Storage altitude | 39,370 ft (12,000 m) |
| Pollution degree | 2 |
| EMC | EN 61326-1:2006 |
| Wi-Fi Antennas | |
| Internal Wi-Fi antennas | (3) internal 2.4 GHz, 1.1 dBi peak, 5 GHz, 3.2 dBi peak antennas supporting 3×3 MIMO technology |
| External directional antenna | Antenna, frequency range 2.4 – 2.5 and 4.9 – 5.9 GHz Minimum gain 5.0 dBi peak in the 2.4 GHz band, and 7.0 dBi peak in the 5 GHz band |
| External antenna connector (external antenna port is receive-only, no transmit) | Reverse SMA |
