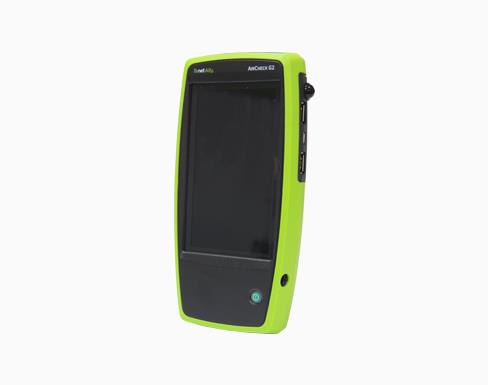

AirCheck G2
NetAlly
New
1 Year
| Quantity: | |
|---|---|
AirCheck G2 offers a "One-Click Auto Test" function, which quickly tests the Wi-Fi environment and identifies common issues. Test results are displayed as "Pass/Fail".
It tests the most widely used Wi-Fi standards (including 802.11ax); this device is a rugged, handheld professional wireless network testing tool.
Networks and devices in the current location are detected immediately upon power-on.
View test results, including available networks, connectivity, utilization, throughput, security settings, rogue device detection, and interference source detection.
Automatically generate test reports and upload, share, collaborate on, and manage them via the Link-Live cloud service platform.
| Specification | Details |
|---|---|
| Operating Temperature | 32°F to 113°F (0°C to +45°C) Note: If the tester's internal temperature exceeds 122°F (50°C), the battery will not supply power. |
| Operating Relative Humidity (RH, non-condensing) | 90% (50°F to 95°F; 10°C to 35°C) 75% (95°F to 113°F; 35°C to 45°C) |
| Storage Temperature | -4°F to 140°F (-20°C to +60°C) |
| Shock and Vibration | 1-meter drop test; Random vibration: 3.8 g, 5 Hz – 500 Hz (Class 2) |
| Safety | IEC 61010-1: Pollution Degree 2 |
| Altitude | 4,000 meters (operating); 12,000 meters (storage) |
| EMC (Electromagnetic Compatibility) | IEC 61326-1: Basic EMC environment; CISPR 11: Class A, Group 1 |
Complies with relevant European Union (EU) standards.
Complies with relevant Australian safety and electromagnetic compatibility standards.
Certified by the Canadian Standards Association (CSA) to meet North American safety standards.
Complies with the requirements of 47 CFR Part 15 of the U.S. Federal Communications Commission (FCC).
Certified by Brazil's National Telecommunications Agency (Anatel).
Complies with relevant South Korean EMC standards.
Additional information on South Korean EMC standards:
Electromagnetic compatibility. Applicable only for use in South Korea. Class A equipment (industrial radio and telecommunications equipment) [1]
| Category | Details |
|---|---|
| Dimensions | 3.8 in x 7.7 in x 1.6 in (9.7 cm x 19.6 cm x 4.1 cm) |
| Weight | 18 oz (0.51 kg) |
| Battery | Rechargeable lithium-ion battery pack (3.6 V, 6 Ah, 21 Wh) |
| Battery Life | 4.5 hours of typical operation; 7 hours for full recharge |
| External AC Adapter/Charger | AC input voltage: 85-264 V, input frequency: 47-63 Hz; DC output: 15 V, 2 A |

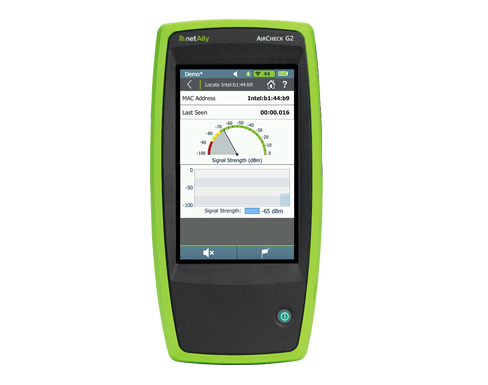

| Display | 5.0-inch color LCD, capacitive touchscreen (480 x 800 pixels) |
| Keypad | 1 plastic key (power key only) |

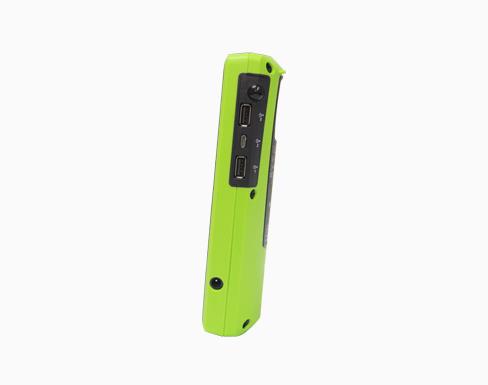

| Host Interface | 1 USB Type-B port |
| Auxiliary Interfaces | 2 USB 2.0 Type-A ports |
| Wireless Network Antennas | 3 built-in antennas |
| External Antenna Port | Input only; Reverse-polarity protected SMA connector |
| Category | Details |
|---|---|
| Compliant Standards | IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac |
| Wi-Fi Connectivity | 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac |
| Operating Frequencies (Reception) | Note: These are the center frequencies of the channels supported by AirCheck G2. Note: The tester receives all these frequencies in every country. 2.4 GHz band: 2.412 – 2.484 GHz (Channels 1 to 14) 5 GHz band: 5.170 – 5.320 GHz, 5.500 – 5.700 GHz, 5.745 – 5.825 GHz (Channels 34, 36, 38, 40, 42, 44, 46, 48, 52, 56, 60, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165) |
| Operating Frequencies (Transmission) | Note: The tester transmits signals only within the frequency ranges permitted by the local country. 2.4 GHz band: - 802.11b: 2.412 – 2.484 GHz (Channels 1 to 14) - 802.11g/n 20 MHz BW (HT20): 2.412 – 2.472 GHz (Channels 1 to 13) - 802.11n 40 MHz BW (HT40): 2.422 – 2.462 GHz (including all legally restricted channel pair combinations) |
