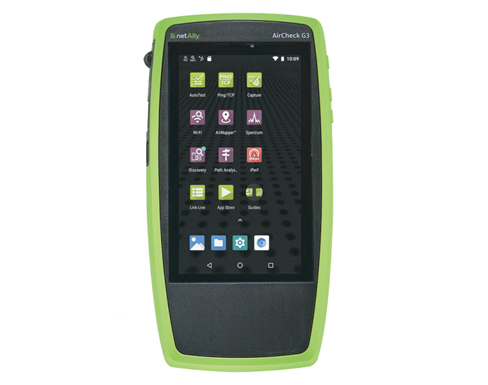

AirCheck G3 Pro

AIRCHECK 3rd-Generation Professional Wi-Fi 6 Wireless Analyzer

A Rugged Tool for Comprehensive Network Validation and Troubleshooting

• Supports Wi-Fi 6, 2.4/5/6GHz frequency bands, and Bluetooth/BLE

• Enables rapid testing, validation, troubleshooting, and topology mapping of Wi-Fi networks

• Works with the AirMapper Site Survey App to facilitate faster and easier Wi-Fi and Bluetooth/BLE site surveys

• Quickly locates the physical positions of Wi-Fi APs (Access Points) and clients across 2.4GHz, 5GHz, and 6GHz frequency bands

Overview

Key Features

• Leverages advanced testing applications (Apps) and dedicated hardware to test, validate, and troubleshoot technology upgrades, Wi-Fi 6/6E networks, and Bluetooth/BLE devices—while verifying Wi-Fi 6/6E network performance for critical services and key end devices

• Supports comprehensive 2.4GHz and 5GHz spectrum interference analysis with the optional NXT-1000 portable spectrum analysis card; enables remote engineers to troubleshoot via cloud-based remote control in Link-Live and collaborate with frontline technical staff

• Seamlessly integrates and manages on-site test data through Link-Live, and connects with network management systems

Flexible Platform with Multi-Technology Support

• Optional NXT-1000 portable spectrum analysis card, compatible with 2.4/5GHz.

• 802.11a/b/g/n/ac/ax Wi-Fi network connectivity – Analyzes SSIDs, BSSIDs, channels, client devices, and interference sources

• 1x1 Wi-Fi 5 RF, supporting: – Remote control connectivity and testing – Network discovery and topology mapping

• Built-in Bluetooth v5/BLE RF for peripheral device connection and Bluetooth/BLE site surveys

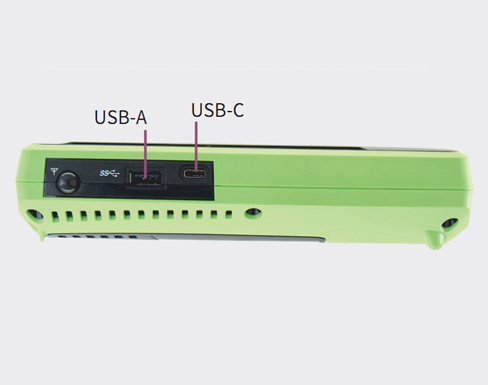

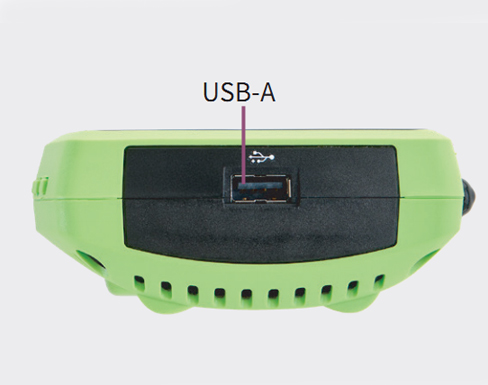

• USB ports provide network connectivity for accessories and other devices

Native Support for Wi-Fi 6 and 6GHz

• Validates real-world Wi-Fi 6/6E network performance using the device’s native 802.11ax RF

• Views all Wi-Fi devices operating on 2.4GHz, 5GHz, and 6GHz bands*

• Captures packets of Wi-Fi 6 control, management, and data frames across all three bands

• Diagnoses new Wi-Fi 6E mechanisms such as reduced neighbor reports, preferred scan channels, and multi-BSSID

• Authenticates using the new WPA3 and Enhanced Open security standards

AirMapper Site Survey APP? Now Supports Wi-Fi 6/6E

AirMapper Site Survey App on AirCheck G3

• Conduct faster and easier Wi-Fi and Bluetooth/BLE site surveys with a single rugged handheld analyzer

• Automatically identify common Wi-Fi network issues using InSites intelligent analysis in Link-Live

• Collaboration – Easily visualize, view, and share survey data via Link-Live

• Perform simultaneous passive and active Wi-Fi surveys to collect key site metrics; validate customer experience and roaming with a single survey

• Export Wi-Fi survey data to AirMagnet Survey PRO for in-depth analysis, planning, and reporting

Spectrum Interference Analysis

Spectrum Analysis App on AirCheck G3

• Real-Time Spectrum – Provides a live RF view, including current, average, and maximum readings

• Spectrum Heatmap – Displays signal density to identify cyclic energy

• Spectrogram – Shows how energy changes over time to identify periodic patterns in the RF environment

Validating Complex Wireless Networks

Customize Profiles for Standardized Testing

• Tailor ready-to-use AutoTest configuration profiles for Wi-Fi networks to match your deployment needs

• Execute multiple AutoTest profiles to reduce testing time and validate multiple Wi-Fi SSIDs

• Define target groups and assign them to AutoTest profiles to verify performance using ping, TCP Connect, Web, or FTP

• Automated testing accelerates and simplifies validation and troubleshooting, enabling more users to resolve more issues in less time

Wired + Wi-Fi Network Discovery, Topology, Analysis, and Security Audits

• Discover network devices across multiple VLANs and Wi-Fi SSIDs

• Differential discovery analysis in Link-Live reveals potential security risks in network infrastructure by showing changes in connected devices

• Powerful filtering and sorting capabilities, with automatic identification of issues such as:

• Duplicate IPs, switch port congestion, and overused Wi-Fi channels/SSIDs

• Security issues, such as unknown switches and access points with open authentication

• Path analysis shows the route from switches/routers to any connected device

• Bulk authorization workflows simplify distinguishing between known and unknown devices for "who’s on my network" audits

Wi-Fi Performance Testing and Packet Capture

iPerf Throughput Testing with TCP or UDP Frames

• Simultaneously generate and measure IP-based traffic using two Wi-Fi radios

• Supports the widely used iPerf network throughput test for Wi-Fi networks

• Capture wireless traffic to PCAP files with simple yet powerful filtering and slicing controls—for use as escalation evidence or in-depth analysis
