EtherScope nXG
NetAlly
New
1 year
| Quantity: | |
|---|---|
NetAlly EtherScope nXG Advanced Performance Test Kit
Verify up to 10G Ethernet link performance for critical servers, uplinks and key end devices, and validate Wi-Fi network performance
Seamlessly consolidate and manage field test data, and integrate with network management systems via complimentary Link-Live Cloud Service
Empowers technicians who may not have access to network management systems or other engineer-level tools, to assess and document complex network deployments with multiple VLANs and Wi-Fi SSIDs
Enables remote engineers to troubleshoot and collaborate with on-site technicians to solve tough problems at remote sites, saving time and cost of travel
Test, verify, and troubleshoot technology upgrades, NBASE-T, 10G and Wi-Fi 5/6 networks with advanced Android-based

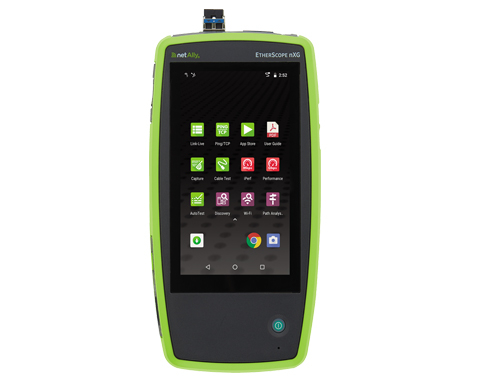

The EtherScope nXG Portable Network Expert is a multi-technology, all-in-one handheld network tester that enables engineers and technicians to get more done faster, from deployment to maintenance and documentation of their ever-changing Wi-Fi and Ethernet access networks. With its simple operation, yet in-depth visibility, and the ability to remotely access and control EtherScope nXG, engineers can now fully enable and leverage the "local hands" of field technicians to expedite problem-solving.
All-in-one to address new technology upgrades
An Android-based handheld network tester that verifies, discovers and troubleshoots Wi-Fi and Ethernet network infrastructures
Native 4×4 Wi-Fi that supports:
802.11a/b/g/n/ac (wave 2) Wi-Fi network connectivity
Wi-Fi 6 network visibility

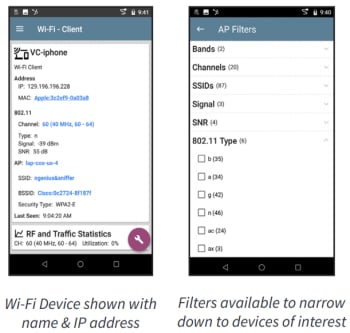

Analysis of SSIDs, BSSIDs, channel, client devices, and interference sources
Ethernet port supports:
10/100/1000Mbps to 2.5/5/10G
Verifies loaded power from 90W PoE switch
Built-in Bluetooth v5/BLE and USB interfaces to discover and configure nearby device
Auditing and documenting network security and health
Discover network devices across multiple VLANs and Wi-Fi SSIDs through four Wi-Fi and Ethernet interfaces upon power up
Powerful filter and sort function with automatic problem detection identifies issues such as:
Duplicate IPs
Congested switch ports
Oversubscribed Wi-Fi channels/SSIDs
Security issues, such as unknown switches, access points with open authentication and unencrypted APs
Path Analysis shows the switch/router path to any connected device
10G copper/fiber wired and Wi-Fi performance tests for critical links and key devices

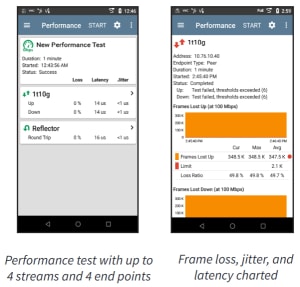

Simultaneously generate and measure up to four streams of IP-based traffic through the Ethernet test port to:
Load the network with up to full 10G line-rate traffic
Test for packet loss, delay, and jitter
Supports popular iPerf network throughout testing for Wi-Fi and Wired networks

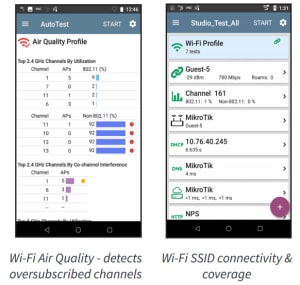

Simplifies tasks and empowers technicians to verify complex networks with next generation AutoTest
Out-of-the-box AutoTest profiles for Wi-Fi and wired networks that can be customized for your network
Execute multiple AutoTest profiles that shorten test time to verify multiple VLANs and Wi-Fi SSIDs
Define and assign groups of targets to AutoTest profiles to verify performance using ping, TCP Connect, Web, or FTP
Packet capture from Wi-Fi and Ethernet to PCAP file
Automated test results management
Complimentary Link-Live Cloud Service stores test result and site data upload for automated reporting and documentation
Available API enables seamless data integration between Link-Live and trouble-ticket or network management systems
| General Specifications | |
| Dimensions | 4.05 in x 7.67 in x 2.16 in (10.3 cm x 19.5 cm x 5.5 cm) |
| Weight | 1.677 lbs. (0.76 kg) |
| Battery | Removable, rechargeable lithium-ion battery pack (7.2 V, 6.4 A, 46 Wh) |
| Battery Life | Typical operating life is 6 hours; Typical charge time is 3 hours |
| Display | 5.0-inch color LCD with capacitive touchscreen (720 x 1280 pixels) |
| Host Interface | RJ-45 Cable Test and Management Port USB Type-A Port USB Type-C On-the-Go Port |
| SD Card Port | Supports Micro SD card storage |
| Memory | Approximately 8 GB available for storing test results and user applic-ations |
| Charging | USB Type-C 45-W adapter: AC Input Power 100-240 V, 50-60 Hz; DC Output Power 15 V (3 A) RJ-45: 802.3at and 802.3bt PoE |
| Media Access | Copper: 10M/100M/1G/2.5G/5G/10G Fiber SFP Adapters: 1G/10GBASE-X |
| Supported IEEE Standards | Wired: 802.3/ab/ae/an/bz/i/u/z Wi-Fi: 802.11a/b/g/n/ac PoE: 802.3af/at/bt, Class 0-8 and UPOE |
| Cable Test | Pair lengths, opens, shorts, splits, crossed, straight through, and WireView ID |
| Wireless | |
| EtherScope nXG has two internal Wi-Fi Radios: | Wi-Fi Testing – 4x4 Dual-band 802.11ac Wave 2 wireless radio Android System Wi-Fi, Bluetooth, and Management – 1x1 Dual-band 802.11ac Wave 2 + Bluetooth 5.0 and BLE wireless radio (Both are IEEE 802.11a/b/g/n/ac compliant.) |
| Environmental | |
| Operating Temperature | 32°F to 113°F (0°C to +45°C) NOTE: The battery will not charge if the internal temperature of the tester is above 122°F (50°C). |
| Operating relative humidity (% RH without condensation) | 90% (50°F to 95°F; 10°C to 35°C) 75% (95°F to 113°F; 35°C to 45°C) |
| Storage temperature | -4°F to 140°F (-20°C to +60°C) |
| Shock and vibration | Meets the requirements of MIL-PRF-28800F for Class 3 Equipment |
| Safety | IEC 61010-1:2010: Pollution degree 2 |
| Altitude | Operating: 4,000 m; Storage: 12,000 m |
| EMC | IEC 61326-1: Basic Electromagnetic Environment; CISPR 11: Group 1, Class A |
