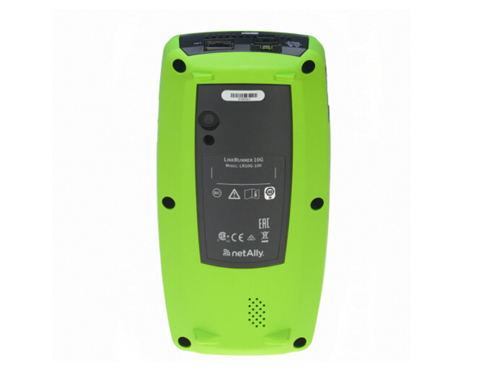

LinkRunner 10G
NetAlly
New
1 Year
| Quantity: | |
|---|---|
Leverage advanced AndroidTM-based troubleshooting applications and dedicated test hardware to upgrade technologies for installation, testing, validation, and troubleshooting of Multi-Gigabit (NBASE-T) and 10G networks
Physical layer testing includes cable (TDR) testing, audio cable tracing, cable locating, and cable Signal-to-Noise Ratio (SNR) measurements for Gigabit links
Compatible with standard-compliant SFPs, enabling testing and validation of any wired media (copper and fiber) across various usage models
Verify Power over Ethernet (PoE) devices up to 90W (802.3bt standard) through TruePower-loaded PoE testing
Pair with EtherScope nXG for wire-speed testing to validate network throughput, performance, and Quality of Service (QoS) between sites, as well as service provider Service Level Agreements (SLAs)
Primary Test RJ-45 Port: Supports Multi-Gigabit networks from 10/100/1000Mbps to 2.5/5/10G. It verifies link speed, SNR, and nominal/negotiated duplex speeds, requests and validates PoE power under PSE loads up to 90W, and connects to fiber networks via single/multi-mode SFP+ for testing 1/10Gbps fiber-based Ethernet.

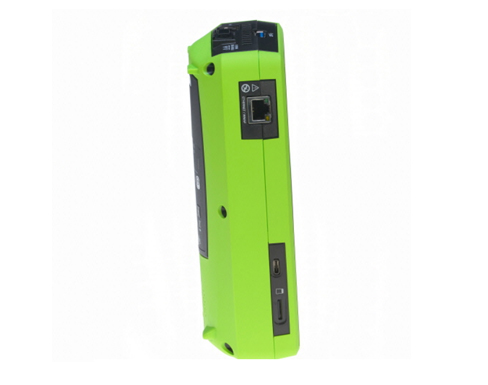

Secondary RJ-45 Management Port: Connects to 10/100/1000Mbps Ethernet for remote control, and enables network scanning/testing when needed. This port is also used for cable testing.
The USB-A port connects additional USB adapters and third-party accessories (e.g., printers, barcode scanners, fiber inspection cameras).
Via a USB-based Wi-Fi adapter (e.g., Edimax AC1200 for 802.11ac/b/g/n), third-party applications can be used for connectivity and wireless testing.
PoE validation for PSE switch ports up to 90W and TruePower? load testing
Comparison of link speed/duplex nominal vs. actual values, and SNR measurement for Multi-Gigabit links
VLAN-tagged traffic detection and monitoring
Switch port identification with interface statistics, connected devices, and detailed information
DHCP availability, response time, automatic detection of secondary DHCP services, and connection logs
DNS lookup (forward/reverse) availability and response time
Gateway availability and response time
Active connection test targets (Ping or TCP Connect)
End-user response time measurement via HTTP
802.1x authentication
Each switch port supports multiple VLANs, with each VLAN having its own set of IP targets.
Profiles are organized into profile groups, and tests are executed sequentially for each profile—enabling one-time validation and documentation of multiple VLANs.
Predefined profiles can be run individually, making profile groups a valuable resource for technicians to validate specific VLANs during troubleshooting.
Engineers can transfer their network configuration and testing knowledge to technicians via profile groups, saving training time and effort.
Cabling SNR Measurement: The LinkRunner 10G verifies whether copper media supports Multi-Gigabit speeds (1/2.5/5/10Gig) and provides root-cause diagnosis when link speed downshifting occurs.
Scheduled AutoTest: In this mode, AutoTest runs at specified intervals (1 minute to 24 hours) and sends results to Link-Live for trend analysis over time. This enables efficient long-term monitoring of all network aspects and helps diagnose intermittent issues—eliminating the need for manual repeated testing.
Results are automatically timestamped, and users can add comments for grouping or management.
Filtering and sorting tools allow quick analysis of test results in Link-Live. Email alerts are sent when errors are detected.
This performance test can run at full wire speed to measure high-end bandwidth and quality across end-to-end networks or specific segments.
It can also be used to benchmark switches pre-deployment for optimal configuration.
For troubleshooting on production networks (where excessive test traffic may cause disruptions), many users configure NPT for low traffic (even as low as 128Kbps) to characterize network quality, identify potential packet loss/latency/jitter, and validate QoS.
Packet Capture: Captures wire-speed traffic up to 10G to create PCAP files up to 1GB. Supports packet slicing and filtering; PCAP files can be uploaded to the Link-Live cloud service for easy sharing.
Device-Level Investigation Tools: Tools like a browser enable device-specific investigations.
Cable Testing: Determines length, shorts, split pairs, and open circuits in UTP cables. Uses the WireView adapter to verify wiring diagrams for UTP and ScTP cables. Generates analog or unique digital tones for Fluke Networks IntelliTone probes to enable fast cable tracing.
Wiremap Cable Testing: Detects distances to fault points (including cable shielding).
Android Applications: Users can download apps from the Link-Live App Store to perform tasks beyond testing.
When the tester connects to Link-Live, test results are automatically uploaded to a dashboard for project management and reporting.
Users can optionally upload additional files, screenshots, images, profiles, packet captures, location data, and notes at any time.
Additionally, certain NetAlly devices with purchased AllyCare service can receive free firmware updates from Link-Live "over the network."
Reduced costs for managing test results across multiple testers and users
Seamless collaboration between on-site support technicians and remote support experts
Attachment of photos and user comments to each test result for reference during future configuration changes or troubleshooting
Asset management: Association of installed device serial numbers and cable/wall jack labels with specific test results
Device Details: Display VLANs, interfaces, uptime, and additional in-depth information.
Device Classification & Association: Provide complete visibility including name, network address, VLAN, SSID, device type, and traffic statistics (when applicable). Engineers can name discovered devices and set authorization statuses.
Result Sharing: Discovery results can be directly uploaded to the free Link-Live cloud service for storage, analyzed in detail using filtering and sorting tools, or exported as CSV/PDF documents.
Device configuration summaries
Interface configurations and traffic details
SSIDs supported by WLAN controllers
Devices directly connected to switches
Interface Traffic Statistics: Detect intermittent events with 24-hour data.
View configurations and interface traffic statistics
Launch Telnet or a browser
Perform port scans, Pings, etc.
Cost-effective wire-speed 10Gig Ethernet testing
Rapid testing, validation, and troubleshooting of 1Gig, Multi-Gig, and 10Gig Ethernet (copper, fiber), including wire-speed performance testing and packet capture
Layer 1-7 automated testing enables any technician to identify network issues
Monitor intermittent network issues for up to 24 hours (at 1-minute intervals)
AllyCare-enabled deep network discovery and web-based remote control
Use Android-based advanced troubleshooting apps and dedicated test hardware to upgrade technologies for installation, testing, validation, and troubleshooting of Multi-Gig (NBASE-T) and 10G networks
Act as a peer for EtherScope nXG to perform wire-speed performance testing, validating network capacity, performance, and QoS between sites, as well as service provider SLAs
Compatible with standard-compliant SFPs, enabling testing and validation of any wired media (copper or fiber) across various usage models
Wire-speed capture up to 10Gbps, ensuring no packets are missed
Verify 802.3bt PSE devices up to 90W through TruePower-loaded PoE testing
Discovery: Instantly view devices on the network and their connection locations via switch, slot, and port numbers. Quickly investigate and identify "suspicious" devices, and troubleshoot issues related to device misconfiguration.
Switch Management: Monitor interfaces, utilization, errors, discards, HDX, RTSP, and recent reboots via SNMP.
Device Discovery: Discover all devices, then filter and sort using a powerful device search inventory. Add names/authorization to any device.
Topology Analysis: Path analysis shows the Layer 2 switch/Layer 3 router path to any connected device.
Cloud-Based Remote Control: Simple and secure remote control enables management and control of distributed devices.
| Specification Category | Details |
|---|---|
| Dimensions | 4.05 in x 7.67 in x 2.16 in (10.3 cm x 19.5 cm x 5.5 cm) |
| Weight | 1.68 lbs (0.77 kg) |
| Battery | Rechargeable lithium-ion battery pack (7.2 V, 6.4 A, 46 Wh) |
| Battery Life | Typical operating life: 3–4 hours; Typical charging time: 3 hours |

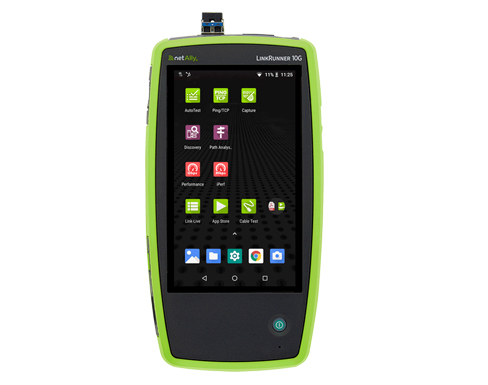

| Display | 5.0-inch color LCD with capacitive touchscreen (720 x 1280 pixels) |
| Host Interfaces | - RJ-45 and SFP analysis ports - RJ-45 cable testing and management port - USB Type-A port and USB Type-C On-the-Go port |
| SD Card Port | Supports Micro SD card storage – up to 64GB |
| Memory | Approximately 8 GB of available space for storing test results and user applications; 1 GB packet capture buffer |
| Charging | - USB Type-C 45-W adapter: 100–240 Vac, 50–60 Hz; DC output: 15 V (3 A) - RJ-45: 802.3at PoE (25W) or higher |
| Media Access | - Copper: 10M / 100M / 1G / 2.5G / 5G / 10G - Fiber SFP adapter: 1G / 10GBASE-X |
| Supported IEEE Standards | - Wired: 802.3 / ab / ae / an / bz / i / u / z - PoE: 802.3af / at / bt, Classes 0–8, and UPOE |
| Cable Testing | Pair length, opens, shorts, split pairs, crosses, straight-through, and WireView ID |
