LRAT-1000
NetAlly
New
1 year
| Quantity: | |
|---|---|
NetAlly LinkRunner AT LRAT-1000 Network Tester
The NetAlly LRAT-1000 LinkRunner AT 1000 Network Auto-Tester is a rugged, fast, and complete copper Ethernet network connectivity tester. It performs an essential set of network connectivity tests, enabling you to quickly and accurately identify and solve network connectivity problems.
The LinkRunner AT 1000 offers user-configured auto-tests for a wide range of important tasks. This network tester's quick cable test and switch identification facilitate fast problem isolation. Test results can be automatically uploaded to the Link-Live Cloud Service to improve collaboration between network engineers and technicians, creating greater job visibility, project control, and fleet management.
Users can easily find opens, shorts, miswires, and split pairs in three different ways:
On non-terminated cable
With a WireView Cable Identifier

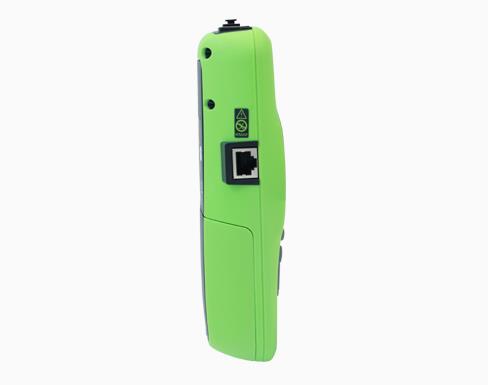

Check patch cord with the built-in wiremap port on the side of the LinkRunner AT
Cable Location
The LinkRunner AT uses the IEEE Link Layer Discovery Protocol (LLDP), along with the Cisco and Extreme Discovery Protocols (CDP and EDP) to display the nearest switch model, slot, port and VLAN configured.
Switch Information
The LinkRunner AT displays the following critical nearest switch information:
Switch name and model
Chassis, slot and port
Switch IP address
Voice and Data VLAN IDs
Duplex and speed (actual and advertised)
Signal Strength
Connection (MDI or MDI/X)
PoE voltage and power (actual and test limit)
Graphical representation of power on pairs
AutoTest Results
LinkRunner AT can perform either a Ping or a TCP port open test to verify connectivity. The test conducted will reveal connection and response time to the default Gateway, preferred DNS server, and alternate DNS server. LinkRunner AT can connect to as many as 10 user-defined target devices, servers or services, testing using Ping, or a user-defined TCP port number. If a URL is used as the target, results will include response time and an IP address.
Configuration Settings
802.1x Authentication
Verify access to secure networks using 802.1x and MAC Access Control Lists (ACL). The included LinkRunner AT Manager Software can be used to enable 802.1x and download certificates.
Serving as a centralized test results and device management system, the free Link-Live cloud service transforms team workflows with the ability to quickly and easily log, document, and report test activity from all LinkSprinter, LinkRunner AT, LinkRunner G2, LinkRunner 10G, EtherScope nXG, and AirCheck G2 handheld network testers. Once the instrument is connected to the Link-Live Cloud service, your test results are automatically uploaded to the dashboard for project management and reporting. You have the option of uploading additional files, screenshots, images, profiles, packet captures, location information, and comments anytime. Also, certain NetAlly instruments with AllyCare Support can receive firmware updates "over the network" from Link-Live as they become available.
An API is available to retrieve and integrate data from Link-Live into other management platforms, such as your trouble-ticket application or network management system. This gives you the ability to easily provide proof-of-performance and better manage jobs and staff efficiency.
| Category | Specification |
|---|---|
| Model Name | NetAlly LinkRunner AT 1000 (Often abbreviated as LRAT-1000) |
| Product Line | The original model in the LinkRunner AT series, now succeeded by the LinkRunner G2. |
| Form Factor | Handheld, ruggedized, pistol-grip design. |
| Primary Use Case | Automated network testing and troubleshooting for technicians. Designed for verifying network service and physical layer connectivity. |
| Hardware & Display | |
|---|---|
| Display | 5-inch full-color, sunlight-readable capacitive touchscreen (800 x 480) |
| Ports & Interfaces | Main Test Port: 10/100/1000BASE-T Gigabit RJ-45 (Copper) Auxiliary Port: 10/100/1000BASE-T Gigabit RJ-45 (Copper) USB Port: Mini-USB for data transfer and charging. |
| Wireless | Integrated 802.11a/b/g/n (Wi-Fi 4) dual-band (2.4 & 5 GHz) radio |
| Battery Life | Typical Use: 8+ hours |
| Camera | Integrated camera for documenting endpoints and assets (specification not detailed by manufacturer). |
| Wired Testing Capabilities | |
|---|---|
| AutoTest | One-touch automated test for wired and wireless connectivity. Provides a pass/fail assessment of critical network services. |
| Link Configuration | Switch Detection: CDP, LLDP VLAN Discovery: Discovers VLAN information PoE (Power over Ethernet) Test: Tests for presence of IEEE 802.3af/at PoE and measures voltage. |
| Cable Testing & Diagnostics | TDR (Time Domain Reflectometer): Identifies cable faults (opens, shorts, miswires), measures length, and estimates distance to fault. Wiremap: Verifies correct pin-to-pin connectivity. |
| Network Connectivity Tests | Ping, traceroute, DNS lookup, and DHCP server test. |
| Port Identification | Link-Flashing: Blinks switch port LED by generating traffic. |
| Wireless (Wi-Fi) Testing Capabilities | |
|---|---|
| Integrated Radio | 802.11a/b/g/n (Wi-Fi 4) supporting 2.4 GHz and 5 GHz bands. |
| Wi-Fi Analysis | Network Discovery: Discovers nearby SSIDs and APs. Client Connection Test: Connects to a target SSID to validate network access. |
| Software & Data Management | |
|---|---|
| Analysis & Reporting | Generates on-device reports. Lacks the integrated cloud connectivity of its successors. |
| Data Transfer | Results can be transferred via the USB port for reporting. |
| Physical & Environmental | |
|---|---|
| Ruggedization | Drop Test: Withstands multiple 4-ft (1.2-meter) drops. Design: Ruggedized casing for field use. |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
Foundational Model: The LRAT-1000 is the predecessor to the LinkRunner G2. It established the core "one-button AutoTest" philosophy for network validation.
Core Functionality: It provides all the essential tests for a network technician: cable testing, PoE verification, switch discovery, and basic Wi-Fi connectivity testing.
Key Limitations (vs. Newer Models):
Lacks Multi-Gig Support: Only supports up to 1 Gigabit Ethernet (10/100/1000). Cannot test 2.5GbE, 5GbE, or 10GbE links.
Older Wi-Fi Radio: Integrated 802.11n (Wi-Fi 4) radio, not Wi-Fi 5 or Wi-Fi 6.
No Integrated Cloud Service: Does not have automatic sync to the Link-Live cloud platform, which is a central feature of the G2 and later models.
Basic Cable Diagnostics: Provides length and fault finding, but lacks the advanced certification-grade metrics (Insertion/Return Loss) found in the OneTouch AT G2.
Position in Market: While a capable and rugged tool in its time, the LRAT-1000 has been effectively replaced by the LinkRunner G2, which offers significant upgrades in speed, cloud integration, and analysis features.
In essence, the NetAlly LRAT-1000 is a reliable, foundational network auto-tester best suited for basic to intermediate network troubleshooting tasks on standard 1G networks. For modern networks with Multi-Gig access and for teams requiring cloud-based collaboration and reporting, the LinkRunner G2 or OneTouch AT G2 are the recommended successors.
