NetAlly Onetouch AT G2
NetAlly
New
1 year
| Quantity: | |
|---|---|
1TG2-3000-MOD ONETOUCH AT G2 PERP ENET WI-FI TEST MODULE

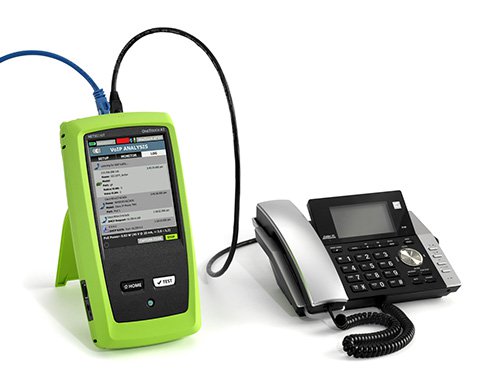

OneTouch AT G2 Ethernet WI-FI Tester
All-in-one: a handheld tester combining infrastructure, network service and end-to-end path performance measurement in one tool.
Versatile: The OneTouch AT has a modular design: select the G2 module that has dual 10/100/1G copper/fiber Ethernet test ports and 802.11a/b/g/n/ac Wi-Fi radio, or the 10G module that has 100M/1/10G copper and fiber Ethernet test ports.
Standardize: Network engineers can pre-program AutoTest profiles for field technicians to choose that automatically run a suite of tests with the press of a button, enabling identification of the most common problems in about a minute.
All-in-one Ethernet and Wi-Fi Network AutoTest that validates network connectivity, plus performance, and finds common problems with the simple push of a button; for senior technicians and engineers.
Time spent troubleshooting network performance problems takes away from critical projects. The OneTouch AT Network Assistant helps save time by providing a complete set of tools for Gigabit, fiber optic, and Wi-Fi networks - including network path performance testing. This ultimate Network Assistant standardizes troubleshooting with pre-defined AutoTest profiles so field technicians can quickly isolate common problems. Full remote control capability enables collaborative troubleshooting between experienced engineers and on-site technicians, speeding up problem time to resolve trouble tickets. The OneTouch AT empowers professionals to validate and troubleshoot Ethernet and Wi-Fi access networks - reducing tests from hours to minutes.
Tackle a broad range of troubleshooting scenarios with the handheld OneTouch AT G2 Network Assistant. The OneTouch AT G2 1500 and 3000 tester incorporates dual copper and fiber-optic test ports to facilitate troubleshooting of 10/100/1000 Mbps twisted pair and 100/1000 Mbps fiber Ethernet networks. The dual ports simplify inline packet capture and VoIP monitoring by eliminating the need for mirror ports or taps. The OneTouch AT G2 3000 tester adds an 802.11ac dual-band Wi-Fi radio with a 3×3 antenna for troubleshooting Wi-Fi networks. When connected to both wired and Wi-Fi networks, the tester displays test results side-by-side on a single page to aid in problem domain isolation. A 10G test module replaces the 1G Wired and Wi-Fi test module for testing wired 100Mbps to 10Gbps Ethernet switch port and link performance at up to 10Gbps rate.
| Category | Specification |
|---|---|
| Model Name | NetAlly OneTouch AT G2 Network Tester (Often referred to as OTG2 or OneTouch G2) |
| Form Factor | Handheld, ruggedized, all-in-one touchscreen analyzer |
| Primary Use Case | Automated network testing and troubleshooting for both wired and wireless access networks, with a focus on one-touch operation and comprehensive results. |
| Hardware & Display | |
|---|---|
| Display | 7-inch full HD (1920x1200) capacitive touchscreen, sunlight-readable, gorilla glass |
| Ports & Interfaces | Network Test Ports: 2 x 10/100/1000/2500BASE-T Multi-Gig RJ-45 (Copper) SFP28 Fiber Port: 1 x 100/1000/10000/25000BASE-X (25G) USB-C® Port: For data transfer, charging, and USB peripherals USB-A Port: For peripherals like Wi-Fi adapters |
| Wireless | Integrated 802.11a/b/g/n/ac/ax (Wi-Fi 6E) tri-band (2.4, 5, and 6 GHz) radio |
| Battery Life | Typical Use: 8+ hours Charging: Rapid charging via USB-C (PD compliant) |
| Wired Testing Capabilities | |
|---|---|
| AutoTest | The core feature. One-touch test performs a full battery of wired and wireless diagnostics and provides a pass/fail assessment with detailed root cause analysis. |
| Link Configuration | Switch Detection: CDP, LLDP, EDP VLAN Discovery: Discovers all VLANs PoE (Power over Ethernet) Test: Measures voltage, power, class (IEEE 802.3af, at, bt - UPoe®), and performs a load test to verify capability. |
| Cable Testing & Diagnostics | TDR (Time Domain Reflectometer): Identifies cable faults (opens, shorts, miswires), measures length, and estimates distance to fault. Certification-Grade Metrics: Provides detailed results including Wiremap, Insertion Loss, Return Loss, Delay, Skew, and a overall Cable Health Score. Supports Cat 5e to Cat 8. |
| Network Performance Tests | Throughput: Runs TCP, UDP, and iPerf3 tests to measure available bandwidth. Network Path Analysis: Automatically tests the path to the gateway and key services (DHCP, DNS, Internet). |
| Port & Service Discovery | Link-Flashing: Identifies the physical switch port. Device Discovery: Discovers devices on the local segment. Service Tests: Validates DHCP, DNS, and HTTP/HTTPS connectivity. |
| Wireless (Wi-Fi) Testing Capabilities | |
|---|---|
| Integrated Radio | 2x2 MIMO 802.11a/b/g/n/ac/ax (Wi-Fi 6E) supporting 2.4 GHz, 5 GHz, and 6 GHz bands. |
| Wi-Fi Analysis | Network Discovery: Discovers all nearby SSIDs and APs with detailed information (RSSI, channel, width, security, etc.). Client Connection Test: Connects to a target SSID (using all common security methods) to perform validation from a client's perspective. Performance Metrics: Measures upload/download speed, latency, and jitter via integrated speed test. Over-the-Air Capture: Captures Wi-Fi packets for expert analysis. |
| Optional Analysis | Spectrum Analysis: Requires optional AirCheck™ G3 Spectrum Analyzer Adapter to identify non-Wi-Fi interference. |
| Performance & High-Speed Testing | |
|---|---|
| Multi-Gig & 25G Testing | Copper: Supports link negotiation and testing on 10M/100M/1G/2.5G Ethernet links. Fiber: The SFP28 port supports speeds up to 25 Gigabits per second, making it ideal for testing data center and high-speed backbone links. |
| Traffic Generation | Can generate traffic to test network capacity and validate QoS policies. |
| Software & Data Management | |
|---|---|
| Link-Live Cloud Platform | Included Service: All test results are automatically synced to the secure, cloud-based Link-Live platform for storage, visualization, trending, and collaborative reporting. |
| Expert Analysis | Built-in expert engine analyzes all test results, identifies problems, and provides clear, plain-language explanations and recommended actions. |
| Reporting | Generates comprehensive, professional PDF reports directly on the device or via the Link-Live cloud. |
| Firmware Updates | Regular updates delivered via the Link-Live Cloud platform to add new features and capabilities. |
| Physical & Environmental | |
|---|---|
| Dimensions (H x W x D) | 8.9 x 5.0 x 2.2 in (22.6 x 12.7 x 5.6 cm) |
| Weight | 2.2 lb (1.0 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Ruggedization | Drop Test: Withstands multiple 4-ft (1.2-meter) drops. Design: Sealed, ruggedized casing for use in harsh environments. |
All-in-One Power: Combines advanced wired (copper + fiber), wireless (Wi-Fi 6E), and performance testing in a single, handheld unit. It bridges the gap between the simplicity of the LinkRunner and the depth of the OptiView.
25G Fiber Testing: The integrated SFP28 port is a standout feature, allowing for testing of high-speed fiber links up to 25 Gbps, which is unique in a handheld form factor.
Certification-Grade Cable Testing: Goes far beyond basic wiremapping to provide Tier 1 certification-level metrics like Insertion Loss and Return Loss, which is exceptional for a multi-function tester.
Unmatched Automation: The AutoTest is the core of the device, providing a single-button operation that automatically runs dozens of tests and provides a clear, expert-interpreted result, making it ideal for technicians of all skill levels.
Wi-Fi 6E Support: The integrated radio supports the new 6 GHz band for future-proof testing.
Link-Live Cloud Ecosystem: Seamless integration with the cloud platform for centralized data management, collaboration, and historical trending across entire teams.
Expert Guidance: Doesn't just provide raw data; it analyzes the results and tells the user what is wrong and how to fix it.
