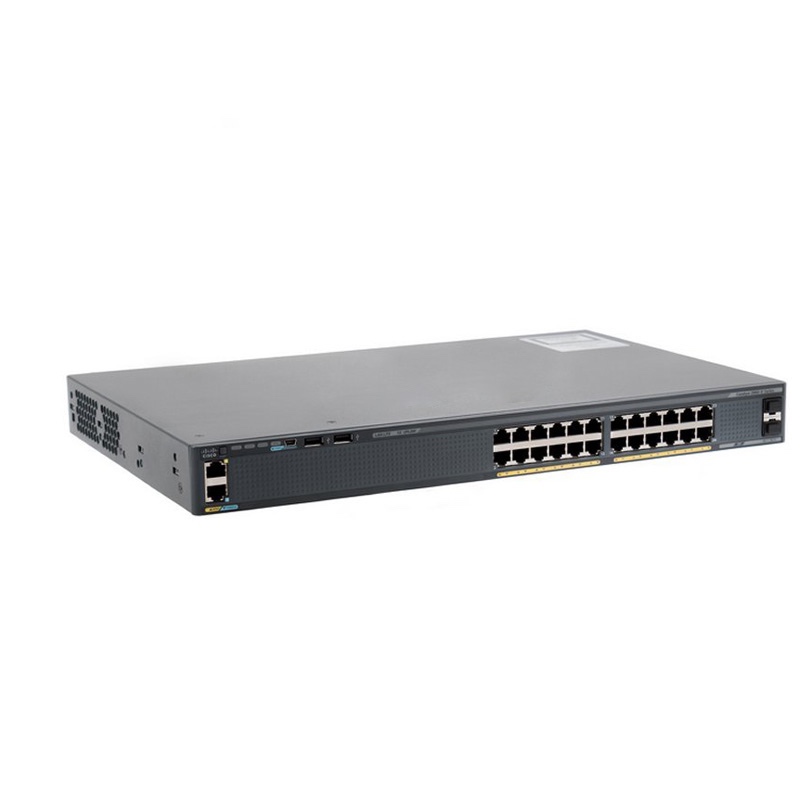

New Original 2960X Series 24Ports Gigabit Switch WS-C2960X-24TS-LL

  • WS-C2960X-24TS-LL
  • Cisco
  • Original New
  • 1 Year
Availability:
Quantity:
Products Description
WS-C2960X-24TS-LL
Product overview
Cisc0® Cata lyst® 2960-X and 2960-XR Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). They operate on Cisc0 IOS® Software and support simple device management as well as network management. The Cisc0 Catalyst 2960-X and 2960-XR Series provide easy device onboarding,configuration, monitoring, and troubleshooting. These fully managed switches can provide advanced Layer 2 and Layer 3 features as well as optional Power over Ethernet Plus (PoE+) power. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure, and energy-efficient business operations with intelligent services. The switches deliver enhanced application visibility, network reliability, and network resiliency.
Product Highlights
Cisc0 Catalyst 2960-X and 2960-XR Series Switches feature:
* 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance
* 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) uplinks or 2 fixed 10 Gigabit Ethernet SFP+ uplinks
* PoE+ support with a power budget of up to 740W and Perpetual PoE
* Cisc0 IOS LAN Base[1] or LAN Lite1 and Cisc0 IOS IP Lite[2]
* Device management with web UI, over-the-air access via Bluetooth, Command-Line Interface (CLI), Simple Network Management Protocol (SNMP), and RJ-45 or USB console access
* Network management with Cisc0 Prime®, Cisc0 Network Plug and Play, and Cisc0 DNA Center
* Stacking with FlexStack-Plus and FlexStack-Extended
* Layer 3 features with routed access (Open Shortest Path First [OSPF]), static routing, and Routing Information Protocol (RIP)
* Visibility with Domain Name System as an Authoritative Source (DNS-AS) and Full (Flexible) NetFlow
* Security with 802.1X, Serial Port Analyzer (SPAN) and Bridge Protocol Data Unit (BPDU) Guard
* Reliability with higher Mean Time Between Failures (MTBF) and Enhanced Limited Lifetime Warranty(E-LLW)
* Resiliency with optional dual field-replaceable power supplies2
Product Details
Product
WS-C2960X-24TS-LL
Product Description
Catalyst 2960-X 24 GigE. 2 x 1G SFP. LAN Lite
Brand
Cisc0
Product Line
Cisc0 Catalyst
Interface
Ethernet 10Base-T/100Base-TX/1000Base-T
Qty
2
Comments
Management
Connector Type
Type A
Type
USB
Authentication Method
Kerberos, RADIUS, Secure Shell (SSH), TACACS+
Connectivity Technology
Wired
Data Transfer Rate
80 Gbps
Remote Management Protocol
CLI, HTTP, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Compliant Standards
IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
MAC Address Table Size
16K entries
Max Units In A Stack
8
Subcategory
Network hubs and switches
Power Over Ethernet (PoE)
No
Manageable
Yes
Form Factor
Desktop, Rack-mountable
Jumbo Frame Support
9216 bytes
Subtype
Gigabit Ethernet
Frequency Required
50/60 Hz
Nominal Voltage
AC 120/230 V
Width
17.5 in
Depth
11 in
Height
1.8 in
Weight
8.16 lbs
