C9300-24T-A
Cisco
New
1year
Availability: | |
---|---|
Quantity: | |
Product Description

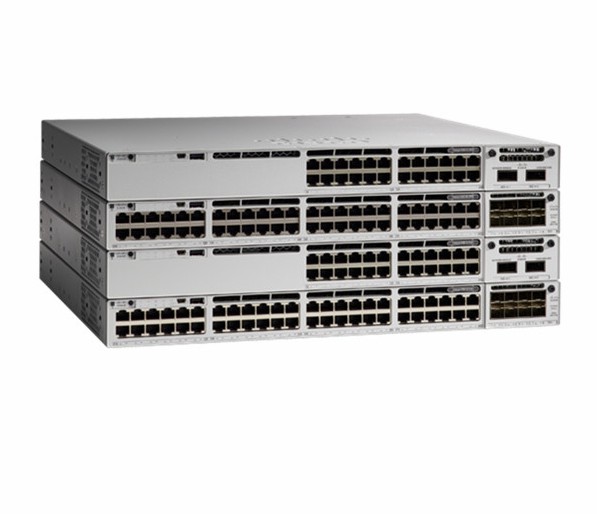

C9300-24T-A
The Cisc0 Catalys t® 9300 Series Switches are Cisc0's lead stackable enterprise switching platform built for security, IoT,mobility, and cloud. C9300-24T-E is 24-port data only, Network Essentials Switch of 9300 series. Catalys t 9300 Series are the next generation of the industry's most widely deployed switching platform. At 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalys t 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
Product Code | C9300-24T-A | C9300-24P-A |
Product Description | 9300 24-port data only, Network Advantage | 9300 24-port PoE+, Network Advantage |
Total 10/100/1000 or Multigigabit copper ports | 24 | 24 POE+ |
Default AC power supply | 350W AC | 715W AC |
Available PoE power | -- | 445W |
Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 Inches | 1.73 x 17.5 x 17.5 Inches |
Weight | 16.33 Pounds | 16.33 Pounds |
Product Details
C9300-24T-A SPECIFICATION | |
Product Description | 9300 24-port data only, Network Advantage |
Total 10/100/1000 or Multigigabit copper ports | 24 |
Default AC power supply | 350W AC |
Available PoE power | -- |
StackWise-480 | Yes |
StackPower | Yes |
Default power supply | PWR-C1-350WAC |
Switching capacity | 208 Gbps on 24-port Gigabit Ethernet model |
Stacking bandwidth | 480 Gbps |
Total number of MAC addresses | 32,000 |
Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
IPv4 routing entries | 32,000 |
IPv6 routing entries | 16000 |
Multicast routing scale | 8000 |
QoS scale entries | 5120 |
ACL scale entries | 5120 |
Packet buffer per SKU | 16 MB buffer for 24- or 48-port Gigabit Ethernet models |
Flexible NetFlow (FNF) entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models |
Wireless bandwidth per switch | Up to 48 Gbps on 24-port Gigabit Ethernet model |
Total routed ports per 9300 Series stack | 208 |
VLAN IDs | 4000 |
Total Switched Virtual Interfaces (SVIs) | 2000 |
Jumbo frames | 9198 bytes |
Mean time between failures (hours) | 299,000 |
