C9300-48T-E
Cisco
3days
New
1year
| Quantity: | |
|---|---|
Product Description
C9300-48T-E
Product Details

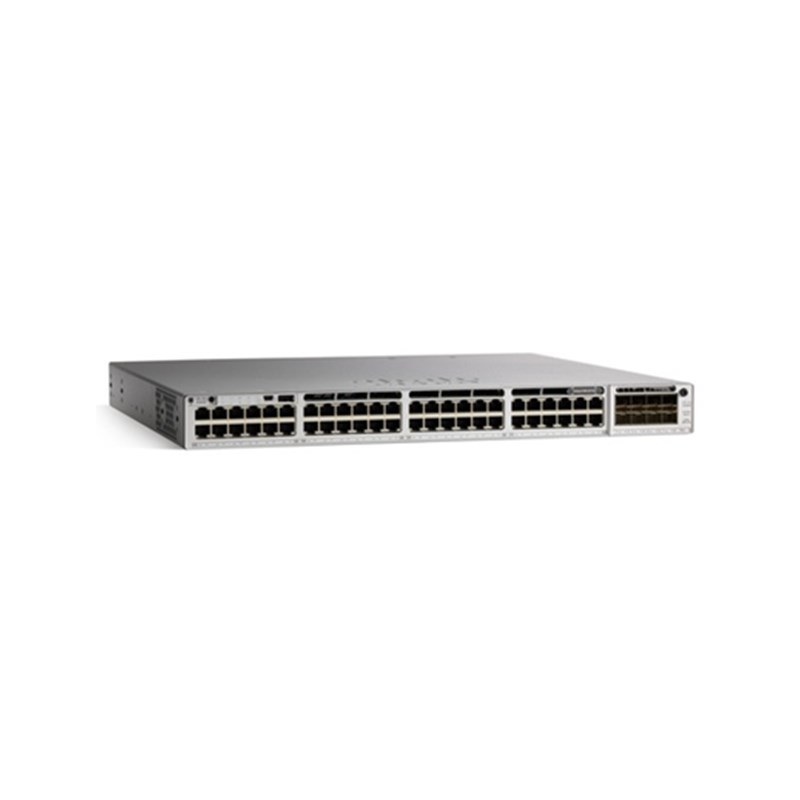

Product Description | Catalyst 9300 48-port data only, Network Essentials |
Total 10/100/1000 or Multigigabit copper ports | 48 |
Default AC power supply | 350WAC |
Available PoE power | -- |
Cisco StackWise-480 | Yes |
Cisco StackPower | Yes |
Default power supply | PWR-C1-350WAC |
Switching capacity | 256 Gbps on 48-port Gigabit Ethernet model |
Stacking bandwidth | 480 Gbps |
Total number of MAC addresses | 32,000 |
Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
IPv4 routing entries | 32,000 |
IPv6 routing entries | 16,000 |
Multicast routing scale | 8000 |
QoS scale entries | 5120 |
ACL scale entries | 5120 |
Packet buffer per SKU | 16 MB buffer for 24- or 48-port Gigabit Ethernet models |
FNF entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models |
DRAM | 8 GB |
Flash | 16 GB |
VLAN IDs | 4000 |
Total Switched Virtual Interfaces (SVIs) | 2000 |
Jumbo frames | 9198 bytes |
Total routed ports per 9300 Series stack | 208 |
Wireless bandwidth per switch | Up to 48 Gbps on 24-port Gigabit Ethernet model |
Forwarding rate | 154.76 Mpps |
Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 Inches |
Weight | 16.33 Pounds |
Mean time between failures (hours) | 299,000 |
Safety certifications | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
Electromagnetic emissions certifications | 47 CFR Part 15 CISPR22 Class A EN 300 386 V1.6.1 EN 55022 Class A EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR24 EN 300 386 EN55024 TCVN 7317 |
Environmental | Reduction of Hazardous Substances (ROHS) 5 |
The Accessories
Product number | Description |
C9300-NM-4G | 9300 Series 4x 1G Network Module |
C9300-NM-4G= | Catalyst 9300 4 x 1GE Network Module, spare |
C9300-NM-8X | 9300 Series 8x 10G Network Module |
C9300-NM-8X= | Catalyst 9300 8 x 10GE Network Module, spare |
C9300-NM-2Q | 9300 Series 2x 40G Network Module |
C9300-NM-2Q= | Catalyst 9300 2 x 40GE Network Module, spare |
C9300-NM-4M | 9300 Series 4x Multigigabit Network Module |
C9300-NM-4M= | Catalyst 9300 4 x MGig Network Module, spare |
Product Description
C9300-48T-E
Product Details
Product Description | Catalyst 9300 48-port data only, Network Essentials |
Total 10/100/1000 or Multigigabit copper ports | 48 |
Default AC power supply | 350WAC |
Available PoE power | -- |
Cisco StackWise-480 | Yes |
Cisco StackPower | Yes |
Default power supply | PWR-C1-350WAC |
Switching capacity | 256 Gbps on 48-port Gigabit Ethernet model |
Stacking bandwidth | 480 Gbps |
Total number of MAC addresses | 32,000 |
Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
IPv4 routing entries | 32,000 |
IPv6 routing entries | 16,000 |
Multicast routing scale | 8000 |
QoS scale entries | 5120 |
ACL scale entries | 5120 |
Packet buffer per SKU | 16 MB buffer for 24- or 48-port Gigabit Ethernet models |
FNF entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models |
DRAM | 8 GB |
Flash | 16 GB |
VLAN IDs | 4000 |
Total Switched Virtual Interfaces (SVIs) | 2000 |
Jumbo frames | 9198 bytes |
Total routed ports per 9300 Series stack | 208 |
Wireless bandwidth per switch | Up to 48 Gbps on 24-port Gigabit Ethernet model |
Forwarding rate | 154.76 Mpps |
Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 Inches |
Weight | 16.33 Pounds |
Mean time between failures (hours) | 299,000 |
Safety certifications | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
Electromagnetic emissions certifications | 47 CFR Part 15 CISPR22 Class A EN 300 386 V1.6.1 EN 55022 Class A EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR24 EN 300 386 EN55024 TCVN 7317 |
Environmental | Reduction of Hazardous Substances (ROHS) 5 |
The Accessories
Product number | Description |
C9300-NM-4G | 9300 Series 4x 1G Network Module |
C9300-NM-4G= | Catalyst 9300 4 x 1GE Network Module, spare |
C9300-NM-8X | 9300 Series 8x 10G Network Module |
C9300-NM-8X= | Catalyst 9300 8 x 10GE Network Module, spare |
C9300-NM-2Q | 9300 Series 2x 40G Network Module |
C9300-NM-2Q= | Catalyst 9300 2 x 40GE Network Module, spare |
C9300-NM-4M | 9300 Series 4x Multigigabit Network Module |
C9300-NM-4M= | Catalyst 9300 4 x MGig Network Module, spare |
