FG-101E
Fortinet
Original New
1 year
| Quantity: | |
|---|---|

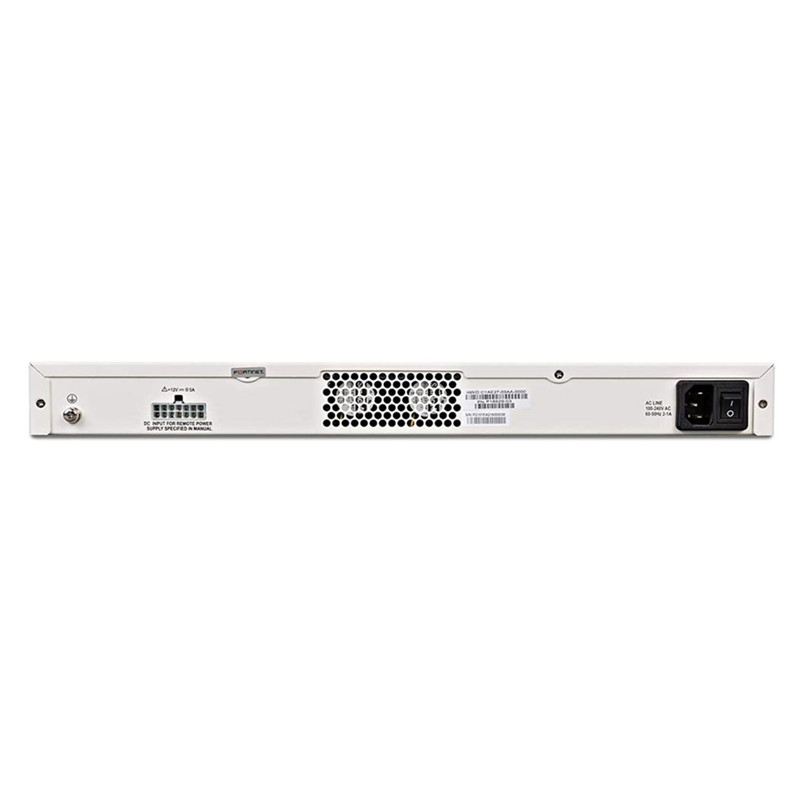

FortiGate 101E
The FortiGate 100E series provides an application-centric, scalable and secure SD-WAN solution with next generation firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or enterprise branch level. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet's Security-Driven Networking approach provides tight integration of the network to the new generation of security.
Product Specifications
| FortiGate 101E | |
| Hardware Specifications | |
| GE RJ45 Ports | 14 |
| GE RJ45 Management/HA/DMZ Ports | 1 / 2 / 1 |
| GE SFP Slots | - |
| GE RJ45 PoE/+ Ports | - |
| GE RJ45 WAN Ports | 2 |
| GE RJ45 or SFP Shared Ports | 2 |
| USB Port | 1 |
| Console Port | 1 |
| Internal Storage | - |
| Included Transceivers | 0 |
| System Performance - Enterprise Traffic Mix | |
| IPS Throughput 2 | 500 Mbps |
| NGFW Throughput 2, 4 | 360 Mbps |
| Threat Protection Throughput 2, 5 | 250 Mbps |
| System Performance | |
| Firewall Throughput | 7.4 / 7.4 / 4.4 Gbps |
| Firewall Latency (64 byte UDP packets) | 3 μs |
| Firewall Throughput (Packets Per Second) | 6.6 Mpps |
| Concurrent Sessions (TCP) | 2 Million |
| New Sessions/Second (TCP) | 30,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) | 4 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 10,000 |
| SSL-VPN Throughput | 250 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 300 |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 130 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) 3 | 130 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 125,000 |
| Application Control Throughput (HTTP 64K) 2 | 1 Gbps |
| CAPWAP Throughput (HTTP 64K) | 1.5 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of Switches Supported | 24 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 |
| Maximum Number of FortiTokens | 1,000 |
| Maximum Number of Registered FortiClients | 600 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 1.75 x 17 x 10 |
| Height x Width x Length (mm) | 44.45 x 432 x 254 |
| Form Factor | Rack Mount, 1 RU |
| Weight | 7.28 lbs (3.3 kg) |
| Environment | |
| Power Required | 100-240V AC, 50-60 Hz |
| Maximum Current | 100V / 1A, 240V / 0.5A |
| Total Available PoE Power Budget* | - |
| Power Consumption (Average / Maximum) | 23.0 W / 25.5 W |
| Heat Dissipation | 115.3 BTU/h |
| Operating Temperature | 32-104°F (0-40°C) |
| Storage Temperature | -31-158°F (-35-70°C) |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Humidity | Up to 7,400 ft (2,250 m) |
| Noise Level | 40.4 dBA |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 |
