FG-400E
Fortinet
Original New
1 year
| Quantity: | |
|---|---|

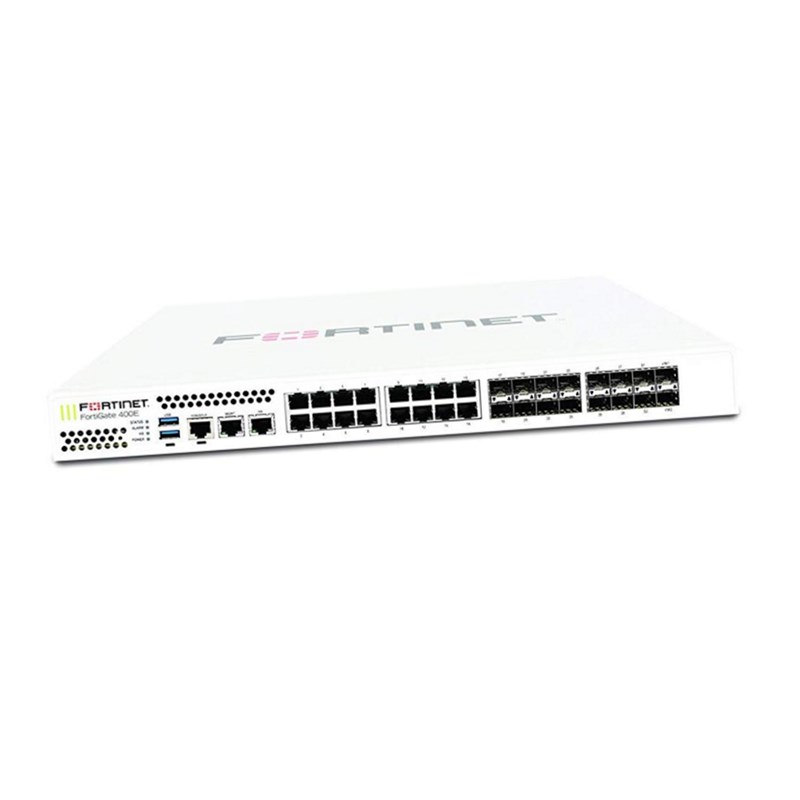

FortiGate 400E
The FortiGate 400E series provides an application-centric, scalable and secure SD-WAN solution with next generation firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or enterprise branch level. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet's Security-Driven Networking approach provides tight integration of the network to the new generation of security.
FortiGate 400E
Product Specifications
| FortiGate 400E | |
| Interfaces and Modules | |
| GE RJ45 Interfaces | 16 |
| GE SFP Slots | 16 |
| GE RJ45 Management Ports | 2 |
| USB Ports | 2 |
| RJ45 Console Port | 1 |
| Local Storage | NIL |
| Included Transceivers | 2x SFP (SX 1 GE) |
| System Performance - Enterprise Traffic Mix | |
| IPS Throughput 2 | 7.8 Gbps |
| NGFW Throughput 2, 4 | 6 Gbps |
| Threat Protection Throughput 2, 5 | 5 Gbps |
| System Performance | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 32 / 32 / 24 Gbps |
| Firewall Latency (64 byte UDP packets) | 3 μs |
| Firewall Throughput (Packets Per Second) | 36 Mpps |
| Concurrent Sessions (TCP) | 4 Million |
| New Sessions/Second (TCP) | 450,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) 1 | 20 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPSec VPN Tunnels | 50,000 |
| SSL-VPN Throughput | 4.5 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 5,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 4.8 Gbps |
| Application Control Throughput (HTTP 64K) 2 | 12 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 14.8 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of Switches Supported | 48 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 512 / 256 |
| Maximum Number of FortiTokens | 5,000 |
| Maximum Number of Registered FortiClients | 600 |
| High Availability Configurations | 600 |
| Dimensions | |
| Height x Width x Length (inches) | 1.75 x 17.0 x 15.0 |
| Height x Width x Length (mm) | 44.45 x 432 x 380 |
| Weight | 16.4 lbs (7.4 kg) |
| Form Factor | 1 RU |
