| Benefifits | |
| AFFORDABLE ENTERPRISE PERFORMANCE | The R310 provides great performance with extended range at an affordable price. |

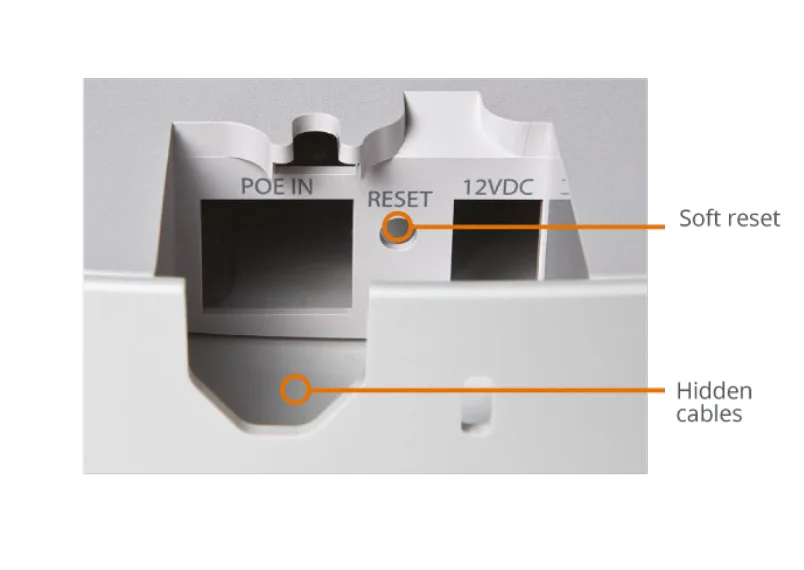

| KEEP EXISTING SWITCHES AND CABLES | Designed to operate on existing PoE switches and CAT 5e cabling to minimize costly upgrades. |

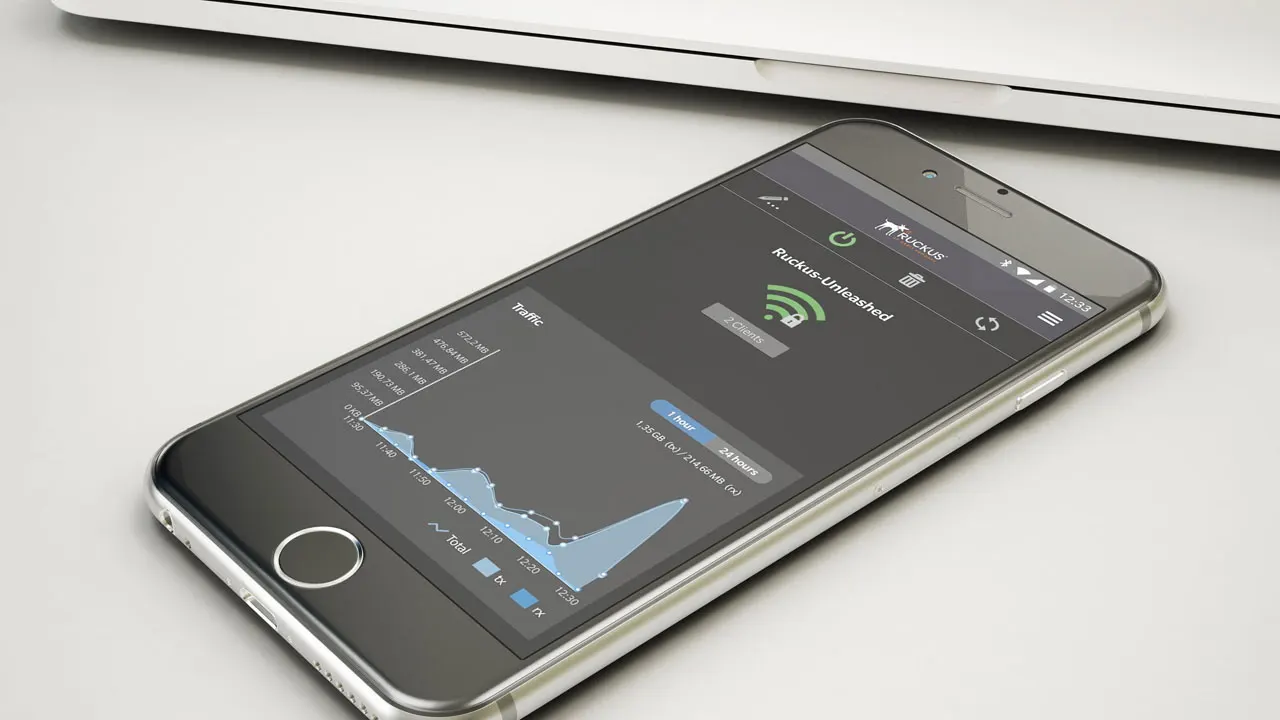

| MULTIPLE MANAGEMENT OPTIONS | Manage the R310 from the cloud, with on-premises physical/virtual appliances, or without a controller. |

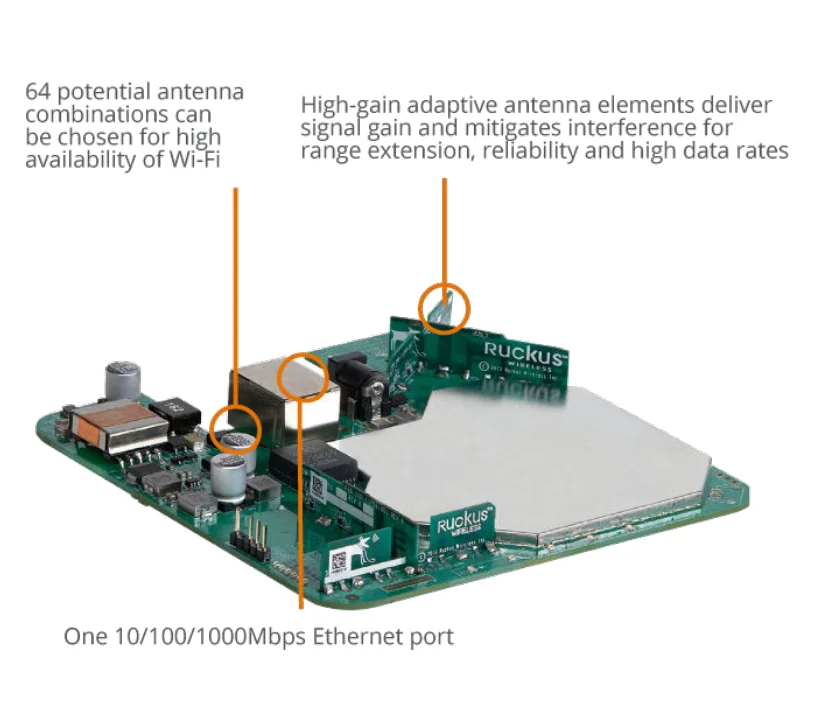

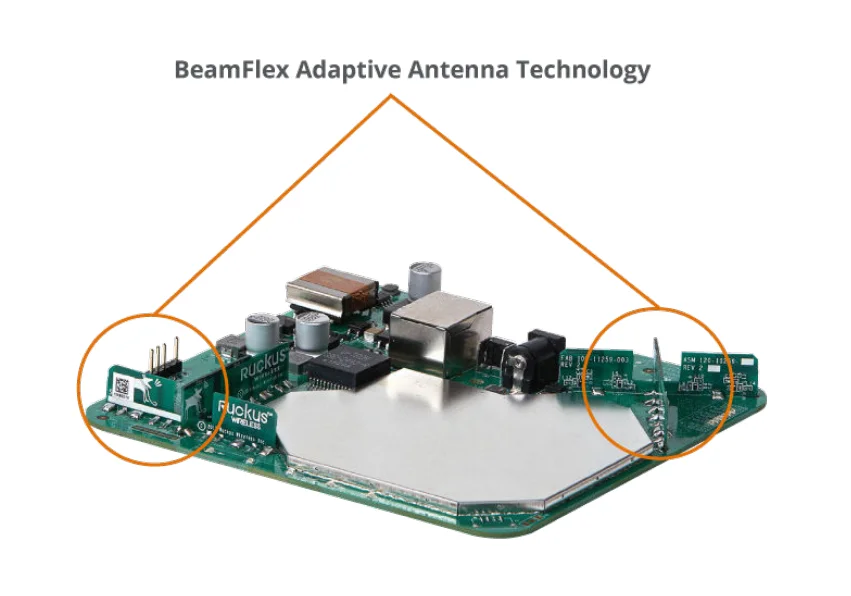

| STUNNING WI-FI PERFORMANCE | Extends coverage with patented BeamFlex™ adaptive antenna technology while mitigating interference by utilizing 64 directional antenna patterns. |
| AUTOMATE OPTIMAL THROUGHPUT | ChannelFly™ dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support. |

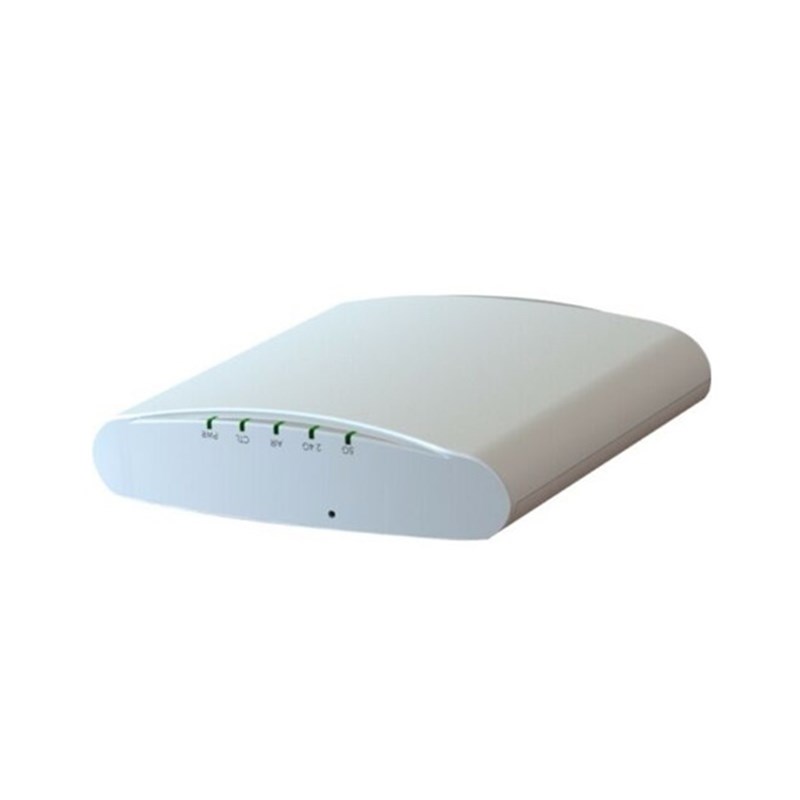

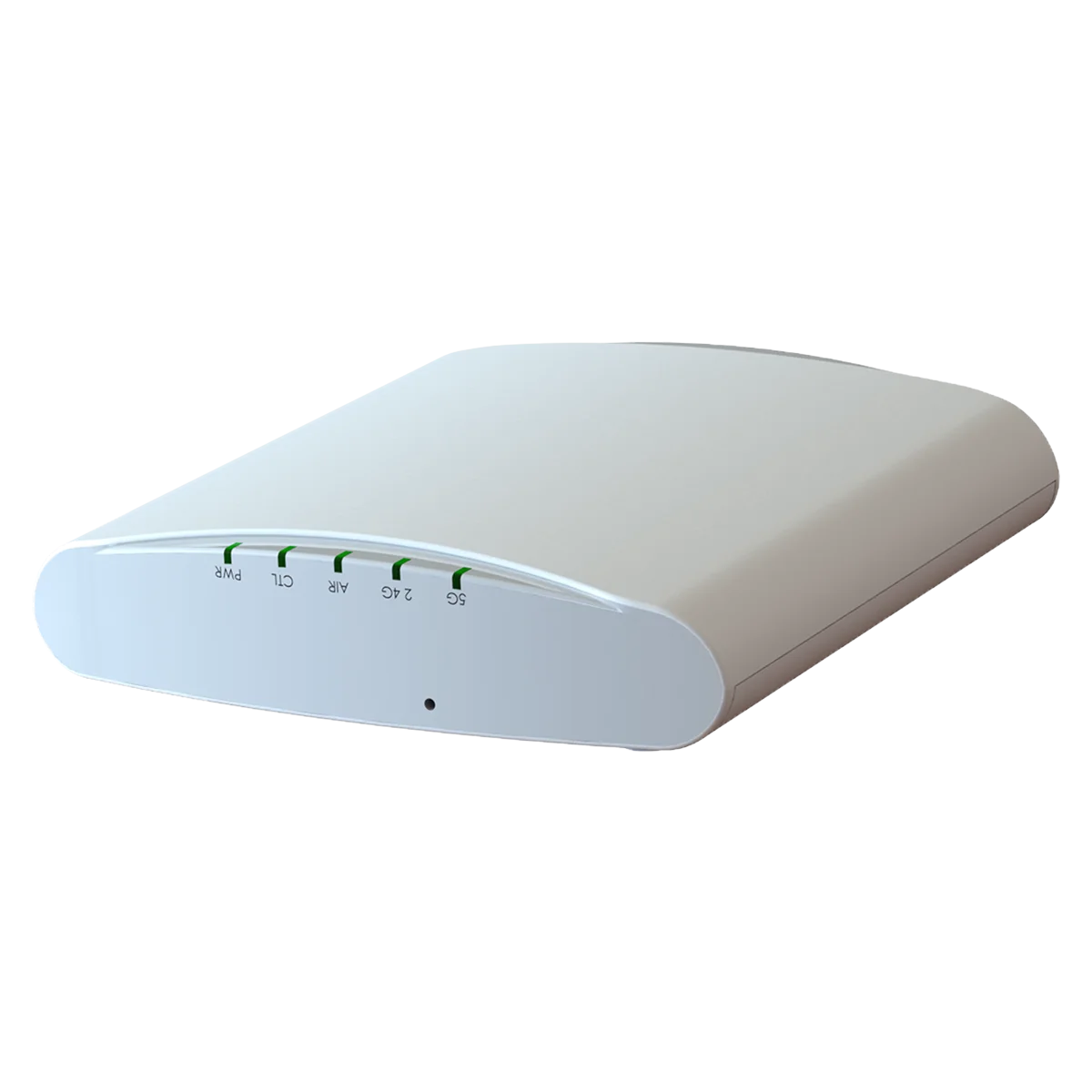

| RUCKUS R310 | |
| WI-FI | |
| Wi-Fi Standards | · IEEE 802.11a/b/g/n/ac |
| Supported Rates | · 802.11ac: 6.5 to 867Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80) · 802.11n: 6.5 Mbps to 300Mbps (MCS0 to MCS15) · 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps · 802.11b: 11, 5.5, 2 and 1 Mbps |
| Supported Channels | · 2.4GHz: 1-13 · 5GHz: 36-64, 100-144, 149-165 |
| MIMO | · 2x2 SU-MIMO |
| Spatial Streams | · 2 SU-MIMO |
| Channelization | · 20, 40, 80MHZ |
| Security | · WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK · WIPS/WIDS |
| Other Wi-Fi Features | · WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v · Hotspot · Hotspot 2.0 · Captive Portal · WISPr |
| PERFORMANCE AND CAPACITY | |
| Peak PHY Rates | · 2.4GHz: 300Mbps · 5 GHz: 867Mbps |
| Client Capacity | · Up to 100 clients per AP |
| SSID | · Up to 16 per AP |
| RUCKUS RADIO MANAGEMENT | |
| Antenna Optimization | · BeamFlex |
| Wi-Fi Channel Management | · ChannelFly · Background Scan Based |
| Client Density Management | · Adaptive Band Balancing · Client Load Balancing · Airtime Fairness · Airtime-based WLAN Prioritization |
| SmartCast Quality of Service | · QoS-based scheduling · Directed Multicast · L2/L3/L4 ACLs |
| Mobility | · SmartRoam |
| Diagnostic Tools | · SpeedFlex |
| NETWORKING | |
| Controller Platform Support | · SmartZone · ZoneDirector · Unleashed2 · Cloud Wi-Fi · Standalone |
| Mesh | · No Mesh support |
| IP | · IPv4, IPv6 |
| VLAN | · 802.1Q (1 per BSSID or dynamic per use based on RADIUS · VLAN Pooling · Port-based |
| 802.1x | · Authenticator & Supplicant |
| Tunnel | · L2TP, GRE, Soft-GRE |
| Policy Management Tools | · Application Recognition and Control · Access Control Lists · Device Fingerprinting · Rate Limiting |
| PHYSICAL INTERFACES | |
| Ethernet | · 1 x 1GbE port, RJ-45 |
| PHYSICAL CHARACTERISTICS | |

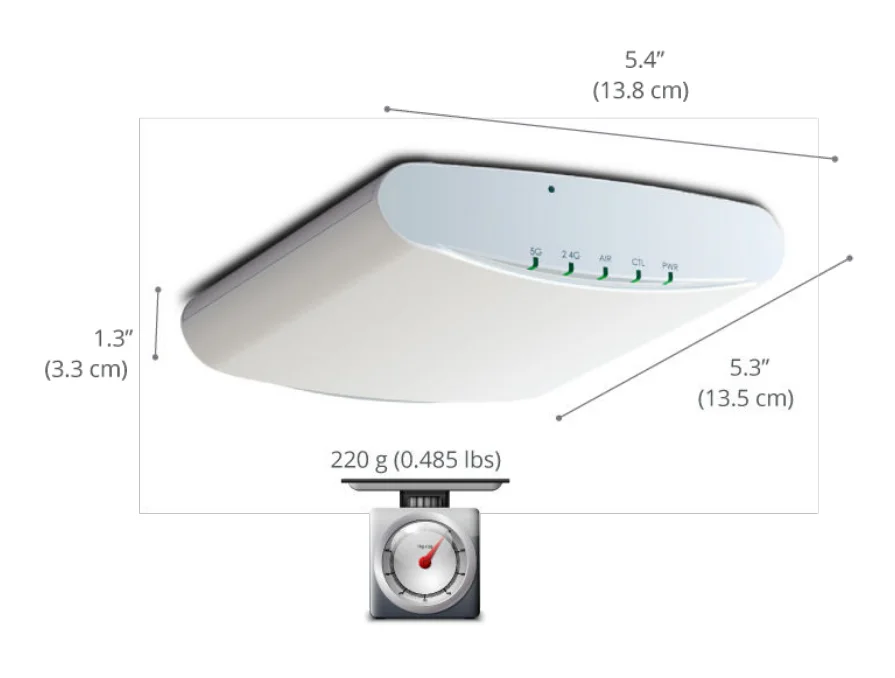

| Physical Size | · 13.8(L) x 13.5(W) x 3.3(H) cm · 5.43(L) x 5.31(W) x 1.3(H) in |
| Weight | · 220g (7.8oz) |

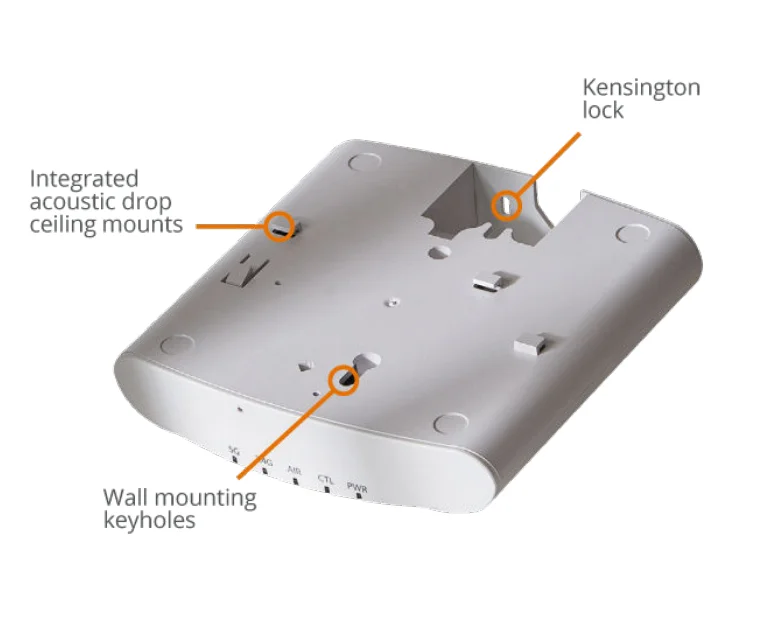

| Mounting | · Wall, Drop ceiling, Desk · Secure bracket (sold separately) |
| Physical Security | · Hidden latching mechanism · Kensington lock · T-bar Torx |
| Operating Temperature | · 0 ºC (32 ºF) to 40 ºC (149 ºF) |
| Operating Humidity | · Up to 95%, non-condensing |
