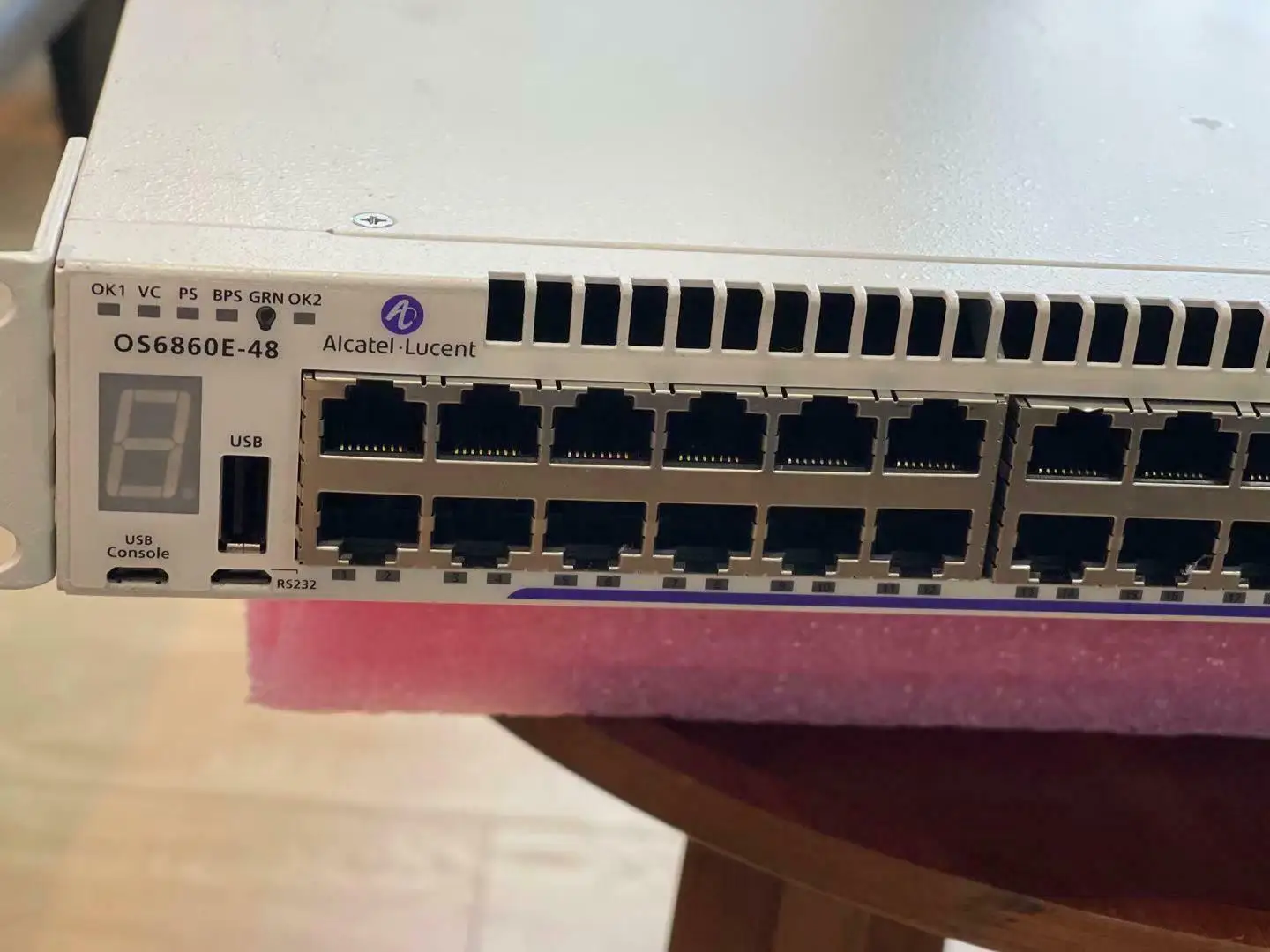

OS6860E-48 Alcatel-Lucent OmniSwitch 6860 Stackable LAN switches

Share to:

OS6860E-48 Alcatel-Lucent OmniSwitch 6860 Stackable LAN switches

Fixed-configuration chassis in a 1U form factor with 48 10/100/1000 Base-T ports, four fixed SFP+ (1G/10G) ports and two 20G Virtual Chassis link ports. Includes a built-in co-processor for Enhanced network services

Model:
OS6860E-48
Brand:
Alcatel-Lucent
Condition:
Original New
Warranty:
1 year

Availability:

Quantity:



Inquire Add to Basket

Product Description

OS6860E-48

Alcatel-Lucent OmniSwitch 6860 Stackable LAN switches

The Alcatel-Lucent OmniSwitch™ 6860 Stackable LAN Switches (SLS) are compact, high-density Gigabit Ethernet (GigE) and 10 GigE platforms designed for the most demanding converged networks.

In addition to high performance and availability, the OmniSwitch 6860 offers enhanced quality of service (QoS), user authentication, deep packet inspection (DPI) and comprehensive security features to secure the network edge while accommodating user and device mobility with a high degree of integration between the wired and wireless LAN. The enhanced models of the OmniSwitch 6860 family also supports emerging services such as application fingerprinting for network analytics and up to 60 watts of Power over Ethernet (PoE) per port, making it ready to meet the evolving business needs of enterprise networks. These versatile LAN switches can be positioned:
* At the edge of mid- to large-sized converged enterprise networks
* At the aggregation layer
* In a small enterprise network core
* In the data center for GigE server connectivity and SDN applications

OS6860E-48

Fixed-configuration chassis in a 1U form factor with 48 10/100/1000 Base-T ports, four fixed SFP+ (1G/10G) ports and two 20G Virtual Chassis link ports. Includes a built-in co-processor for Enhanced network services

Product Specification

OS6860E-48
Gigabit port count	48
1G/10G SFP+	4
20G QSFP+ VFL ports	2
USB port	1
Out-of-band EMP port	0
RS-232 port	1
Console port	1
Primary slide-in PSU slot	1
Backup slide-in PSU slot	1
Fans	0
File system flash	2 GB
RAM	2 GB
Max raw fabric capacity	264 Gb/s
Throughput (at 64-byte packet)	190.6 Mpps
Power consumption (idle)	44.1 W
Power consumption (full load)	60.0 W
Heat dissipation (idle)	150.5 BTU/h
MTBF with one AC power supply	336,101 h
Acoustic noise (dB) at 25C	45.8
Height	4.4 cm (1.73 in)
Width	44 cm (17.33 in)
Depth	35 cm (13.78 in)
Weight (chassis and fan)	4.81 kg (10.6 lb)
Power supplies	OS6860-BP OS6860-BP-D
Air flow	Front to back
