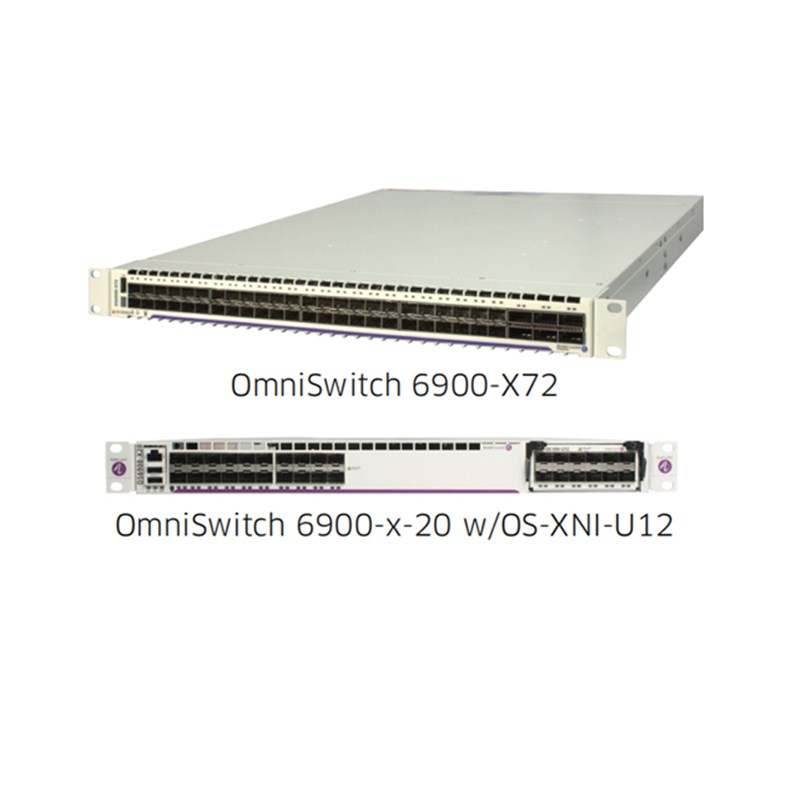

OS6900-T20-R
Alcatel-Lucent
Original New
1 year
| Quantity: | |
|---|---|
| Feature | Model |
| OS6900-T20-R | |
| Port count | 20 (10GBase-T) |
| Expansion slots | 1 |
| Out-of-band Ethernet port | 1 |
| USB port | 1 |
| Console port | 1 |
| Primary slide-in PSU slot | 1 |
| Backup slide-in PSU slot | 1 |
| Redundant fans | 3+1 |
| Flash | 2 GB |
| RAM | 4 GB |
| Data buffer | 9 MB |
| Max switching capacity | 640 Gb/s Non-blocking |
| Throughput | 480 Mpps |
| Latency | <3.3 μs |
| Power consumption | 206 W |
| Heat dissipation | 703 Btu/h |
| Mean time between failures (MTBF) with AC power supply | 145,569 h |
| MTBF with DC power supply | 152,364 h |
| Width | 43.3 cm (17.06 in) |
| Depth | 55.9 cm (22.00 in.) |
| Height | 4.4 cm (1.73 in.) |
| Weight (chassis & fan) | 7.61 kg (16.8 lb) |
| Weight (fully populated) | 10.21 kg (22.5 lb) |
| Operating temperature Front-to-rear airflow | 0°C to 45°C (32°F to 113°F) 55°C shutdown |
| Operating temperature Rear-to-front airflow | 0°C to 45°C (32°F to 113°F) 55°C shutdown |
| Storage temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity (operating) | 5% to 95% non-condensing |
| Humidity (storage) | 5% to 95% non-condensing |
| Feature | Model |
| OS6900-T20-R | |
| Port count | 20 (10GBase-T) |
| Expansion slots | 1 |
| Out-of-band Ethernet port | 1 |
| USB port | 1 |
| Console port | 1 |
| Primary slide-in PSU slot | 1 |
| Backup slide-in PSU slot | 1 |
| Redundant fans | 3+1 |
| Flash | 2 GB |
| RAM | 4 GB |
| Data buffer | 9 MB |
| Max switching capacity | 640 Gb/s Non-blocking |
| Throughput | 480 Mpps |
| Latency | <3.3 μs |
| Power consumption | 206 W |
| Heat dissipation | 703 Btu/h |
| Mean time between failures (MTBF) with AC power supply | 145,569 h |
| MTBF with DC power supply | 152,364 h |
| Width | 43.3 cm (17.06 in) |
| Depth | 55.9 cm (22.00 in.) |
| Height | 4.4 cm (1.73 in.) |
| Weight (chassis & fan) | 7.61 kg (16.8 lb) |
| Weight (fully populated) | 10.21 kg (22.5 lb) |
| Operating temperature Front-to-rear airflow | 0°C to 45°C (32°F to 113°F) 55°C shutdown |
| Operating temperature Rear-to-front airflow | 0°C to 45°C (32°F to 113°F) 55°C shutdown |
| Storage temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity (operating) | 5% to 95% non-condensing |
| Humidity (storage) | 5% to 95% non-condensing |
