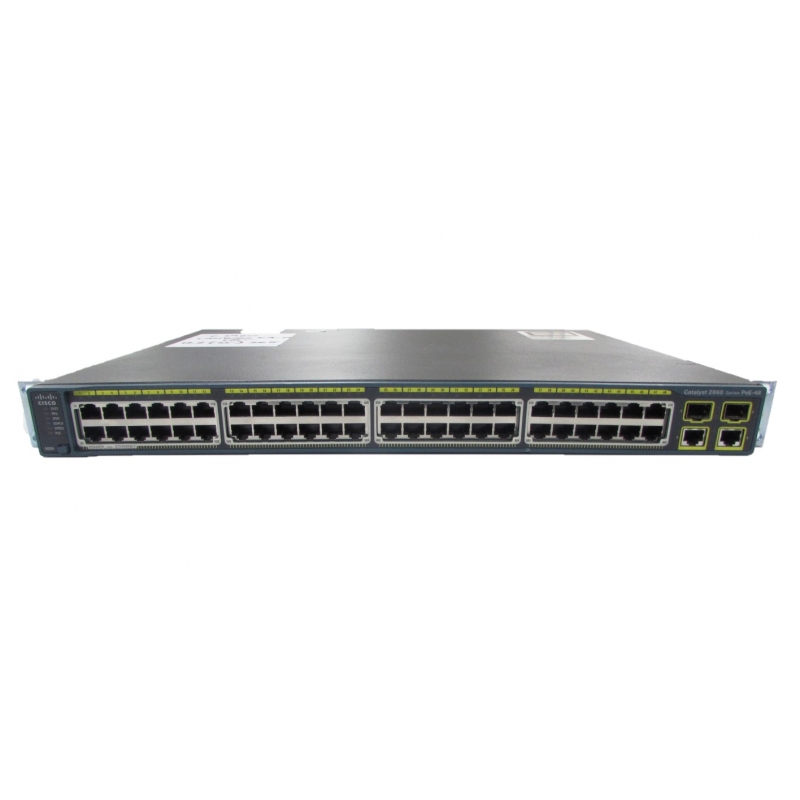

Cata lyst® 2960-X and 2960-XR Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). They operate on IOS® Software and support simple device management as well as network management. The Cata lyst 2960-X and 2960-XR Series provide easy device onboarding,configuration, monitoring, and troubleshooting. These fully managed switches can provide advanced Layer 2 and Layer 3 features as well as optional Power over Ethernet Plus (PoE+) power. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure, and energy-efficient business operations with intelligent services. The switches deliver enhanced application visibility, network reliability, and network resiliency.Product Highlight
Cata lyst 2960-X and 2960-XR Series Switches feature:
* 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance
* 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) uplinks or 2 fixed 10 Gigabit Ethernet SFP+ uplinks
* PoE+ support with a power budget of up to 740W and Perpetual PoE
* IOS LAN Base[1] or LAN Lite1 and Ci sco IOS IP Lite[2]
* Device management with web UI, over-the-air access via Bluetooth, Command-Line Interface (CLI), Simple Network Management
Protocol (SNMP), and RJ-45 or USB console access
* Network management with Ci sco Prime®, Ci sco Network Plug and Play, and Ci sco DNA Center
* Stacking with FlexStack-Plus and FlexStack-Extended
* Layer 3 features with routed access (Open Shortest Path First [OSPF]), static routing, and Routing Information Protocol (RIP)
* Visibility with Domain Name System as an Authoritative Source (DNS-AS) and Full (Flexible) NetFlow
* Security with 802.1X, Serial Port Analyzer (SPAN) and Bridge Protocol Data Unit (BPDU) Guard
* Reliability with higher Mean Time Between Failures (MTBF) and Enhanced Limited Lifetime Warranty(E-LLW)
* Resiliency with optional dual field-replaceable power supplies2
