ISR4321-SEC/K9
Cisco
New
1year
| Quantity: | |
|---|---|
Product Description
Cisco 4321 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It delivers 50Mbps thoughtput by default. With pay-as-you-grow performance, you can increase forwarding capacity to 100Mbps by buying FL-4320-PERF-K9 licenses.

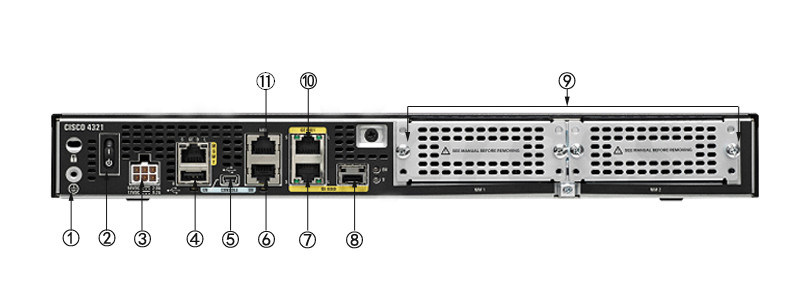

| (1) | Grounding |
| (2) | Power switch |
| (3) | Power input connector |
| (4) | GE "MGMT" port (with USB port below) |
| (5) | USB Type B mini port |
| (6) | Console port |
| (7) | GE 0/0/1 (copper cable) port |
| (8) | GE 0/0/0 SFP (fiber-optic) port |
| (9) | NIM slots |
| (10) | GE 0/0/0 RJ-45 (copper cable) port |
| (11) | Auxiliary port |
Product Specifications
| Cisco ISR4321-SEC/K9 | |
| Aggregate Throughput | 50 Mbps to 100 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 2 |
| RJ-45-based ports | 2 |
| SFP-based ports | 1 |
| Enhanced service-module slots | 0 |
| Doublewide service-module slots | 0 |
| NIM slots | 2 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | 4GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 8GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 4GB |
| Maximum flash memory | 8GB |
| External USB 2.0 slots (type A) | 1 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
| Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
| Power-supply options | External: AC and PoE E |
| Redundant power supply | N/A |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 1.5 to 0.6A |
| AC input surge current | 90 A peak and less than 3 Arms per half cycle |
| Typical power (no modules) (watts) | 36 |
| Maximum power with AC power supply (watts) | 125 |
| Maximum power with PoE power supply (platform only) (watts) | 260 |
| Maximum endpoint PoE power available from PoE power supply (watts) | 120 |
