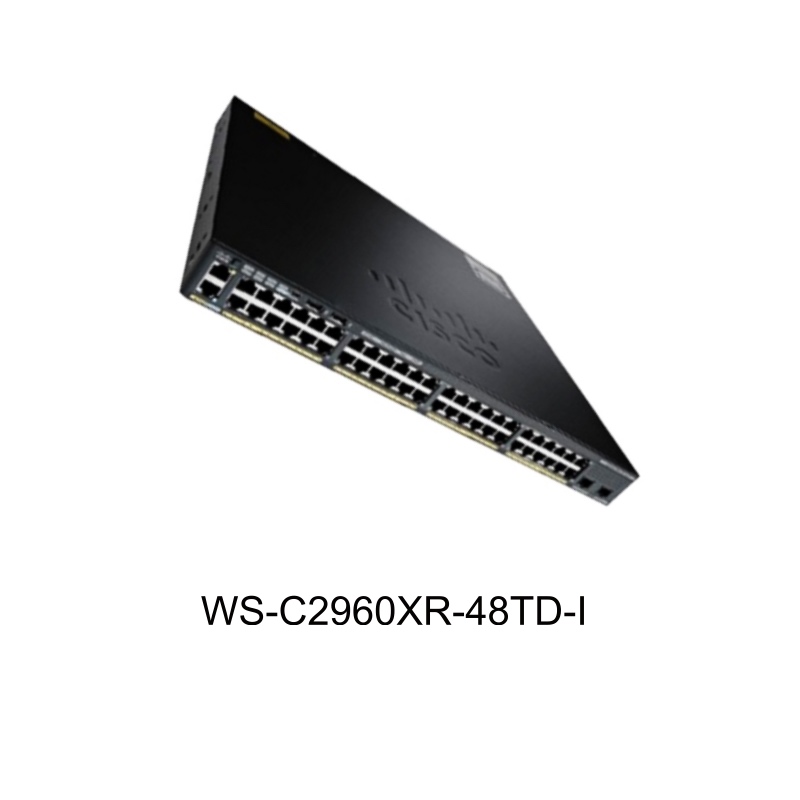

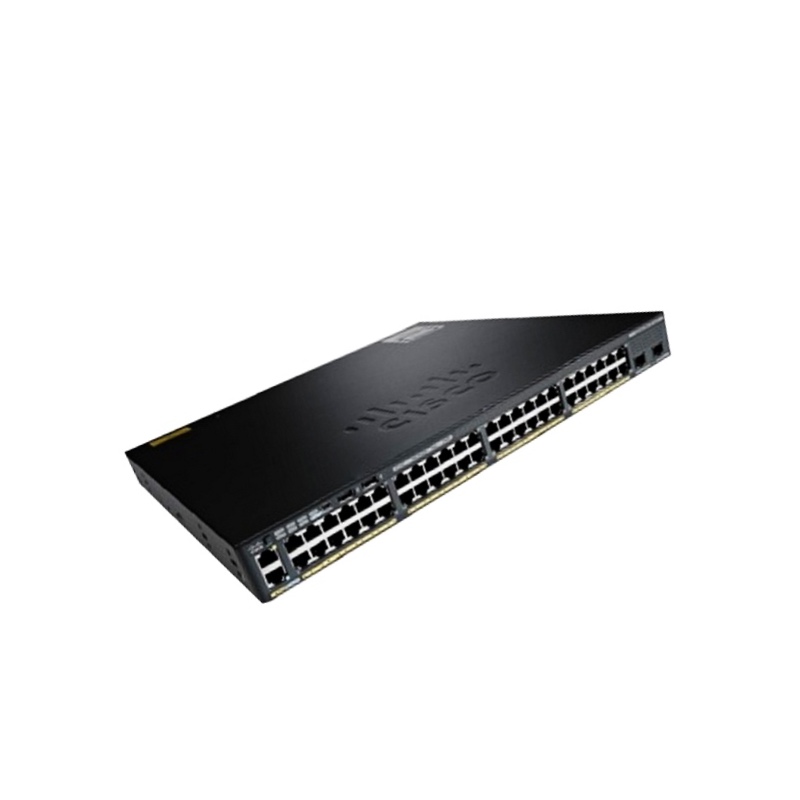

WS-C2960XR-48TD-I
Cisco
cisco original new in box
1 year
| Quantity: | |
|---|---|
Product Overview
2960-X and 2960-XR Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-classaccess for campus and branch applications (Figure 1). They operate on Cisc IOS® Software and support simple device management as well as network management. The Cisc Cataly t 2960-X and 2960-XR Series provide easy device onboarding, configuration, monitoring, and troubleshooting. These fully managed switches can provide advanced Layer 2 and Layer 3 features as well as optional Power over Ethernet Plus (PoE+) power. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure, and energy-efficient business operations with intelligent services. The switches deliver enhanced application visibility, network reliability, and network resiliency
Product Code | WS-C2960XR-48TD-I |
Enclosure Type | Rack-mountable - 1U |
Feature Set | IP Lite |
Uplink Interfaces | 2 x 10G SFP+, IP Lite |
Ports | 48 x 10/100/1000 (POE+) |
Available PoE Power | 740W |
Forwarding Bandwidth | 108Gbps |
Maximum stacking number | 8 |
Stack bandwidth | 80G |
Switching Bandwidth | 216Gbps |
RAM | 512 MB |
Flash Memory | 128 MB |
Dimensions | 44.5 cm x 40.8 cm x 4.45 cm |
Package Weight | 17.49 Kg |
Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
Connector Type | Type B |
Compliant Standards | BSMI CNS 13438 Class A, CB, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN300-386, EN55022 Class A, EN55024, FCC Part 15 A, ICES-003 Class A, IEC 60950-1, KN22, KN24, RoHS, UL 60950-1 Second Edition, VCCI Class A |
Authentication Method | RADIUS, Secure Shell (SSH), TACACS+ |
MTBF | 440,880 hours |
Remote Management Proto | CLI, HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, Telnet |
Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Status Indicators | Link/activity, Port duplex mode, Port status, Port transmission speed, System |
Features | Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Broadcast Storm Control, Cisc o Fast EtherChannel, Class of Service (CoS), DHCP snooping, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, IGMP snooping, IPv6 support, Layer 2 switching, Layer 3 load balancing, Link Aggregation Control Protocol (LACP), MLD snooping, Multicast Storm Control, Multicast VLAN Registration (MVR), Multiple Spanning Tree Protocol (MSTP) support, Per-VLAN Rapid Spanning Tree (PVRST), Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), RADIUS support, Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Strict Priority Queuing (SPQ), Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), Unicast Storm Control, VLAN support |
Routing Protocol | HSRP, OSPF, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP |
Power Redundancy Scheme | 1+1 |
Type | Internal power supply |
Hot-Plug | Hot-plug |
Type | IOS IP Lite |
Type | Virtual interfaces (VLANs) |
Value | 1023 |
Flash Memory | |
Installed Size | 128 MB |
Value | 216 Gbps |
Type | 10/100/1000 |
Installed Size | 512 MB |
