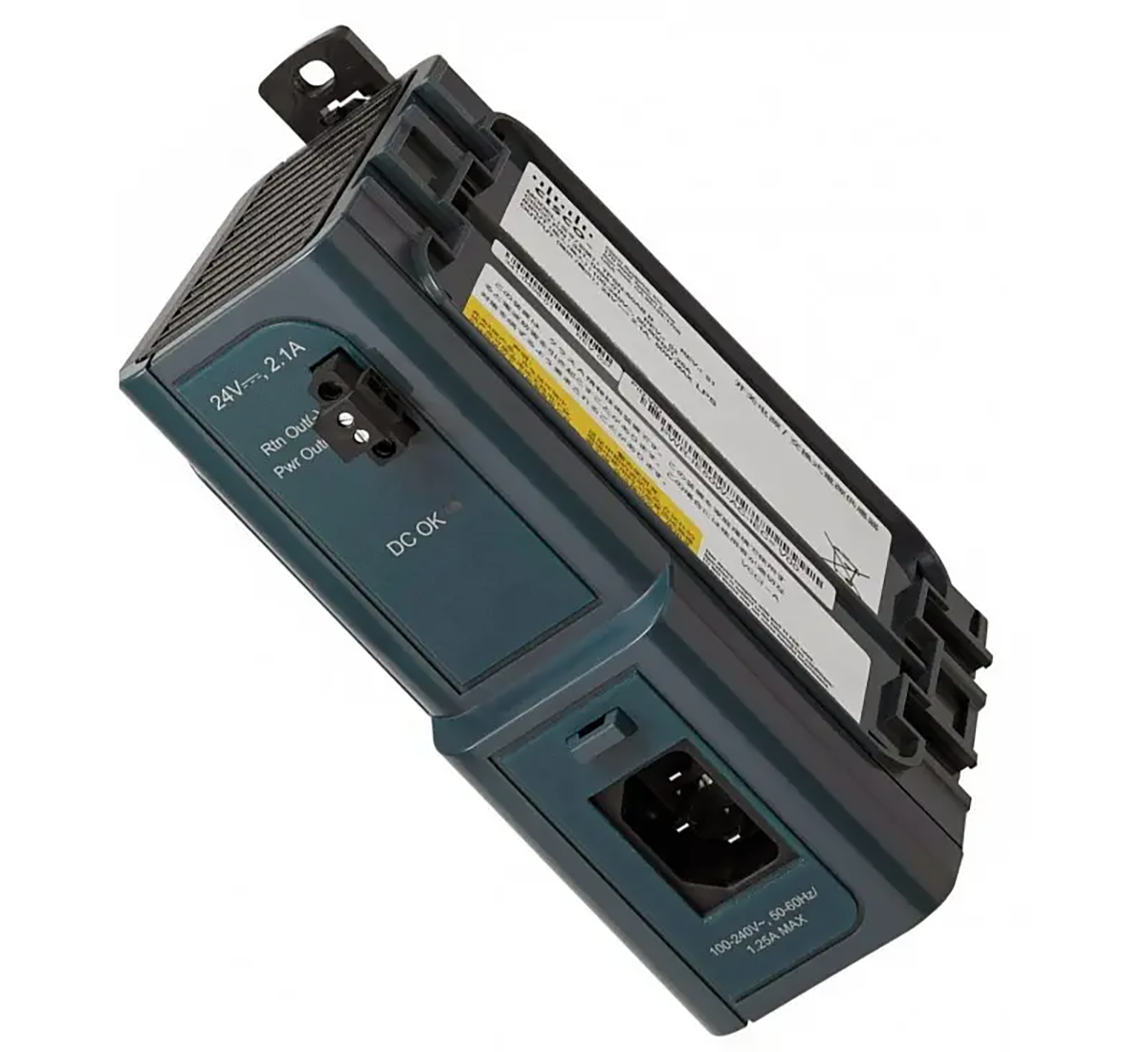

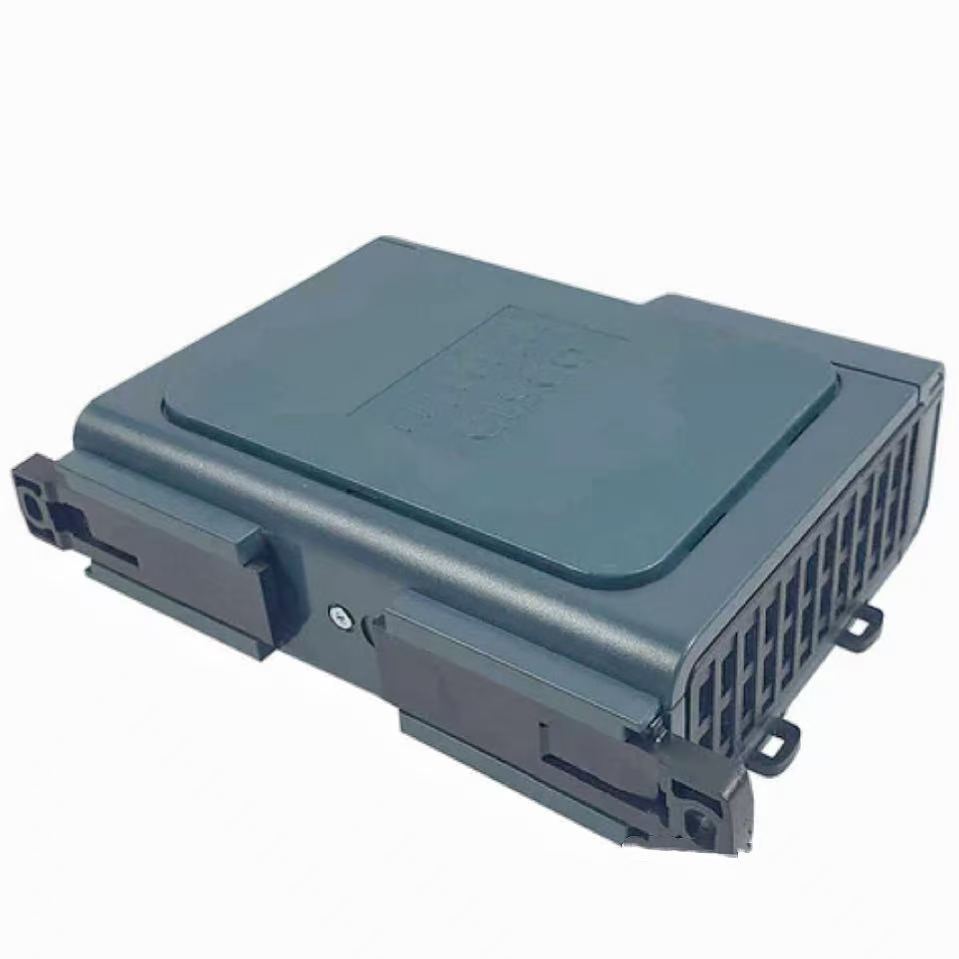

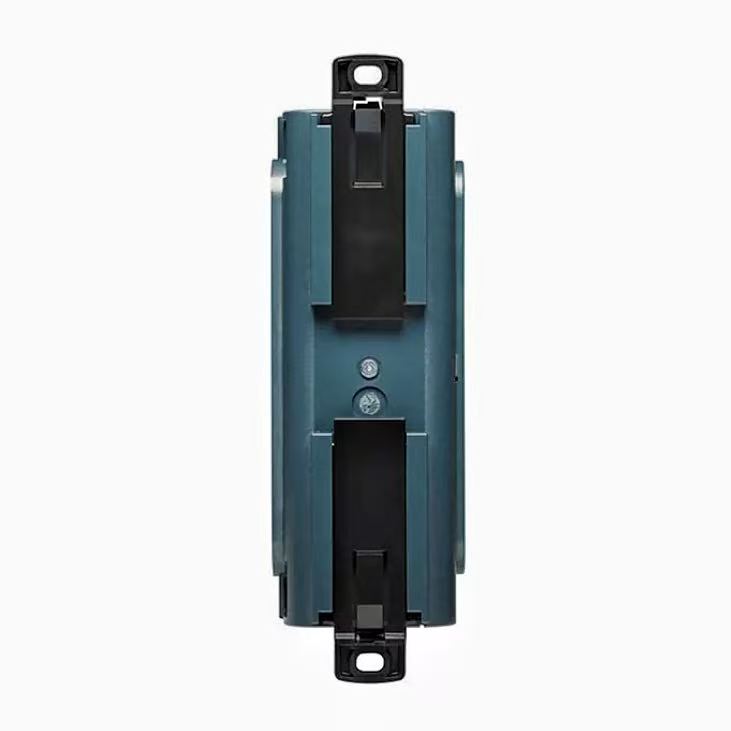

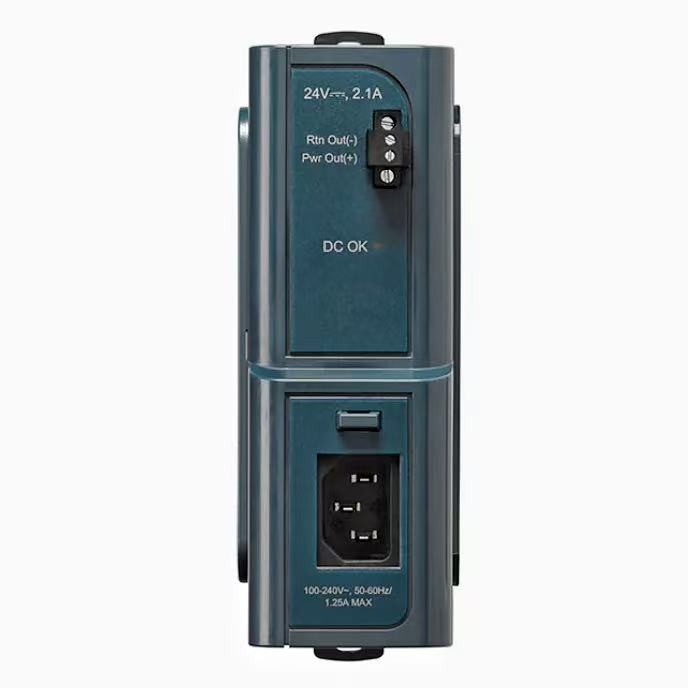

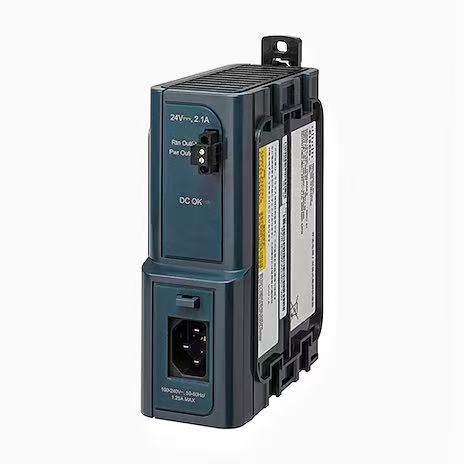

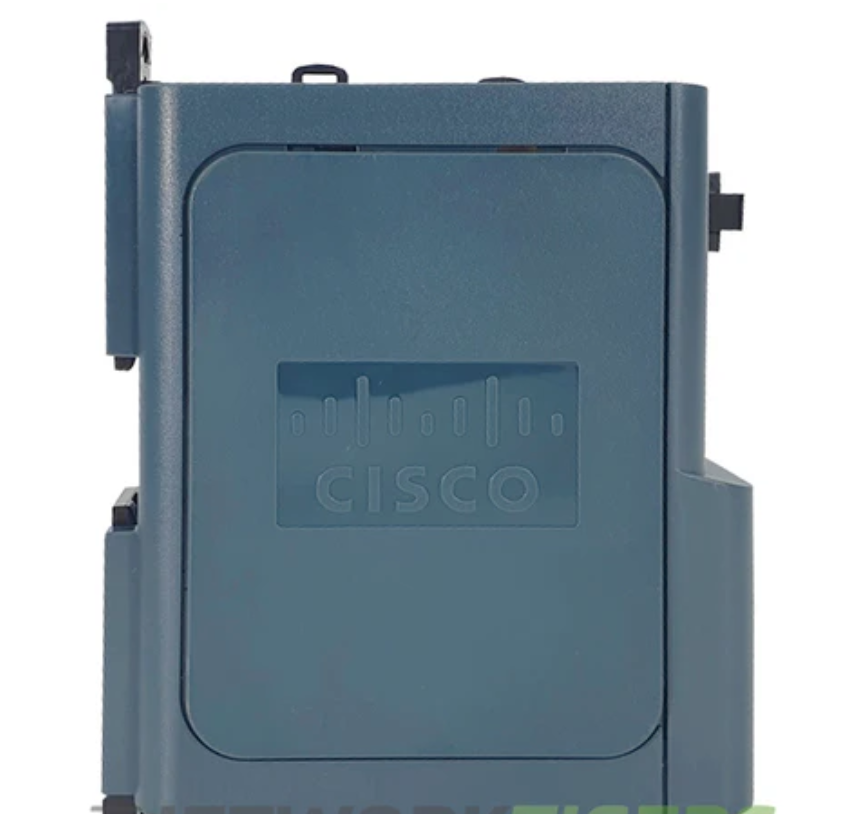

PWR-IE50W-AC-IEC
Cisco
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Part Number | PWR-IE50W-AC-IEC= |
Product Type | Industrial DIN-Rail AC-DC Expansion Power Module with IEC C14 Input Connector |
Target Compatible Devices | Cisco IE3000 Series Industrial Switches (IE-3000-4TC, IE-3000-8TC, IE-3000-4TC-E, IE-3000-8TC-E) |
Rated Total Output Power | 50W Max |
AC Input Spec | Nominal: 100–240V AC, 50/60Hz, 1.25A Operating Range: 90–264V AC Input Port: IEC 60320 C14 Connector |
DC Output Spec | 24VDC, 2.1A Constant Output |
Power Conversion Efficiency | Up to 88% at 25°C Ambient |
Cooling Structure | Fanless Passive Heat Dissipation, Zero Noise |
Mounting Method | Standard 35mm DIN Rail Mount |
Protection Mechanisms | Overload Protection, Short-Circuit Protection, Over-Voltage Protection |
Physical Dimensions (W × D × H) | 60 mm × 110 mm × 90 mm |
Net Weight | 0.65 kg (1.43 lbs) |
Operating Temperature Range | -40°C ~ +85°C |
Storage Temperature Range | -40°C ~ +85°C |
Operating Humidity | 5%–95% Non-Condensing |
Max Operating Altitude | 3,963 m (13,000 ft) |
MTBF (25°C Ambient) | 1,662,359 Hours |
Safety Certifications | UL 60950-1, CSA C22.2 No.60950-1, TUV/GS EN 60950-1, CB IEC 60950-1 |
EMC Compliance | FCC Part 15 Class A, EN 55022 Class A, EN 55024, IEC 61000-4 Series |
Industrial Standards | IEC 61850-3, IEEE 1613, EN 50155 |
Hazardous Location Approval | Not certified for Class 1 Div 2 / Zone 2 hazardous sites |
Factory Warranty | Cisco Standard 90-Day Limited Hardware Warranty |
