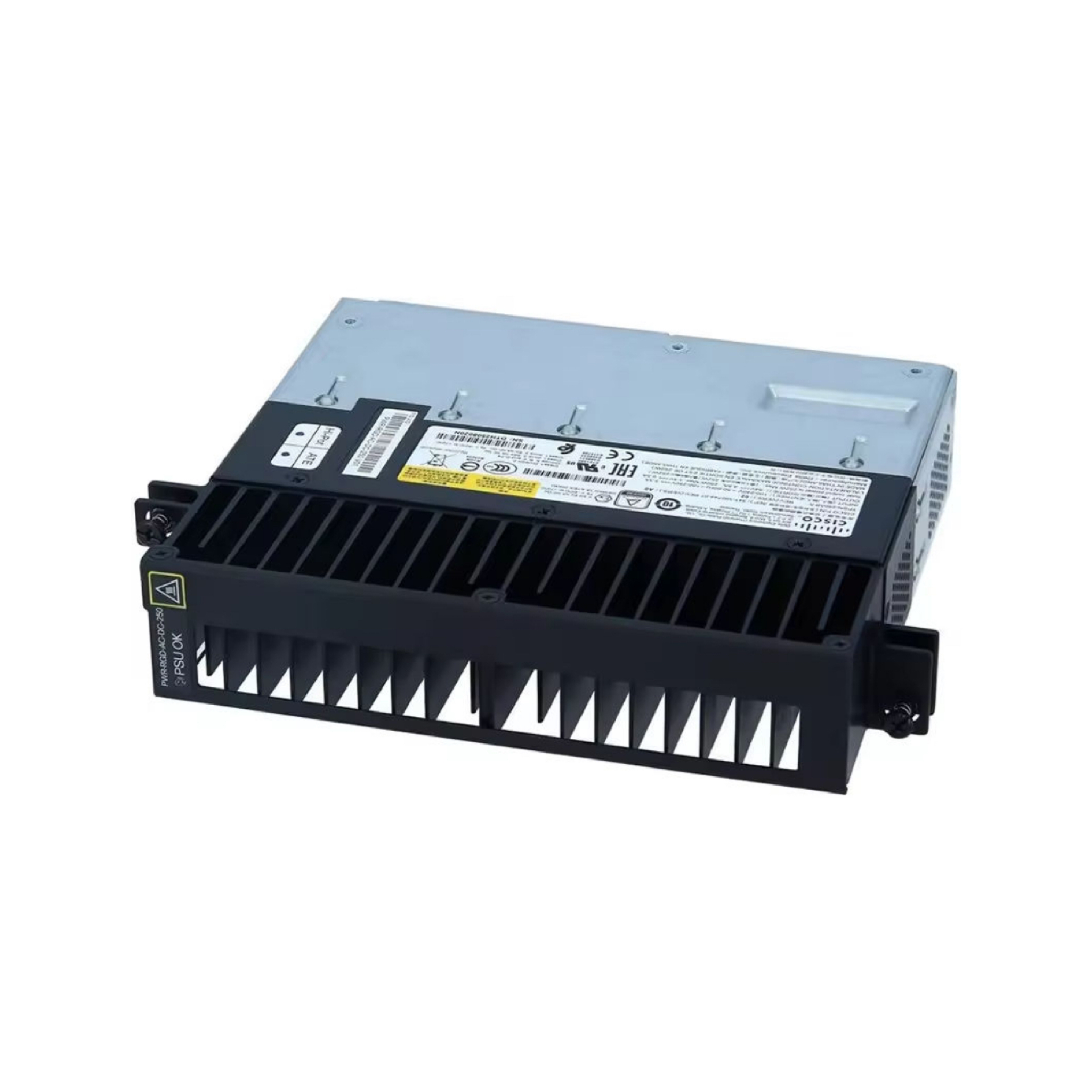

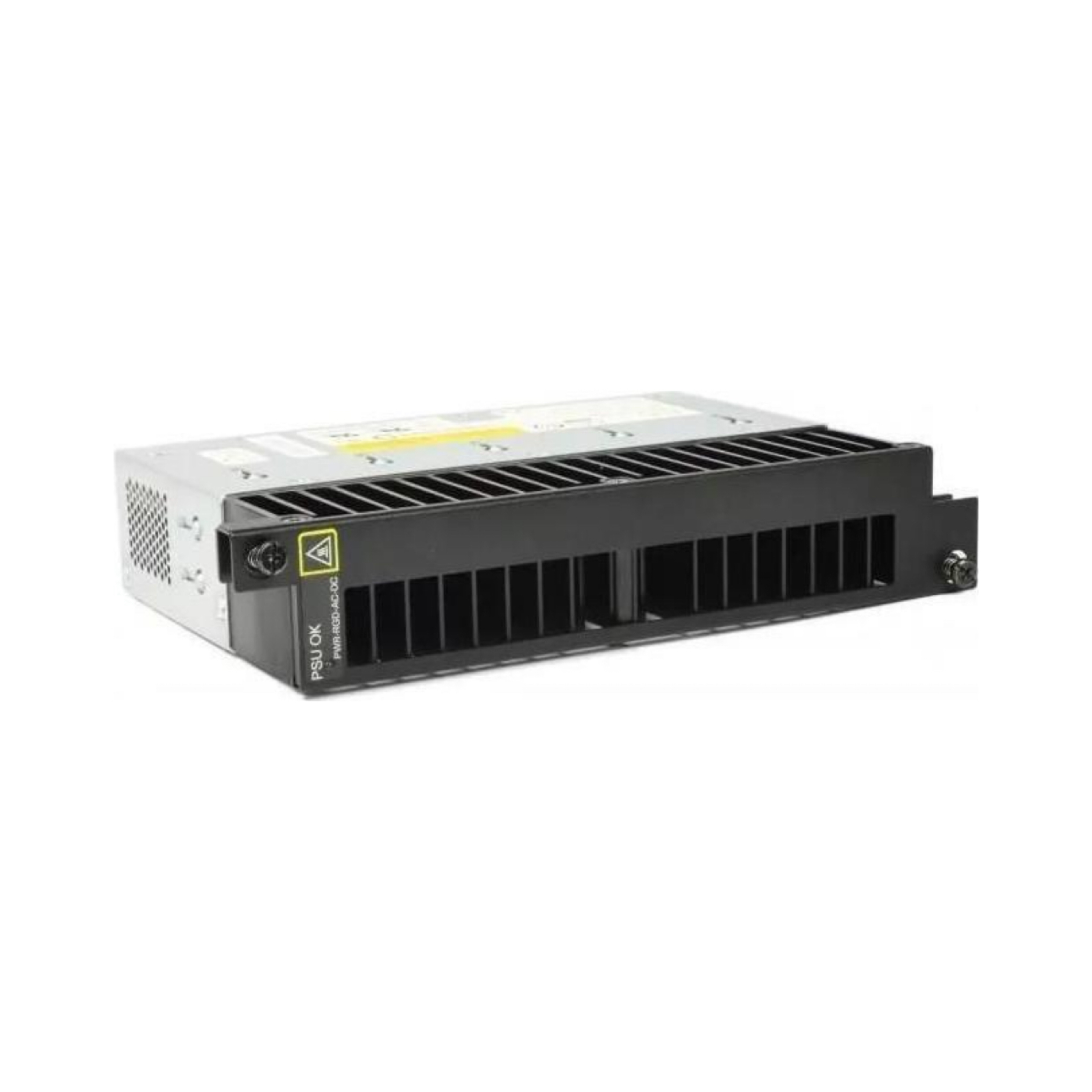

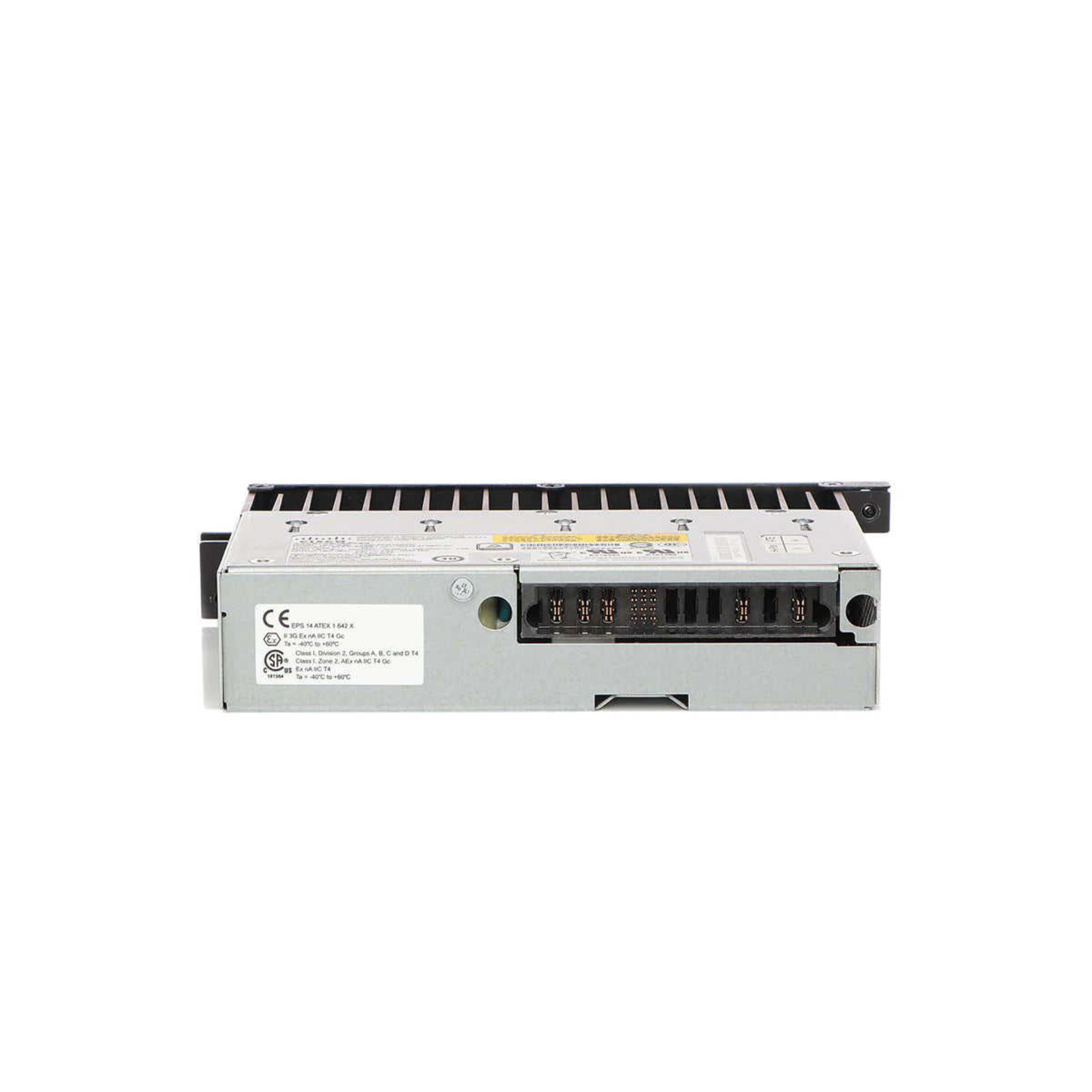

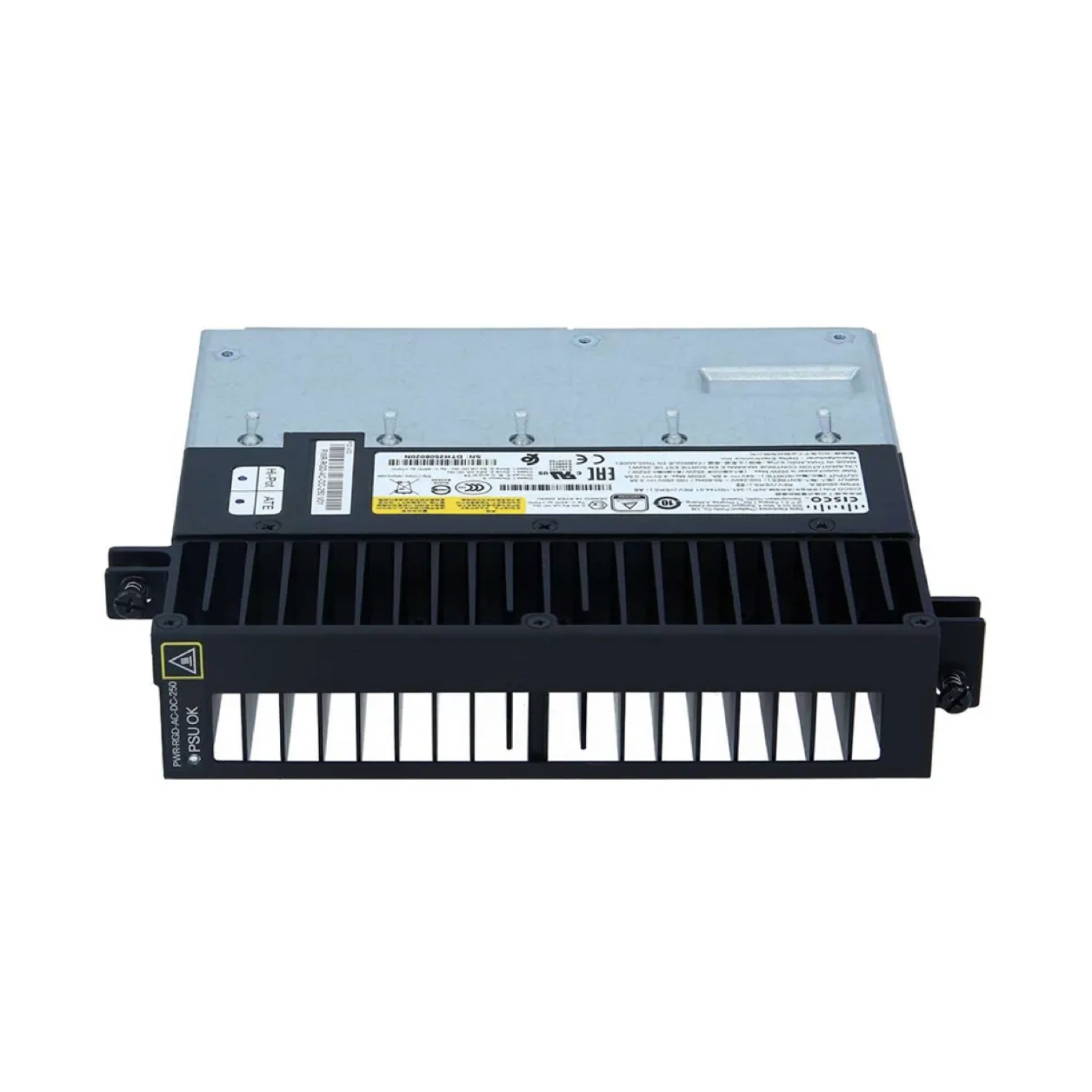

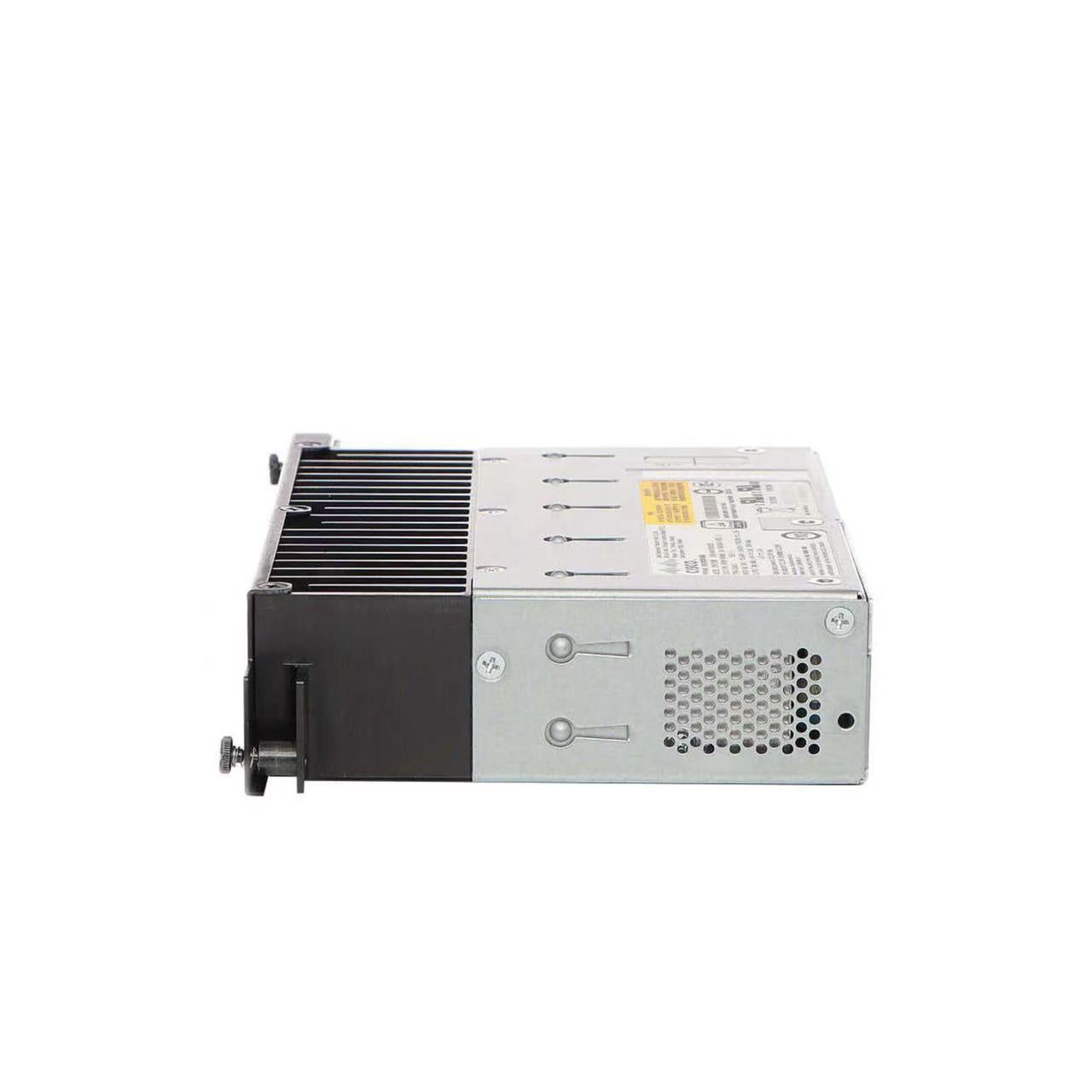

PWR-RGD-AC-DC-H, Cisco IE4010/5000 Power Supply, 85-264VAC/88-300VDC/High AC/DC/Hazloc

Cisco PWR-RGD-AC-DC-H is a high-performance rugged AC-to-DC power supply module designed to deliver stable, reliable, and efficient power for Cisco industrial networking equipment operating in harsh environments. Engineered for demanding industrial applications, it provides consistent power conversion with high efficiency, ensuring continuous network operation in manufacturing plants, transportation systems, utilities, oil and gas facilities, mining sites, and outdoor communication deployments. Built with industrial-grade components, the PWR-RGD-AC-DC-H offers excellent durability, wide operating temperature support, and enhanced protection against electrical fluctuations, helping reduce downtime and extend equipment lifespan. Its hot-swappable design simplifies maintenance and minimizes service interruptions, while seamless compatibility with supported Cisco rugged switches enables quick installation and dependable performance. Ideal for enterprise and industrial network infrastructures requiring high availability, this genuine Cisco power supply module combines robust reliability, energy efficiency, and long-term operational stability, making it an excellent choice for mission-critical industrial Ethernet and edge networking applications.

  • PWR-RGD-AC-DC-H

  • Cisco

  • Original New

  • 1 year

Availability:
Quantity:
Inquire Add to Basket

Item

Official Specification

Model Part Number

PWR-RGD-AC-DC-H

Product Type

Rugged Hazloc Industrial AC/DC Power Supply Module

Rated Output Power

150W

Compatible Hardware

Cisco IE 4010, IE 5000, IE 9300 Rugged Industrial Ethernet Switches

Input Voltage Range

AC: 85–264V, 50/60Hz; DC: 88–300V

Input Current Rating

Max 2.0A (AC & DC input)

Output Voltage

24V DC

PoE Support

Compatible with switch PoE/PoE+ power delivery

Redundancy Function

Supports dual redundant power supply deployment

Hazardous Location Certification

Class I Div 2, ATEX, IECEx Hazloc compliant

Built-in Protection

Over-Voltage, Over-Current, Short-Circuit, Over-Temperature protection

Physical Form Factor

Hot-swappable plug-in module, 1RU rack integrated

Dimension (W × D × H)

178 mm × 127 mm × 44 mm (7.0 × 5.0 × 1.75 in)

Net Weight

1.15 kg (2.54 lbs)

Cooling Design

Passive convection cooling, fanless silent operation

Operating Temperature

-40°C ~ +70°C

Storage Temperature

-45°C ~ +85°C

Operating Humidity

5%–95% non-condensing

Vibration & Shock Resistance

Industrial ruggedized, compliant with IEC 60068-2

Installation Method

Internal chassis slot mount for IE series switches

Warranty

Cisco Limited Lifetime Hardware Warranty

Regulatory Certifications

CE, FCC, UL, CSA, RoHS, ATEX, IECEx

Typical Application

Factory automation, transportation, oil & gas hazardous sites, outdoor industrial networking, utility substation

Shenzhen Importgm Technology Co., Ltd.

Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.

gs图片IMG_8380(1)


客户

包装

物流



Q: What are the characteristics of the PWR-RGD-AC-DC-H?

A: The PWR-RGD-AC-DC-H supports input ranges of 85-264VAC and 88-300VDC, provides rugged reliability, and is suitable for hazardous locations.

Q: What is the application scenario of the PWR-RGD-AC-DC-H?

A: The PWR-RGD-AC-DC-H is ideal for industrial environments requiring a rugged power supply for Cisco IE4010/5000 switches.

Q: How do I install the PWR-RGD-AC-DC-H?

A: The PWR-RGD-AC-DC-H can be installed in any standard DIN rail or panel mount setup, following the provided instructions.

Q: Does the PWR-RGD-AC-DC-H need to be upgraded?

A: No, the PWR-RGD-AC-DC-H does not require regular upgrades but should be maintained per the manufacturer's guidelines.

Q: Are there alternative products to the PWR-RGD-AC-DC-H?

A: Alternatives include other power supplies in the Cisco IE Switch Power Supply range, each tailored for specific needs.
