R4W43A - HPE Aruba Wireless 560 WiFi-6 Access Points

Weatherproof and temperature hardened, Aruba 560 Series Outdoor Access Points (APs), R4W43A deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
  • R4W43A
  • Aruba
  • Within 3-5days in stock/ out of stock Item Backordered
  • Brand New Sealed
  • 1 Year Warranty
Availability:
Quantity:

Quick Specs

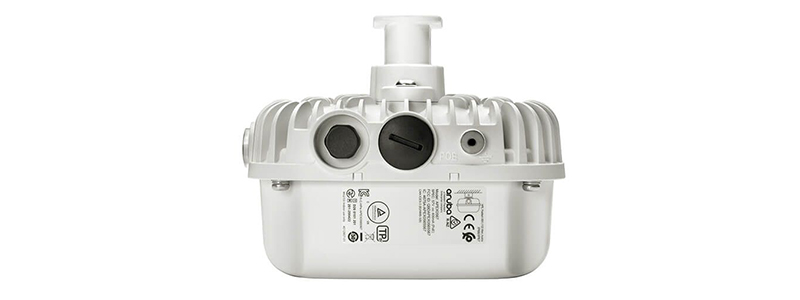

Figure 1 shows the appearance of R4W43A.

aruba-r4w43a_appearance

Table 1 shows the Quick Specs.

Product Code

R4W43A

Dimensions

16.5 cm (W) x 16.5 cm (D) x 11 cm (H)

6.5” (W) x 6.5” (D) x 4.3” (H)

Maximum (worst-case) power consumption

15.6W

Maximum (worst case) power consumption in idle mode

4.2W

Maximum (worst case) power consumption in deep-sleep mode

1.7

Power over Ethernet (PoE+)

802.3at-compliant

Operating temperature

-40° C to +55° C (-40° F to +140° F) with full solar loading

Operating humidity

5% to 95% non-condensing internal

Product Details

Figure 2 shows the front panel of R4W43A.

aruba-r4w43a_appearance

R4W43A provides these features:

  • Incredible Efficiency

The 560 Series access points (APs) are designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.

  • Aruba Air Slice for Extended OFDMA Assurance

Initially, APs in controller-less mode (Instant) can provide SLA-grade performance by allocating radio resources, such as time, frequency, and spatial streams, to specific traffic types. By combining Aruba's Policy Enforcement Firewall (PEF) and Layer 7 deep packet inspection (DPI) to identify user roles and applications, the APs will dynamically allocate the bandwidth needed.

  • Multi-User MIMO (MU-MIMO)

560 Series APs support downlink MU-MIMO just like Wi-Fi 5 (802.11ac Wave 2) APs. The added benefit is the ability to multiply the number of clients that can now send traffic, thus optimizing client-to-AP spatial stream diversity.

  • Aruba Advanced Cellular Coexistence (ACC)

The ACC feature uses built-in filtering to automatically minimize the impact of interference from cellular networks, distributed antenna systems (DAS), and commercial small cell or femtocell equipment.

  • Intelligent Power Monitoring (IPM)

Aruba APs continuously monitor and report hardware energy consumption. They can also be configured to enable or disable capabilities based on available PoE power - ideal when wired switches have exhausted their power budget.

  • Target Wake Time (TWT)

Ideal for IoTs that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This helps improve client power savings and reduces airtime contention with other clients.

Compare to Similar Items

Table 2 shows the comparison of R4W43A.

Module

R4W43A

R4W39A

Maximum (worst-case) power consumption

15.6W

PoE powered (dual ports): 32.0W

PoE powered (single port, full function): 26.1W

Maximum (worst case) power consumption in idle mode

4.2W

14.0W (single PoE) or 16.0W (dual PoE)

Maximum (worst case) power consumption in deep-sleep mode

1.7W

2.9W (single PoE) or 3.9W (dual PoE)

Dimensions

16.5 cm (W) x 16.5 cm (D) x 11 cm (H)

6.5” (W) x 6.5” (D) x 4.3” (H)

230mm (W) x 220mm (D) x 140mm (H) / 9.0" (W) x 8.7" (D) x 5.6" (H)

Operating temperature

-40° C to +55° C (-40° F to +140° F) with full solar loading

-40°C to +65°C / -40°F to +149°F with full solar loading

Operating humidity

5% to 95% non-condensing internal

5% to 93% non-condensing internal

R4W43A Specification

R4W43A Specification

Hardware Variants

Built-in Omni Directional Antennas

5 GHz Antennas 5.4 dBi

2.4 GHz Antennas 3.2 dBi

BLE/802.15.4 Antennas 3.3d Bi

Wi-Fi Radio Specifications

AP type

Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2x2 MIMO and 2.4 GHz 2x2 MIMO

Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)

5GHz

Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously

2.4GHz

Two spatial stream Single User (SU) MIMO for up to 574 Mbps (287 Mbps) wireless data rate with individual 2SS HE40 (HE20) 802.11ax client devices or with two 1SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously

Available channels

Dependent on configured regulatory domain

Supported radio technologies

802.11b: Direct-sequence spread-spectrum (DSSS)

802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU)

Supported modulation types

802.11b: BPSK, QPSK, CCK

802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)

802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

802.11n high-throughput (HT) support

HT 20/40

802.11ac very high throughput (VHT) support

VHT 20/40/80

802.11ax high efficiency (HE) support

HE20/40/80

Transmit power

Configurable in increments of 0.5 dBm

Maximum (conducted) transmit power (limited by local regulatory requirements)

2.4 GHz band: +23 dBm per chain, +26 dBm aggregate (2x2)

5 GHz band: +23 dBm per chain, +26 dBm aggregate (2x2)

Note: conducted transmit power levels exclude antenna gain.

Maximum EIRP (limited by local regulatory requirements):

2.4 GHz band:

565: 29.2 dBm EIRP

567: 33 dBm EIRP

5 GHz band:

565: 31.4 dBm EIRP

567: 32.7 dBm EIRP

Power

Maximum (worst-case) power consumption

15.6W

Maximum (worst case) power consumption in idle mode

4.2W

Maximum (worst case) power consumption in deep-sleep mode

1.7W

Power over Ethernet (PoE+)

802.3at-compliant

Mechanical

Dimensions

16.5 cm (W) x 16.5 cm (D) x 11 cm (H)

6.5” (W) x 6.5” (D) x 4.3” (H)

Environmental

Operating temperature

-40° C to +55° C (-40° F to +140° F) with full solar loading

Operating humidity

5% to 95% non-condensing internal

Storage and transportation temperature:

-40° C to +70° C (-40° F to +158° F)
