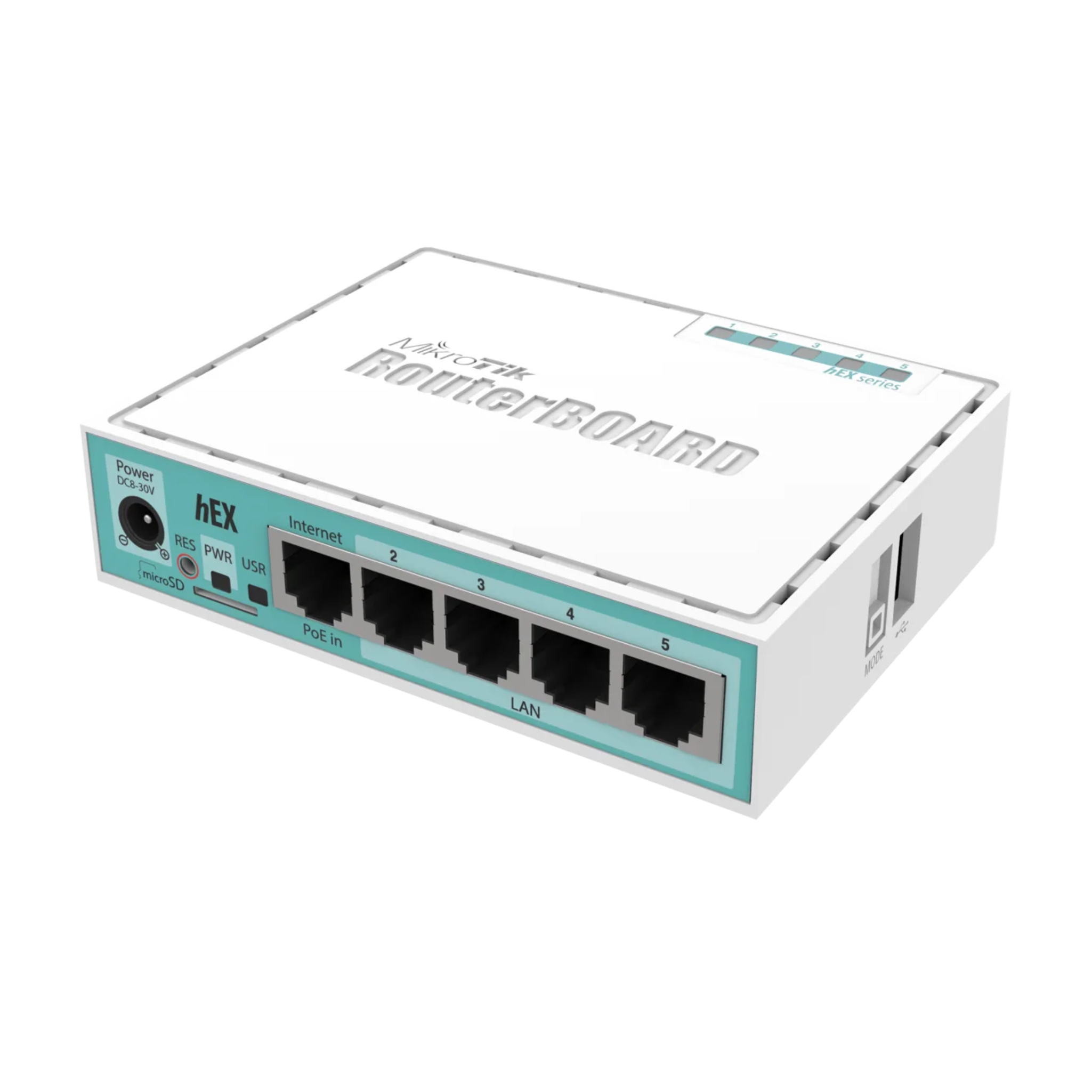

The MikroTik RB750Gr3, also known as the hEX, is a compact yet powerful Gigabit Ethernet router designed for home, office, and small business networking environments that require reliable wired connectivity and advanced routing capabilities. Equipped with a dual-core 880 MHz CPU, 256 MB of RAM, and five Gigabit Ethernet ports, the RB750Gr3 delivers excellent performance for bandwidth-intensive applications, VPN connectivity, firewall management, QoS, load balancing, and static or dynamic routing. Powered by MikroTik's feature-rich RouterOS with a Level 4 license, it supports a comprehensive range of networking functions including IPv4/IPv6 routing, MPLS, VLAN, hotspot gateway, DHCP server, PPPoE, OSPF, BGP, RIP, advanced firewall filtering, NAT, traffic shaping, and secure VPN protocols such as IPsec, OpenVPN, L2TP, PPTP, and SSTP. A built-in USB 2.0 port allows the connection of external storage or a 4G/LTE modem for flexible network expansion and backup connectivity. With hardware-accelerated IPsec encryption, the RB750Gr3 provides improved VPN throughput while maintaining stable network performance. Its fanless design ensures silent operation, low power consumption, and long-term reliability, making it an excellent choice for branch offices, retail stores, educational institutions, system integrators, ISPs, and enterprise edge deployments. The durable compact enclosure allows for easy desktop installation in space-constrained environments, while MikroTik's continuous RouterOS updates ensure ongoing security and feature enhancements. Combining enterprise-grade functionality, outstanding flexibility, and exceptional value, the MikroTik RB750Gr3 is an ideal networking solution for users seeking a cost-effective Gigabit router with professional-level management features and dependable performance for modern business networks.
RB750Gr3
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Model Name | MikroTik RB750Gr3 |
Product Series | MikroTik hEX Series | |
Device Type | Gigabit Ethernet Router / Managed Switch | |
Target Application | SMB, Home Office, Branch Office, VPN Gateway, Small Network Deployment | |
Form Factor | Desktop/Wall-mountable Compact Chassis | |
Hardware Core Specifications | CPU | Qualcomm Atheros QCA8337, 720MHz Single-Core Processor |
RAM | 256 MB DDR2 RAM | |
Flash Storage | 16 MB SPI Flash Memory | |
Operating System | MikroTik RouterOS (Level 4 License Pre-installed) | |
Architecture | MIPSBE | |
Port Configuration | Ethernet Ports | 5 x 10/100/1000BASE-T RJ45 Ports (Auto-MDI/X) |
SFP Slot | 1 x SFP Cage (Supports 1G Fiber/Copper SFP Transceivers) | |
USB Port | 1 x USB 2.0 Port | |
Console Port | 1 x RJ45 Serial Console Port | |
Performance Specifications | Switching Capacity | 10 Gbps |
Forwarding Rate (64-byte Packets) | 10 Mpps | |
MAC Address Table Size | 8,192 Entries | |
VLAN Support | Up to 4,096 VLANs (802.1Q Tagged) | |
Jumbo Frame Support | Up to 9,000 Bytes | |
Routing Table Entries | Up to 10,000 | |
Core Network & Management Features | Routing Protocols | Static Routing, RIP v1/v2, OSPF, BGP |
Firewall & NAT | Stateful Firewall, NAT, NAPT, Port Forwarding | |
VPN Support | IPsec, L2TP, PPTP, SSTP, OpenVPN, WireGuard | |
QoS | Traffic Shaping, Queue Management, 802.1p CoS, DSCP Mapping | |
Management Methods | WebFig (Web UI), Winbox (GUI), CLI, SNMP v1/v2c/v3, SSH, Telnet | |
DHCP Functions | DHCP Server/Client/Relay, DHCP Option 82 | |
Other Features | Hotspot, PPPoE Server/Client, Bridge, VLAN, Port Mirroring | |
Power Supply Specifications | Input Voltage | 12–24V DC (Passive PoE Compatible, 802.3af/at PoE Input Supported) |
Power Consumption | Max 10W | |
Power Input | 1 x DC Power Jack | |
Physical & Mechanical Specifications | Dimensions (W × D × H) | 113 mm × 89 mm × 28 mm |
Weight | 130 g | |
Mounting | Desktop Placement, Wall-mountable (Brackets Included) | |
Cooling Design | Fanless Silent Design | |
Environmental Operating Conditions | Operating Temperature | -30°C to +60°C (-22°F to 140°F) |
Storage Temperature | -40°C to +70°C (-40°F to 158°F) | |
Operating Humidity | 10%–90% Non-condensing | |
Altitude Limit | Up to 2,000 Meters Above Sea Level | |
Compliance & Standards | Industry Standards | IEEE 802.3, 802.3u, 802.3ab (Gigabit Ethernet), IEEE 802.1Q VLAN, IEEE 802.1p QoS |
Certifications | CE, FCC Class B, RoHS, REACH, UL Safety Certification |
