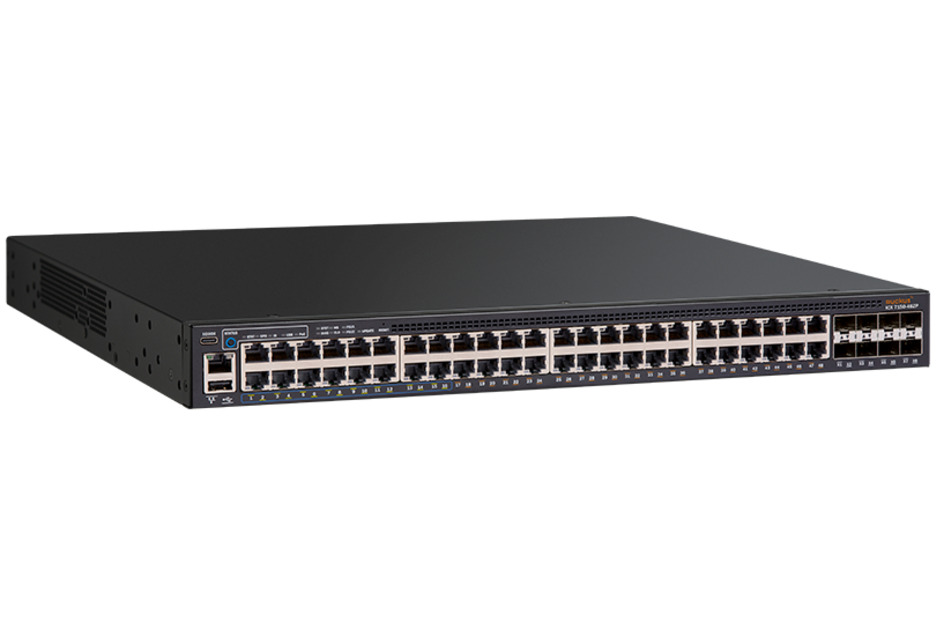

RUCKUS ICX 7150-48ZP 48-Port Multigigabit L2/L3 Managed PoE Stackable Ethernet Switch

The RUCKUS ICX 7150 combines enterprise-class switching features with high performance at entry-level price. The ICX 7150 series of switches are available in three formats: standard, Z-Series with multi-gigabit support, and compact. The switch can operate in fanless mode outside of the wiring closet to provide silent operation for classrooms, hospitality suites, retail sites, hospitals or other noise sensitive environments.

The ICX 7150 is available in 8,10,12, 24 and 48 port 10/100/1000 Mbps models with 1/10 GbE dual-purpose uplink/stacking ports, and full PoE/PoE+ support. The ICX 7150-48ZPand ICX 7150-C10ZP offers multi-gigabit ports, each with PoH up to 90 watts,. The ICX 7150 series supports stack-level high availability and stack level ISSU (In Service Software Upgrade) to ensure service resiliency and business continuity.

• PoE/PoE+/PoH to power 802.11ac Wi-Fi products

• Stack level high availability and stack level ISSU to improve network service resiliency

• sFlow-based network monitoring

• SDN-enabled with OpenFlow support

• Easy transition to RUCKUS Campus Fabric for network automation and management simplicity Plug-and-play operations for powered devices via LLDP and LLDP-MED protocols

• Auto-configuration ensures error free configuration and accelerates deployment

• Hot-insertion and removal of stack members simplifies operations

• Up to 12 switches per stack, up to 10km between stacked switches

• Up to 8 x 10 GbE ports for stacking or uplinks

• Software licensing upgrade - 1 GbE to 10 GbE of uplink/stacking ports

• Flexible stacking adds capacity throughout the network without increasing the management load

• Works seamlessly with RUCKUS Wi-Fi access points

• RUCKUS SmartZone and RUCKUS Cloud support delivers unified wired & wireless management

Benefits

Stackability Simplifies Management

 ·Class-leading stacking scalability with up to 12 switches per stack

· Long-distance stacking up to 10 km using standard optics or cables

10 GbE Ports Optimize Network Performance

· Up to 8×10 GbE SFP+ ports for stacking or uplinks

Dual Power Supplies for High Availability

· Dual load-sharing, hot-swappable power supplies available on the Z-Series switch

Multigigabit Support Enables Next Generation Wireless Deployment

· Up to 16x 2.5 and 2x 2.5/5/10 GbE ports optimized for Wi-Fi 5 and 6 deployment

Class leading PoE Budget to Power Advanced   Edge Devices

· PoE+/PoH/802.3bt budget (up to 1,480 watts)

· Support advanced wireless APs and video surveillance equipment

Silent Operation for Deployment in the Work Environment

· Fanless design or fanless mode enables silent non disruptive deployment anywhere

Advanced L3 Maximizes Flexibility

· OSPF, VRRP, PIM, PBR L3 features

Campus Fabric Reduces Cost of Operations, Increases Flexibility

· RUCKUS Campus Fabric delivers the benefits of a chassis with the flexibility of stackables

 · Scales to over 1800 ports

RUCKUS ICX 7150-48ZP Switch Product information
