RUCKUS M510 Indoor Access Point Mobile Indoor 802.11AC Wave 2 2X2:2 Wi-Fi Indoor Access Point (AP) with LTE Backhau

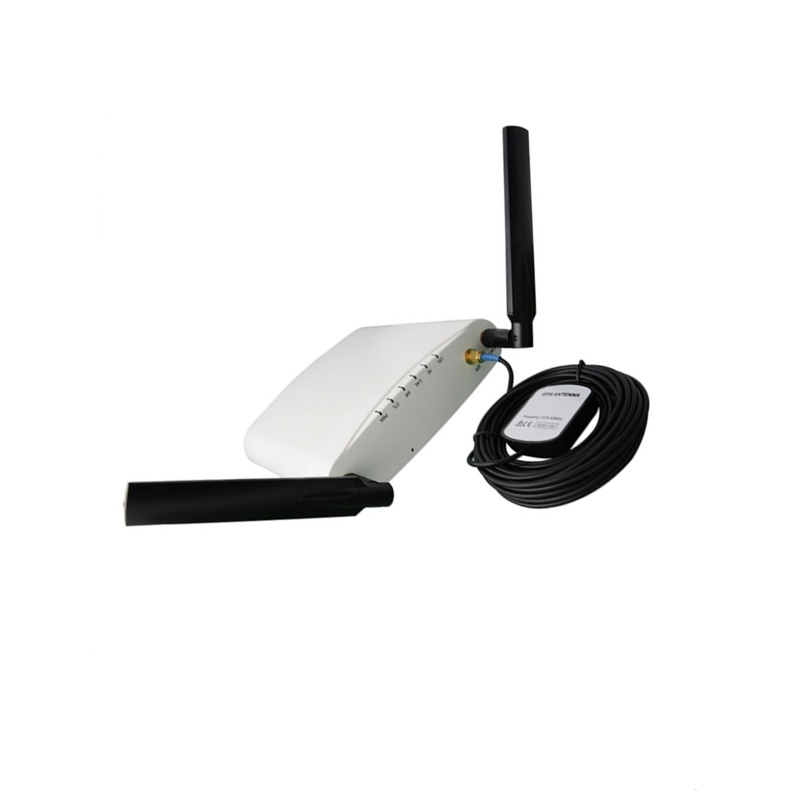

RUCKUS M510 Mobile Indoor 802.11ac Wave 2 Wi-Fi AP with LTE Backhaul-1
  • M510
  • Ruckus
  • Original New
  • 1 year
Quantity:
RUCKUS M510 Mobile Indoor 802.11ac Wave 2 Wi-Fi AP with LTE Backhaul-1

In a fiercely competitive marketplace, managed service providers (MSP) are looking for new ways to differentiate their services and open new revenue streams. One nascent market is the "mobile-wireless" segment where new opportunities to add branded Wi-Fi to mobile and semi-mobile public access context exist that complement LTE networks. But integrating into existing LTE networks with mobile Wi-Fi hotspot services has not been straightforward.

The RUCKUS M510 mobile-wireless access point (AP) is an 802.11ac 2x2:2 Wave 2 Wi-Fi AP designed to leverage LTE networks as a backhaul and connect wirelessly back to any network without the need for an Ethernet cable connection.

Because of the wireless LTE backhaul capability, the M510 addresses multiple deployment scenarios not previously served, including mobile "in-vehicle" Wi-Fi ("mobile AP"), rapid Wi-Fi deployment for pop-up retail or first-responders and temporary Wi-Fi deployments at a construction site. M510's LTE backhaul can serve as a failover or redundancy for the WAN connectivity. Additionally, the M510 satisfies an operator's requirement to deliver branded Wi-Fi connectivity for mobile outdoor hotspots for transit hubs or isolated public locations where a wired connection is too expensive or impossible.

The M510 AP incorporates patented technologies found only in the Ruckus Wi-Fi portfolio.

  • Extended coverage with patented BeamFlex+ utilizing multi-directional antenna patterns.

  • Improve throughput with ChannelFly, which dynamically finds less congested Wi-Fi channels to use.

Additionally, using the M510's integrated GPS, customers can automatically establish the exact location of each access point on a network or geographic map in real-time-greatly simplifying installation, tracking and maintenance.

Whether operators are deploying ten or ten thousand APs, the M510 is easy to manage through any SmartZone physical or virtual controller. MSPs can leverage the carrier-grade features of SmartZone such as resiliency and geo-redundancy.

RUCKUS M510 Indoor Access Point Mobile Indoor 802.11AC Wave 2 2X2:2 Wi-Fi Indoor Access Point (AP) with LTE Backhaul


BENEFITS

MOBILE WI-FI

Superior performance, managed Wi-Fi without cable pulls using an LTE connection to support mobile hotspot requirements.

CARRIER-GRADE MANAGEMENGT

M510 with SmartZone brings in carrier-grade management features. MSPs can leverage physical or virtual SmartZone controller to manage all APs.

ONBOARD GPS

GPS support location aware services for tracking the mobile unit.

ENTERPRISE WI-FI COVERAGE

Provide an excellent user experience in any environment with patented BeamFlex+™ adaptive antenna technology and multiple directional antenna patterns.

AUTOMATE OPTIMAL THROUGHPUT

ChannelFly™ dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.

SERVE MORE DEVICES

Connect more devices simultaneously with two MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while also enhancing non-Wave 2 device performance.

MORE THAN WI-FI

Support services beyond Wi-Fi withRuckus IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics.

RUCKUS M510 Indoor Access Point Mobile Indoor 802.11AC Wave 2 2X2:2 Wi-Fi Indoor Access Point (AP) with LTE Backhaul

ACCESS POINT ANTENNA PATTERN

Ruckus' BeamFlex+ adaptive antennas allow the M510 AP to dynamically choose among a host of antenna patterns in real-time to establish the best possible connection with every device. This leads to:

  • Better Wi-Fi coverage

  • Reduced RF interference

Traditional omni-directional antennas, found in generic access points, oversaturate the environment by needlessly radiating RF signals in all directions. In contrast, the Ruckus BeamFlex+ adaptive antenna directs the radio signals per- device on a packet by-packet basis to optimize Wi-Fi coverage and capacity in real- time to support high device density environments. BeamFlex+ operates without the need for device feedback and hence can benefit even devices using legacy standards.RUCKUS M510 Indoor Access Point Mobile Indoor 802.11AC Wave 2 2X2:2 Wi-Fi Indoor Access Point (AP) with LTE Backhaul
RUCKUS M510 Indoor Access Point Mobile Indoor 802.11AC Wave 2 2X2:2 Wi-Fi Indoor Access Point (AP) with LTE Backhaul


Specification

General Specifications

Antenna Gain Up to 3 dBi
Antenna Patterns, per band 64
BeamFlex Yes
ChannelFly Yes
Concurrent Users 512
Controller Support SmartZone | Standalone | Unleashed
Ethernet Ports 2 x 1GbE ports, RJ45
IoT Ready Yes
PD-MRC Yes
PHY Rate at 2.4 GHz, maximum 300 Mb/s
PHY Rate at 5 GHz, maximum 867 Mb/s
Radio Chains:Streams 2x2:2 SU-MIMO 2x2:2 MU-MIMO
Rx Sensitivity at 2.4 GHz -101 dBm
Rx Sensitivity at 5 GHz -95 dBm
SmartMesh Yes
USB USB 2.0
Venue Type Transportation
Venue Sub-Type Buses/Shuttles | Emergency Response Vehicles | Trains
Wi-Fi Interface Standard IEEE 802.11a/b/g/n/ac Wave 2
Wi-Fi Interface Standard at 2.4 GHz 802.11n
Wi-Fi Interface Standard at 5 GHz 802.11ac
WI-FI
Wi-Fi Standards
  • IEEE 802.11a/b/g/n/ac Wave 2

Supported Rates
  • 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)

  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0 to MCS15)

  • 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps

  • 802.11b: 11, 5.5, 2 and 1 Mbps

Supported Channels
  • 2.4GHz: 1-13

  • 5GHz: 36-64, 100-144, 149-165

MIMO
  • 2x2 SU-MIMO

  • 2x2 MU-MIMO

Spatial Streams
  • 2 SU-MIMO

  • 2 MU-MIMO

Radio Chains and Streams
  • 2x2:2

Channelization
  • 20, 40, 80MHz

Security
  • WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK

  • WIPS/WIDS

Other Wi-Fi Features
  • WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v

  • Hotspot

  • Hotspot 2.0

  • Captive Portal

RUCKUS RADIO MANAGEMENT

Antenna Optimization

  • BeamFlex+

  • Polarization Diversity with Maximal Ratio Combining (PD-MRC)

Wi-Fi Channel Management
  • ChannelFly

  • Background Scan Based

Client Density Management

  • Adaptive Band Balancing

  • Client Load Balancing

  • Airtime Fairness

  • Airtime-based WLAN Prioritization

SmartCast Quality of Service
  • QoS-based scheduling

  • Directed Multicast

  • L2/L3/L4 ACLs

Mobility
  • SmartRoam

Diagnostic Tools
  • Spectrum Analysis

  • SpeedFlex

NETWORKING
Controller Platform Support
  • SmartZone

  • Unleashed2

  • Standalone

Mesh
  • SmartMesh™ wireless meshing technology. Self-healing Mesh (in future release)

IP
  • IPv4, IPv6

VLAN
  • 802.1Q (1 per BSSID or dynamic per use based on RADIUS

  • VLAN Pooling

  • Port-based

802.1x
  • Authenticator & Supplicant

Tunnel
  • L2TP, GRE, Soft-GRE

Gateway & Routing
  • NAT/DHCP

Policy Management Tools
  • Application Recognition and Control

  • Access Control Lists

  • Device Fingerprinting

  • Rate Limiting

IoT Capable
  • Yes

PHYSICAL CHARACTERISTICS
Physical Size
  • 17.2(L) x 16.7(W) x 4.2(H) cm

  • 6.8 (L) x 6.6(W) x 1.6(H) in.

Weight
  • 450g (15.9oz)

Mounting
  • Wall, Drop ceiling, Desk (mounting hardware included)

  • Vehicle (flange mounting bracket sold separately)

Physical Security
  • Hidden latching mechanism

  • Kensington lock

Operating Temperature
  • -40ºC (-40ºF) to 65ºC (149ºF)

Operating Humidity
  • Up to 95%, non-condensing
