R610
Ruckus
Original New
1 year
| Quantity: | |
|---|---|
| Benefits | |

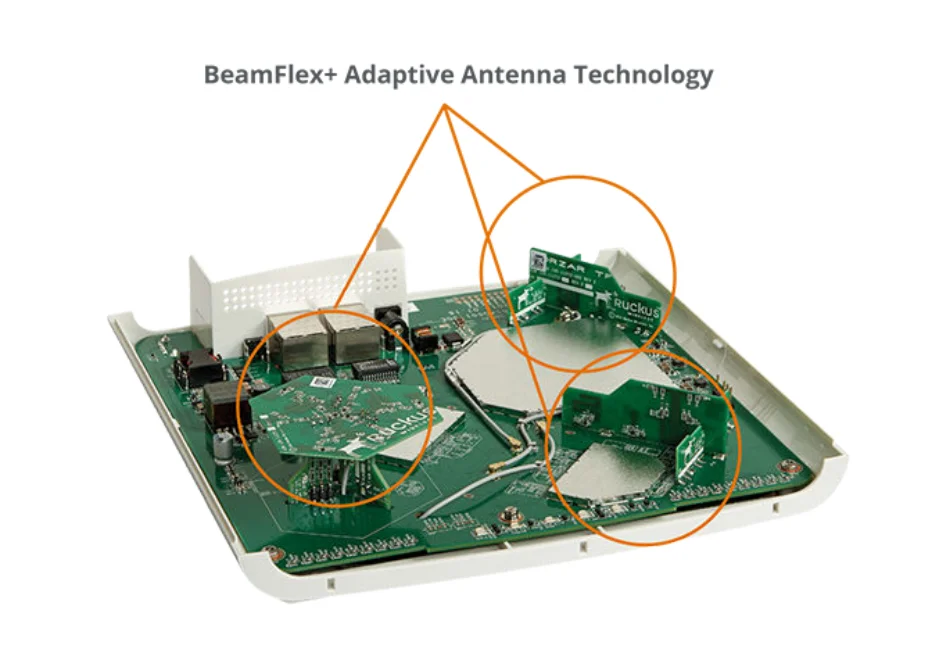

| Stunning Wi-Fi Performance | Mitigate interference and extend coverage with patented BeamFlex+ adaptive antenna technology utilizing 512 directional antenna patterns. |
| Serve More Devices | Connect more devices simultaneously with three MUMIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing non-Wave 2 device performance. |
| Automate Optimal Throughput | ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support. |
| Multiple Management Options | Manage the R610 from the cloud, with on-premises physical/virtual appliances, or without a controller. |
| Better Mesh Networking | Reduce expensive cabling, and complex mesh configurations by checking a box with SmartMesh wireless meshing technology to dynamically create self-forming, self-healing mesh networks. |
| Expanded Backhaul | Pair two onboard 1GbE ports with link aggregation (LACP) to maximize throughput between the AP and wired switch. |
| RUCKUS R610 | |
| WI-FI | |
| Wi-Fi Standards | · IEEE 802.11a/b/g/n/ac Wave 2 |
| Supported Rate | · 802.11ac: 6.5 to 1,300Mbps (MCS0 to MCS9, NSS = 1 to 3 for VHT20/40/80 or 1 for VHT160 · 802.11n: 6.5 Mbps to 450Mbps (MCS0 to MCS23) · 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps · 802.11b: 11, 5.5, 2 and 1 Mbps |
| Supported Channels | · 2.4GHz: 1-13 · 5GHz: 36-64, 100-144, 149-165 |
| MIMO | · 3x3 SU-MIMO · 3x3 MU-MIMO |
| Spatial Streams | · 3 SU-MIMO · 3 MU-MIMO |
| Radio Chains and Streams | · 3x3:3 |
| Channelization | · 20, 40, 80, 160/80+80 MHz |
| Security | · WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic PSK · WIPS/WIDS |
| Other Wi-Fi Features | · WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v · Hotspot · Hotspot 2.0 · Captive Portal · WISPr |
| PERFORMANCE AND CAPACITY | |
| Peak PHY Rates | · 2.4GHz: 450Mbps · 5GHz: 1300Mbps |
| Client Capacity | · Up to 512 clients per AP |
| SSID | · Up to 31 per AP |
| RUCKUS RADIO MANAGEMENT | |
| Antenna Optimization | · BeamFlex+ · Polarization Diversity with Maximal Ratio Combining (PD-MRC) |
| Wi-Fi Channel Management | · ChannelFly · Background Scan Based |
| Client Density Management | · Adaptive Band Balancing · Client Load Balancing · Airtime Fairness · Airtime-based WLAN Prioritization |
| SmartCast Quality of Service | · QoS-based scheduling · Directed Multicast · L2/L3/L4 ACLs |
| Mobility | · SmartRoam |
| Diagnostic Tools | · Spectrum Analysis · SpeedFlex |
| NETWORKING | |
| Controller Platform Support | · SmartZone · ZoneDirector · Cloud · Unleashed · Standalone |
| Mesh | · SmartMesh™ wireless meshing technology. Self-healing Mesh |
| IP | · IPv4, IPv6 |
| VLAN | · 802.1Q (1 per BSSID or dynamic per use based on RADIUS) · VLAN Pooling · Port-based |
| 802.1x | · Authenticator & Supplicant |
| Tunnel | · L2TP, GRE, Soft-GRE |
| Gateway and Routing | · NAT/DHCP |
| Policy Management Tools | · Application Recognition and Control · Access Control Lists · Device Fingerprinting · Rate Limiting |
| IoT Capable | · Yes |
| PHYSICAL INTERFACES | |
| Physical Size | · 20.1(L), 19.5(W), 5.1 (H)cm · 7.9 (L), 7.68 (W), 2.00 (H)in |
| Weight | · 578g (1.3lb) |
| Mounting | · Wall, Drop ceiling, Desk · Secure bracket (sold separately) |
| Physical Security | · Hidden latching mechanism · Kensington lock · T-bar Torx |
| Operating Temperature | · 0°C (32°F) - 40°C (104°F) Operating Humidity |
| Operating Humidity | · Up to 95%, non-condensing |
