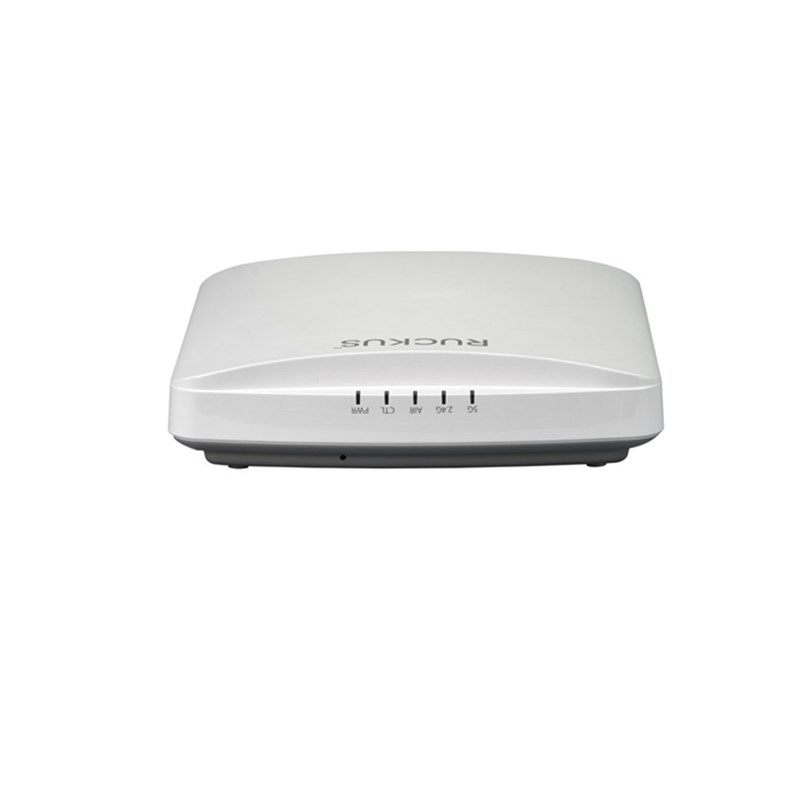

RUCKUS R650 Indoor Access PointHigh Performance Wi-Fi 6 4X4:4 Indoor Access Point(ap) with 3 Gbps HE80/40 Speeds and Embedded IoT

Indoor Wi-Fi 6 (802.11ax) 4x4:4 Wi-Fi Access Point with 2.5Gbps backhaul and 6 spatial streams
  • R650
  • Ruckus
  • Original New
  • 1 year
Quantity:

RUCKUS R650

Indoor Wi-Fi 6 (802.11ax) 4x4:4 Wi-Fi Access Point with 2.5Gbps backhaul and 6 spatial streams

Wi-Fi capacity requirements in office buildings, classrooms, and retail venues are rapidly raising due to increase in Wi-Fi connected devices, non-Wi-Fi IoT devices and bandwidth-hungry applications.

The RUCKUS R650 access point (AP) with the latest Wi-Fi 6 (802.11 ax) technology delivers increased capacity, improved coverage and performance in dense environments. The R650 is our mid-range dual-band, dual-concurrent AP that supports six spatial streams (4x4:4 in 5GHz, 2x2:2 in 2.4GHz). The R650 supports peak data rates of up to 2974 Mbps and efficiently manages up to 512 clients connections. Furthermore, 2.5GbE Ethernet ensures the backhaul will not be a bottleneck for full use of available Wi-Fi capacity.

Also, wireless requirements within enterprises are expanding beyond Wi-Fi with BLE, Zigbee and many other non-Wi-Fi wireless technologies resulting in creation of network silos. Enterprises need a unified platform to eliminate network silos. The Ruckus AP portfolio is equipped to solve these challenges.

The R650 has built-in IoT radios with onboard BLE and Zigbee capabilities. In addition, the R650 is a converged access point that allows customers to seamlessly integrate any new wireless technologies with the pluggable IoT module.

The R650 is packed with ruckus patented technologies in addition to Wi-Fi 6 features such as OFDMA, MU-MIMO and TWT. The R650 is ideal for medium-density deployments such as office buildings, K-12 classrooms, libraries and retail venues.

The R650 Wi-Fi 6 AP incorporates patented technologies found only in the Ruckus Wi-Fi portfolio.

  • BeamFlex+ Antennas: Extended coverage and optimized throughput with patented multi-directional antennas and radio patterns

  • ChannelFly: Improved throughput with dynamically changing the channels to use least congested channel

  • Ruckus Ultra-High-Density Technology Suite: Dramatically improved network performance with technologies such as Airtime Decongestion, Transient Client Management etc.

Whether you are deploying ten or ten thousand APs, the R650 is also easy to manage through Ruckus' physical and virtual management options.RUCKUS R650 Indoor Access PointHigh Performance Wi-Fi 6 4X4:4 Indoor Access Point(ap) with 3 Gbps HE80/40 Speeds and Embedded IoT

BENEFITS

STUNNING WI-FI PERFORMANCE
Mitigate interference and extend coverage with patented BeamFlex+™ adaptive antenna technology utilizing several directional antenna patterns.

SERVE MORE DEVICES
Connect more devices simultaneously with six MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing device performance.

CONVERGED ACCESS POINT
Allow customers to eliminate siloed networks and unify WiFi and non-WiFi wireless technologies into one single network by using built-in BLE and Zigbee, and also expanding to any future wireless technologies.

AUTOMATE OPTIMAL THROUGHPUT
ChannelFly dynamic channel technology uses machine learning to automatically find the least congested
channels. You always get the highest throughput the band can support.

MULTIPLE MANAGEMENT OPTIONS
Manage the R650 from the cloud, with on-premises physical/virtual appliances, or without a controller.

BETTER MESH NETWORKING
Reduce expensive cabling, and complex mesh configurations by checking a box with SmartMesh wireless meshing technology to dynamically create self-forming, self-healing mesh networks.

MORE THAN WI-FI
Support services beyond Wi-Fi withRuckus IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics.RUCKUS R650 Indoor Access PointHigh Performance Wi-Fi 6 4X4:4 Indoor Access Point(ap) with 3 Gbps HE80/40 Speeds and Embedded IoT

ACCESS POINT ANTENNA PATTERN

Ruckus' BeamFlex+ adaptive antennas allow the R650 AP to dynamically choose among a host of antenna patterns in real-time to establish the best possible connection with every device. This leads to:

  • Better Wi-Fi coverage

  • Reduced RF interference

Traditional omni-directional antennas, found in generic access points, oversaturate the environment by needlessly radiating RF signals in all directions. In contrast, the Ruckus BeamFlex+ adaptive antenna directs the radio signals per- device on a packet by-packet basis to optimize Wi-Fi coverage and capacity in real- time to support high device density environments. BeamFlex+ operates without the need for device feedback and hence can benefit even devices using legacy standards.RUCKUS R650 Indoor Access PointHigh Performance Wi-Fi 6 4X4:4 Indoor Access Point(ap) with 3 Gbps HE80/40 Speeds and Embedded IoT
RUCKUS R650 Indoor Access PointHigh Performance Wi-Fi 6 4X4:4 Indoor Access Point(ap) with 3 Gbps HE80/40 Speeds and Embedded IoT



Specification

General Specifications


Antenna Gain Up to 3 dBi
BeamFlex Yes
Concurrent Users 512
Controller Support SmartZone | Standalone | ZoneDirector
Ethernet Ports 1 x 1GbE | 1 x 2.5GbE
IoT Ready Yes
PD-MRC Yes
PHY Rate at 2.4 GHz, maximum 574 Mb/s
PHY Rate at 5 GHz, maximum 2000 Mb/s
Radio Chains:Streams 4x4:4 (5 GHz), 2x2:2 (2.4 GHz)
SmartMesh Yes
USB USB 2.0
Wi-Fi Interface Standard IEEE 802.11a/b/g/n/ac/ax Wave 2
Wi-Fi Interface Standard at 2.4 GHz 802.11ax
Wi-Fi Interface Standard at 5 GHz 802.11ax
WI-FI
Wi-Fi Standards
  • IEEE 802/11a/b/g/n/ac/ax

Supported Rates
  • 802.11ax: 4 to 2400 Mbps

  • 802.11ac: 6.5 to 1732 Mbps

  • 802.11n: 6.5 to 600 Mbps

  • 802.11a/g: 6 to 54 Mbps

  • 802.11b: 1 to 11 Mbps

Supported Channels
  • 2.4GHz: 1-13

  • 5GHz: 36-64, 100-144, 149-165

MIMO
  • 4x4 SU-MIMO

  • 4x4 MU-MIMO

Spatial Streams
  • 4 streams SU/MU MIMO 5GHz

  • 2 streams SU/MU MIMO 2.4GHz

Radio Chains and Streams
  • 4x4:4 (5GHz)

  • 2x2:2 (2.4GHz)

Channelization
  • 20, 40, 80, 160/80+80MHz

Security
  • WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic PSK, OWE

  • WIPS/WIDS

Other Wi-Fi Features
  • WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v

  • Hotspot

  • Hotspot 2.0

  • Captive Portal

  • WISPr

NETWORKING
Controller Platform Support
  • SmartZone

  • ZoneDirector

  • Standalone

Mesh
  • SmartMesh™ wireless meshing technology. Self-healing Mesh

IP
  • IPv4, IPv6, dual-stack

VLAN
  • 802.1Q (1 per BSSID or dynamic per user based on RADIUS)

  • VLAN Pooling

  • Port-based

802.1x
  • Authenticator & Supplicant

Tunnel
  • L2TP, GRE, Soft-GRE

Policy Management Tools
  • Application Recognition and Control

  • Access Control Lists

  • Device Fingerprinting

  • Rate Limiting

IoT Capbale
  • Yes

PHYSICAL CHARACTERISTICS
Physical Size
  • 22.4cm (L), 19.4cm (W), 4.7cm (H)

  • 8.8in (L) x 7.6in (W) x 1.9in (H)

Weight
  • 0.854 kg

  • 1.88 lbs

Mounting
  • Wall, acoustic ceiling, desk

  • Secure bracket (sold separately)

Physical Security
  • Hidden latching mechanism

  • T-bar Torx

  • Bracket (902-0120-0000) Torx screw & padlock (sold separately)

Operating Temperature
  • 0ºC (32ºF) - 40ºC (104ºF)

Operating Humidity
  • Up to 95%, non-condensing
