R850
Ruckus
Original New
1 year
Availability: | |
---|---|
Quantity: | |
The RUCKUS R850 is based on the latest Wi-Fi standard, Wi-Fi 6, which bridges the performance gap from 'gigabit' Wi-Fi to 'multi-gigabit' Wi-Fi in support of the insatiable demand for better and faster Wi-Fi.
The RUCKUS R850 is our highest capacity dual-band, dual-concurrent Wi-Fi 6access point (AP) that supports 12 spatial streams (8x8:8 in 5GHz, 4x4:4 in 2.4GHz). The R850, with OFDMA, TWT and MU-MIMO capabilities, efficiently manages up to 1,024 client connections with increased capacity, improved coverage and performance in ultra-high dense environments. Furthermore, a 5 Gbps multi-gigabit Ethernet portmitigates backhaulcapacity bottlenecks.
Additionally, the R850 is IoT- and LTE-ready, and supports wireless standards beyond Wi-Fi in combination with the RUCKUS IoT Suite and our CBRS/OpenG modules.
The R850 addresses the increasing client demands in transit hubs, auditoriums, stadiums, conference centers, and other highly trafficked indoor spaces. It is the perfect choice for data-intensive streaming multimedia applications like 4K video transmissions, while supporting latency sensitive voice and data applications with stringent quality-of-service requirements.
The R850 when paired with the RUCKUS Ultra-High-Density Technology Suite found only in the RUCKUS Wi-Fi portfolio, dramatically improves network performance through a combination of patented wireless innovations and learning algorithms that includes:
Airtime Decongestion:Increases average network throughput in heavily congested environments
Transient Client Management:Reduces interference traffic from unconnected Wi-Fi devices
BeamFlex Antennas:Extended coverage and optimized throughput with patented multi-directional antennas and radio patterns
Whether you're deploying ten or ten thousand APs, the R850 is also easy to manage through our collection of on-premises or cloud-based management options.
Improve device performance, by enabling more simultaneous device connections with built-in 12 spatial streams (8x8:8 in 5GHz, 4x4:4 in 2.4GHz), MU-MIMO and OFDMA technology.
Provides exceptional end-user experience within stadiums, large public venues, convention centers and school auditoriums with the RUCKUS Ultra-High-Density Technology Suite.
Supports the latest Wi-Fi security standard,WPA3,for enhanced protection from man-in-the-middle attacks in the most secure way.
Optimized multi-gigabit Wi-Fi performance delivered using built-in 5GbE/2.5GbE Ethernet ports to connect to multi-gigabit switches.
Manage the R850 with cloud, on premise physical/virtual appliances and control auto-provisioning for faster deployment and seamless firmware upgrades.
Minimize complexity by reducing expensive cabling with SmartMesh that dynamically creates self-forming, self-healing mesh networks.
Eliminate siloed wireless networks with a unified platform that augments Wi-Fi with onboard BLE & Zigbee radios with the option to integrate other wireless technologies via the USB port.

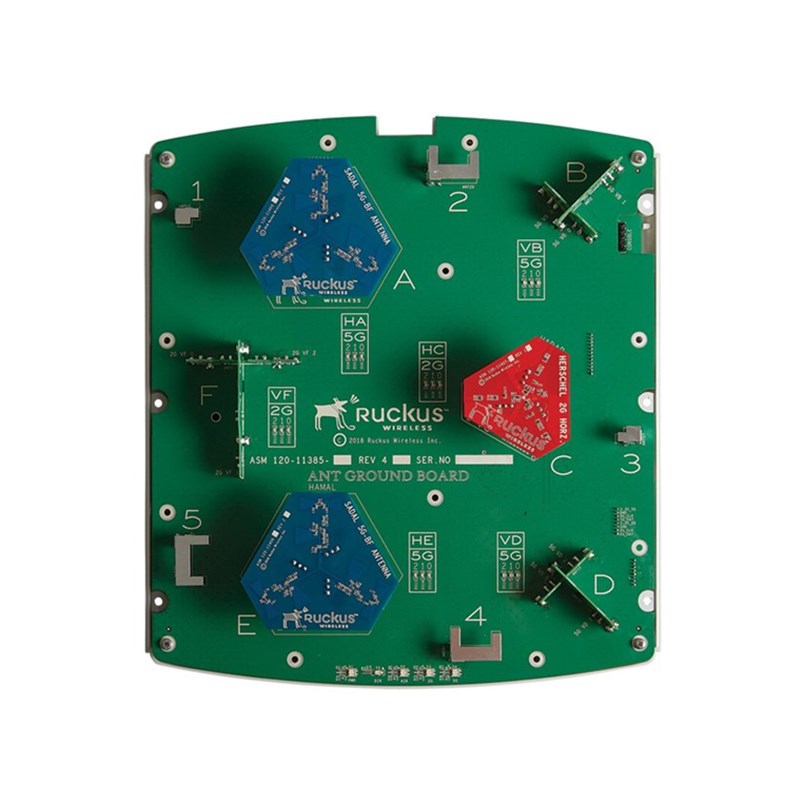

Ruckus' BeamFlex+ adaptive antennas allow the R850 AP to dynamically choose among a host of antenna patterns in real-time to establish the best possible connection with every device. This leads to:
Better Wi-Fi coverage
Reduced RF interference
Traditional omni-directional antennas, found in generic access points, oversaturate the environment by needlessly radiating RF signals in all directions. In contrast, the Ruckus BeamFlex+ adaptive antenna directs the radio signals per- device on a packet by-packet basis to optimize Wi-Fi coverage and capacity in real- time to support high device density environments. BeamFlex+ operates without the need for device feedback and hence can benefit even devices using legacy standards.
Antenna Gain | Up to 2 dBi |
Antenna Patterns, per band | 4000+ |
BeamFlex | Yes |
ChannelFly | Yes |
Concurrent Users | 1024 |
Controller Support | Cloud | SmartZone | Standalone | ZD |
Ethernet Ports | 1 x 1 GbE | 1x 1/2.5/5 Gb/s |
IoT Ready | Yes |
PD-MRC | Yes |
PHY Rate at 2.4 GHz, maximum | 1148 Mb/s |
PHY Rate at 5 GHz, maximum | 4800 Mb/s |
Radio Chains:Streams | 8x8:8 SU-MIMO & MU-MIMO |
Rx Sensitivity at 2.4 GHz | -91 dBm |
Rx Sensitivity at 5 GHz | -91 dBm |
SmartMesh | Yes |
USB | USB 2.0 |
Venue Type | Education | Hospitality | Public Venue | Transportation |
Venue Sub-Type | Convention Floor | Lecture Hall | Library | Transit Stations | Venue Common Places |
Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac/ax |
Wi-Fi Interface Standard at 2.4 GHz | 802.11ax |
Wi-Fi Interface Standard at 5 GHz | 802.11ax |
Wi-Fi Standards |
|
Supported Rates |
|
Supported Channels |
|
MIMO |
|
Spatial Streams |
|
Radio Chains and Streams |
|
Channelization |
|
Modulation |
|
Security |
|
Other Wi-Fi Features |
|
Controller Platform Support |
|
Mesh |
|
IP |
|
VLAN |
|
802.1x |
|
Tunnel |
|
Policy Management Tools |
|
IoT Capable |
|
Physical Size |
|
Weight |
|
Mounting |
|
Physical Security |
|
Operating Temperature |
|
Operating Humidity |
|
