T610
Ruckus
Original New
1 year
| Quantity: | |
|---|---|

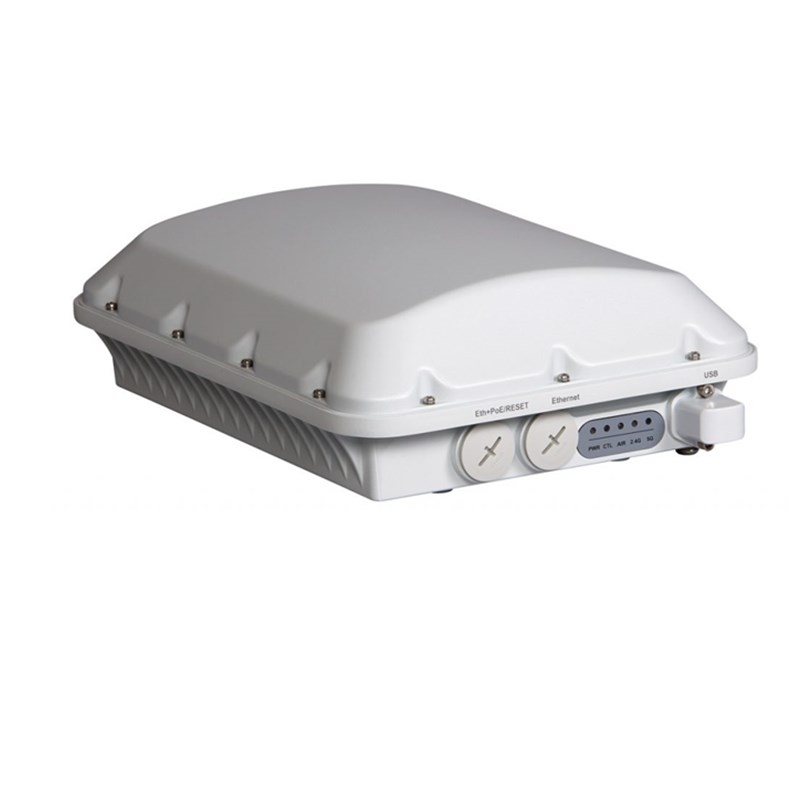

| RUCKUS T610 | |
| WI-FI | |
| Wi-Fi Standards | · IEEE 802.11a/b/g/n/ac Wave 2 |
| Supported Rates | · 802.11ac: 6.5 to 1,733Mbps (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80) · 802.11n: 6.5Mbps to 600Mbps (MCS0 to MCS 31) · 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps · 802.11b: 11, 5.5, 2 and 1 Mbps |
| Supported Channels | · 2.4GHz: 1-13 · 5GHz: 36-64, 100-144, 149-165 |
| MIMO | · 4x4 SU-MIMO · 4x4 MU-MIMO |
| Spatial Streams | · 4 SU-MIMO · 3 MU-MIMO |
| Radio Chains and Streams | · 4x4:4 |
| Channelization | · 20, 40, 80MHz |
| Security | · WPA-PSK, WPA-TKIP, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise, AES, 802.11i, Dynamic PSK · WIPS/WIDS |
| Other Wi-Fi Features | · WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v · Hotspot · Hotspot 2.0 · Captive Portal · WISPr |
| PERFORMANCE AND CAPACITY | |
| Peak PHY Rates | · 2.4GHz: 600Mbps · 5GHz: 1733Mbps |
| Client Capacity | · Up to 512 clients per AP |
| SSID | · Up to 31 per AP |
| RUCKUS RADIO MANAGEMENT | |
| Antenna Optimization | · BeamFlex+ · Polarization Diversity with Maximal Ratio Combining (PD MRC) |
| Wi-Fi Channel Management | · ChannelFly · Background Scan Based |
| Client Density Management | · Adaptive Band Balancing · Client Load Balancing · Airtime Fairness · Airtime-based WLAN Prioritization |
| SmartCast Quality of Service | · QoS-based scheduling · Directed Multicast · L2/L3/L4 ACLs |
| Mobility | · SmartRoam |
| Diagnostic Tools | · Spectrum Analysis · SpeedFlex |
| NETWORKING | |
| Controller Platform Support | · SmartZone · ZoneDirector · Unleashed2 · Cloud · Standalone |
| Mesh | · SmartMesh™ wireless meshing technology. Self-healing Mesh |
| IP | · IPv4, IPv6 |
| VLAN | · 802.1Q (1 per BSSID or dynamic per use based on RADIUS) · VLAN Pooling · Port-based |
| 802.1x | · Authenticator and Supplicant |
| Tunnel | · L2TP, GRE, Soft-GRE |
| Policy Management Tools | · Application Recognition and Control · Access Control Lists · Device Fingerprinting · Rate Limiting |
| IoT Capable | · Yes |
| PHYSICAL INTERFACES | |
| Ethernet | · 2 x 1GbE ports, RJ-45 · LACP |
| USB | · 1 USB 2.0 port, Type A connector |
| PHYSICAL CHARACTERISTICS | |
| Physical Size | · 31.7(L) x 24.1(W) x 9.5(H) cm · 12.8(L) x 9.5(W) x 3.7(H) in Weight |
| Weight | · 2.7kg (6lbs) without mounting hardware |
| Ingress Protection | · IP-67 |
| Mounting | · Wall Mount · Pole Mount · Flat Surface · Mounting bracket sold separately - see Optional Accessories section |
| Operating Temperature | · -40°C (-40°F) to 65°C (149°F) |
| Operating Humidity | · Up to 95%, non-condensing |
| Wind Survivability | · Up to 266 km/h (165mph) |
