Benefits
Great Outdoor Wi-Fi
Experience high performance outdoor Wave 2 Wi-Fi with IP-67 weather proofing and dual backhaul options with SFP and 2 gigabit Ethernet ports.
Stunning Wi-FI Performance
Extends coverage with patented BeamFlex+™ adaptive antenna technology while mitigating interference by utilizing over 4,000 directional antenna patterns.
Multiple Management Options
Manage the T710 from the cloud, with on-premises physical/virtual appliances, or without a controller.
Automate Optimal Throughput
ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.
Serve More Devices Connect more devices simultaneously with four MUMIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing non-Wave 2 device performance.
Power Other Devices
Daisy chain and power other devices like an IP camera, or another AP directly from the PoE output port.
The busiest outdoor locations can have the most demanding wireless requirements. Somehow you need to provide the same top-tier capacity and performance as a crowded large RffiFe or convention center flRRU but packaged in a way that can stand up to the rigors of outdoor deployments.
Designed for the highest-density outdoor venues, the RUCKUS T710 access point delivers Ruckus' premier Wi-Fi in an ultra-lightweight, industrial-grade (IP 67-rated) enclosure. This dual-band 802.11ac AP features patented Ruckus technologies to extend range, mitigate interference, and deliver blazing fast performance-up to data rates of 800Mbps (2.4GHz) and 1.733Gbps (5GHz), the highest available for Wi-Fi clients.
The T710 also provides a full range of next-generation 802.11ac features to deliver industry-leading capacity, reliability, and coverage in the most crowded outdoor spaces.
The T710 is an ideal solution for high-density public venues such as airports, convention centers, plazas, malls, and other dense urban environments. It is also well-suited to public outdoor hotspots, smart cities, and coverage for outdoor enterprise and university campuses, where support for data-intensive streaming HD video applications is imperative.
The Ruckus T710 802.11ac Wi-Fi AP incorporates patented technologies found only in the Ruckus Wi-Fi portfolio.
· Extended coverage with patented BeamFlex+ utilizing multi-directional antenna patterns.
· Improve throughput with ChannelFly, which dynamically finds less congested Wi-Fi channels to use.
With 802.11ac Multi-User MIMO (MU-MIMO) support, the T710 can simultaneously transmit to multiple MU-MIMO capable devices, drastically improving RF efficLency and overall throughput for even non-Wave 2 clients. The
T710 is also designed with an SFP fiber interface that enables seamless connectivity to a fiber backhaul. Whether you're deploying ten or ten thousand APs, the T710 is also easy to manage through Ruckus' appliance, virtual and cloud management options.

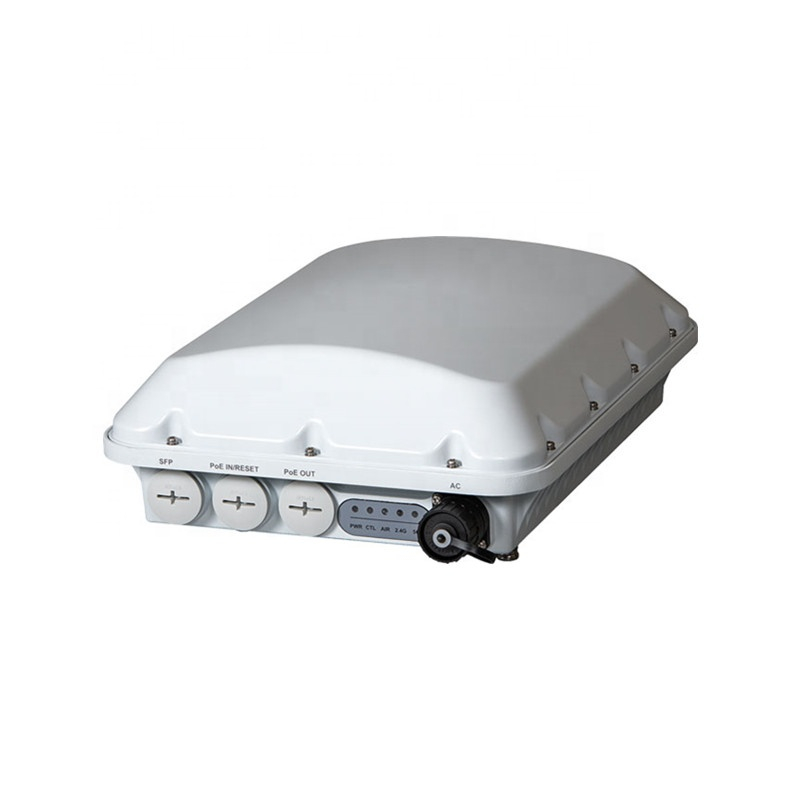

RUCKUS T710 Outdoor 802.11ac Wave 2 4x4:4 Wi-Fi Access Point
RUCKUS T710 Outdoor 802.11ac Wave 2 4x4:4 Wi-Fi Access Point
Access Point Antenna Pattern
Ruckus' BeamFlex+ adaptive antennas allow the T710 AP to dynamically choose among a host of antenna patterns (over 4,000 possible combinations) in real-time to establish the best possible connection with every device. This leads to:
· Better Wi-Fi coverage
· Reduced RF interference
Traditional omni-directional antennas, found in generic access points, oversaturate the environment by needlessly radiating RF signals in all directions. In contrast, the Ruckus BeamFlex+ adaptive antenna directs the radio signals per-device on a packet-by-packet basis to optimize Wi-Fi coverage and capacity in real-time to support high device density environments. BeamFlex+ operates without the need for device feedback and hence can benefit even devices using legacy standards.
Specification General Specifications
| Antenna Gain | Up to 3 dBi |
| Antenna Patterns, per band | 512 |
| BeamFlex | Yes |
| ChannelFly | Yes |
| Concurrent Users | 512 |
| Controller Support | Cloud Wi-Fi | SmartZone | Standalone | Unleashed | ZoneDirector |
| Ethernet Ports | 2 x 1GbE |
| IoT Ready | Yes |
| PD-MRC | Yes |
| PHY Rate at 2.4 GHz, maximum | 450 Mb/s |
| PHY Rate at 5 GHz, maximum | 1300 Mb/s |
| Radio Chains:Streams | 3x3:3 |
| Rx Sensitivity at 2.4 GHz | -100 dBm |
| Rx Sensitivity at 5 GHz | -100 dBm |
| SmartMesh | Yes |
| USB | USB 2.0 |
| Venue Type | Education | Office Retail | Public Venue |
| Venue Sub-Type | Classroom | Library | Office | Venue VIP Rooms |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac Wave 2 |
| Wi-Fi Interface Standard at 2.4 GHz | 802.11n |
| Wi-Fi Interface Standard at 5 GHz | 802.11ac |
