Ruckus AP Controller For Outdoor Or Indoor Access Points P01-S104-CN00 SmartZone 100 With 4 GigE Ports

AP controller SmartZone 100 With 4 GigE Ports
  • P01-S104-CN00
  • Ruckus
  • 2-3 days
  • Original New
  • 1 year
Quantity:
P01-S104-CN00 ruckus SmartZone 100

SCALABLE MEDIUM TO LARGE SIZE ENTERPRISE CLASS SMART WLAN CONTROLLER

Benefits
Highly scalable with n + 1 clustering
Supporting up to 1,024 APs and 25,000 clients per device, the SmartZone™ 100 easily serves the largest deployments. SmartZone™ 100 can cluster up to 4 units (3+1) thereby supporting up to 3,000 APs and 60,000 clients

Ultra high performance and resiliency
With clustering for resiliency and up to 10 GE throughput, control/management and data are set-up to be delivered separately through dedicated redundant ports ensuring optimal performance

Granular and flexible cloud-based licensing
Cloud based licensing ensures simple set-up with granular, per AP licensing as opposed to tiered licensing schemes forcing users to pay for unnecessary extra costs. Licensing can be transferred to similar platforms

Data persistence across reboot for reporting
SmartZone™ 100 stores up to 30 days of network and client data on an integrated drive that keeps all data even on reboot

IT lite deployment in 5 minutes, simple to use and manage
Web-based configuration wizard configures an entire WLAN in minutes. ZoneFlex APs auto-discover the SmartZone™ 100

Advanced WLAN features and functions
Advanced wireless networking features include rogue AP detection, interference detection and mitigation, band steering, airtime fairness, role-based user policies, per-user rate-limiting, hotspot and guest networking services

Smart Meshing streamlines costly and complex deployment
Integrated Ruckus Smart Mesh Networking technology automates deployment and eliminates the need to run Ethernet cable to every Smart Wi-Fi access point

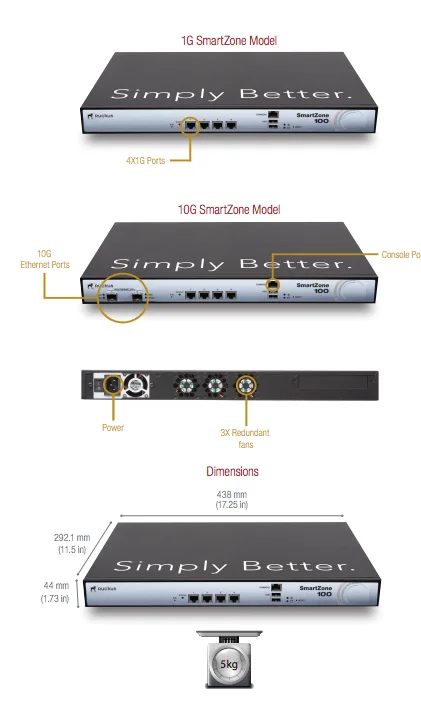

WARDWARE FEATURES
 11RU rack-mountable chassis footprint •
2. Redundant fans
3 Easy discovery from PC using UPnP
4 One year warranty coverage
SOFTWARE FEATURES

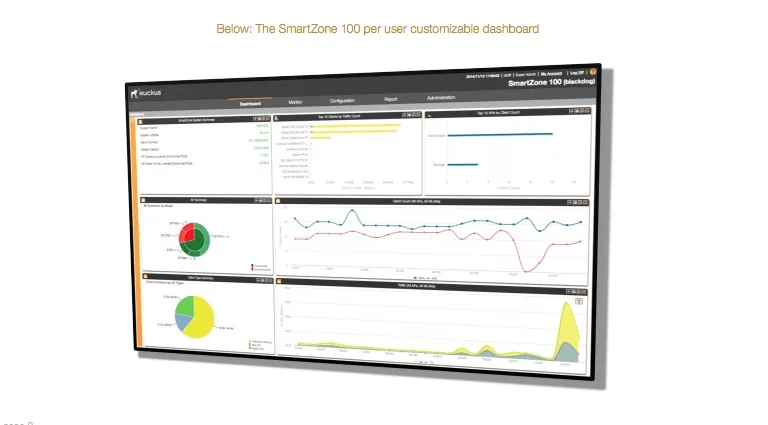

• Simplified, Intuitive GUI
• Installation Wizard
• Ruckus SPoT LBS Location support
• WIDS/WIPS (Rogue
AP Detection/Prevention)
• Bonjour Gateway (at AP)
• Capacity-based client admission control
• Band Balancing
• Internal Captive
Portal (Radius, AD, LDAP, Local DB)
• AP Survivability for Guest, Captive Portal
• Zero-IT (using 802.1x)
• WLAN Time Scheduling
•User Roles • Device Policy Control
• Per WLAN ACL Support (L2 white/black list, L3, L4)
• Multi-hop SpeedFlex for mesh testing
•Force DHCP • ZoneFlex AP discovery
• Restful/JSON API
