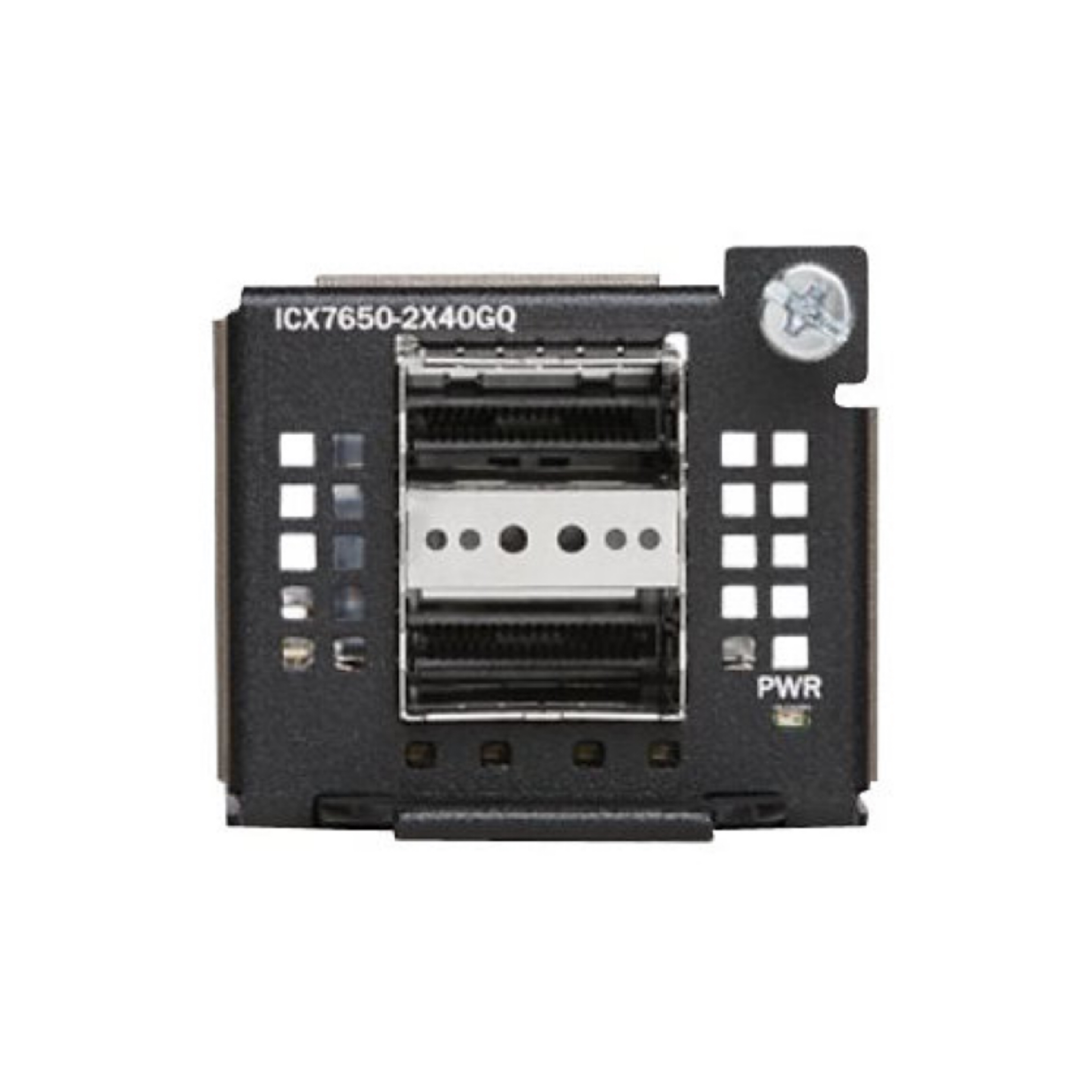

The Ruckus ICX 7650-2X40GQ is a high-performance network expansion module designed for the Ruckus ICX 7650 series switches, providing two 40 Gigabit Ethernet QSFP+ ports to support high-speed uplinks, switch interconnections, and demanding enterprise network environments. Engineered for scalable campus and data center connectivity, the ICX 7650-2X40GQ helps organizations increase network bandwidth and accommodate growing traffic requirements while maintaining reliable and efficient data transmission. Its 40GbE connectivity is ideal for aggregation layers, network backbones, server connectivity, and high-capacity switch-to-switch links where fast throughput and low latency are essential. Designed for seamless integration with compatible Ruckus ICX 7650 switching platforms, this module offers a flexible way to expand network capabilities without replacing existing infrastructure. The ICX 7650-2X40GQ is suitable for enterprise campuses, education networks, hospitality environments, government facilities, and other high-density networking applications that require stable performance and future-ready scalability. With Ruckus enterprise networking technology, robust hardware design, and support for modern high-bandwidth applications, the Ruckus ICX 7650-2X40GQ provides a practical and reliable solution for building high-speed, scalable, and resilient network infrastructures.
ICX 7650-2X40GQ
Ruckus
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Part Number | ICX7650-2X40GQ |
Product Type | 2-Port 40GbE QSFP+ Uplink/Stack Expansion Module for ICX 7650 Series Switches |
Compatible Chassis | All Ruckus ICX 7650 fixed-form-factor switches (ICX7650-48P, ICX7650-48F, ICX7650-24ZP etc.) |
Port Configuration | 2 × 40 GbE QSFP+ ports (40GBASE-SR4/LR4/CR4 compatible) |
Total Uplink Bandwidth | Up to 80 Gbps full-duplex |
Main Usage Scenarios | Switch stacking, high-speed uplink to core/aggregation layer, server interconnection, campus fabric backbone |
Supported Transceivers | Ruckus-certified 40G QSFP+ SR4, LR4, CR4, AOC active optical cables, DAC copper cables |
Power Consumption | 25 W maximum |
Hot-Swap Support | Yes, hot pluggable without powering down host switch |
Mounting Slot Location | Rear expansion slot of ICX 7650 chassis |
Operating Temperature | 0°C to 45°C ambient |
Storage Temperature | -40°C to 70°C |
Operating Humidity | 10% to 90% non-condensing |
Physical Dimensions (H × W × D) | 30.48 mm × 88.9 mm × 127 mm (1.2 in × 3.5 in × 5.0 in) |
Net Weight | 0.227 kg (0.5 lbs) |
Supported Stacking Features | ICX stacking protocol, multi-switch stack up to 12 units, campus fabric control bridge/port extender mode |
Supported Network Features on Module Ports | LACP, static link aggregation, 802.1Q VLAN, MACsec encryption, jumbo frame up to 9000 bytes, sFlow monitoring |
Regulatory Certifications | CE, FCC Class A, UL, RoHS compliant |
Warranty | Ruckus 1-year hardware warranty for expansion modules |
