The Ruckus ICX 7650-4X10GF is a high-performance network switch designed to deliver reliable, scalable, and flexible connectivity for modern enterprise, campus, and aggregation network environments. Engineered as part of the Ruckus ICX 7650 family, this switch provides advanced switching capabilities and high-speed 10 Gigabit Ethernet connectivity to support bandwidth-intensive applications, growing network traffic, and demanding business operations. The ICX 7650-4X10GF is well suited for organizations requiring efficient network aggregation, high-capacity uplinks, and simplified infrastructure management. With robust Layer 2 and Layer 3 networking features, it enables flexible network deployment, intelligent traffic forwarding, and enhanced operational efficiency. Ruckus stacking technology helps simplify network expansion and management by allowing multiple compatible switches to operate as a unified logical system, making it easier to scale the network as business requirements evolve. Advanced security, traffic management, and quality of service features help protect network resources and prioritize critical applications such as voice, video, cloud services, and real-time business communications. Built for continuous operation and enterprise-class reliability, the Ruckus ICX 7650-4X10GF is an excellent choice for data aggregation, campus core and distribution layers, enterprise networks, education environments, hospitality deployments, and other high-density networking applications. Its combination of high-speed performance, flexible scalability, simplified management, and proven Ruckus networking technology makes the ICX 7650-4X10GF a dependable solution for businesses and system integrators seeking to build efficient, future-ready network infrastructures.

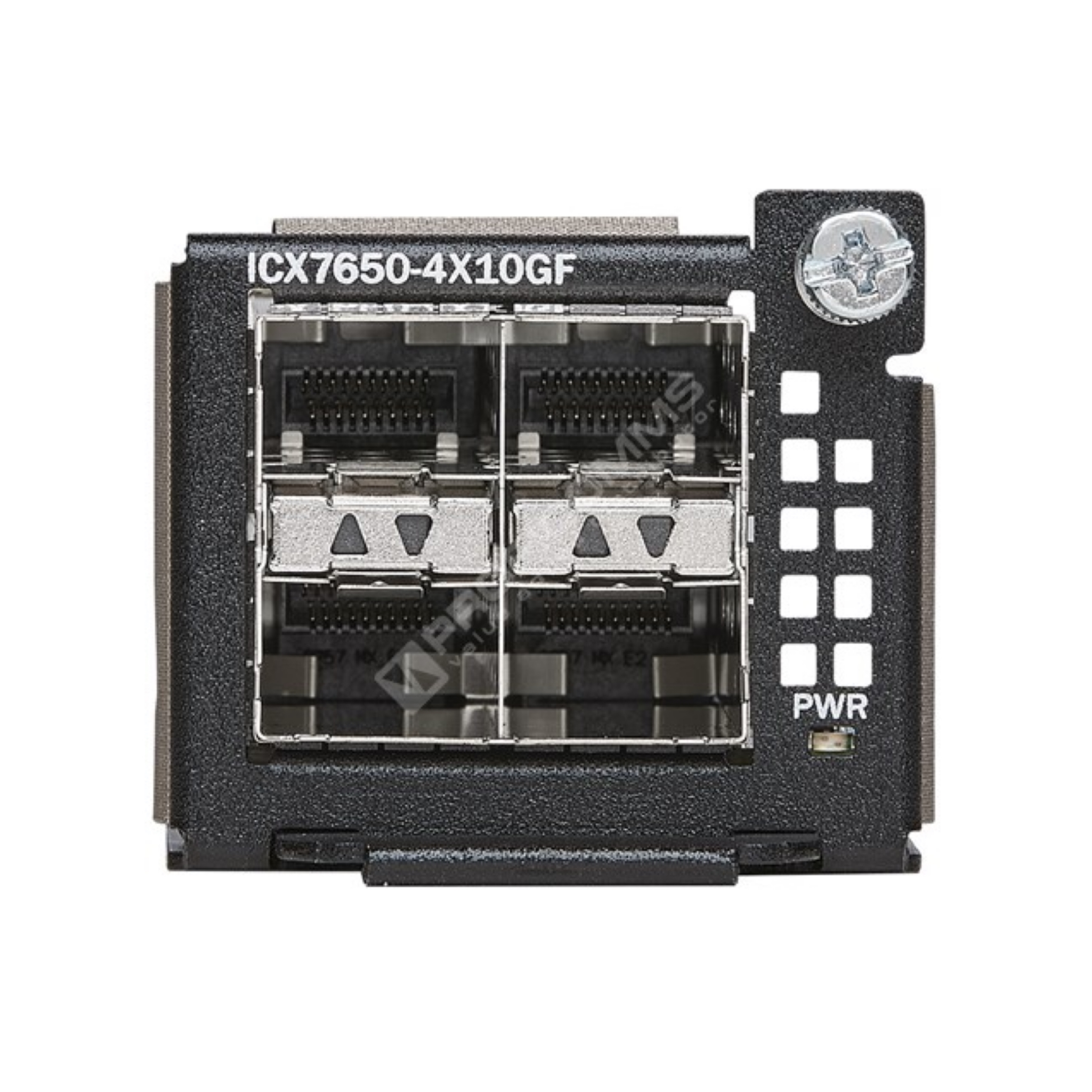

ICX 7650-4X10GF
Ruckus
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Part Number | ICX7650-4X10GF |
Product Type | 4-Port 10G SFP+ Fiber Uplink Expansion Module for ICX 7650 Series Switches |
Compatible Host Platform | Ruckus ICX 7650 All Fixed Port Models (ICX7650-48P, ICX7650-48ZP, ICX7650-48F, ICX7650-24ZP) |
Port Configuration | 4 × 10G SFP+ slots, support 1G/10G transceivers |
Supported Transceiver Types | SFP (1000BASE-SX/LX/EX), SFP+ (10GBASE-SR/LR/ER/ZR, 10GBASE-T Copper SFP+) |
Total Bandwidth Per Module | 40 Gbps full-duplex non-blocking |
Encryption Support | MACsec 128-bit / 256-bit link encryption on all 4 ports |
Stacking Compatibility | Works with rear stacking ports of ICX 7650; Max 12 ICX 7650 units per stack |
Main Application Scenarios | High-density fiber uplink expansion, campus aggregation, multi-WiFi 6/6E AP aggregation, surveillance network backbone, inter-switch long-distance fiber connection |
Form Factor | Hot-swappable front expansion module, fits ICX 7650 front slot bay |
Power Consumption | Max 12W operating power |
Operating Temperature | 0°C to 40°C, 10%–90% non-condensing relative humidity |
Storage Temperature | -20°C to 70°C, 10%–90% non-condensing relative humidity |
MTBF (25°C Ambient) | 1,850,000 hours |
Regulatory Compliance | CE, FCC Class A, UL, TAA Compliant, RoHS 2.0 |
Special Features | Low latency forwarding, IEEE 802.3ad LACP, Jumbo frame up to 9000 bytes, IEEE 802.3az EEE energy efficiency |
Warranty | 1-year Ruckus hardware limited warranty |
