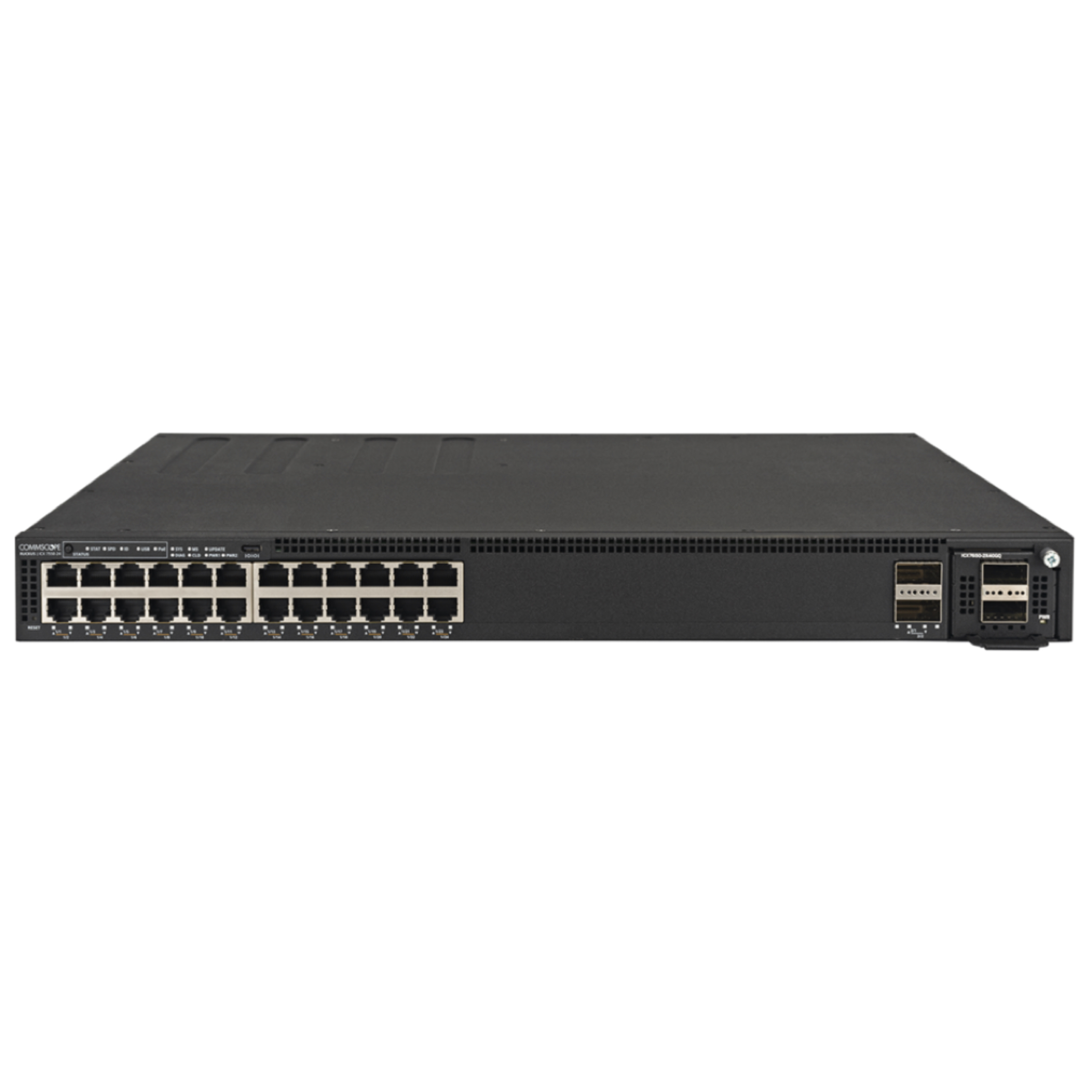

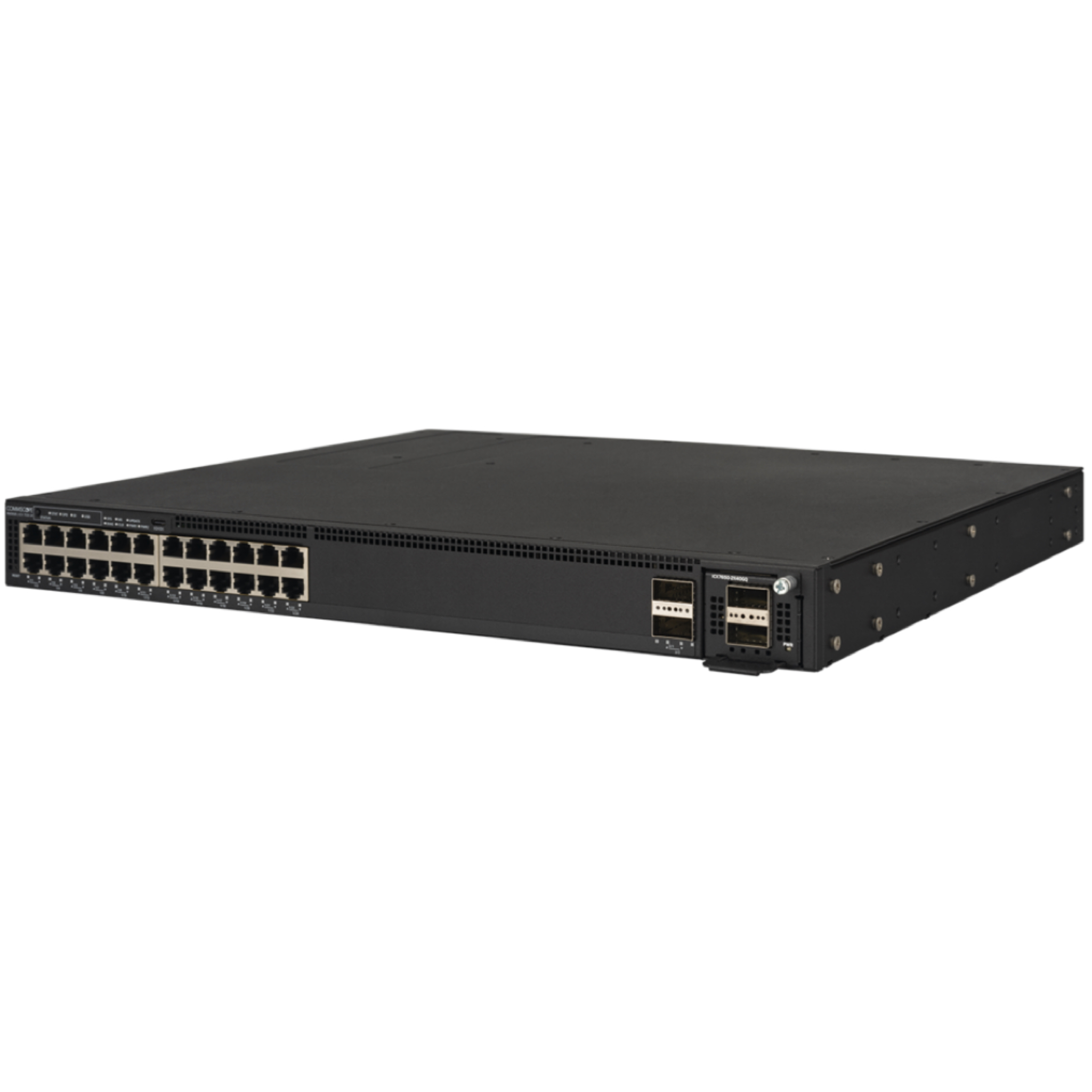

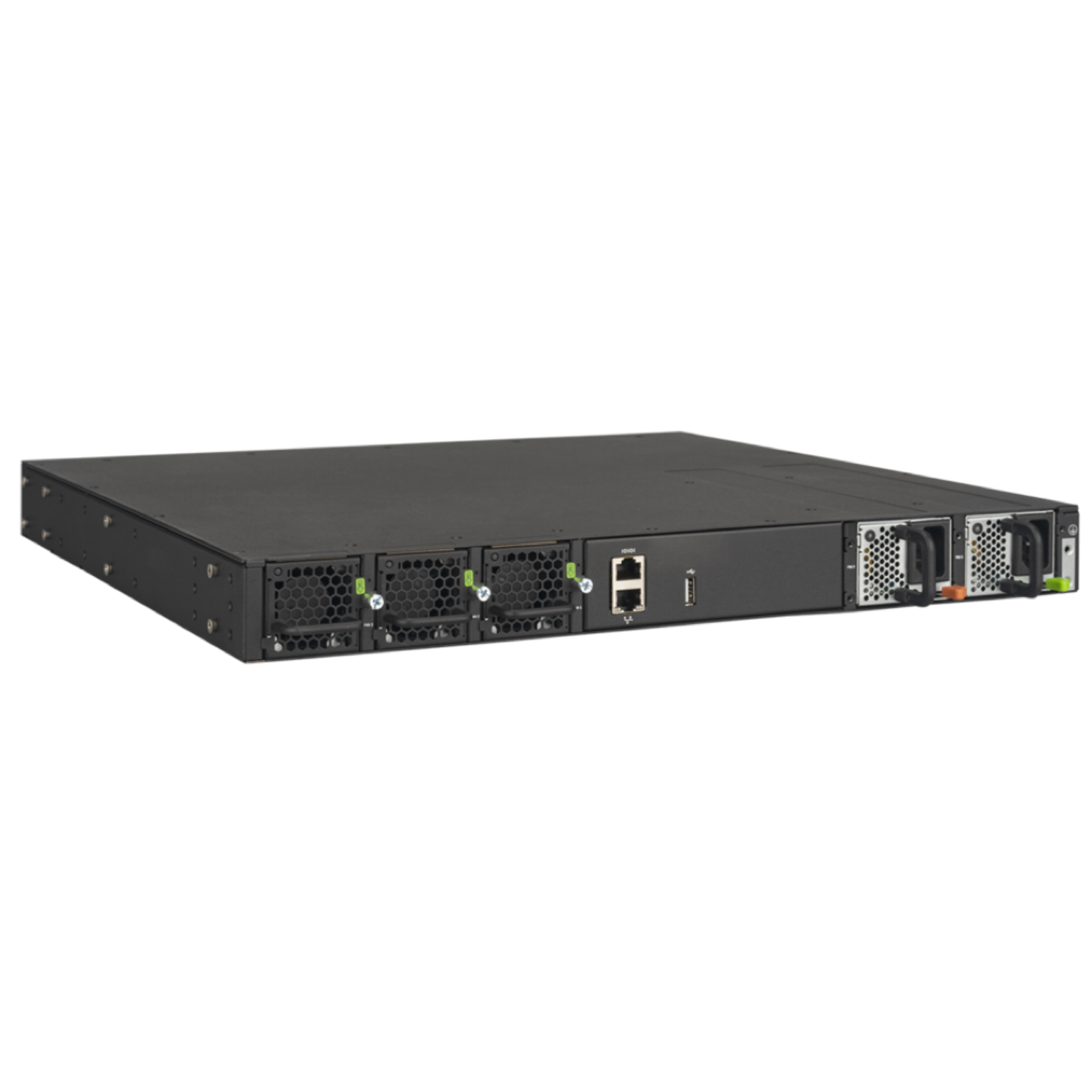

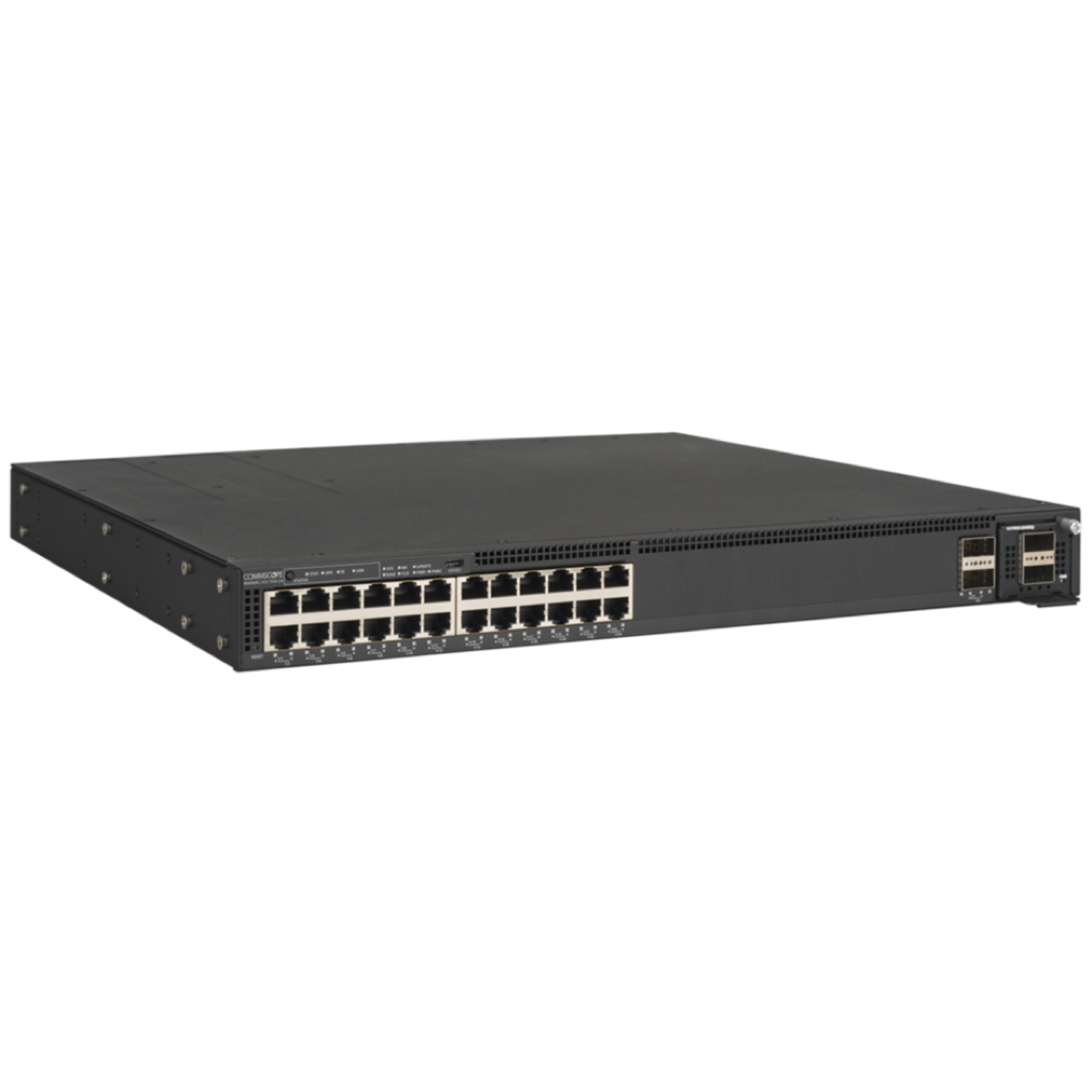

The Ruckus ICX 7550-24-E2 is a high-performance enterprise-class Layer 3 managed Ethernet switch designed to deliver reliable, scalable, and secure networking for modern business environments. Equipped with 24 high-speed Ethernet ports and advanced switching capabilities, it provides exceptional performance for campus networks, enterprise offices, educational institutions, healthcare facilities, hospitality venues, and branch deployments that require stable connectivity and future-ready infrastructure. Powered by the Ruckus ICX architecture, the ICX 7550-24-E2 offers wire-speed forwarding, low-latency data transmission, comprehensive IPv4 and IPv6 support, advanced Layer 2 and Layer 3 routing protocols, extensive QoS features, multicast optimization, and robust security mechanisms to ensure seamless operation for voice, video, cloud applications, and mission-critical business services. Its flexible management options support CLI, Web GUI, SNMP, and centralized network management platforms, simplifying deployment, configuration, monitoring, and maintenance while reducing operational complexity. The switch also features enterprise-grade reliability with redundant power support, high availability technologies, stacking capabilities, and energy-efficient operation, enabling organizations to expand their networks without compromising performance or uptime. Built to meet the demands of digital transformation, the Ruckus ICX 7550-24-E2 integrates seamlessly with existing network infrastructures and supports virtualization, software-defined networking initiatives, and growing bandwidth requirements, making it an excellent choice for organizations seeking long-term investment protection and simplified network management. Whether supporting high-density user access, business-critical applications, or expanding enterprise campuses, the ICX 7550-24-E2 delivers outstanding scalability, security, and operational efficiency. As a trusted global supplier of genuine Ruckus networking products, we provide 100% original new equipment, competitive pricing, abundant inventory, fast worldwide shipping, professional pre-sales and after-sales technical support, flexible logistics solutions, and reliable service for distributors, resellers, system integrators, enterprises, and global B2B and B2C customers.
ICX 7550-24-E2
Ruckus
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | ICX 7550-24-E2 |
Brand & Series | RUCKUS (CommScope) ICX 7550 Enterprise Layer 3 Stackable Switch |
Primary Application | Enterprise Access Layer, Campus Network, Office Wired Network, Surveillance System, Small Aggregation Node |
Warranty | 3-Year RUCKUS TAC Hardware Support |
Port Configuration | 24 × 10/100/1000BASE-T RJ45 Gigabit Ports (Non-PoE) 2 × Dual-Mode QSFP28 Uplink/Stacking Ports (40G/100G support) 1 × RJ45 Out-of-Band Management Port, 1 × USB Console Port |
PoE Support | No PoE / PoE+ / 802.3bt Power Supply |
Switching Capacity | 368 Gbps Full-Duplex |
64-byte Packet Forwarding Rate | 274 Mpps |
MAC Address Table Size | 64,000 MAC Entries |
Packet Buffer Memory | Dynamic Shared Buffer, 16MB Total |
Jumbo Frame Support | Up to 12288 Bytes |
Stacking Capability | Max 12 Switches Per Logical Stack Max Stack Bandwidth: 960 Gbps Max Stack Distance: 10km via Fiber |
Link Aggregation | IEEE 802.3ad LACP, Static LAG, Up to 32 LAG Groups |
VLAN Capacity | 4094 VLANs, 802.1Q Tagging, Voice VLAN, Guest VLAN, Private VLAN |
Spanning Tree Protocols | STP, RSTP, MSTP, PVST |
Multicast Features | IGMP Snooping v1/v2/v3, PIM-SM/SSM, Multicast VLAN Registration |
Layer 3 Routing Protocols | Static IPv4/IPv6 Routing, RIP, OSPF, VRRP, PIM (License Required for Advanced L3) |
QoS Function | 8 Hardware Queues Per Port, WRR, Strict Priority, DSCP/802.1p Mapping, Traffic Shaping & Policing |
Security Features | 802.1X Port Authentication, Web Auth, RADIUS/TACACS+, Port Security, DoS Protection, ARP Guard, SSH/HTTPS Encrypted Management, ACL Filtering |
Monitoring & Analytics | sFlow, Port Mirroring, Storm Suppression, RMON, SNMP v1/v2c/v3, REST API |
Power Supply Design | Hot-Swappable Dual Redundant AC Power Slots (400W Per PSU, 1+1 Redundancy) Input: 100–240V AC, 50/60Hz |
Cooling System | 3 Hot-Swappable Variable-Speed Fans, Front-to-Back Airflow |
Physical Dimension (W × D × H) | 442 mm × 440 mm × 44 mm (17.4 × 17.32 × 1.73 in), 1U Standard 19-inch Rackmount |
Net Weight | 6.2 kg (13.67 lbs) |
Typical Idle Power Consumption | 65 W (25°C Ambient, No Traffic Load) |
Operating Environment | Temperature: 0°C ~ 45°C Humidity: 10%–90% Non-Condensing |
Storage Environment | Temperature: -20°C ~ 70°C Humidity: 5%–95% Non-Condensing |
MTBF (25°C) | 1,450,000 Hours |
Regulatory Certifications | CE, FCC Class A, UL, CSA, RoHS Compliant |
