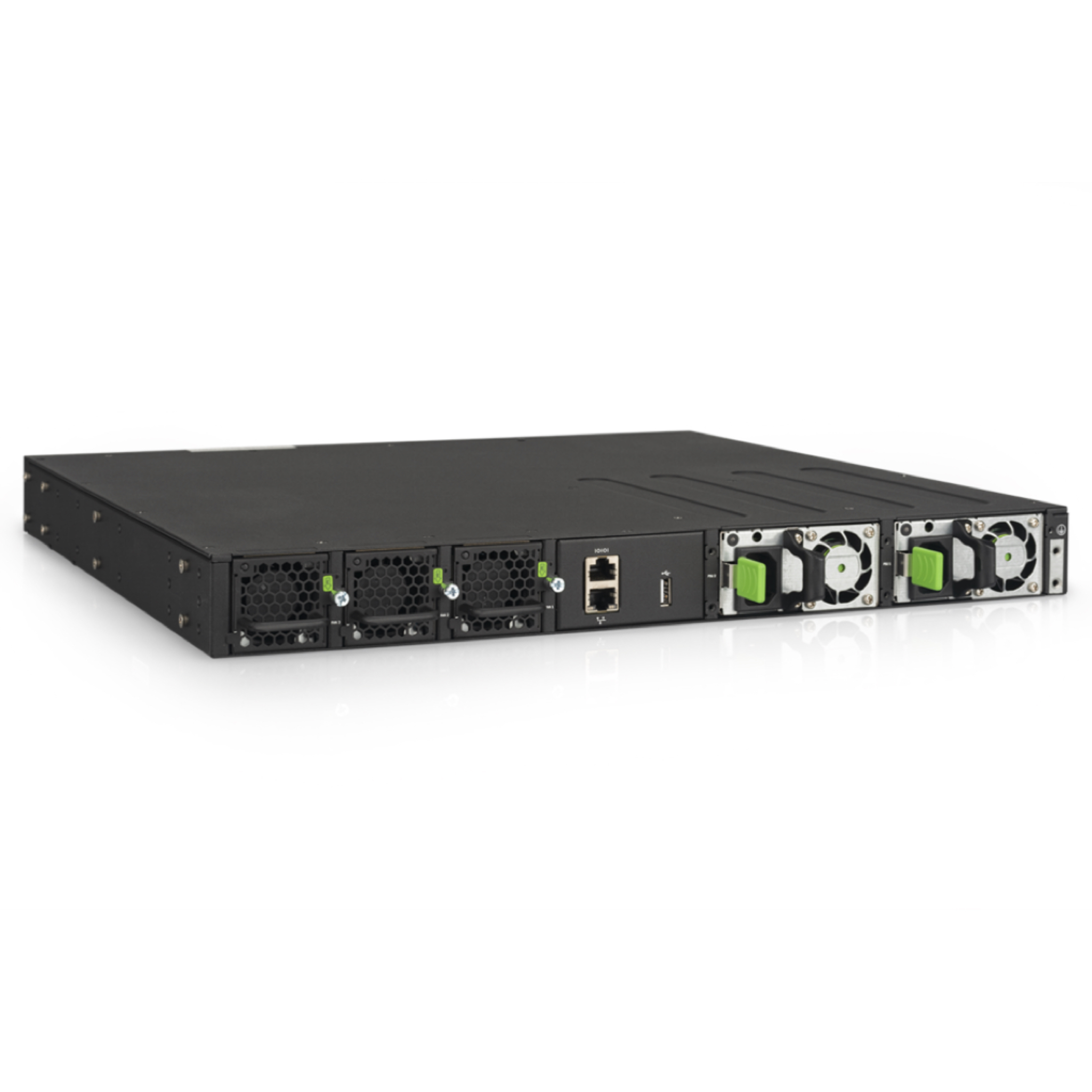

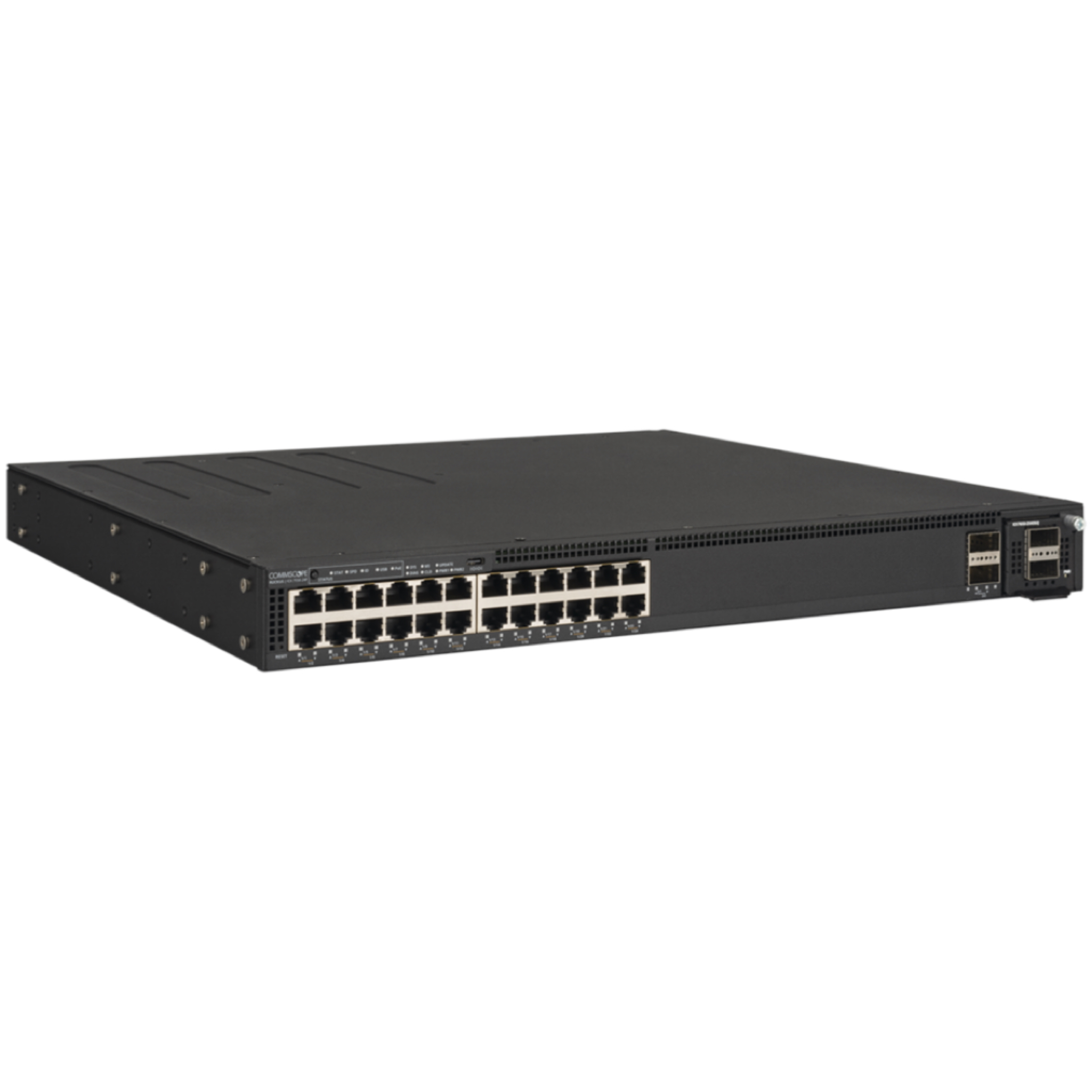

Ruckus ICX 7550-24P-E2 Switch – 24-Port Gigabit PoE+ Managed Stackable Switch with 2x 40G QSFP+ Uplinks, 1200W PSU

The Ruckus ICX 7550-24P-E2 is a high-performance enterprise-class Layer 3 stackable Ethernet switch designed to deliver reliable, secure, and scalable network connectivity for modern business environments. Equipped with 24 Gigabit PoE+ Ethernet ports, the switch provides up to 30W of power per port, enabling seamless deployment of IP phones, wireless access points, IP surveillance cameras, IoT devices, and other PoE-enabled equipment without the need for additional power infrastructure. Built on Ruckus' advanced switching architecture, the ICX 7550-24P-E2 offers wire-speed performance, low latency, and exceptional reliability, making it an ideal solution for enterprise campuses, branch offices, educational institutions, healthcare facilities, hospitality venues, and government organizations. The switch supports advanced Layer 2 and Layer 3 routing protocols, including static routing, RIP, OSPF, VRRP, and IPv6, allowing organizations to build highly efficient and resilient network infrastructures while simplifying network management. Its enterprise-grade security features, such as Access Control Lists (ACLs), IEEE 802.1X authentication, MAC-based security, DHCP snooping, Dynamic ARP Inspection, secure management protocols, and comprehensive network monitoring capabilities, help protect critical business data against unauthorized access and network threats. The ICX 7550-24P-E2 also supports advanced Quality of Service (QoS), multicast optimization, VLAN segmentation, traffic prioritization, and high-availability technologies to ensure stable performance for voice, video conferencing, cloud applications, and other bandwidth-intensive services. Designed for future network expansion, the switch features high-speed uplink connectivity and Ruckus enterprise stacking technology, allowing multiple switches to operate as a single logical unit for simplified administration, increased redundancy, and seamless scalability as business requirements grow. With support for Software-Defined Networking (SDN), automation, and flexible management options through command-line interface (CLI), web-based GUI, SNMP, and centralized network management platforms, IT administrators can efficiently configure, monitor, and maintain the entire network infrastructure with reduced operational complexity. The energy-efficient hardware design helps lower power consumption while maintaining excellent performance, making it a cost-effective solution for organizations seeking long-term network investment. Manufactured with enterprise-grade components and engineered for continuous operation, the Ruckus ICX 7550-24P-E2 delivers outstanding stability, durability, and network availability for mission-critical applications. As an experienced global supplier of original networking equipment, we provide genuine brand-new Ruckus products, competitive pricing, large inventory, fast worldwide shipping, professional technical support, and flexible logistics services to meet the procurement needs of distributors, system integrators, resellers, enterprises, and IT solution providers across Europe, Asia, Africa, the Americas, and other international markets.

  • ICX 7550-24P-E2

  • Ruckus

  • Original New

  • 1 year

Availability:
Quantity:

Item

Official Specification

Model Number

ICX 7550-24P-E2

Brand & Series

RUCKUS (CommScope) ICX 7550 Mid-Range Stackable Enterprise Switch

Typical Application

Enterprise Access Layer, Wi-Fi 6/6E AP Deployment, IP Phone & IP Camera Networks, SMB Campus Aggregation

Software License Tier

E2 Base Enterprise License

Downlink Ports

24 × 10/100/1000BASE-T RJ45, all PoE+ enabled

Modular Uplink Slot

1 modular slot, supports 4×1G SFP / 4×10G SFP+ uplink modules

Stacking Ports

Dual 40G/100G QSFP28 ports for high-speed stacking

PoE Standards

IEEE 802.3af PoE (15.4W), IEEE 802.3at PoE+ (30W per port)

Total PoE Power Budget

1666W (100–180V AC) / 2000W (180–240V AC)

Switching Capacity (Full Duplex)

368 Gbps

64-byte Packet Forwarding Rate

274 Mpps

MAC Address Table

64,000 entries

Packet Buffer Memory

Dynamic shared on-chip buffer

Jumbo Frame Support

Up to 12288 bytes

Max Stacking Capacity

Up to 12 units per logical stack, 2400Gbps aggregate stack bandwidth

VLAN Support

Up to 4094 VLANs, 802.1Q tagging, Voice VLAN, Guest VLAN

Spanning Tree Protocols

STP, RSTP, MSTP, PVST+

Link Aggregation

IEEE 802.3ad LACP, static trunks

Multicast Features

IGMP Snooping v1/v2/v3, MLD Snooping, Multicast VLAN Registration

Layer 3 Routing

Static IPv4/IPv6, RIP, OSPF, DHCP Snooping, DHCP Relay

QoS

8 hardware queues per port, WRR + strict priority scheduling, DSCP/802.1p mapping

Security Functions

802.1X Port Auth, Web Auth, RADIUS/TACACS+, Port Security, ARP Guard, DoS Protection, SSH/HTTPS encrypted management

Monitoring Tools

sFlow, Port Mirroring, Storm Suppression, Real-time traffic statistics

Management Interfaces

Out-of-band 1G RJ45 Mgmt port, RJ45 Serial Console, USB-C Console, Web GUI, CLI, SNMP v1/v2c/v3

Power Supply Configuration

Dual hot-swappable redundant AC power supplies (400W each)

Cooling System

Hot-swappable variable-speed fans, front-to-back airflow

Physical Dimension (W × D × H)

440 mm × 406 mm × 44 mm (17.3 × 16 × 1.73 in), 1U standard 19-inch rackmount

Net Weight

7.2 kg (15.87 lbs)

AC Input

100–240V, 50/60Hz universal input

Idle Power Consumption (No PoE)

83.1W @ 25°C

Max Full Load Power (Full PoE Output)

1183.7W

Operating Temperature

0°C ~ 45°C, 10%–90% non-condensing humidity

Storage Temperature

-40°C ~ 70°C, 10%–90% non-condensing humidity

MTBF (25°C Ambient)

304,125 hours

Regulatory Certifications

CE, FCC Class A, UL, CSA, RoHS Compliant

Warranty

1-year RUCKUS hardware warranty, optional extended support

Shenzhen Importgm Technology Co., Ltd.

Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.

gs图片IMG_8380(1)


客户

包装

物流



Q: What are the application scenarios for the ICX 7550-24P-E2?

A:The ICX 7550-24P-E2 is ideal for enterprise campuses, branch offices, and high-density network environments, delivering reliable connectivity, PoE support, and high-performance switching.

Q: How to install the ICX 7550-24P-E2 switch?

A: The ICX 7550-24P-E2 can be mounted in a standard 19-inch rack. Follow the installation guide to complete the hardware mounting, power connection, and network configuration.

Q: Does the ICX 7550-24P-E2 need upgrades?

A: Regular software updates are recommended for the ICX 7550-24P-E2 to improve security, stability, and performance. Check the official Ruckus support website for the latest firmware.

Q:Are there alternative products to the ICX 7550-24P-E2?

A: Alternatives to the ICX 7550-24P-E2 include other Ruckus ICX 7550 Series models with different port configurations, as well as the ICX 7650 Series for higher-capacity deployments.

Q: What are common troubleshooting tips for the ICX 7550-24P-E2?

A: Check the power supply, verify Ethernet cable connections, review port configuration settings, and ensure the switch is running the latest firmware for reliable operation.
