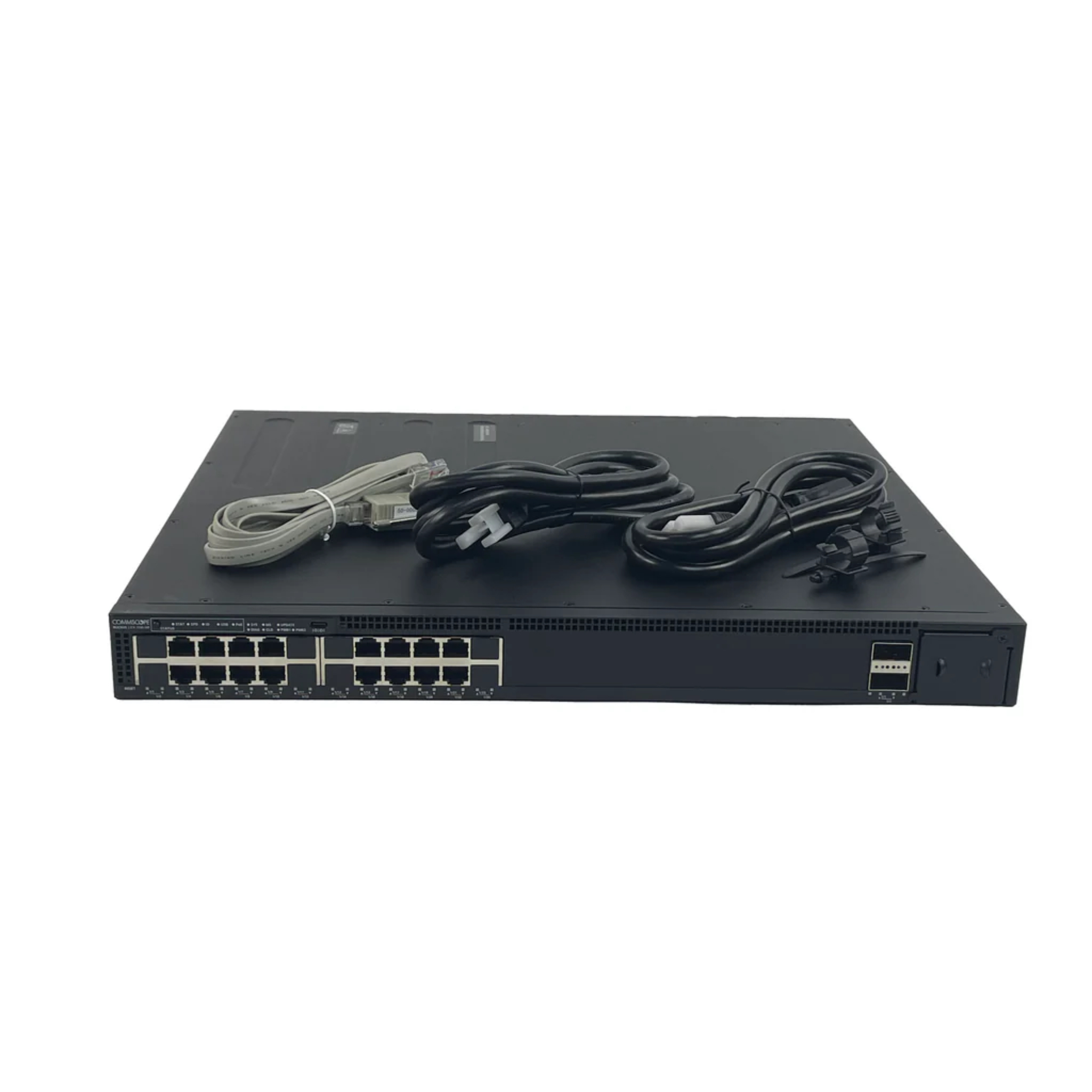

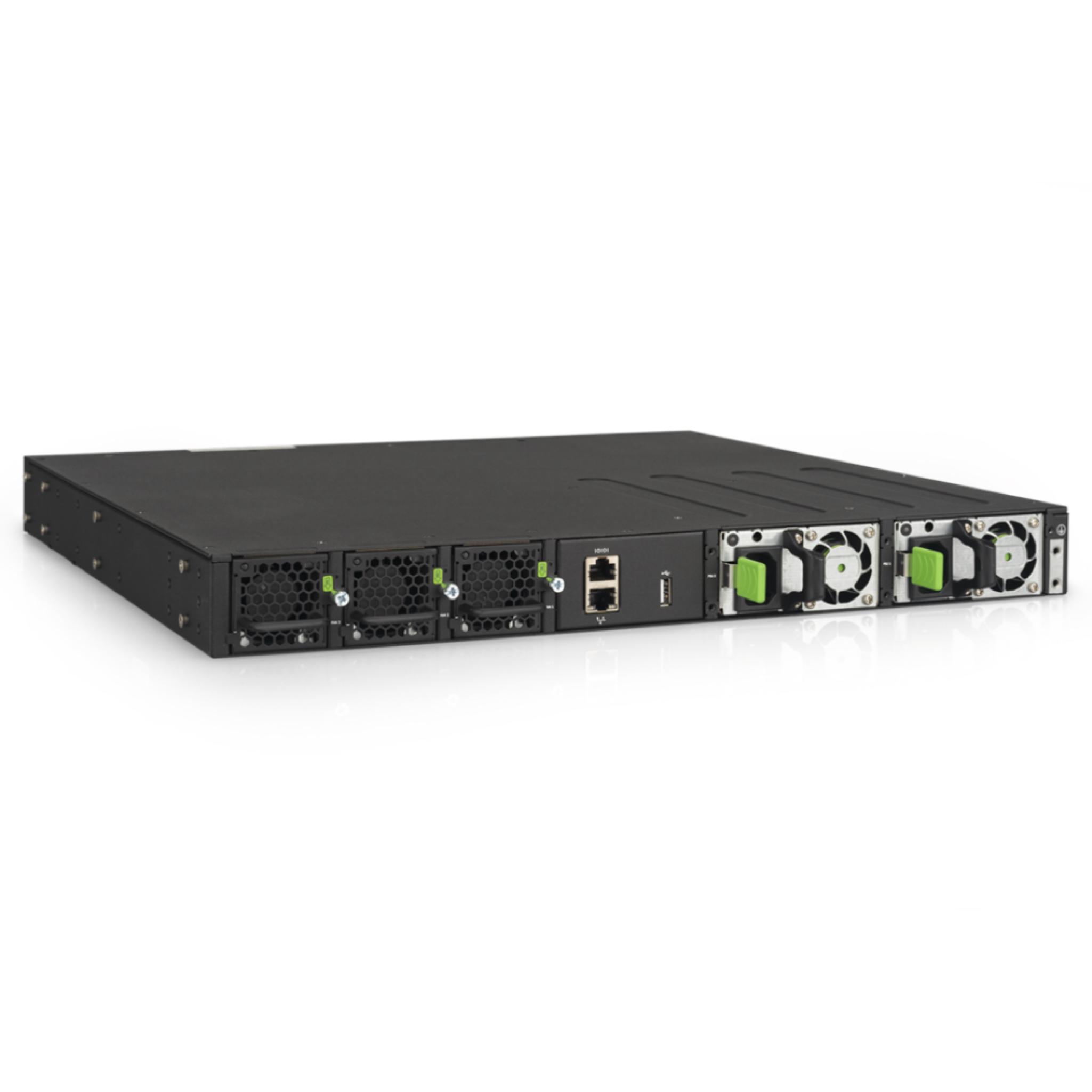

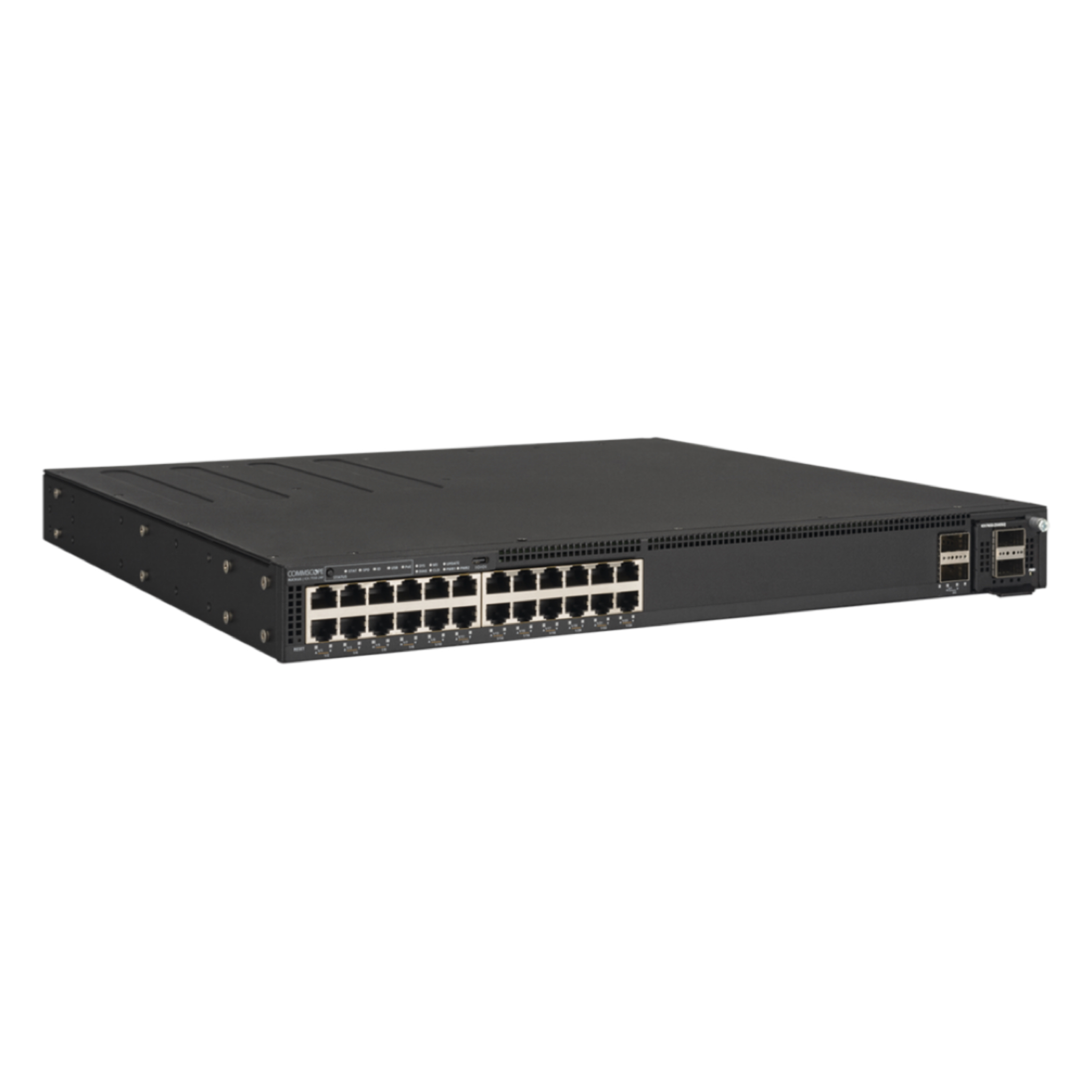

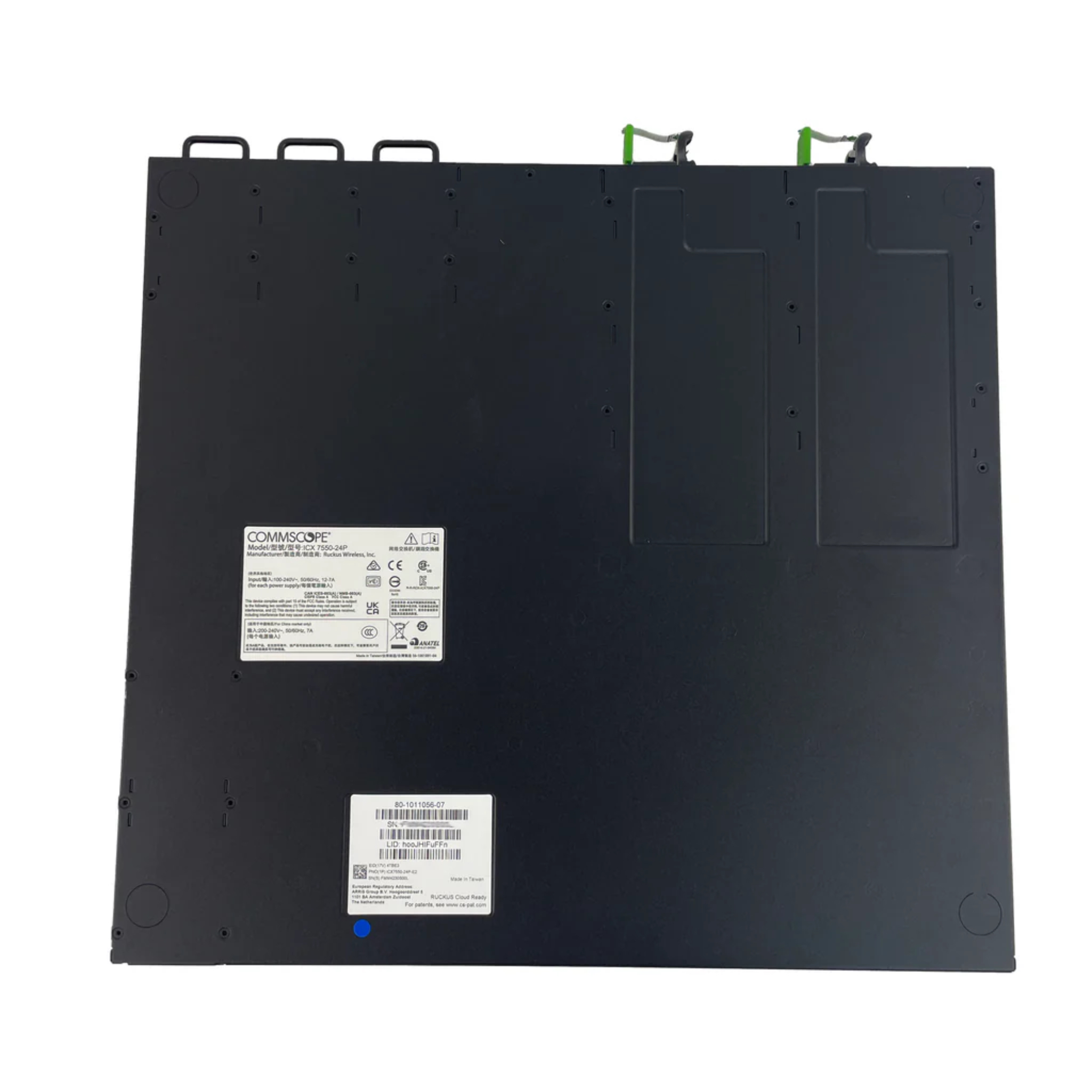

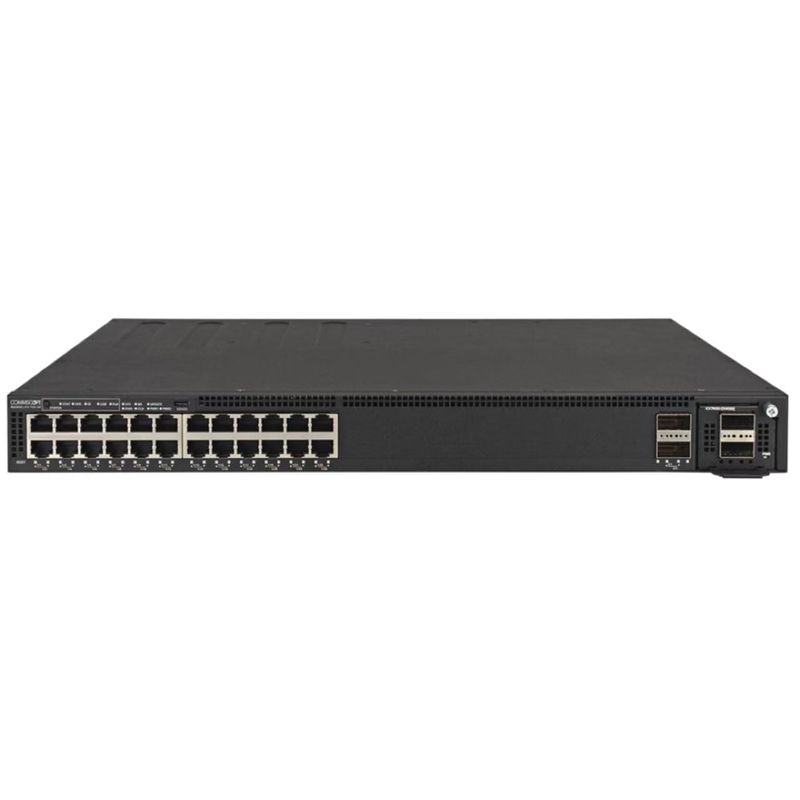

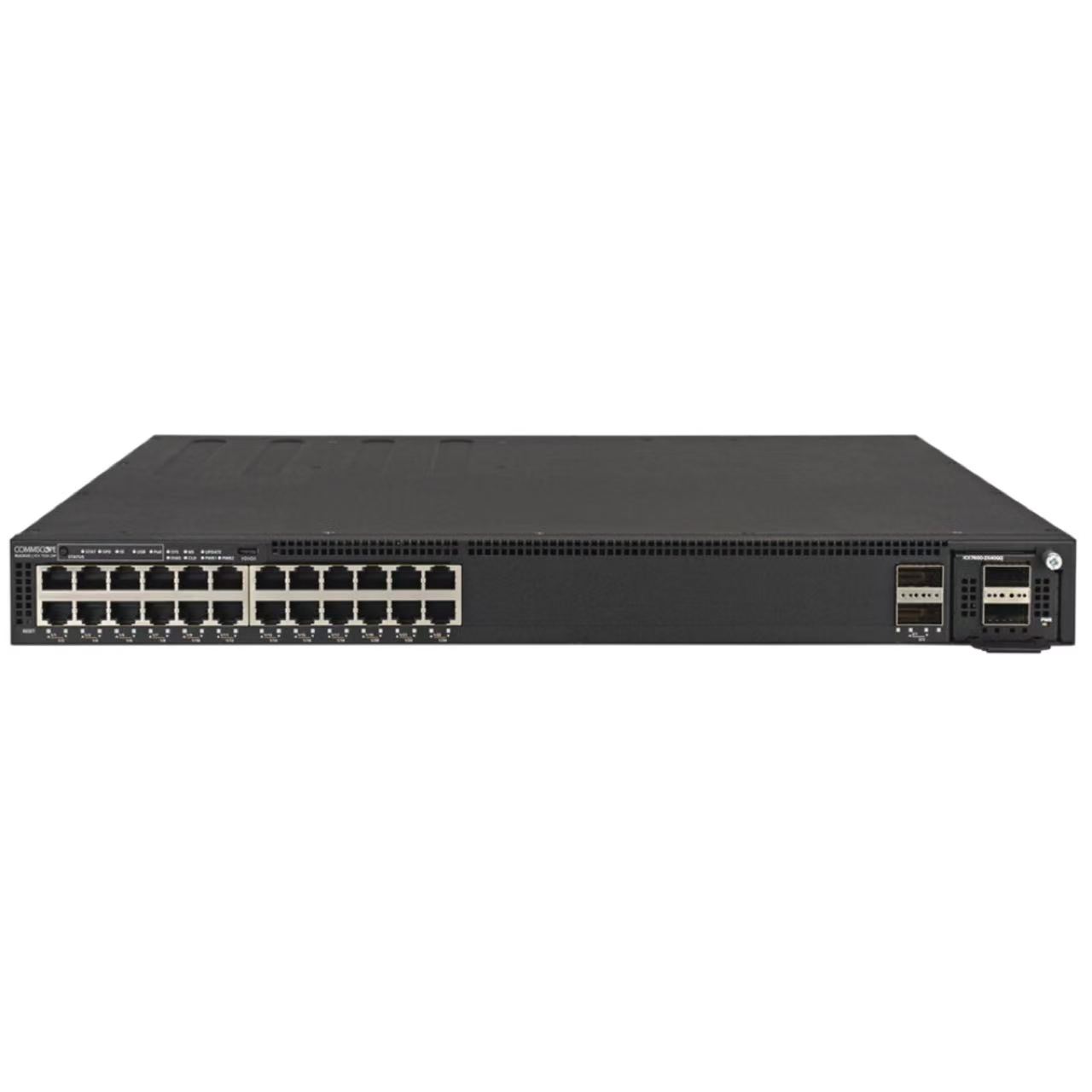

Ruckus ICX 7550-24P Switch – 24-Port Gigabit Ethernet PoE+ Stackable Switch with 2x 40GbE QSFP+ Uplinks

The Ruckus ICX 7550-24P is a high-performance enterprise-class Layer 3 managed switch designed to deliver reliable, secure, and scalable network connectivity for modern business environments. Equipped with 24 Gigabit Ethernet PoE+ ports, the switch provides up to 30W of power per port, making it an ideal solution for powering wireless access points, IP phones, IP cameras, IoT devices, and other PoE-enabled equipment without requiring additional power infrastructure. Built on Ruckus's advanced switching architecture, the ICX 7550-24P offers exceptional wire-speed performance, low latency, and high switching capacity to support bandwidth-intensive applications such as HD video conferencing, cloud services, unified communications, and enterprise collaboration. The switch features multiple high-speed uplink options for flexible network expansion, enabling seamless integration into campus, branch, and enterprise networks while reducing bottlenecks and improving overall network efficiency. Advanced Layer 2 and Layer 3 routing capabilities, including static routing, RIP, OSPF, VRRP, VLANs, ACLs, QoS, multicast support, and IPv6, allow organizations to build secure, resilient, and highly available network infrastructures. Comprehensive security features such as 802.1X authentication, MAC authentication, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, Access Control Lists, and secure management protocols help protect critical business data and prevent unauthorized network access. Designed for simplified deployment and centralized management, the ICX 7550-24P supports web-based management, CLI, SNMP, and integration with Ruckus network management platforms, enabling IT administrators to efficiently monitor, configure, and maintain network performance. Enterprise-grade reliability is ensured through advanced redundancy features, rapid failover capabilities, and support for high availability, minimizing downtime in mission-critical environments. Energy-efficient hardware design helps reduce operational costs while maintaining consistent performance under demanding workloads. The compact rack-mountable form factor makes installation straightforward in wiring closets, equipment rooms, and data centers. Suitable for enterprises, educational institutions, healthcare facilities, hospitality, retail, government organizations, and large branch offices, the Ruckus ICX 7550-24P delivers the performance, scalability, intelligent management, and robust security required to support today's digital transformation initiatives while providing a future-ready foundation for growing network demands.

  • ICX 7550-24P

  • Ruckus

  • Original New

  • 1 year

Availability:
Quantity:

Item

Official Specification

Model Number

ICX 7550-24P

Brand & Series

RUCKUS (CommScope) ICX 7550 Stackable Enterprise Access Switch

Typical Application

Enterprise Office, Wi-Fi 6/6E AP Deployment, IP Surveillance, IP Phone, Hospitality & Campus Networks

Warranty

Limited Lifetime Hardware Warranty

Management Interfaces

CLI Console, Out-of-Band 1G RJ45 MGMT Port, Web GUI, RUCKUS SmartZone, SNMP v1/v2c/v3, SSH, HTTPS

Stacking Capability

Up to 12 units stacked via dual 40G QSFP+ stacking ports, 40G stacking bandwidth per link

Fixed Downlink Ports

24 × 10/100/1000BASE-T RJ45, all PoE+ enabled

Uplink Expansion Slots

1 modular slot (supports 4×1G SFP / 4×10G SFP+ / 2×40G QSFP+ uplink modules)

PoE Standard Compliance

IEEE 802.3af (15.4W/port), IEEE 802.3at PoE+ (30W/port)

Total PoE Power Budget

740W

PoE Feature

Perpetual PoE, Fast-boot PoE, per-port PoE power scheduling

Supported Cabling

Cat5e / Cat6 / Cat6a copper cables

Switching Capacity (Full Duplex)

368 Gbps

64-byte Packet Forwarding Rate

274 Mpps

MAC Address Table

64,000 MAC entries

Packet Buffer Memory

12MB dynamic shared buffer

Jumbo Frame Support

Up to 12,288 bytes

QoS

8 hardware queues per port, WRR + strict priority scheduling, 802.1p DSCP mapping

VLAN Support

4,094 VLANs, 802.1Q tagging, Voice VLAN, Guest VLAN, Private VLAN

Spanning Tree Protocols

STP, RSTP, MSTP, PVST+, RPVST+

Link Aggregation

IEEE 802.3ad LACP, up to 32 LAG groups, 8 ports per LAG

Multicast Functions

IGMP Snooping v1/v2/v3, MLD Snooping, PIM-SM/SSM Multicast Routing

Layer 3 Routing Features

IPv4/IPv6 Static Routing, RIP, OSPF, VRRP, PBR, DHCP Snooping & DHCP Relay

Advanced Virtualization

VXLAN, Hybrid OpenFlow Mode

Network Security

802.1X Port Authentication, WebAuth, MAC Authentication, RADIUS/TACACS+, DoS Protection, Port Security, ARP Guard, Rogue DHCP Blocking, ACL

Power Supply Design

Hot-swappable redundant AC power supplies, dual hot-swappable variable-speed fans

Physical Dimension (W × D × H)

442 mm × 440 mm × 44 mm (17.4 × 17.32 × 1.73 in), 1U standard rack mount

Net Weight

7.2 kg (15.87 lbs)

Input Power

Universal AC 100–240V, 50/60Hz

Idle Power Consumption

32W

Max Full Load Power (Full PoE Output)

805W

Operating Environment

Temperature: 0°C ~ 45°C; Humidity: 10%–90% non-condensing

Storage Environment

Temperature: -20°C ~ 70°C; Humidity: 10%–90% non-condensing

MTBF (25°C Ambient)

1,450,000 hours

Installation Options

19-inch rack mount, desktop placement

Regulatory Certifications

CE, FCC Class A, UL, CSA, RoHS Compliant

Shenzhen Importgm Technology Co., Ltd.

Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.

gs图片IMG_8380(1)


客户

包装

物流



Q: What are the application scenarios for the ICX 7550-24P?

A: The ICX 7550-24P is ideal for enterprise campus networks, branch offices, and education environments, delivering reliable Gigabit connectivity with PoE support for wireless access points, IP phones, and surveillance cameras.

Q: How to install the ICX 7550-24P switch?

A: The ICX 7550-24P can be installed in a standard 19-inch rack. Follow the installation guide to complete the mounting, power connection, and network cabling correctly.

Q: Does the ICX 7550-24P need upgrades?

A: Regular firmware updates are recommended for the ICX 7550-24P to improve performance, enhance security, and ensure compatibility with the latest network features.

Q: Are there alternative products to the ICX 7550-24P?

A: Alternatives to the ICX 7550-24P include other Ruckus ICX 7550 Series models, offering different port densities, PoE options, and uplink configurations for various deployment needs.

Q: What are common troubleshooting tips for the ICX 7550-24P?

A: For common issues, verify power and Ethernet connections, check switch configuration settings, and keep the firmware updated. Refer to the official Ruckus documentation for additional troubleshooting guidance.
