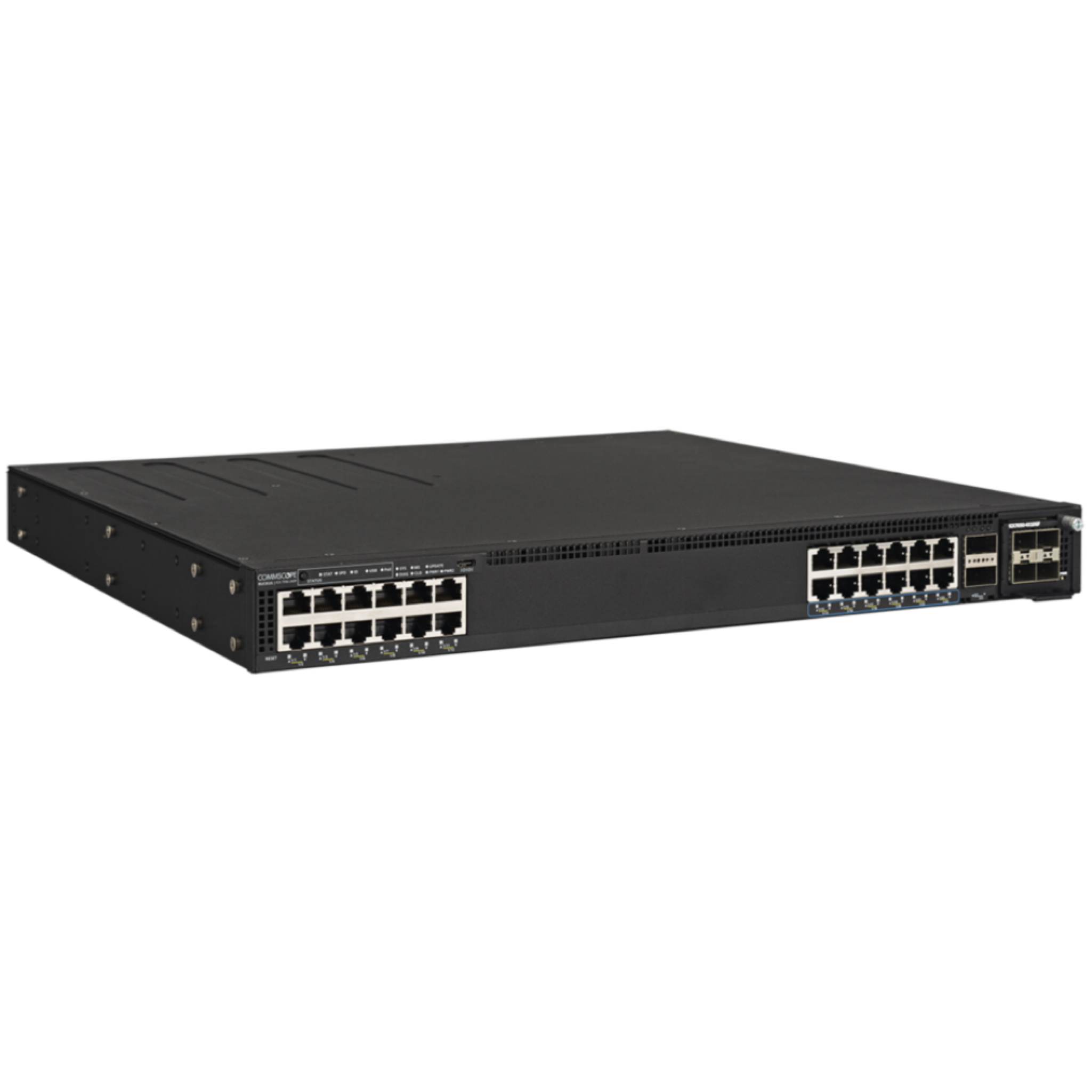

The Ruckus ICX 7550-24XZP is a high-performance enterprise-class Layer 3 access switch designed to support next-generation campus networks, high-density wireless deployments, and bandwidth-intensive business applications. It features 24 multigigabit Ethernet ports supporting 1G/2.5G/5G/10G speeds, enabling organizations to fully utilize the capabilities of Wi-Fi 6 and Wi-Fi 6E access points without replacing existing copper cabling. The switch delivers advanced PoE++ (802.3bt) power with a substantial power budget, allowing reliable operation of high-power devices such as wireless access points, IP cameras, VoIP phones, and IoT equipment. In addition, the ICX 7550-24XZP includes high-speed 25GbE uplink interfaces for seamless aggregation and low-latency connectivity to distribution or core layers, helping eliminate network bottlenecks as traffic demands grow. Built on the proven Ruckus ICX architecture, it provides wire-speed switching performance, enterprise-grade Layer 2 and Layer 3 routing capabilities, advanced security features, VLAN segmentation, QoS, ACLs, IPv4/IPv6 support, and comprehensive network management through the Ruckus management ecosystem. The compact 1U form factor makes it suitable for campus access closets, branch offices, education environments, healthcare facilities, hospitality networks, and medium to large enterprise deployments. Designed for scalability, reliability, and simplified operations, the Ruckus ICX 7550-24XZP offers a future-ready networking solution that combines multigigabit access, high-density PoE, and high-speed uplink performance to support modern digital transformation initiatives while reducing infrastructure upgrade costs.
ICX 7550-24XZP
Ruckus
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | ICX 7550-24XZP |
Product Series | RUCKUS ICX 7550 Layer 3 Stackable Enterprise Multi-Gigabit PoE Switch |
Primary Application | Wi-Fi 6/6E/7 AP Deployment, IP Cameras, 90W PoE++ IoT Devices, Office VoIP Phones, SMB & Mid-market Campus Networks |
Warranty | RUCKUS 1-Year Standard Hardware Warranty, Extended Support Optional |

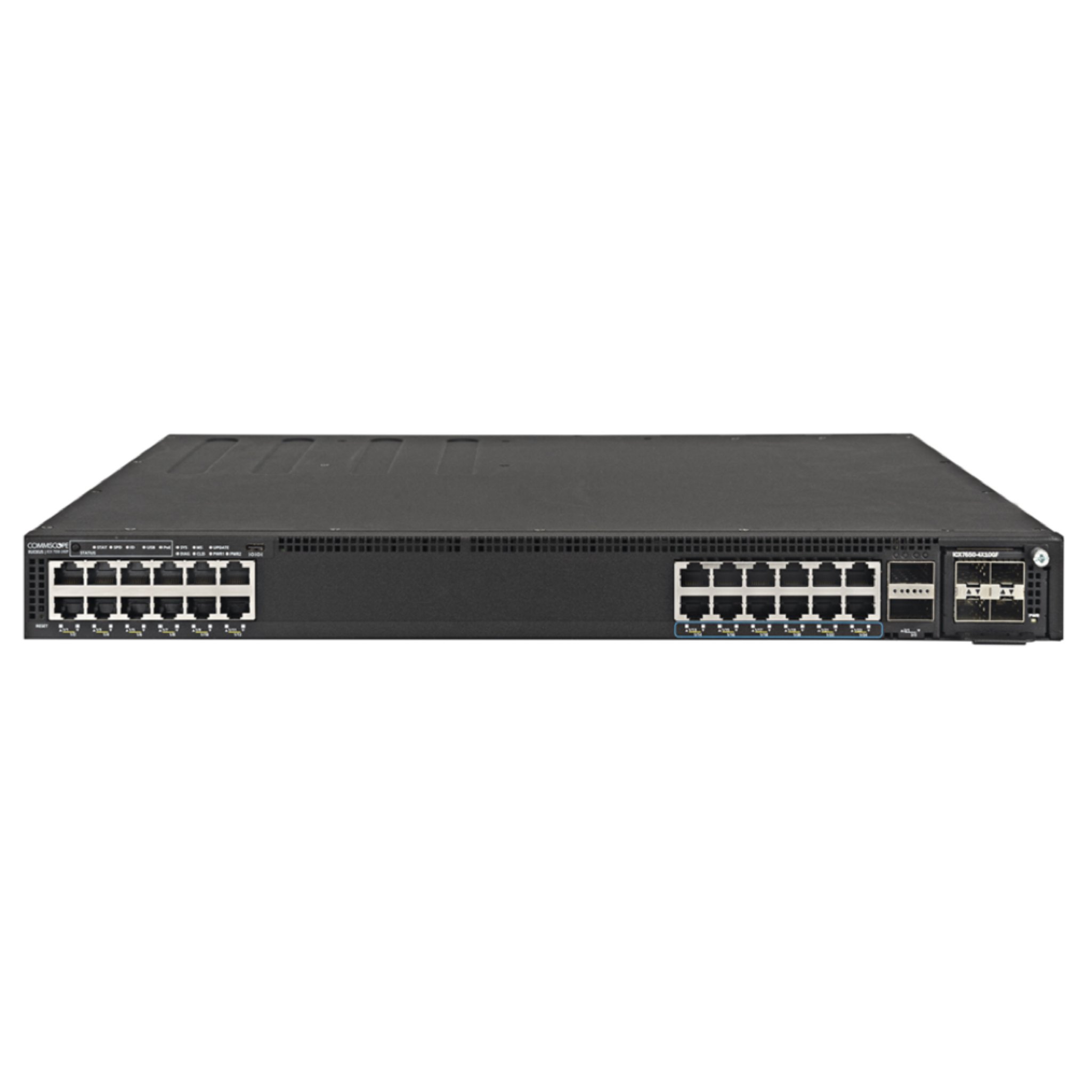

Downlink Port Layout | 12 × 1/2.5G RJ45 PoE++ + 12 × 1/2.5/5/10G Multi-Gig RJ45 PoE++ (Total 24 PoE ports) |
Uplink & Stacking Ports | 2 × Dual-mode 40G/100G QSFP28 ports (support breakout cables for 4×10G/4×25G) |
Management Ports | 1 × RJ45 Console, 1 × USB-C Console, 1 × Dedicated 1G OOB Management RJ45 |
PoE Standard Compliance | IEEE 802.3af (15.4W), 802.3at PoE+ (30W), 802.3bt PoE++ (Max 90W per port) |
Total PoE Power Budget | 2000W (Dual redundant hot-swappable PSUs) |
Stacking Capacity | Up to 12 switches per stack; Max stack bandwidth 2400 Gbps |
Switching Bandwidth | 1020 Gbps |
Forwarding Rate (64-byte packets) | 750 Mpps |
MAC Address Table | 114,000 entries (Profile 2) |
Max VLAN Quantity | 4095 VLANs, supports PVLAN, Voice VLAN, Dynamic VLAN Assignment |
Jumbo Frame Support | Up to 12,288 bytes |
QoS Queues | 48 hardware priority queues per port, EEE Energy Efficient Ethernet |
L2 Protocols | STP/RSTP/MSTP, 802.1X, MACsec, IGMP Snooping v1/v2/v3, MVRP, LACP 802.3ad |
L3 Routing Protocols | Static IPv4/IPv6, RIP, OSPF, BGP, VRRP, PIM, VRF (128 instances), VXLAN |
Security Features | DoS Protection, Port Security, ARP Guard, Rogue DHCP Blocking, SSH/HTTPS, OpenFlow Hybrid Mode |

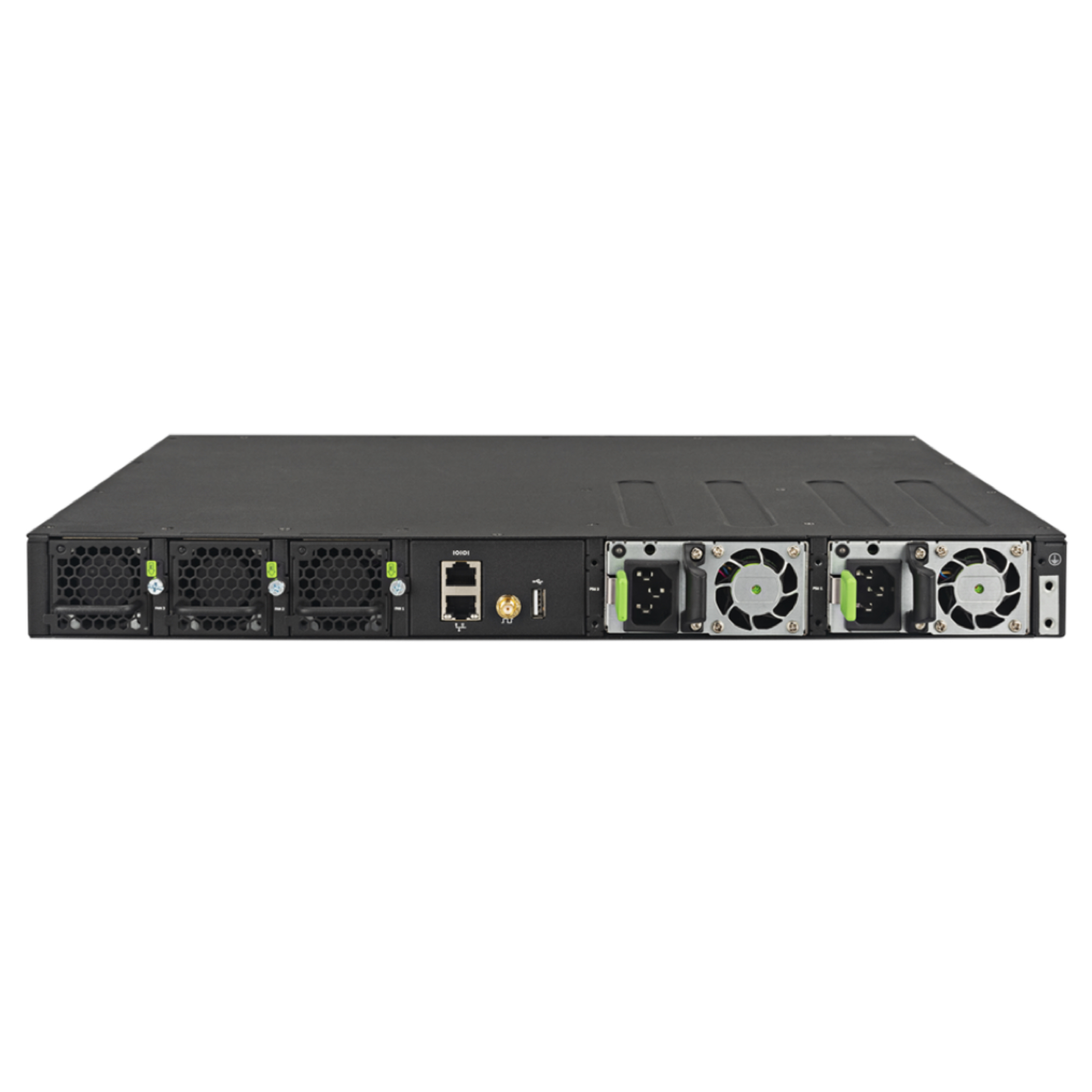

Cooling System | Hot-swappable redundant fan trays, reversible airflow (front-to-back / back-to-front) |
Power Supply | Dual 1+1 hot-swappable universal AC PSUs, 100–240V 50/60Hz |
Physical Dimension (W × D × H) | 440 mm × 406 mm × 44 mm (17.3 × 16 × 1.73 in), 1U standard 19-inch rack mount |
Net Weight | 6.42 kg (14.15 lbs) |
Operating Environment | 0°C ~ 45°C, 10%–90% non-condensing humidity |
Storage Temperature | -20°C ~ 70°C, 10%–90% non-condensing humidity |
MTBF (25°C Ambient) | 532,359 hours |
Supported Management Tools | RUCKUS SmartZone, RUCKUS Cloud, Web GUI, CLI, SNMP, sFlow |
Regulatory Certifications | FCC Class A, CE, UL, CSA, VCCI, RoHS Compliant |
