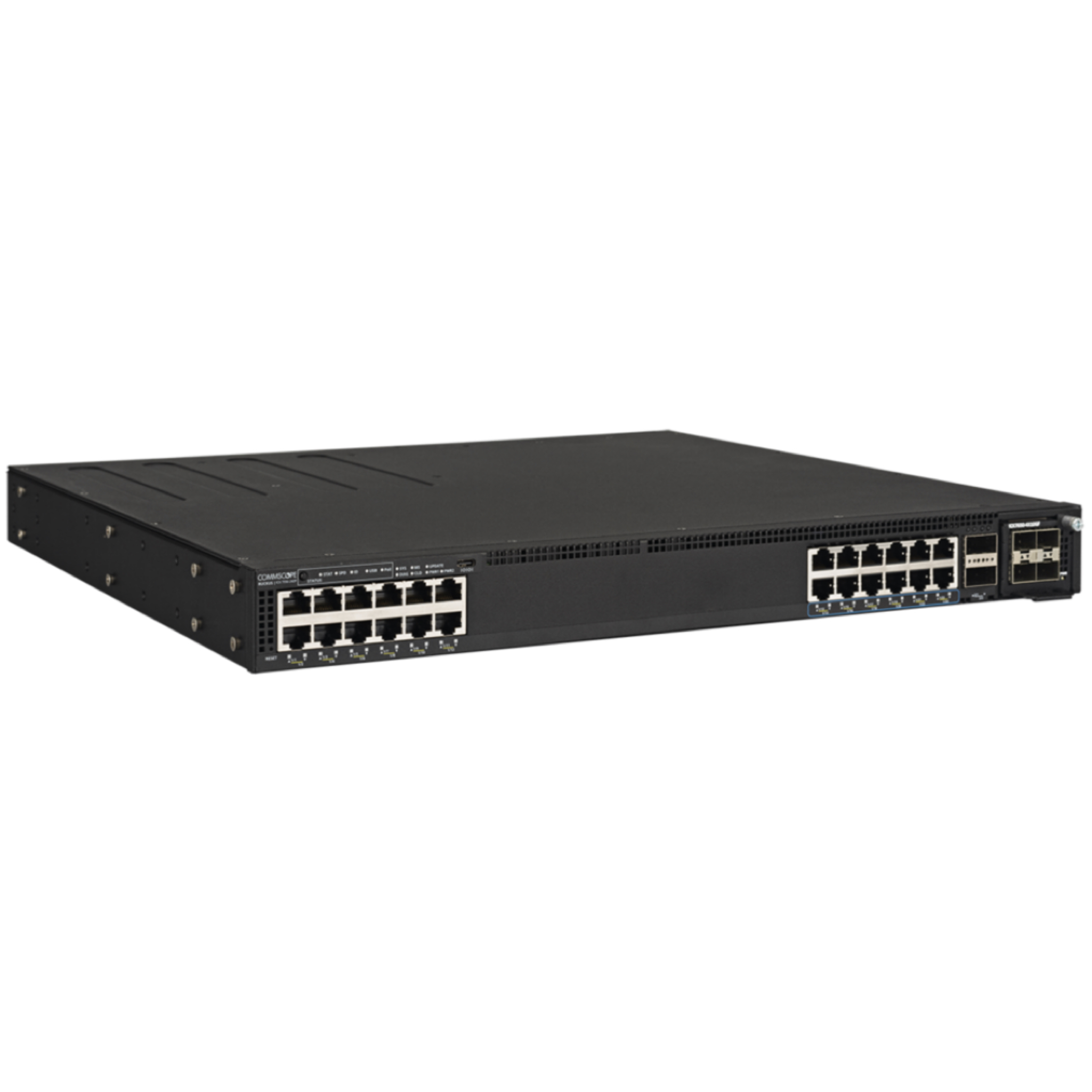

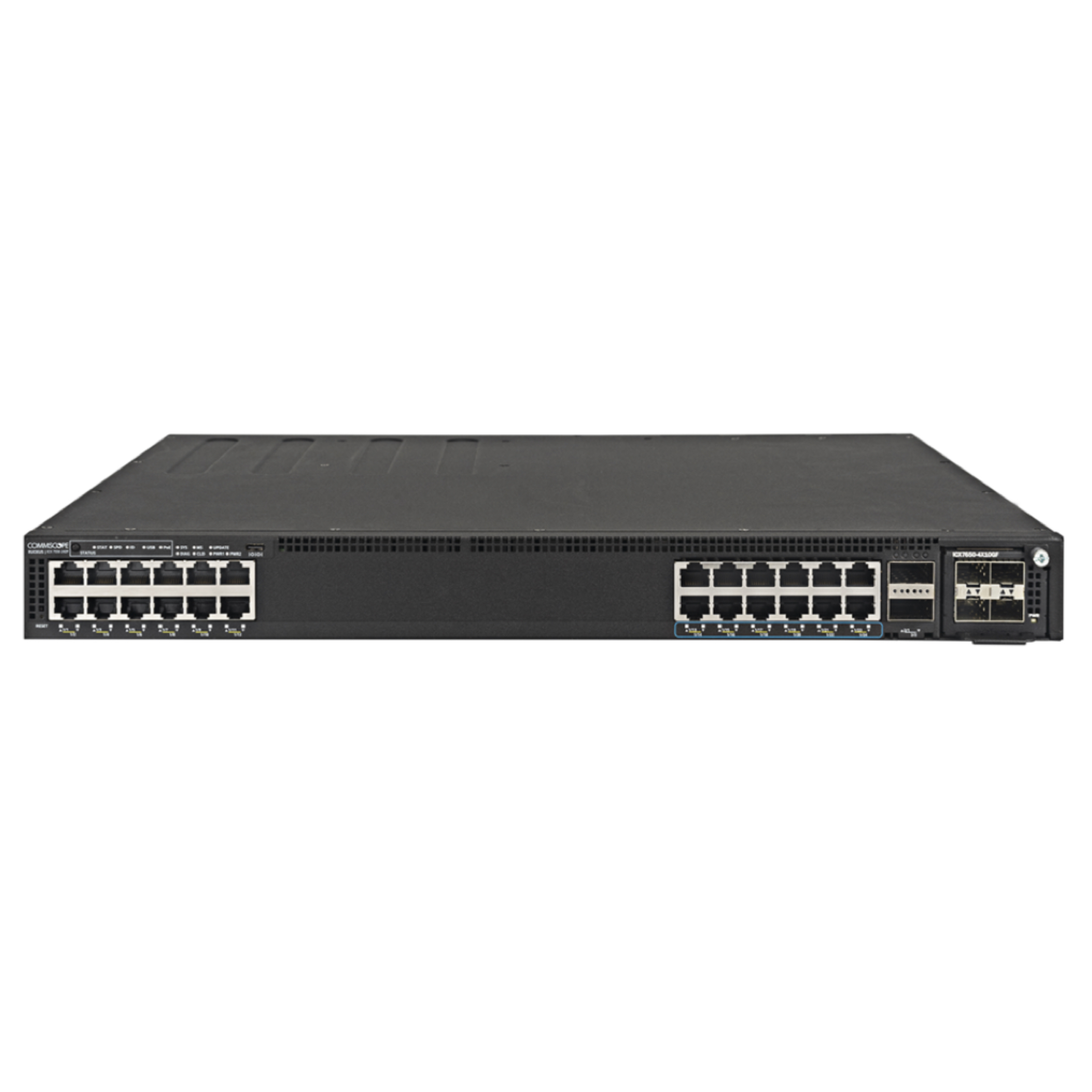

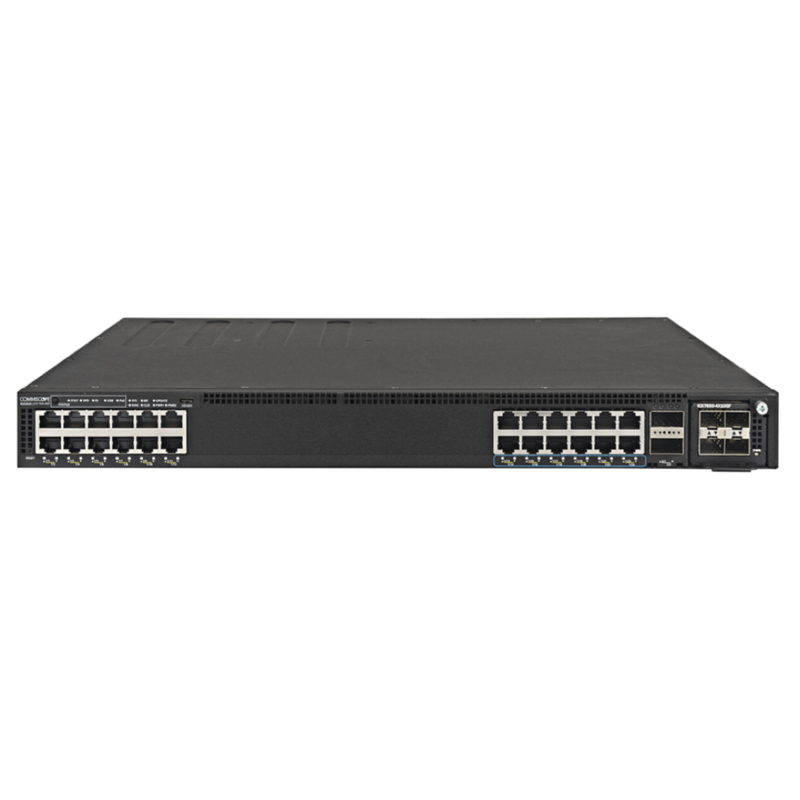

The Ruckus ICX 7550-24XZP-E2 is a high-performance enterprise-class Layer 3 managed switch designed to deliver exceptional network speed, advanced security, and reliable scalability for modern business environments. Featuring 24 high-speed multigigabit Ethernet ports with comprehensive PoE/PoE+ support, this switch is ideal for powering next-generation Wi-Fi 6/6E access points, IP phones, surveillance cameras, and other PoE-enabled devices while providing outstanding data throughput and network efficiency. Built on Ruckus's advanced switching architecture, the ICX 7550-24XZP-E2 offers wire-speed performance, low latency, robust Layer 2 and Layer 3 routing capabilities, enterprise-grade security features, flexible VLAN management, QoS, IPv4/IPv6 support, advanced multicast services, and comprehensive network management options to simplify deployment and maintenance. Its modular and scalable design allows organizations to expand their infrastructure with ease, making it an excellent choice for enterprise campuses, branch offices, educational institutions, healthcare facilities, hospitality, retail, and high-density commercial environments. The switch also supports high-availability features, stacking technology, redundant power options, and advanced automation capabilities to maximize network uptime and operational efficiency. Engineered for long-term reliability, energy efficiency, and seamless integration into existing enterprise networks, the Ruckus ICX 7550-24XZP-E2 provides a future-ready networking solution that delivers superior performance, simplified management, enhanced security, and outstanding investment value for organizations seeking a dependable and scalable switching platform.
ICX 7550-24XZP-E2
Ruckus
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | ICX 7550-24XZP-E2 |
Brand & Series | CommScope RUCKUS ICX 7550 Stackable Layer 3 Enterprise Switch |
Application Scenarios | Enterprise Access/Aggregation, Wi-Fi 6/7 AP Deployment, IP Camera, Smart Building, VoIP Phone, High-Density Multi-Gig PoE Network |
Port Configuration | 24 × Multi-Gigabit RJ45 (10/100/1000/2500/5000/10000BASE-T), IEEE 802.3bt PoE++ per port; 2 × QSFP28 40G/100G Uplink/Stacking Ports; 4 × 10G SFP+ Fiber Slots; 1 × RJ45 OOB Management Port; USB & Serial Console Ports |
PoE Standard Support | IEEE 802.3af (15.4W), 802.3at PoE+ (30W), 802.3bt PoE++ (Max 90W per port) |
Total PoE Power Budget | Up to 1900W (Dual AC Redundant Power Supplies Installed) |
Switching Bandwidth | 720 Gbps |
64-byte Packet Forwarding Rate | 535.7 Mpps |
MAC Address Table Capacity | 128,000 Entries |
Packet Buffer Memory | 16 MB Dynamic Shared Buffer |
Jumbo Frame Support | Up to 12288 Bytes |
QoS Capability | 8 Hardware Queues per Port, WRR, Strict Priority, 802.1p CoS, DSCP Marking |
VLAN Support | Up to 4094 VLANs, 802.1Q Tagging, Voice VLAN, Guest VLAN, Private VLAN |
Spanning Tree Protocols | STP, RSTP, MSTP, PVST+ |
Link Aggregation | IEEE 802.3ad LACP, Static Trunking |
Multicast Features | IGMP Snooping v1/v2/v3, MLD Snooping, Multicast Replication |
Layer 3 Routing Protocols | Static IPv4/IPv6 Routing, RIP, OSPF, BGP, VRRP, VRF Lite |
Stacking Function | Stackable up to 12 units, Max Stack Bandwidth 2400 Gbps |
Security Features | 802.1X Port Authentication, MACsec Encryption, RADIUS/TACACS+, Port Security, DoS Protection, ARP Guard, Rogue DHCP Blocking, SSH/HTTPS Encrypted Management |
Monitoring & Analytics | sFlow, Port Mirroring, Storm Suppression, Per-port Rate Limiting |

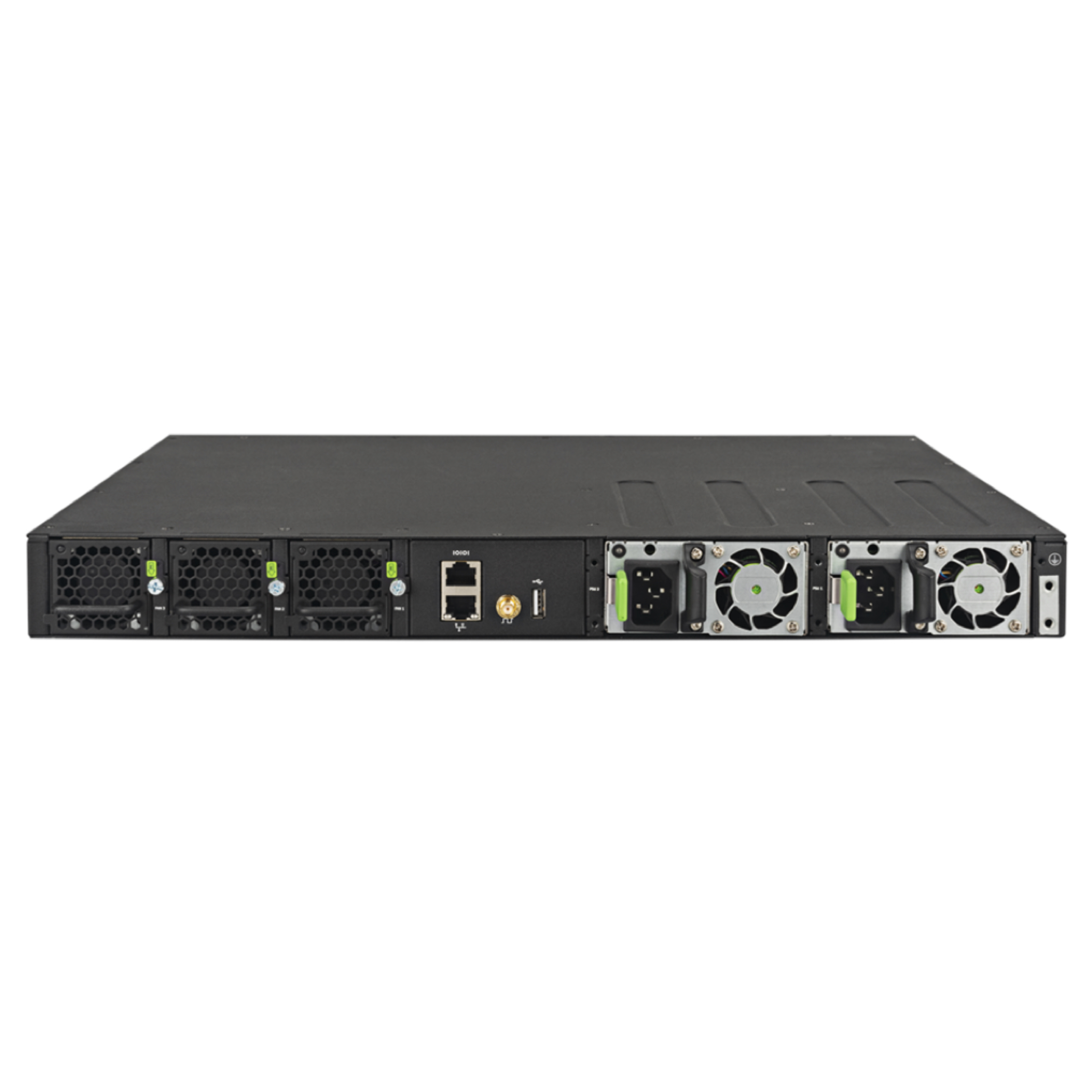

Power Supply | Dual Hot-Swap Redundant AC Power Supplies, 100–240V 50/60Hz, C14 Connector |
Cooling System | 3 Hot-Swap Variable-Speed Fans, Front-to-Back / Back-to-Front Airflow Optional |
Physical Dimension (W × D × H) | 440 mm × 406 mm × 44 mm (17.3 × 16 × 1.73 in), 1U Standard 19-inch Rack Mount |
Net Weight | 6.98 kg (15.39 lbs) |
Operating Environment | Temp: 0°C ~ 40°C; Humidity: 10%–90% Non-Condensing |
Storage Environment | Temp: -25°C ~ 70°C; Humidity: 10%–90% Non-Condensing |
MTBF (25°C Ambient) | 2,878,280 Hours |
Warranty & Support | 3-Year Hardware Warranty + 3-Year Remote Technical Support |
Regulatory Certifications | FCC Class A, CE, UL, CSA, RoHS, UK RoHS Compliant |
