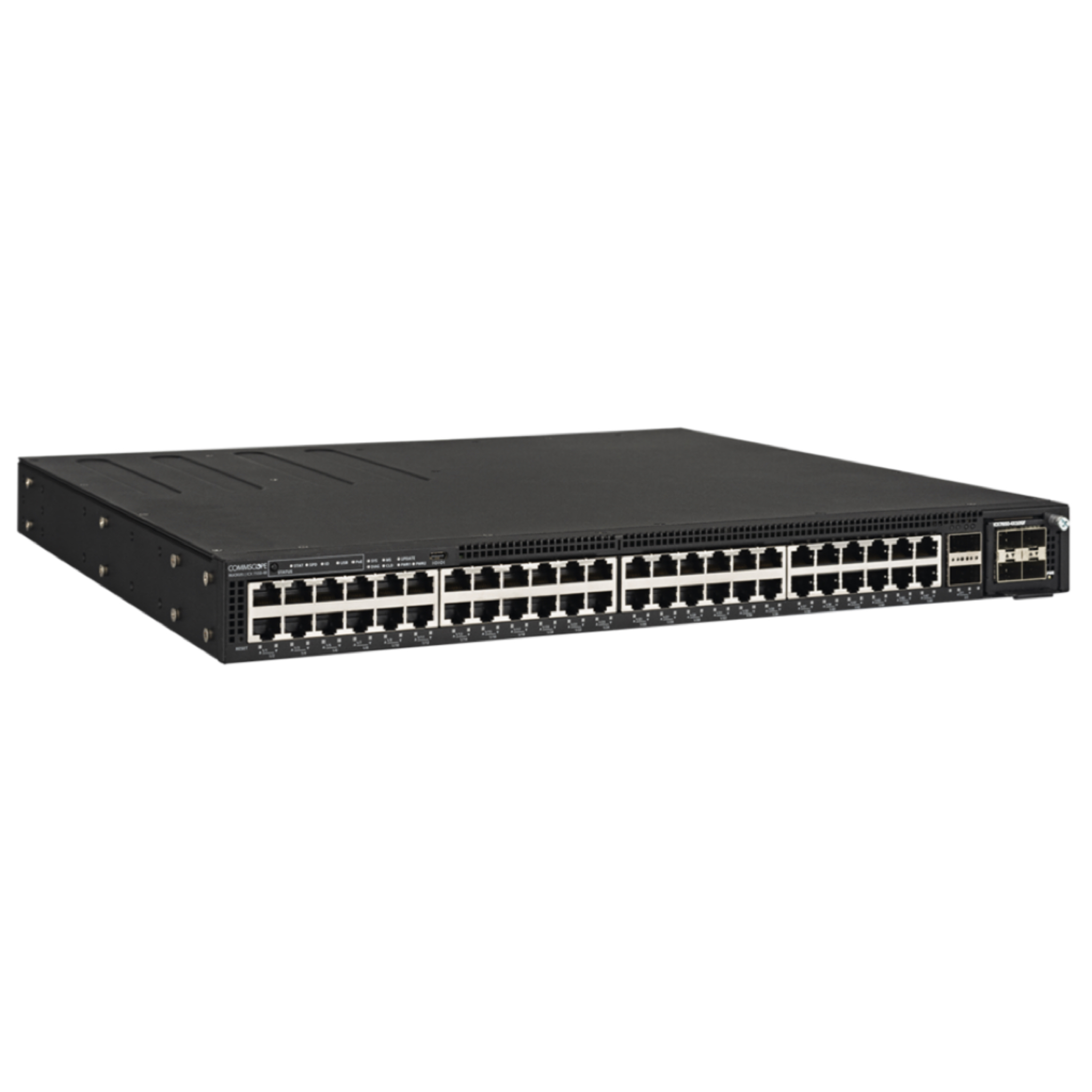

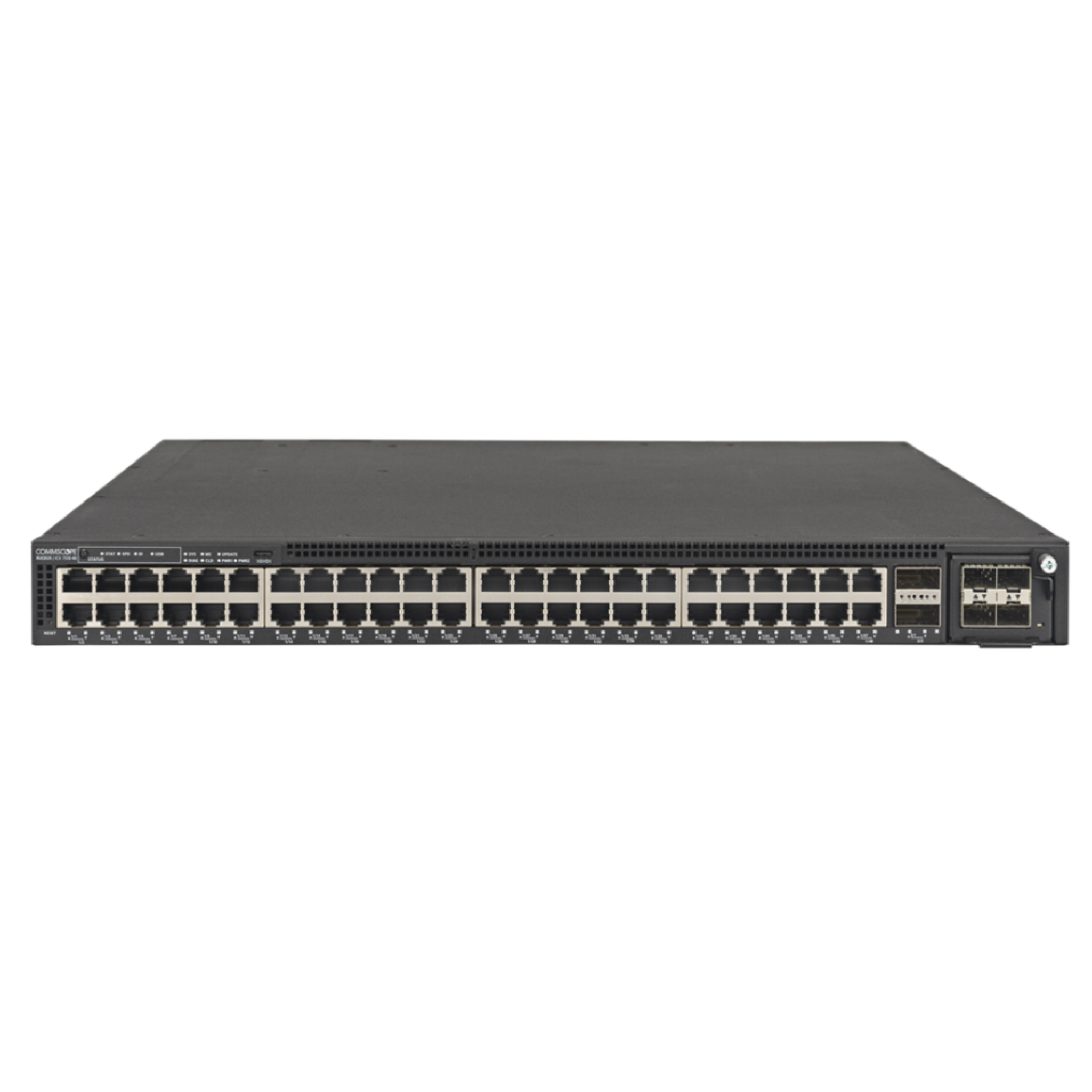

The Ruckus ICX 7550-48-E2 is a high-performance enterprise-class Layer 3 managed Ethernet switch designed to deliver exceptional scalability, reliability, and security for modern campus, enterprise, and data-intensive business networks. Equipped with 48 x 10/100/1000BASE-T Gigabit Ethernet ports, the ICX 7550-48-E2 provides high-density Gigabit connectivity for workstations, IP phones, wireless access points, surveillance cameras, and other networked devices. Built on Ruckus' advanced switching architecture, it offers wire-speed performance, low latency, and high switching capacity to support demanding applications such as cloud computing, unified communications, HD video conferencing, virtualization, and large-scale wireless deployments. The switch features enterprise-grade Layer 2 and Layer 3 routing capabilities, including static routing, RIP, OSPF, VRRP, IPv4/IPv6 support, multicast routing, advanced VLAN management, QoS, ACLs, link aggregation, and comprehensive traffic management functions, enabling organizations to build secure, resilient, and highly efficient networks. Designed for seamless integration with Ruckus wireless solutions, the ICX 7550-48-E2 simplifies network management while providing excellent support for high-density Wi-Fi environments and future network expansion. Its modular uplink architecture offers flexible high-speed connectivity options, allowing businesses to adapt to evolving bandwidth requirements while protecting long-term infrastructure investments. Advanced security features such as IEEE 802.1X authentication, MAC-based authentication, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, secure management protocols, and extensive access control policies help safeguard enterprise networks against unauthorized access and cyber threats. The switch also supports enterprise-class stacking technology, enabling multiple switches to operate as a single logical unit for simplified deployment, centralized management, higher availability, and easier scalability. With comprehensive management options including CLI, Web GUI, SNMP, SSH, RADIUS, TACACS+, Syslog, and network automation support, administrators can efficiently configure, monitor, and maintain network operations. Designed for continuous business operation, the ICX 7550-48-E2 delivers outstanding reliability, energy-efficient operation, and robust hardware performance suitable for enterprise campuses, branch offices, educational institutions, healthcare facilities, hospitality environments, government organizations, financial institutions, and medium to large businesses requiring secure, high-speed, and highly available network infrastructure. Combining enterprise-grade performance, flexible deployment, advanced security, and investment protection, the Ruckus ICX 7550-48-E2 is an ideal switching solution for organizations seeking a dependable, scalable, and future-ready Gigabit Ethernet platform capable of supporting today's business-critical applications and tomorrow's growing networking demands.
ICX 7550-48-E2
Ruckus
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | ICX 7550-48-E2 |
Brand & Series | Ruckus ICX 7550 Enterprise Layer 3 Stackable Switch |
Core Application | Campus Access, Enterprise Aggregation, Wi-Fi 6/6E AP Deployment, IP Surveillance, Office Network Backbone |
Warranty | Ruckus Limited Lifetime Hardware Warranty |
Fixed Downlink Ports | 48 × 10/100/1000BASE-T RJ45 (Non-PoE Base Model) |
Uplink/Stacking Slots | 2 × Dual-Mode 40G QSFP+ Slots (Support 40G/100G Transceivers, Stacking or Uplink) |
Management Interfaces | RJ45 Serial Console, USB-C Console, USB-A Port, Out-of-Band Management Port |
Stacking Capacity | Max 12 switches per single logical stack; Max 960Gbps aggregate stack bandwidth |
Switching Capacity | 240 Gbps Switching Bandwidth |
Forwarding Rate (64-byte packets) | 178.57 Mpps |
MAC Address Table | 64,000 MAC entries |
Packet Buffer | 16MB Shared Buffer Memory |
Jumbo Frame Support | Up to 9,000 Bytes |
QoS Capability | 8 hardware queues per port, Strict Priority + WRR Scheduling, 802.1p CoS Marking |
VLAN Support | Up to 4,094 VLANs, 802.1Q Tagging, Voice VLAN, Guest VLAN, Private VLAN |
Spanning Tree Protocols | STP, RSTP, MSTP, PVST+ |
Link Aggregation | IEEE 802.3ad LACP, Static Trunking, Up to 64 LAG Groups |
Multicast Features | IGMP Snooping v1/v2/v3, MLD Snooping, Multicast VLAN Registration (MVR) |
Layer 3 Routing | Static IPv4/IPv6 Routing, RIP, OSPF, VXLAN, DHCP Snooping & DHCP Relay |
Network Security | 802.1X Port Authentication, Web Authentication, RADIUS/TACACS+, Port Security, DoS Protection, ARP Guard, SSH/HTTPS Encrypted Management |
Monitoring Tools | sFlow, Port Mirroring, Storm Suppression, Port Isolation |

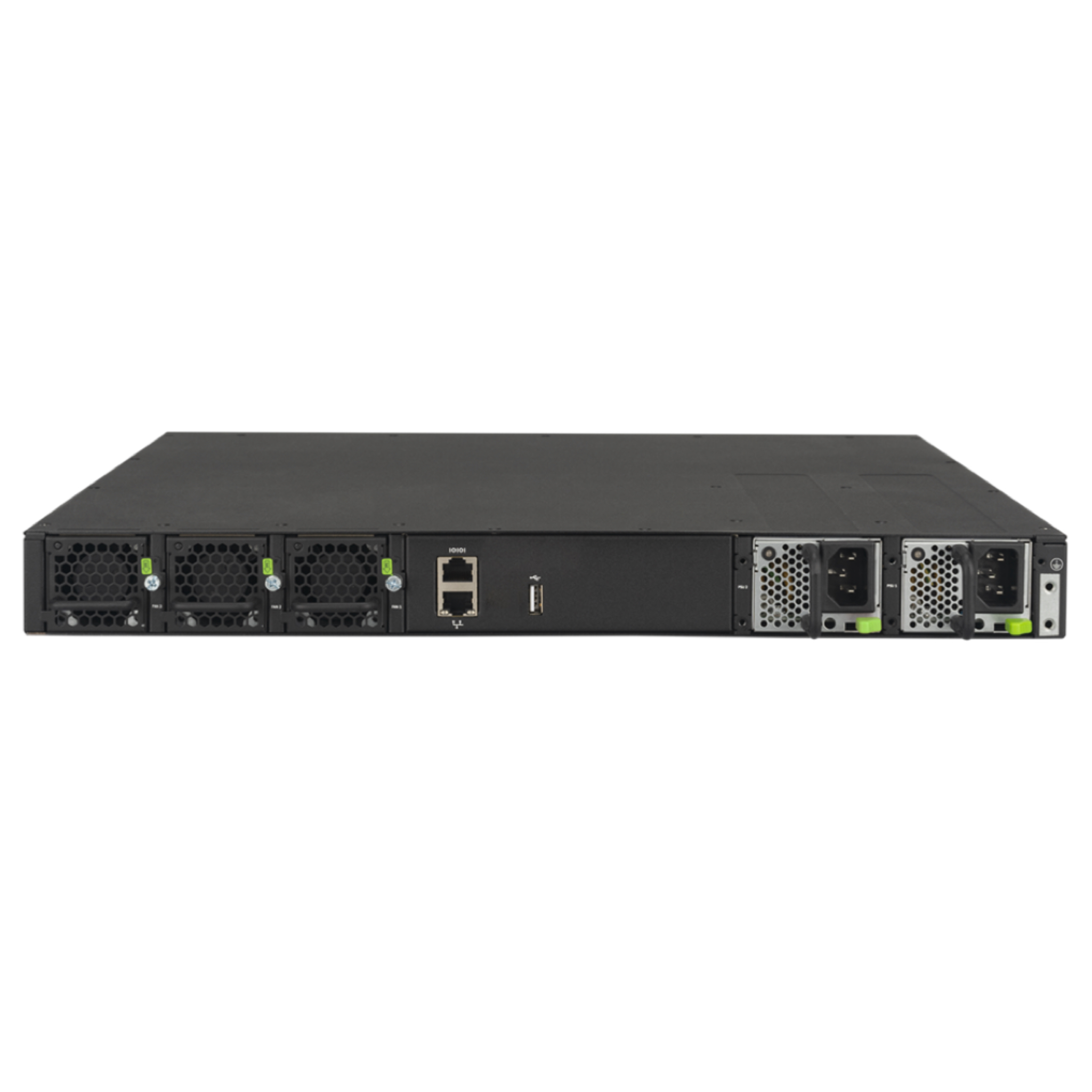

Power Architecture | Modular, Hot-Swappable Dual Redundant AC Power Supplies (2×400W Base PSU) |
Cooling System | Hot-swappable variable-speed fans, Front-to-Back / Back-to-Front airflow configurable |
Idle Power Consumption (25°C, No PoE Load) | 83.1 W |
Physical Dimensions (W × D × H) | 440 mm × 406 mm × 44 mm (17.3" × 16" × 1.73"), 1U Standard Rack Mount |
Net Weight | 7.1 kg (15.65 lbs) |
Input Power | Universal AC 100–240V, 50/60Hz, IEC C14 Input |
Operating Environment | Temperature: 0°C ~ 45°C; Humidity: 10%–90% Non-Condensing |
Storage Environment | Temperature: -20°C ~ 70°C; Humidity: 10%–90% Non-Condensing |
MTBF (25°C Ambient) | 1,350,000 Hours |
Installation Method | 19-inch Rack Mount, Desktop Placement |
Regulatory Certifications | FCC Class A, CE, UL, CSA, RoHS Compliant, VCCI |
