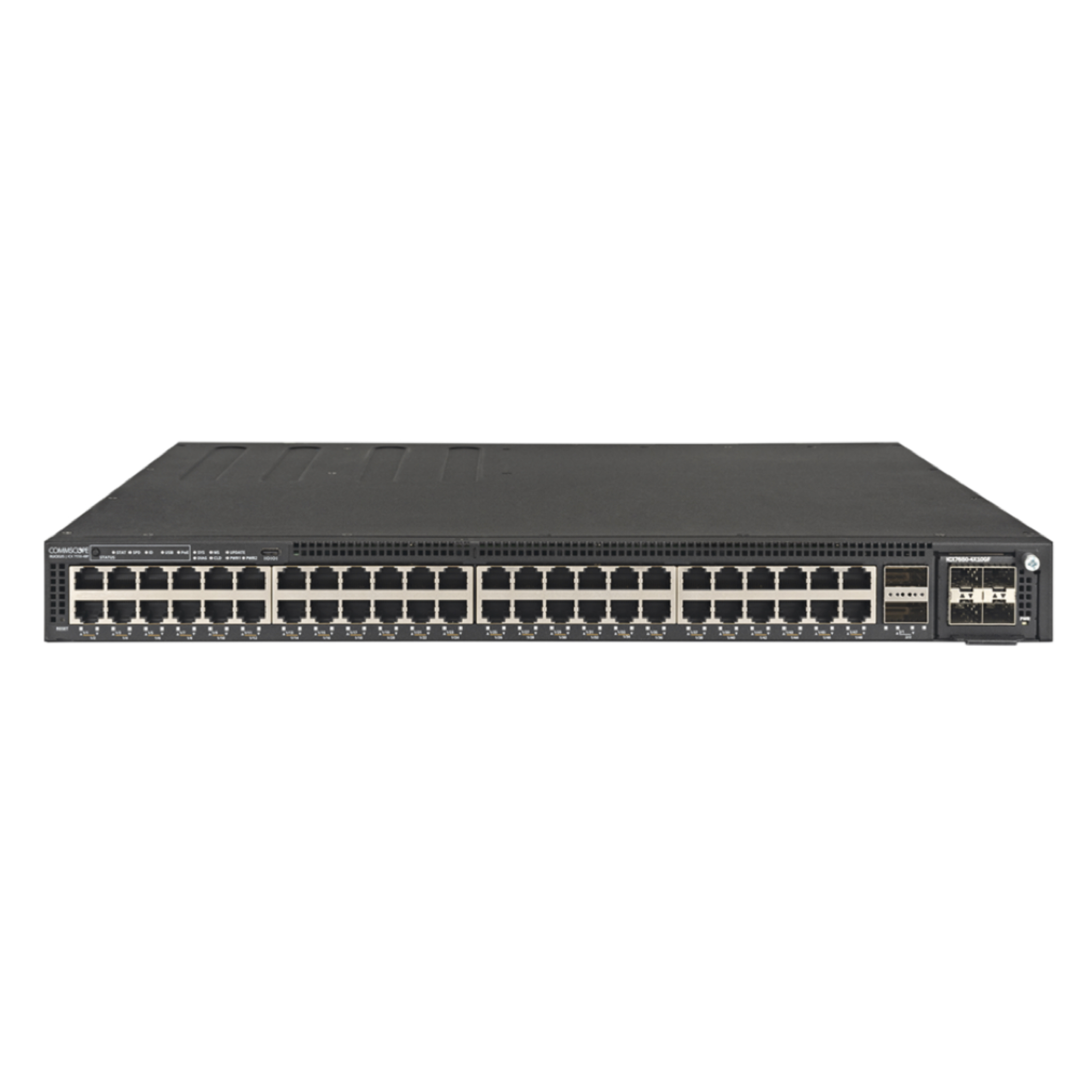

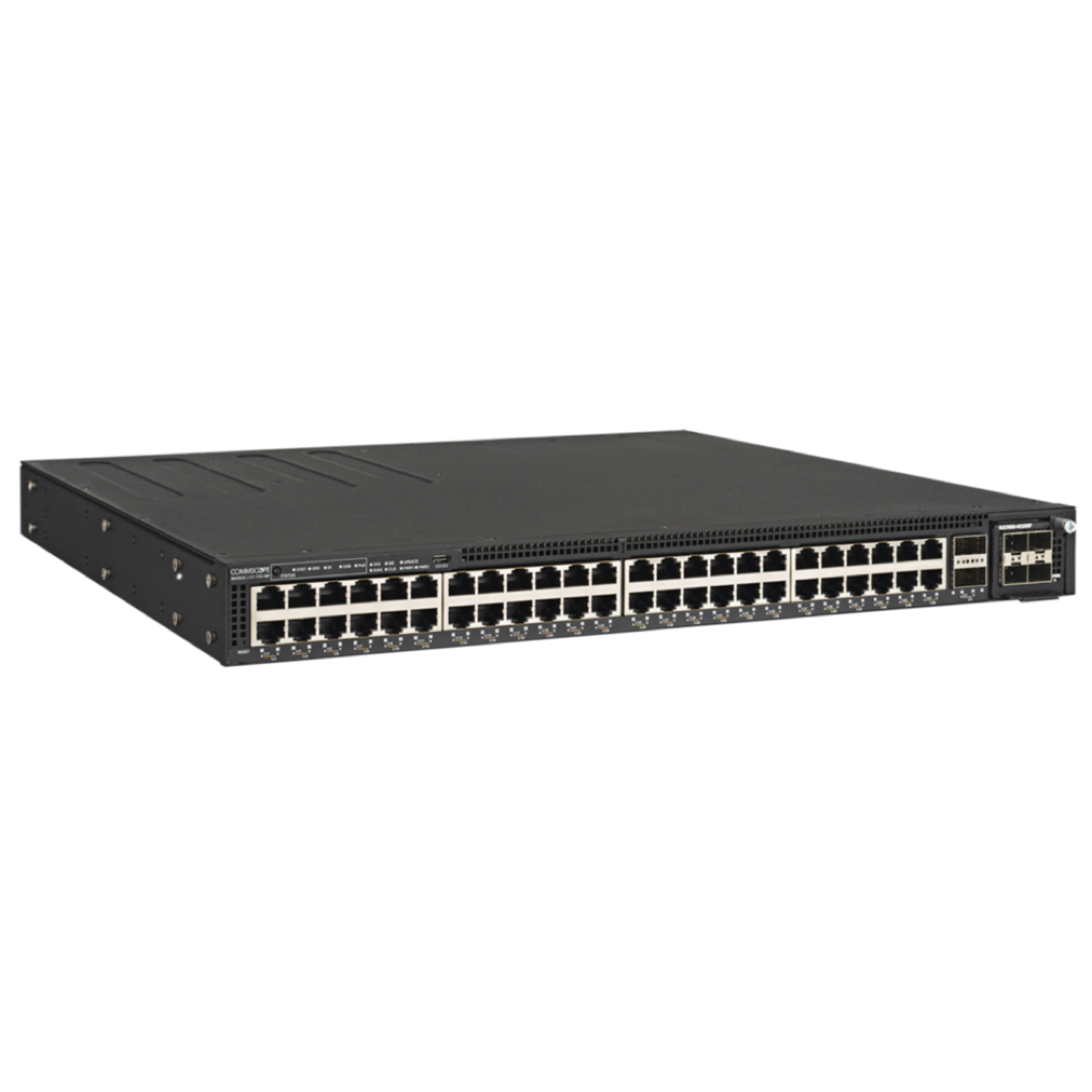

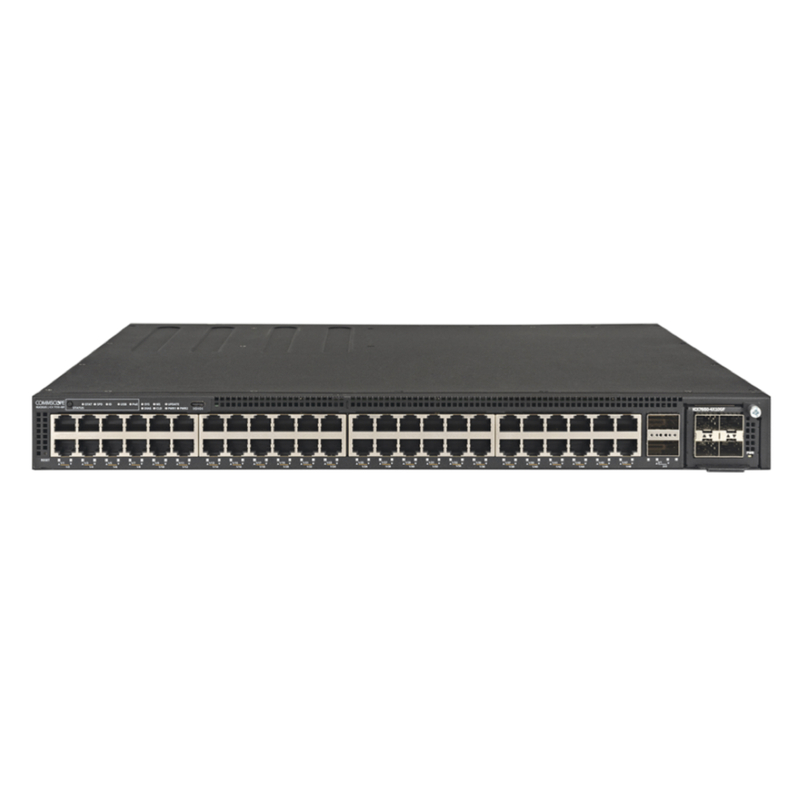

The Ruckus ICX 7550-48P-E2 is a high-performance enterprise-class Layer 3 managed Ethernet switch designed to deliver exceptional scalability, reliability, and advanced networking capabilities for modern business environments. Featuring 48 Gigabit PoE+ Ethernet ports and high-speed 100GbE uplink expansion, it provides the flexibility required to support bandwidth-intensive applications, Wi-Fi 6/6E access points, IP surveillance systems, VoIP communications, and enterprise IoT deployments. Built on Ruckus's advanced switching architecture, the ICX 7550-48P-E2 offers wire-speed performance, low latency, and high switching capacity to ensure smooth and uninterrupted data transmission across campus, branch, and enterprise networks. The switch supports comprehensive Layer 2 and Layer 3 features including static routing, RIP, OSPF, VRRP, IPv4/IPv6 dual-stack, VLANs, ACLs, QoS, multicast, link aggregation, and advanced security mechanisms, enabling organizations to build secure, resilient, and highly available network infrastructures. Its robust PoE+ capability delivers ample power to connected devices such as wireless access points, IP cameras, IP phones, and smart building equipment, reducing deployment costs while simplifying network installation. The ICX 7550-48P-E2 also supports flexible stacking technology, allowing multiple switches to operate as a single logical unit for simplified management, increased redundancy, and seamless network expansion as business requirements grow. Enterprise-grade management options including command-line interface (CLI), web-based GUI, SNMP, REST APIs, and centralized network management provide administrators with comprehensive monitoring, configuration, and troubleshooting capabilities. Designed with energy-efficient hardware, intelligent cooling, and redundant power support, the switch delivers outstanding operational reliability while minimizing power consumption and maintenance costs. Ideal for enterprise campuses, educational institutions, healthcare facilities, government agencies, hospitality venues, retail environments, manufacturing plants, and large office networks, the Ruckus ICX 7550-48P-E2 combines outstanding performance, enterprise-level security, flexible scalability, and dependable PoE connectivity, making it an excellent choice for organizations seeking a future-ready network switching solution capable of supporting today's digital transformation and tomorrow's evolving connectivity demands.
ICX 7550-48P-E2
Ruckus
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model SKU | ICX 7550-48P-E2 |
Brand & Series | RUCKUS (CommScope) ICX 7550 Stackable Enterprise Switch |
Core Application | Enterprise Campus Access, Wi-Fi 6/6E AP Deployment, IP Phones, IP Surveillance Cameras, SMB Aggregation Layer |

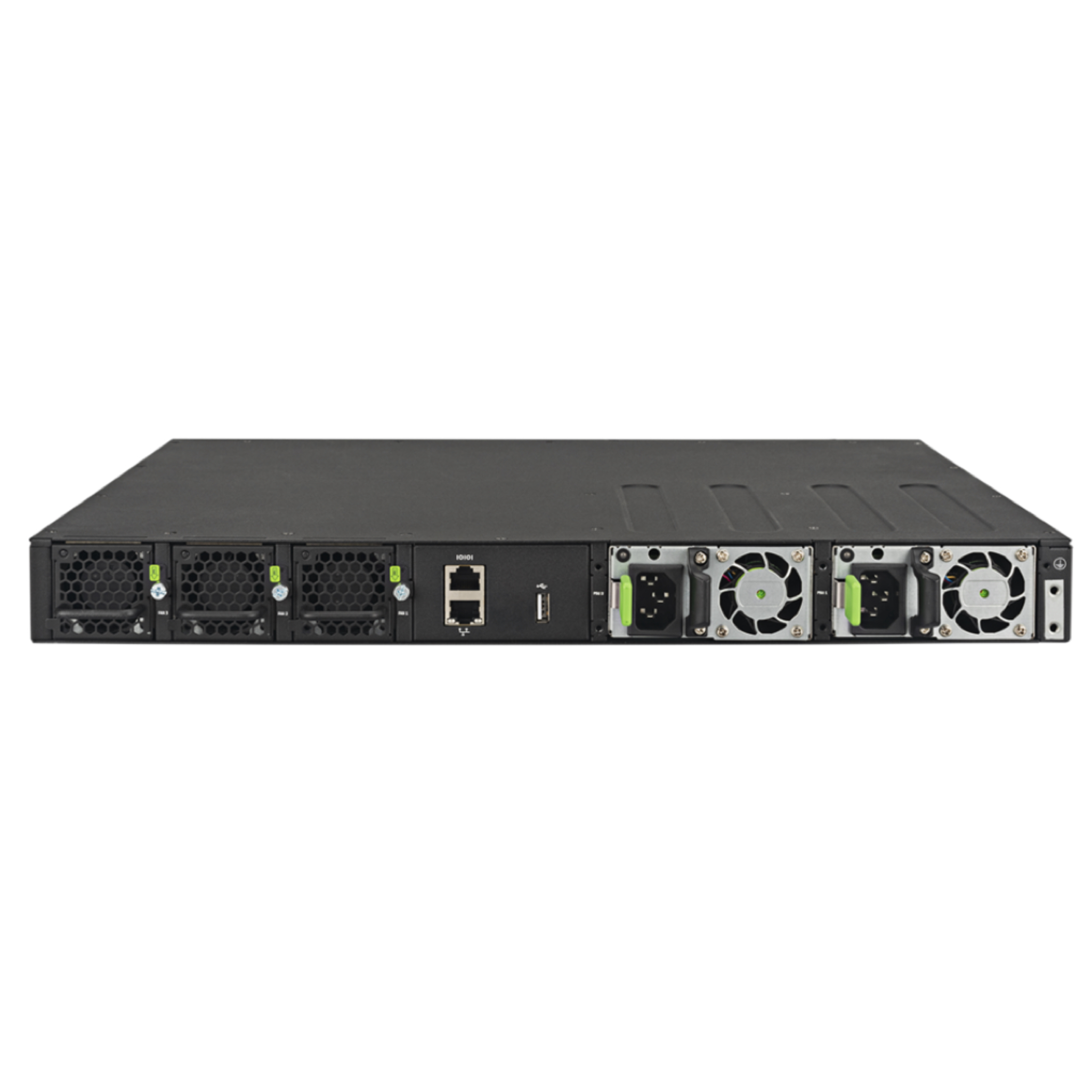

Bundle Configuration (E2 Version) | Pre-installed 2×1200W AC Redundant Power Supplies, 3 Hot-swappable Fans, Front-to-Back Exhaust Airflow |
Downlink Ports | 48 × 10/100/1000BASE-T RJ45, all IEEE 802.3at PoE+ enabled |
Uplink / Stacking Ports | 2 × 40G QSFP+ Dual-Mode Ports (Support 40G stacking / 40G fiber uplink) |
Expansion Slot | 1 Modular I/O Slot (Supports optional 1G/10G/40G/100G uplink modules) |
Out-of-Band Management | 1 × 1G RJ45 Management Port, RJ45 Console Port, USB Console |
PoE Standard Support | IEEE 802.3af (15.4W/port), IEEE 802.3at PoE+ (30W max per port) |
Total PoE Power Budget | 2000W (180–240V AC input); 1666W (100–180V AC input) |
Switching Bandwidth (Full Duplex) | 416 Gbps |
64-byte Packet Forwarding Rate | 309 Mpps |
MAC Address Table Capacity | 64,000 MAC entries |
Packet Buffer Memory | 12MB Dynamic Shared Buffer |
Jumbo Frame Support | Up to 12288 bytes |
Stacking Capacity | Max 12 switches per stack; Stack bandwidth up to 960 Gbps |
QoS Capability | 8 hardware queues per port, WRR + Strict Priority, 802.1p DSCP mapping |
VLAN Features | Up to 4094 VLANs, 802.1Q tagging, Voice VLAN, Guest VLAN, Private VLAN |
Spanning Tree Protocols | STP, RSTP, MSTP, PVST+ |
Link Aggregation | IEEE 802.3ad LACP, static trunking, up to 32 LAG groups |
Multicast Functions | IGMP Snooping v1/v2/v3, MLD Snooping, Multicast VLAN Registration |
Layer 3 Routing | Static IPv4/IPv6 Routes, RIP v1/v2, OSPF, DHCP Snooping, DHCP Relay |
Security Features | 802.1X Port Auth, Web Auth, RADIUS/TACACS+, Port Security, DoS Protection, ARP Guard, SSH/HTTPS encrypted management |
Monitoring Tools | sFlow, Port Mirroring, Storm Suppression, Port Isolation |
Physical Form Factor | 1U standard 19-inch rackmount chassis |
Dimensions (W × D × H) | 440 mm × 406 mm × 44 mm (17.3 × 16 × 1.73 in) |
Net Weight | 7.1 kg (15.65 lbs) |
Power Input | Universal AC 100–240V, 50/60Hz; Dual redundant hot-swappable PSU |
Idle Power Consumption (No PoE) | 83.1W |
Max Full Load Power (Full PoE Output) | 1131.6W |
Operating Temperature | 0°C ~ 45°C, 10%–90% non-condensing humidity |
Storage Temperature | -20°C ~ 70°C, 10%–90% non-condensing humidity |
MTBF (25°C Ambient) | 1,450,000 hours |
Regulatory Certifications | FCC Class A, CE, UL, CSA, VCCI, RoHS Compliant, TAA Compliant |
Supported Firmware | FastIron OS 10.x and above |
Official Hardware Warranty | Limited Lifetime Hardware Warranty |
