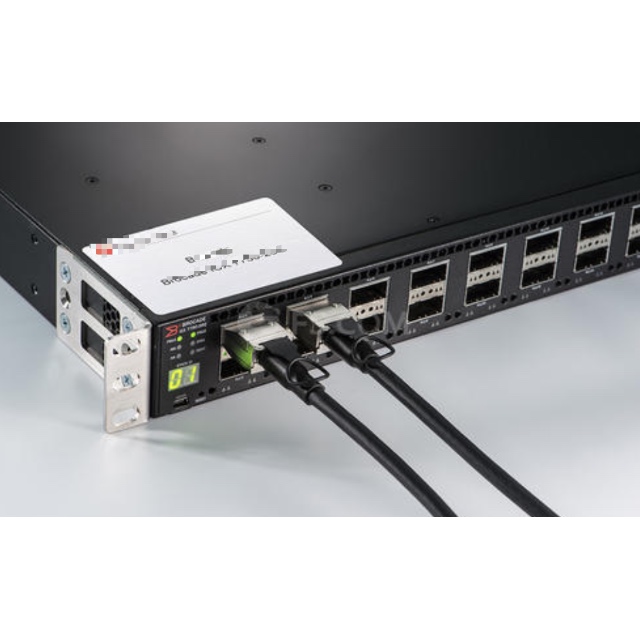

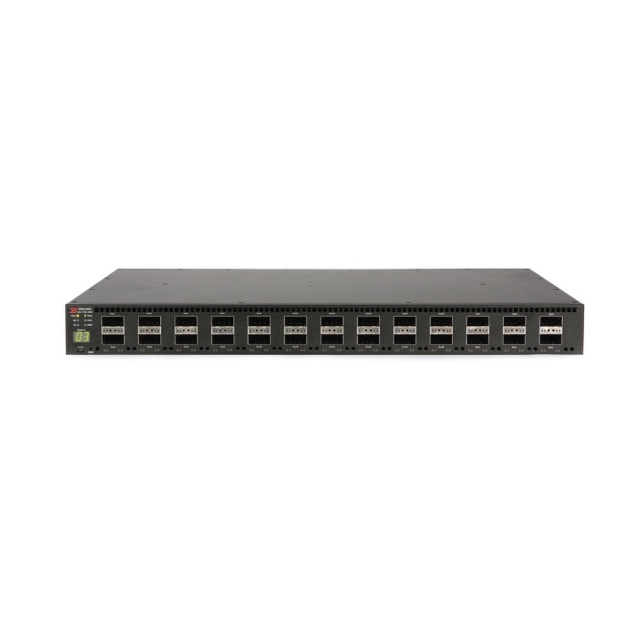

ICX 7750-26Q
Ruckus
Original New
1 year
Availability: | |
---|---|
Quantity: | |
The Ruckus ICX 7750-26Q features 26 40 GbE QSFP+ ports that can be split* into as many as 96 10 GbE SFP+ ports
ICX 7750-26Q Specification | |
Switching capacity (data rate, full duplex) | 2.56 Tbps |
Forwarding capacity (data rate, full duplex) | 1.90 Bpps |
Fixed ports: 40 Gbps QSFP+ | 26 |
Modular slots | 1 |
Modular ports: 40 Gbps QSFP+ (max.) | 6 |
Latency | 550 ns |
Dynamic packet buffer size | 12.2 MB |
Base IPv4/IPv6 Layer 3 routing entitlement (Static Routing, RIP) | • |
Advanced IPv4/IPv6 Layer 3 routing (OSPF, BGP, PIM, PBR, VRF) | With Certificate of Entitlement |
Aggregated stacking bandwidth (data rate, full duplex) | 5.76 Tbps |
Power inlet (AC) | C14 |
Input voltage/frequency | AC: 100 to 240 VAC @ 50 to 60 Hz DC: 40 to 60 VDC |
Maximum power draw | 586 W |
Power supply rated maximum (AC) | 2×500 W |
Power supply rated maximum (DC) | 2×500 W |
Switch power utilization1 (25°C) Typical Maximum | 274 W 350 W |
Weight (with 2 power supplies, 4 fans, optional 6 ports module, no transceivers) | 8.83 kg (19.43 lb) |
Dimensions | 440 mm (17.323 in.) W 406.4 mm (16 in.) D 43.6 mm (1.730 in.) H; (1U) |
Acoustics (25°C, ISO 7779) | 62 dBA |
MTBF (25°C) | 364,061 hours |
