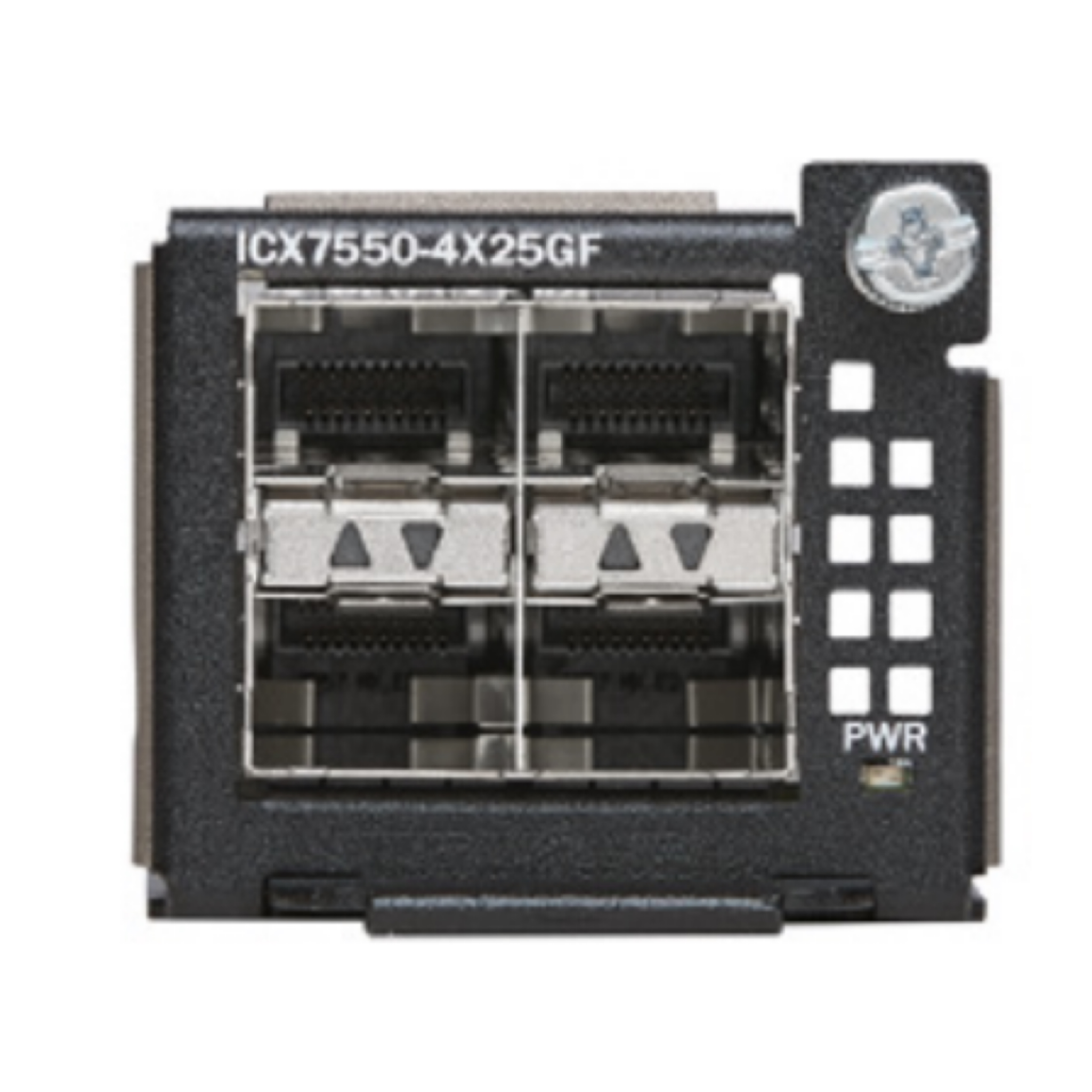

The Ruckus ICX 7550-4X25GF is a high-performance network expansion module designed for the Ruckus ICX 7550 switch family, providing four 1/10/25 Gigabit Ethernet SFP28 ports to support high-speed uplinks, server connectivity, and flexible network expansion. Built for modern enterprise, campus, and aggregation network environments, the ICX 7550-4X25GF enables organizations to increase network bandwidth and meet the growing demands of data-intensive applications, cloud services, wireless infrastructure, and high-performance computing. Its multi-speed interface support offers excellent deployment flexibility, allowing network administrators to adapt to existing 10GbE infrastructure while providing a smooth upgrade path to 25GbE connectivity. When integrated with compatible Ruckus ICX 7550 switches, the module helps deliver scalable switching performance, reliable data transmission, and efficient network architecture for business-critical operations. The compact, modular design simplifies installation and network upgrades, making it suitable for enterprises, educational institutions, data centers, service providers, and system integrators seeking dependable high-speed networking solutions. With Ruckus enterprise-class switching technology, the ICX 7550-4X25GF is an ideal choice for customers who require greater uplink capacity, flexible connectivity, and long-term network scalability. We supply original and brand-new Ruckus networking products with stable inventory and reliable global shipping support, making the Ruckus ICX 7550-4X25GF a practical option for distributors, resellers, IT procurement teams, and network project buyers worldwide.
ICX 7550-4X25GF
Ruckus
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | ICX 7550-4X25GF |
Product Series | RUCKUS ICX 7550 Mid-Range Enterprise-Class Stackable Access/Aggregation Switch |
Target Application | Enterprise Campus Networks, SMB Branch Offices, Wi-Fi 6/6E AP Deployment, Server Interconnect, High-Speed Fiber Uplink Scenarios, Building Network Backbone |
Warranty | CommScope Limited Lifetime Hardware Warranty |
Management Interfaces | CLI, Web UI, SNMP v1/v2c/v3, REST API, RUCKUS SmartZone, RUCKUS Cloud, Cisco DNA Center Compatible, 1G Out-of-Band Management Ethernet Port, RJ45 Console Port |
Stacking Support | Up to 12 switches per stack, 2x40G QSFP+ dedicated stacking ports, single logical device management |
Downlink Ports | 48 × 10/100/1000BASE-T RJ45 Ethernet Ports (non-PoE) |
Uplink Ports | 4 × 25GBASE-SR/LR/ER SFP28 Fiber Uplink Ports |
Supported Transceivers | RUCKUS 25G SFP28, 10G SFP+, 40G QSFP+, 100G QSFP28 Transceivers, Compatible with Standard Industry-Grade Optics |
Switching Bandwidth (Full Duplex) | 416 Gbps |
64-byte Packet Forwarding Rate | 309.5 Mpps |
MAC Address Table Capacity | 32,000 Entries |
Shared Packet Buffer | 8 MB |
Jumbo Frame Support | Up to 12288 Bytes |
QoS Hardware Queues | 8 Queues per Port, WRR + Strict Priority Scheduling, Energy Efficient Ethernet (EEE) Support |
VLAN Capacity | Max 4093 VLANs, 802.1Q Tagging, Voice VLAN, Guest VLAN, VLAN Trunking |
Spanning Tree Protocols | STP (802.1D), RSTP (802.1w), MSTP (802.1s), PVST+, RPVST+ |
Link Aggregation | IEEE 802.3ad LACP, Up to 8 LAG Groups |
Multicast Features | IGMP Snooping v1/v2/v3, Multicast Replication, Port-Based Multicast Filtering |
Port Functions | Port Mirroring, Port Isolation, Port Rate Limiting, Broadcast/Multicast/Unicast Storm Suppression |
Layer 3 Routing Features | IPv4/IPv6 Static Routing, RIP, OSPF, BGP, VRF, DHCP Snooping, DHCP Relay, ARP Guard |
Security Features | 802.1X Port Authentication, MACsec (802.1AE), DoS Attack Protection, Port Security, IP/MAC Binding, RADIUS/TACACS+ Authentication, SSH/HTTPS Encrypted Management, ACLs, Rogue DHCP Server Blocking |
Cooling Design | Dual Variable-Speed Fans, 51 dBA Noise Level at 25°C Ambient Temperature |
Physical Dimensions (W × D × H) | 445 mm × 406.4 mm × 44 mm (17.5 × 16 × 1.73 in), 1U Standard 19-inch Rackmount |
Net Unit Weight | 6.30 kg (13.89 lbs) |
Power Input | Built-in Universal AC Power Supply, 100–240V AC, 50/60Hz, Redundant Power Supply Support |
Idle Power Consumption | 35W (110V) / 33W (220V) |
Max Full Load Power Consumption | 55W (110V) / 52W (220V) |
Operating Temperature | 0°C ~ 45°C, 10%–90% Non-Condensing Humidity |
Storage Temperature | -25°C ~ 70°C, 10%–90% Non-Condensing Humidity |
MTBF (25°C Ambient) | 1,200,000 Hours |
Installation Method | Standard 19-inch Rack Mount, Desktop Placement |
Regulatory Certifications | CE, FCC, UL, CSA, RoHS Compliant |
