The RUCKUS ICX 7650-1X100GQ is a high-performance uplink expansion module designed for compatible RUCKUS ICX 7650 series switches, providing one 40/100 Gigabit Ethernet QSFP28 uplink port for high-bandwidth enterprise and campus network deployments. Delivering up to 100 Gbps of uplink bandwidth, this module enables network administrators to expand switching connectivity and support demanding applications that require fast, reliable data transmission between access, aggregation, and core network layers. Its QSFP28 interface offers flexible 40GbE and 100GbE connectivity, making it suitable for high-speed network backbones, data-intensive environments, next-generation wireless infrastructure, and enterprise aggregation applications. The ICX 7650-1X100GQ is engineered to integrate with the modular architecture of supported ICX 7650 switches, allowing organizations to enhance uplink capacity as network traffic and performance requirements grow. With its compact module design and high-speed connectivity, it provides a practical solution for improving network scalability, reducing potential bandwidth bottlenecks, and supporting modern business applications, cloud services, high-density user environments, and large-volume data transfers. Designed for enterprise-class network infrastructure, the RUCKUS ICX 7650-1X100GQ delivers the speed, flexibility, and expansion capability required by campus networks, data centers, educational institutions, large enterprises, and other demanding network environments seeking dependable 40G/100G uplink performance.

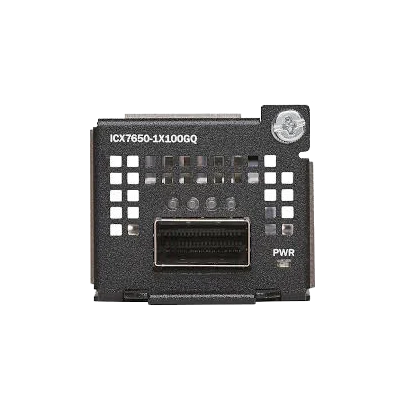

ICX 7650-1X100GQ
Ruckus
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Part Number | ICX7650-1X100GQ |
Product Type | Hot-swappable 100G QSFP28 Uplink/Stacking Module for ICX 7650 Series Switches |
Compatible Host Devices | All Ruckus ICX 7650 chassis models (ICX7650-24P, ICX7650-48P, ICX7650-48F) |
Port Configuration | 1 × QSFP28 port (100 Gbps full-duplex) |
Supported Speeds | 100GBASE-SR4, 100GBASE-LR4, 100GBASE-CR4 (100G DAC copper cable) |
Interface Standard | QSFP28 MSA compliant |
Bandwidth Per Port | 100 Gbps full-duplex |
Application Scenarios | Campus high-speed stacking, core aggregation uplink, data center inter-switch link, high-bandwidth backbone connection |
Hot Swap Support | Yes, hot-pluggable without powering down host switch |
Stacking Capability | Supports Ruckus ICX stacking, expands stack bandwidth to 100G inter-switch links |
Transceiver Compatibility | Works with Ruckus-branded & third-party standard QSFP28 100G transceivers/DACs |
Power Consumption | Max 12W (module only, power drawn from ICX7650 main chassis) |
Physical Form Factor | Front panel plug-in module for ICX7650 dedicated uplink slot |
Operating Temperature | 0°C to 40°C ambient, 10%–90% non-condensing relative humidity |
Storage Temperature | -20°C to 70°C, 10%–90% non-condensing relative humidity |
MTBF (25°C) | 1,850,000 hours |
Regulatory Certifications | CE, FCC Class A, UL, RoHS 2, REACH |
Matching Switch Series | Ruckus ICX 7650 enterprise stackable Layer 3 campus switches |
Software Requirement | FastIron OS 10.0 and above |
