901-T301-WW61
Ruckus
100% Original Brand
1 Year
| Color: | |
|---|---|
| size: | |
| Quantity: | |
RUCKUS T310 802.11ac Wave 2 series is designed with more variety than any other outdoor AP in the market today. The T310 Series uses patented RUCKUS antenna optimization and interference mitigation technologies to improve throughput, connection reliability, and deliver industry-leading 802.11ac Wave 2 performance to every connected client.

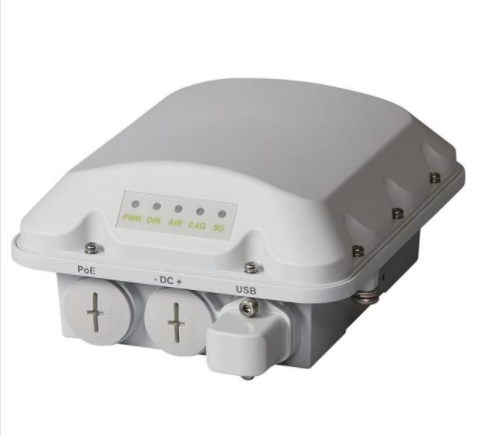

Figure 1 shows the appearance of 901-T310-WW61.
Table1 shows the Quick Specs.
SKU | 901-T310-WW61 |
Concurrent Users | 512 |
Ethernet Ports | 1 x 1GbE |
Fiber Interface | No |
USB | 1 USB 2.0 port, Type A |
PHY Rate at 2.4 GHz, maximum | 300 Mb/s |
PHY Rate at 5 GHz, maximum | 867 Mb/s |
Radio Chains and Streams | 2x2:2 |

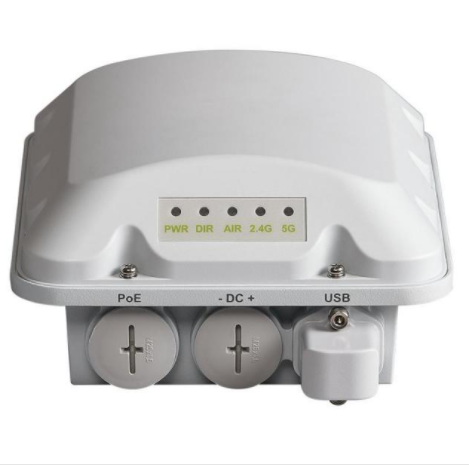

Figure 2 shows the front panel of 901-T310-WW61.
RUCKUS -901-T310-WW61 has these key features:
①Variety
One size does NOT fit all. The T310 series offers the broadest variety of APs in the market today with options of power, antenna design, and/or IoT support. All these enable customers to meet specific use case needs that may not be possible with standard APs.
②Simplicity
Ruckus’ Outdoor APs make Wi-Fi deployments extremely simple to deploy with one-touch technologies like SmartMesh™.
③Stunning Wi-Fi Performance
Extends coverage with patented BeamFlex+TM adaptive antenna technology while mitigating interference by utilizing up to 64 directional antenna patterns.
④Great Outdoor Wi-Fi
Experience high performance outdoor 802.11ac Wave 2 Wi-Fi with IP-67 weather proofing.
⑤Multiple Management Options
Manage the T310 Series with physical or virtual controller appliances.
⑥Serve More Devices
Connect more devices simultaneously with two MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while also enhancing non-Wave 2 device performance.
⑦Get Optimal Throughput
ChannelFly™ dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.
⑧More Than Wi-Fi
Enhance your network with Cloudpath security and management software, SPoT real-time Wi-Fi location engine and analytics software, and SCI network analytics.
Table 2 shows the comparison.
Product Name | 901-T310-WW61 | 901-T310-WW51 | 901-T310-WW20 | 901-T310-WW40 |
Ethernet | 1 x 1GbE port, RJ-45 | 1 x 1GbE port, RJ-45 | 1 x 1GbE port, RJ-45 | 1 x 1GbE port, RJ-45 |
USB | 1 USB 2.0 port, Type A | 1 USB 2.0 port, Type A | No | 1 USB 2.0 port, Type A |
DC Power | 12V DC Terminal Block (8V - 20V) | 12V DC Terminal Block (8V - 20V) | No | 12V DC Terminal Block (8V - 20V) |
Physical Size | 26(L) x 20.9(W) x 10.3(H) cm | 26(L) x 20.9(W) x 10.3(H) cm | 18.1(L) x 15.1(W) x 7.9 (H) cm | 18.1(L) x 15.1(W) x 7.9 (H) cm |
Ingress Protection | IP-67 | IP-67 | IP-67 | IP-67 |
RUCKUS T310 802.11ac Wave 2 series is designed with more variety than any other outdoor AP in the market today. The T310 Series uses patented RUCKUS antenna optimization and interference mitigation technologies to improve throughput, connection reliability, and deliver industry-leading 802.11ac Wave 2 performance to every connected client.
Figure 1 shows the appearance of 901-T310-WW61.
Table1 shows the Quick Specs.
SKU | 901-T310-WW61 |
Concurrent Users | 512 |
Ethernet Ports | 1 x 1GbE |
Fiber Interface | No |
USB | 1 USB 2.0 port, Type A |
PHY Rate at 2.4 GHz, maximum | 300 Mb/s |
PHY Rate at 5 GHz, maximum | 867 Mb/s |
Radio Chains and Streams | 2x2:2 |
Figure 2 shows the front panel of 901-T310-WW61.
RUCKUS -901-T310-WW61 has these key features:
①Variety
One size does NOT fit all. The T310 series offers the broadest variety of APs in the market today with options of power, antenna design, and/or IoT support. All these enable customers to meet specific use case needs that may not be possible with standard APs.
②Simplicity
Ruckus’ Outdoor APs make Wi-Fi deployments extremely simple to deploy with one-touch technologies like SmartMesh™.
③Stunning Wi-Fi Performance
Extends coverage with patented BeamFlex+TM adaptive antenna technology while mitigating interference by utilizing up to 64 directional antenna patterns.
④Great Outdoor Wi-Fi
Experience high performance outdoor 802.11ac Wave 2 Wi-Fi with IP-67 weather proofing.
⑤Multiple Management Options
Manage the T310 Series with physical or virtual controller appliances.
⑥Serve More Devices
Connect more devices simultaneously with two MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while also enhancing non-Wave 2 device performance.
⑦Get Optimal Throughput
ChannelFly™ dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.
⑧More Than Wi-Fi
Enhance your network with Cloudpath security and management software, SPoT real-time Wi-Fi location engine and analytics software, and SCI network analytics.
Table 2 shows the comparison.
Product Name | 901-T310-WW61 | 901-T310-WW51 | 901-T310-WW20 | 901-T310-WW40 |
Ethernet | 1 x 1GbE port, RJ-45 | 1 x 1GbE port, RJ-45 | 1 x 1GbE port, RJ-45 | 1 x 1GbE port, RJ-45 |
USB | 1 USB 2.0 port, Type A | 1 USB 2.0 port, Type A | No | 1 USB 2.0 port, Type A |
DC Power | 12V DC Terminal Block (8V - 20V) | 12V DC Terminal Block (8V - 20V) | No | 12V DC Terminal Block (8V - 20V) |
Physical Size | 26(L) x 20.9(W) x 10.3(H) cm | 26(L) x 20.9(W) x 10.3(H) cm | 18.1(L) x 15.1(W) x 7.9 (H) cm | 18.1(L) x 15.1(W) x 7.9 (H) cm |
Ingress Protection | IP-67 | IP-67 | IP-67 | IP-67 |
